RFID Antenna

Match the antenna to the reading zone

Portals, track checkpoints and embedded equipment need different antenna shapes and mounting arrangements. Match the reader, tag and regional frequency before comparing polarization, gain, cable and connector.

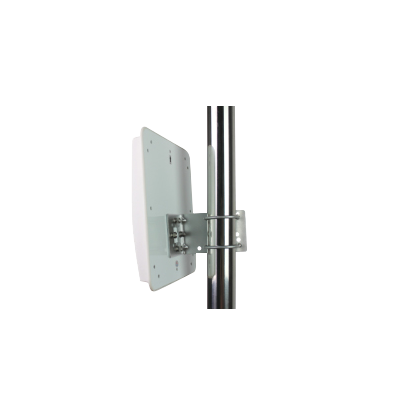

WS-ANT925-C8 product view
Actual product image; configuration is model-specific

WS-ANT925-C8

Warehouse

Plan the zone around handover routes. Test tag orientation, metal obstruction and adjacent-zone reads with the intended reader.

View this product and interface details →
WS-ANT925SMA-12 product view
Actual product image; configuration is model-specific

WS-ANT925SMA-12

Track checkpoints

Place the tube antenna around track and crossing direction. Lap counting requires reader and application logic plus repeat-read testing.

View this product and interface details →

For race timing where runners cross at ground level, use the RFID race timing mat antenna WS-RAM2-U925 laid across the track (1000×333×22 mm per section, linkable).

View the timing mat antenna →
WS-RFIDANTS product view
Actual product image; configuration is model-specific

WS-RFIDANTS

Embedded equipment

Evaluate the ceramic antenna with ground plane for desktop, workstation and issue/return terminals. Check enclosure clearance, nearby metal and cable details.

View this product and interface details →

Verify SMA, N or MCX connectors for the specific model and supplied configuration. Bandwidth, operating frequency and reading range are separate specifications.

Compare the complete product listDiscuss your requirements
  • Title
  • Model
  • Application
  • Frequency (MHz)
    Min/Max
  • Dimension (mm)
    Long/Wide/Thick
    • WS-ANT925-C8 8dBi UHF RFID Antenna | 902–928MHz
    • WS-ANT925-C8
    • Warehouse handover, asset issue and return, production workstation RFID
    • 902~928MHz
    • WS-ANT925-C9IP65 9dBi RFID Antenna | 902–928MHz
    • WS-ANT925-C9IP65
    • UHF RFID vehicle identification, warehouse passageways and asset reading-zone planning.
    • 902~928MHz
    • 258*258*33.5

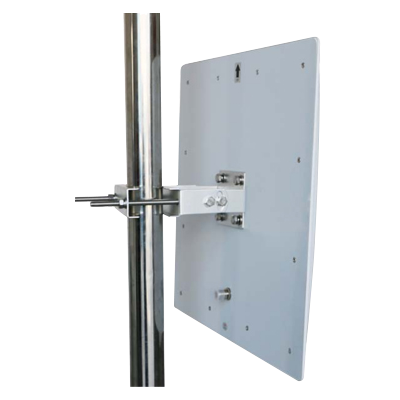

    • WS-ANT925-C12 12dBi UHF RFID Antenna
    • WS-ANT925-C12
    • Loading-bay handover, pallet and returnable-carrier lanes, and fixed asset issue/return stations with compatible UHF RFID readers and coaxial cables.
    • 902~928MHz
    • 445 × 445 × 38

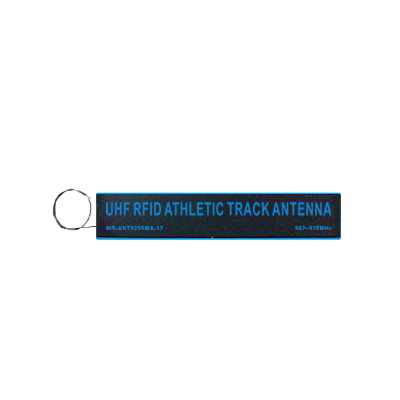

    • WS-ANT925SMA-12 12dBi RFID Tube Antenna
    • WS-ANT925SMA-12
    • Track lap counting, school fitness tests, training checkpoints
    • 902~928MHz
    • 1000 × 185 × 27 mm

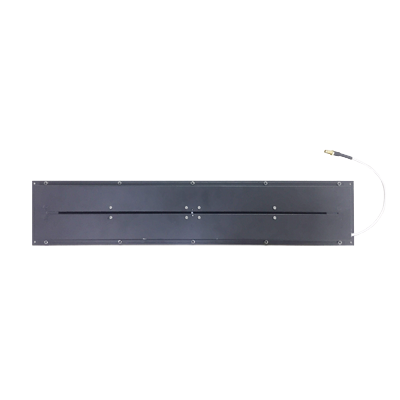

    • WS-ANT925SMA-T8 8dBi RFID Tube Antenna
    • WS-ANT925SMA-T8
    • Doorway attendance, event check-in, server-room asset movements
    • 902~928MHz
    • 530x100x23
    • WS-RFIDANTS 4dBi Ceramic RFID Antenna
    • WS-RFIDANTS
    • Desktop identification, manufacturing workstations, asset issue and return terminals
    • 902~928MHz
    • 65*65*6.82
    • 915MHz 2dBi Ceramic Antenna WS-ANT915-2CPCB
    • WS-ANT915-2CPCB
    • Wireless communication
    • 915MHz
    • WS-Game ball Ant 2dBi Circularly Polarized RFID Antenna
    • WS-Game ball Ant
    • Wireless communication
    • 902~928MHz
    • WS-ANT860-C8 860-868MHz 8dBi Circular RFID Antenna
    • WS-ANT860-C8
    • Warehouse portals, production stations and asset checkout integration
    • 860–868MHz
    • 255×255×45mm
    • WS-ANT860-C9 860-868MHz 9dBi Circular RFID Antenna
    • WS-ANT860-C9
    • Loading lanes, returnable carrier handover and fixed RFID reading zones
    • 860–868MHz
    • 255×255×45mm
    • 860~868MHz 8dBi RFID Tube Antenna WS-ANT860SMA-T8
    • WS-ANT860SMA-T8
    • Wireless communication
    • 860~868MHz
    • WS-ANT860-C12 12dBi RFID Panel Antenna
    • WS-ANT860-C12
    • Wireless communication
    • 860~868MHz
    • 445*445*35
    • WS-RFIDANT10 10-Port UHF RFID Antenna Hub
    • WS-RFIDANT10
    • Multiple inventory stations, asset checkout and warehouse reading zones
    • 920~925MHz(China)
      902~928MHz(USA)
    • WS-ANT433-V5 430–435MHz Directional Antenna
    • WS-ANT433-V5
    • 430–435MHz fixed-end wireless links and directional coverage planning; match frequency band, polarization and feed cable.
    • 430~435MHz
    • 260*260*45
    • WS-900FA 900MHz Flat Antenna | 165×58×8.5mm
    • WS-900FA
    • Compact enclosure integration and 900MHz wireless data equipment evaluation
    • 900MHz
    • 165*58*8.5
    Next page

    RFID Antenna from WENSHING

    WENSHING offers 16 RFID Antenna models, including WS-ANT925-C8 8dBi UHF RFID Antenna | 902–928MHz, WS-ANT925-C9IP65 9dBi RFID Antenna | 902–928MHz, WS-ANT925-C12 12dBi UHF RFID Antenna. Available frequencies include 902~928MHz, 915MHz, 860–868MHz, 860~868MHz, 920~925MHz(China), 902~928MHz(USA), 430~435MHz. Typical applications: wireless communication, warehouse handover, asset issue and return, production workstation rfid, uhf rfid vehicle identification, loading-bay handover. Compare the models below by specification and open any product for full details, datasheets and application examples.

    Need help choosing? Contact our engineers for samples, customization or a quotation.
