RFID / APPLICATION GUIDE

Start with the application.
Find the right RFID reader.

Identify moulds, connect equipment, inventory cabinet zones or record asset locations. Compare readers through the workflow you need to support.

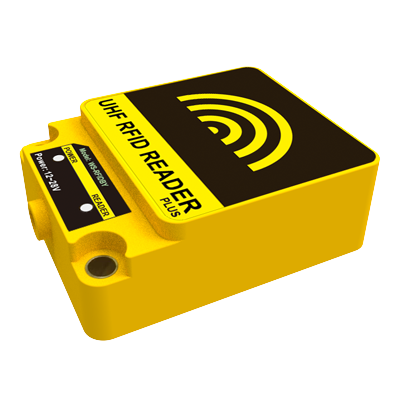

WS-RFIDBY-PLUS2

Connect mould identity with machine usage events.

Identify the installed mould with RFID, then count agreed valid relay events. Re-establish the association at changeover so later events belong to the correct mould.

RFID identityrelay eventmould usage record
Explore the product
WS-RFIDBY-PLUS2 actual product viewActual product photo

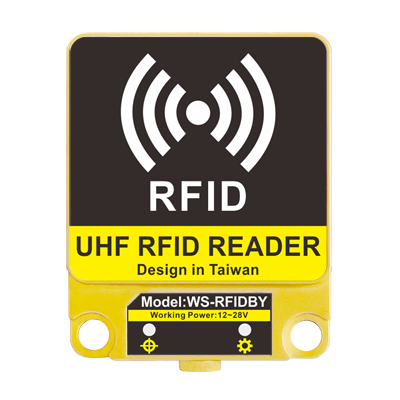

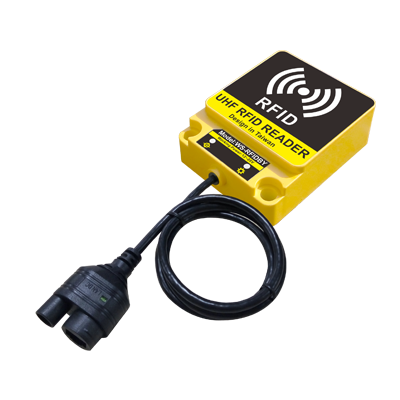

WS-RFIDBY

Give equipment the identity of the passing tag.

Identify AGV landmarks, production workpieces and equipment-side tags. Check controller interfaces, tag mounting material, motion and read zones; mould usage counting is a separate integration requirement.

TagRFID readingcontroller application
Explore the product
WS-RFIDBY actual product viewActual product photo

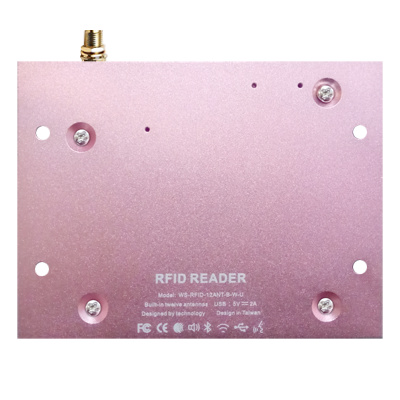

WS-RFID-12ANT-BWU

Extend identification across multiple reading zones.

Use the twelve-antenna UHF RFID reader for equipment cabinets, library cabinets, jewelry inventory and display-item tracking. Plan antenna zones, then validate tags, shielding and inventory workflows.

Inventory zonesantenna layoutinventory integration
Explore the product
WS-RFID-12ANT-BWU actual product viewActual product photo

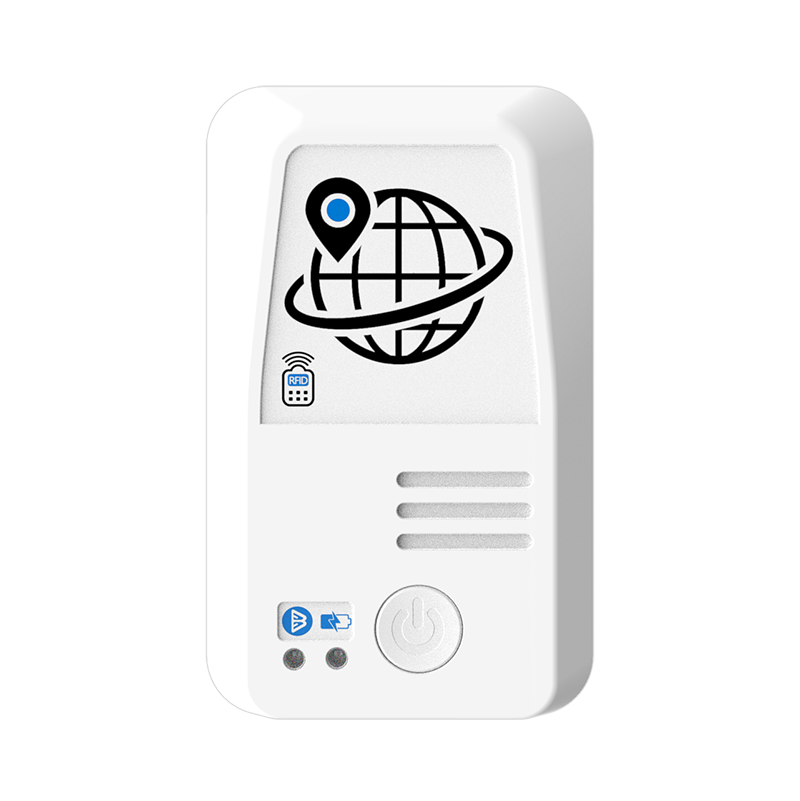

WS-RTLS-RFID

Know what was read—and where that read was recorded.

UHF RFID identifies the item; UWB RTLS supplies location information for inventory, tool and workpiece workflows. Deployment requires base stations, coverage planning and a backend, with an agreed method of associating the read position with the item.

RFID IDUWB RTLSLocation record
View positioning product & deployment
WS-RTLS-RFID actual product front viewActual product photo

01

Define the reading target

Provide tag samples, mounting material and location to validate the target object.

02

Confirm events and interfaces

Distinguish tag reads, machine actions and inventory changes, then identify the controller or host.

03

Validate the installation

Test actual motion, distance, nearby tags and recovery conditions; there is no universal performance guarantee.

Need to compare more models?

The complete product list and individual application descriptions follow below.

View all products ↓
  • Title
  • Model
  • Application
  • Frequency (MHz)
    Min/Max
  • Dimension (mm)
    Long/Wide/Thick

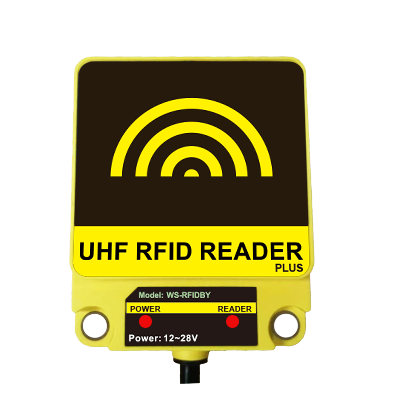

    • WS-RFIDBY-PLUS2 UHF RFID Reader | Mould Identification and Usage Counting
    • WS-RFIDBY-PLUS2
    • On-machine mould identification, relay-based usage counting and multi-machine mould-record integration; also AGV and production-material identification.
    • 902～928MHz
    • 75.15*58.35*25
    • UWB RTLS + UHF RFID Reader WS-RTLS-RFID
    • WS-RTLS-RFID
    • Inventory with location records, manufacturing workpiece/tool tracking and asset search. UHF RFID identification with UWB positioning requires base stations and a host system.
    • 902~928MHz
    • 105*65*10

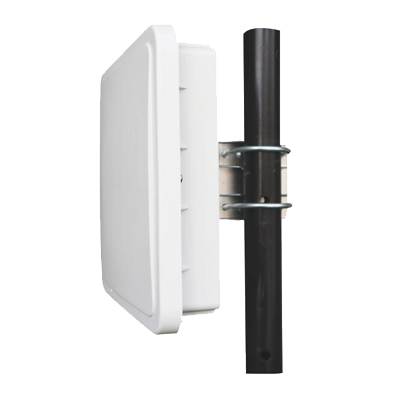

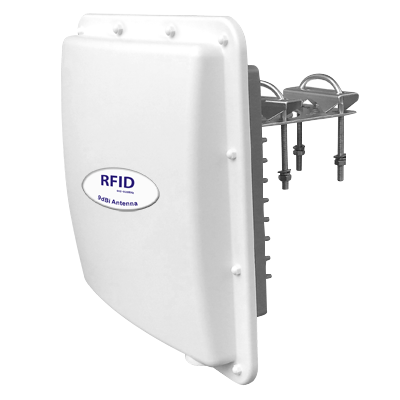

    • WS-RFIDALL-8 UHF RFID Reader | 16 m Range & PoE
    • WS-RFIDALL-8
    • Parking-lane access identification, warehouse pallet dispatch, production racks and carriers, asset entry/exit identification and PoE fixed reading points.
    • 902~928MHz
    • 228*228*68
    • UHF RFID Handheld Reader
      (Type-C)
    • WS-LOOKID-C
    • Handheld warehouse and merchandise inventory, on-site tag reading/writing and mobile data collection with compatible phones, computers and applications.
    • 902~928MHz
    • 138*138*72
    • Drill Bit Tag RFID Reader
    • WS-RFID-DRILL
    • PCB drill-bit identification and integration of usage-count and hole-diameter records into drill-bit management workflows.
    • AGV and Robot UHF RFID Reader | WS-RFIDBY
    • WS-RFIDBY
    • AGV landmark identification, production workpiece tracking, mould identification and machine-side tag data reading.
    • 902~928MHz
    • 75.15*58.35*25

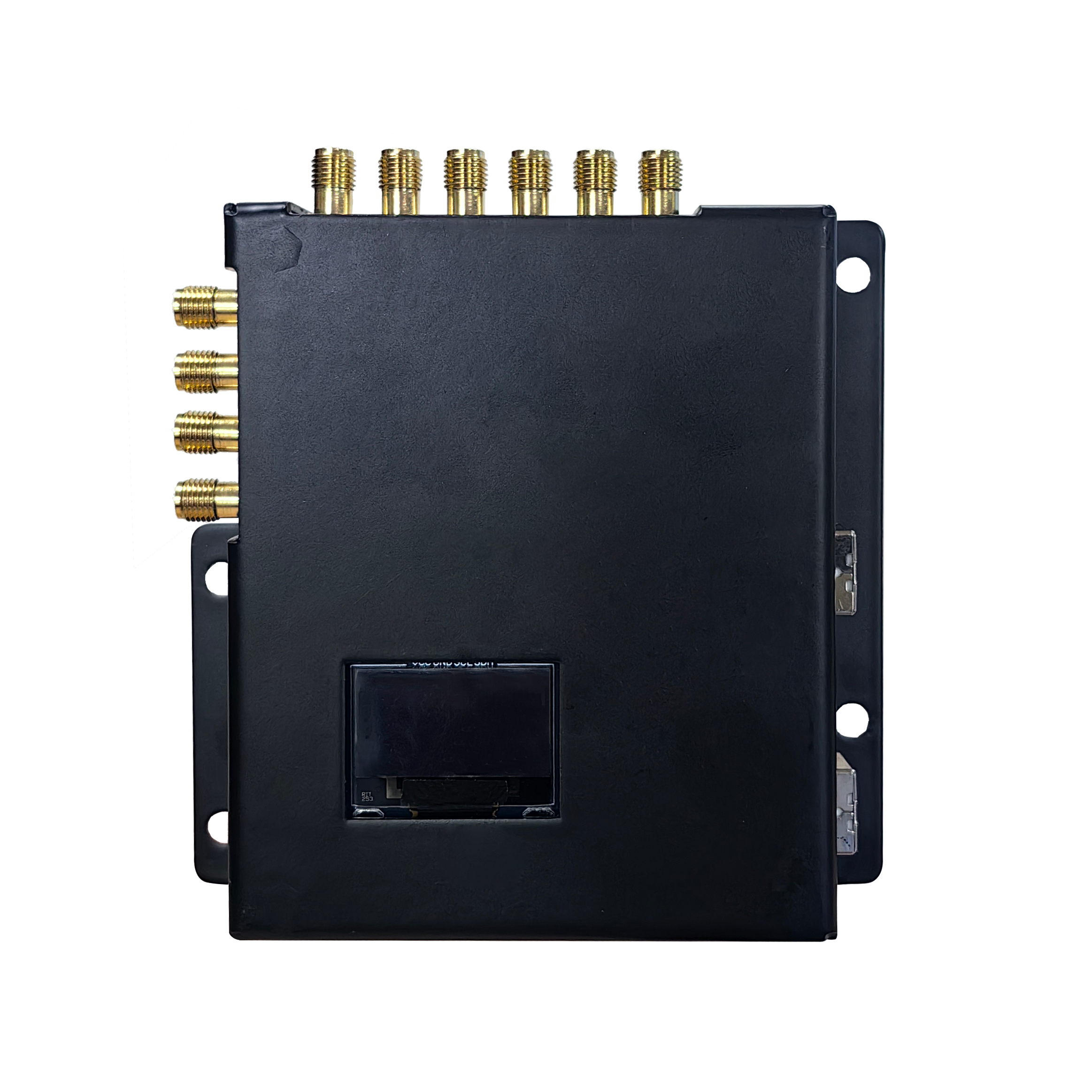

    • RFID 10 PORT UHF Reader | USB Cabinet Inventory with 10 Antennas
    • RFID 10 PORT
    • Jewelry display cabinets, enterprise tool cabinets, equipment cabinets, UHF book and document cabinets, manufacturing inventory
    • 902~928MHz
    • 110*105*27
    • WS-RFIDALL-8 RFID Reader | PoE, 16 m & Technical Reference
    • WS-RFIDALL-8
    • Interface integration, PoE deployment and wiring reference for vehicle access, warehouse dispatch and production-station identification. Technical reference page.
    • 902~928MHz
    • 228 × 228 × 68 mm

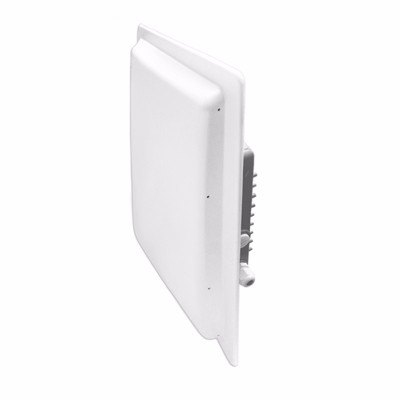

    • 12 dBi UHF RFID Reader WS-RFIDALL-12 | Warehousing and Vehicle Access
    • WS-RFIDALL-12
    • Fixed identification at vehicle lanes, large entrances, warehouse dispatch points, logistics passages and production racks or fixtures.
    • 902~928MHz
    • 445 × 445 × 95 mm

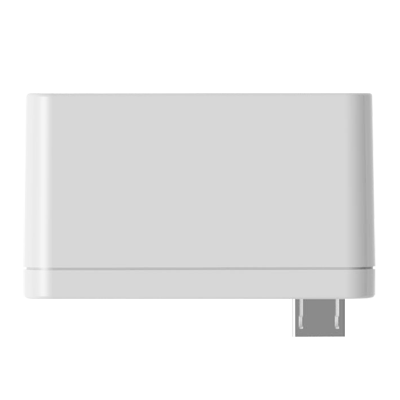

    • OTG USB UHF RFID Reader WS-OTGUSB | Mobile Inventory and Field Testing
    • WS-OTGUSB
    • USB OTG mobile inventory, retail stock checks, on-site EPC reading tests and embedded-host integration; host and software compatibility must be confirmed.
    • 902~928MHz
    • 44.10 × 30.60 × 7.60 mm

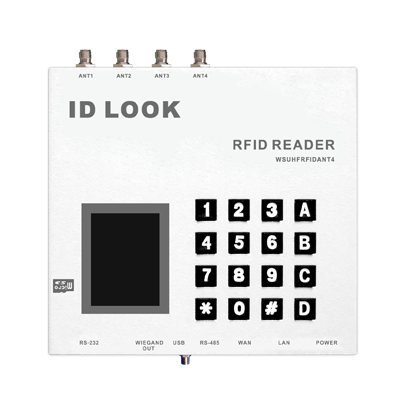

    • UHF RFID Industrial Reader
    • WS-UHFRFID-ANT4
    • Warehouse inventory, production-material tracking, fixed asset inventory and vehicle-lane identification with application-specific antenna placement.
    • 902~928MHz
    • 160*150*47.7

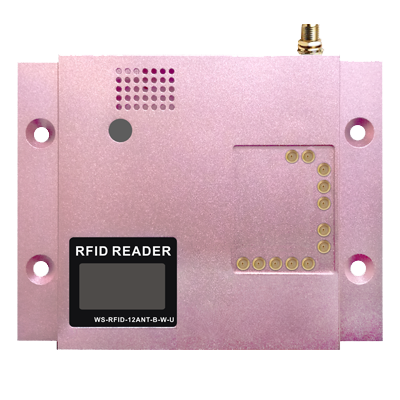

    • UHF RFID 12 Antenna Reader
    • WS-RFID-12ANT-BWU
    • Equipment cabinet inventory, UHF library-cabinet loan/return integration, jewelry inventory and display-item status tracking.
    • 902~928MHz
    • 110*83*12.2

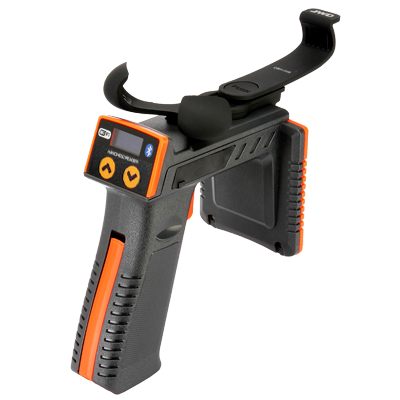

    • WS-LOOKID UHF RFID Handheld Reader | Asset Inventory & Tag Search
    • WS-LOOKID
    • Enterprise asset and tool inventory, retail checks, warehouse item search, UHF library and document projects
    • 902~928MHz
    • 138*138*72

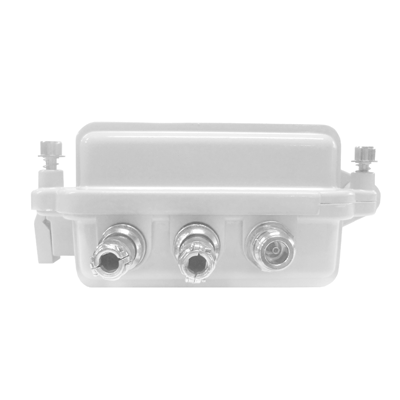

    • WS-UHFRFID-DIP6 Outdoor UHF RFID Reader | Dual Antenna
    • WS-UHFRFID-DIP6
    • Vehicle entrances, logistics receiving and dispatch, outdoor assets and tool identification with compatible UHF tags and host-system integration.
    • 902~928MHz
    • 215*175*75

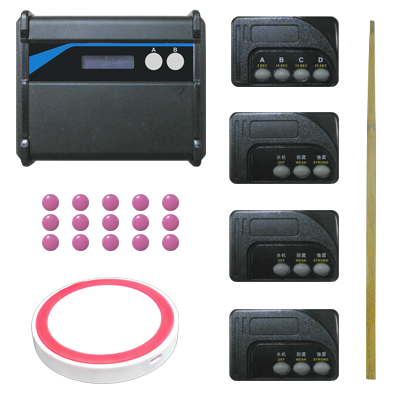

    • UHF RFID Counting System WS-RFID-C | Tagged-Item Quantity Checks
    • WS-RFID-C
    • Compatible tagged-item counting, set quantity checks, small-batch inventory trials and RFID deployment evaluation; tag registration and testing with actual items required.
    • 902~928MHz
    • 87*72.5*26
