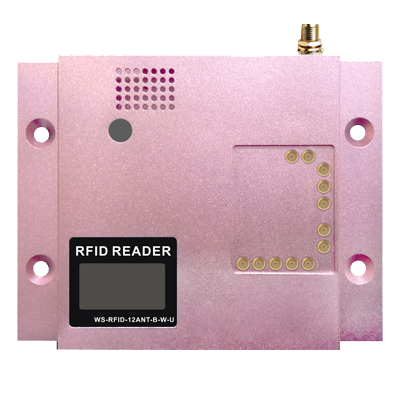

WENSHING UHF RFID 12 Antenna Reader has LCD screen, shows merchandise information immediately. It supports WiFi and Type-C interfaces to increase convenience to users. It includes alarm functions to warn users by audio, voice or backend. Exclusive full-color RFID Tag LED prompts design, it makes searching merchandise faster and more efficiency. Power rate is ***able to make users easier to set up reading distance. Users can get merchandise information simultaneously when using 12 Antenna Reader combine with smart phone app. It’s powerful and satisfy mobile information needing in full. 12 Antenna Reader can be widely applied in retail, warehouse, buildings, library, shopping mall and stores for quickly checkout, searching merchandises, anti-theft, quickly borrow and return books and stocks management.

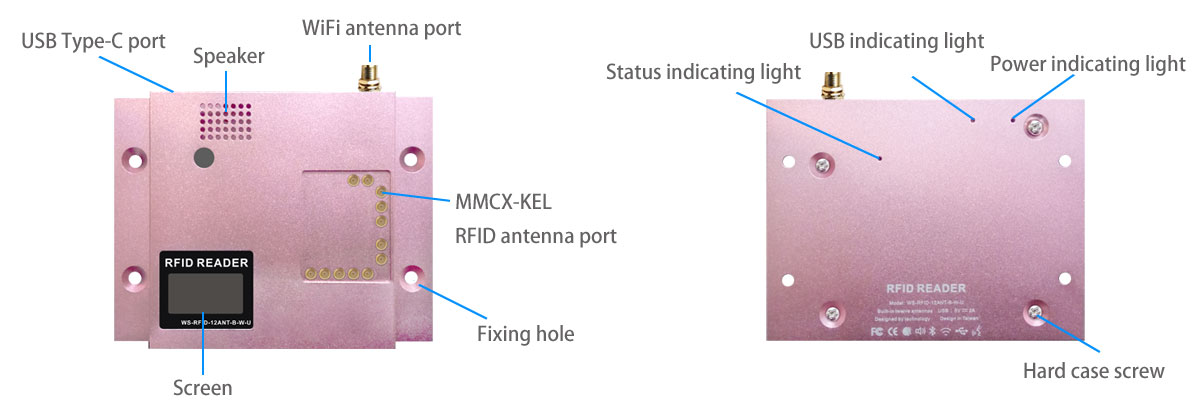

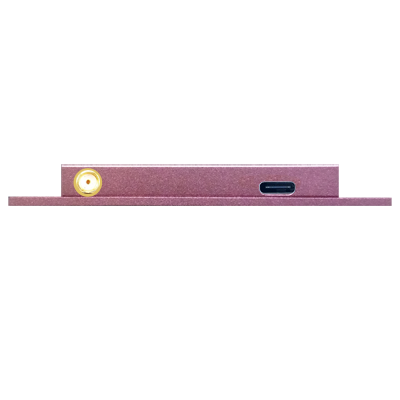

INTERFACE
Specification

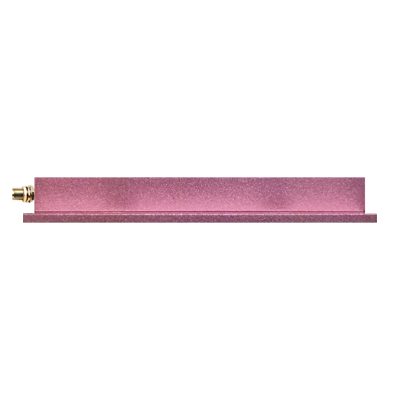

APPEARANCE

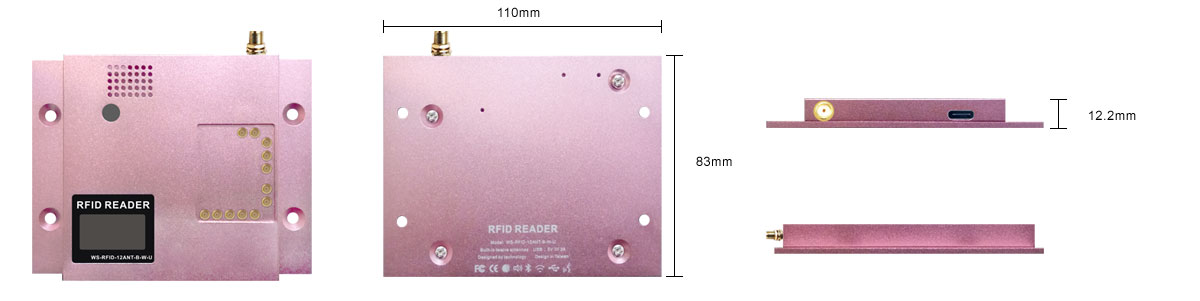

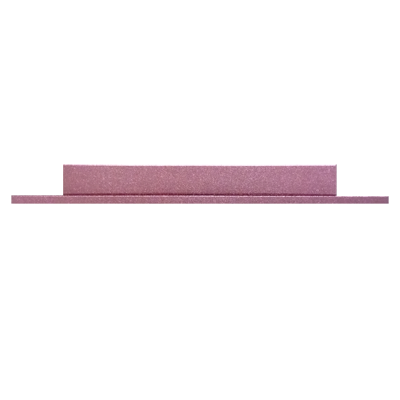

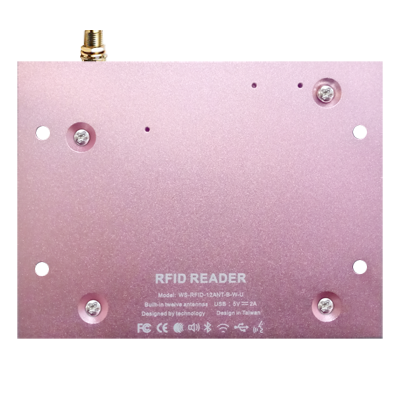

External Appearance
Video tutorial
https://www.youtube.com/watch?v=qhKm86hlUks&feature=youtu.be

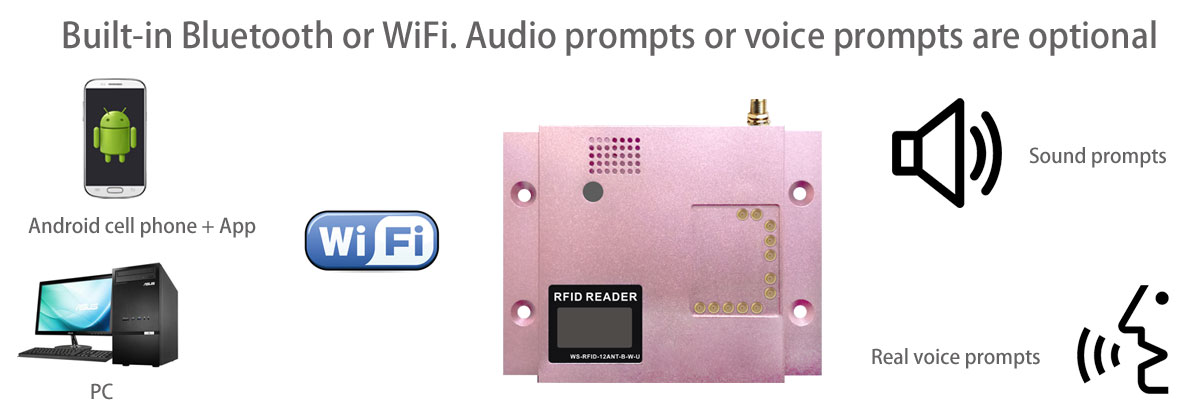

Feature of Product
SPECIFICATION
Technical specifications
Frequency: 902~928MHz
Communicate Protocol: ISO18000-6C（EPC G2）

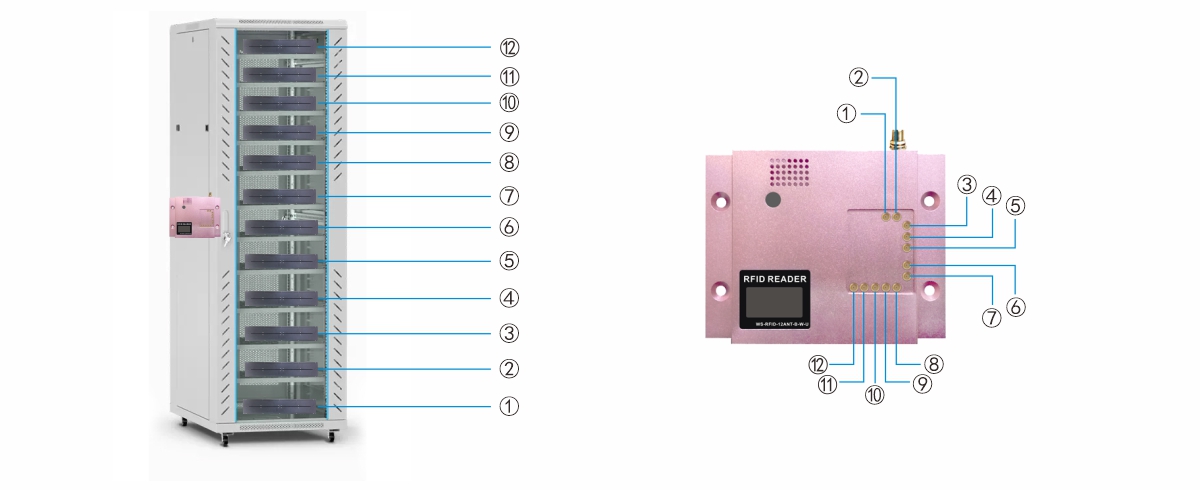

Antenna: 12 antenna output, MMCX-KEL socket
Output Rate: 20~30dBm
Communicate Interface: USB and WiFi（choose one only）
Data Interface: Type-c
Input Power: 5V 3A
WiFi Antenna Interface: SMA socket and plug
Serial Output Rate: 115200bps
Hardcase Material: Aluminum Alloys
Indicating Light: Full-color LED light
Speaker: Built-in
Screen: OLED 0.96（white word showing）
Working Temperature: -10°C to +60°C
Dimension: 110*83*12.2mm
Apparel Management: Product information is immediately displayed, quick checkout, and shorten queuing time.
Merchandise Checkout Management: Able to quickly check out large amount of goods.
Access Control Management: Can timely see office, conference room, access control and others personnel information.
Merchandise Display Management: Remind items and stock whether be placed correctly and enough all the time.

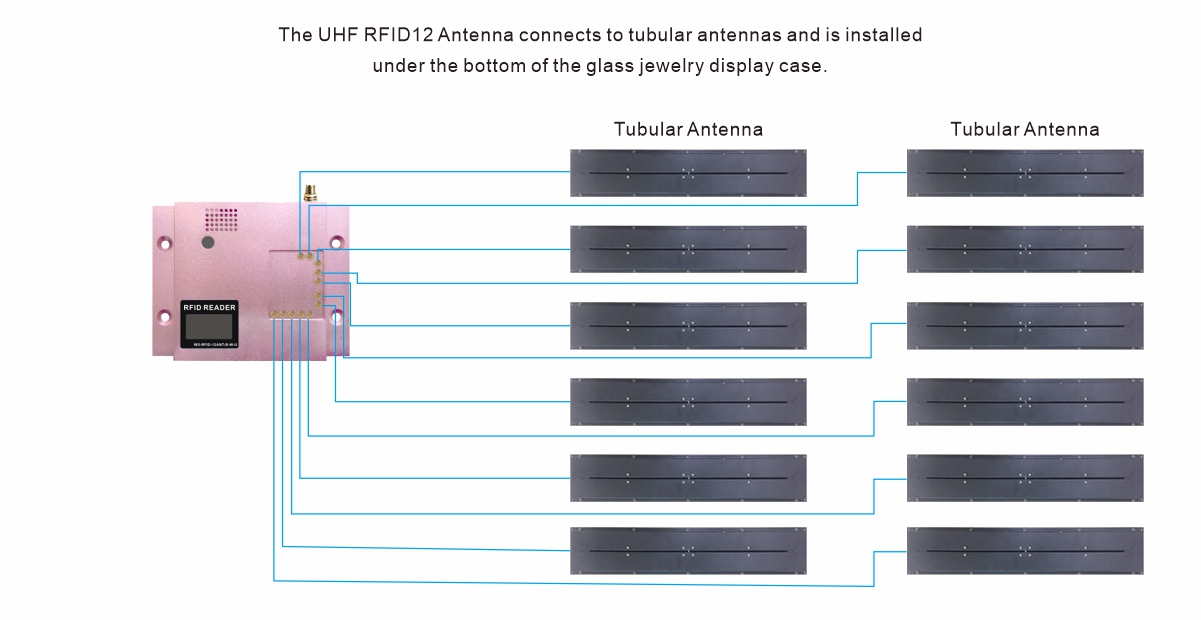

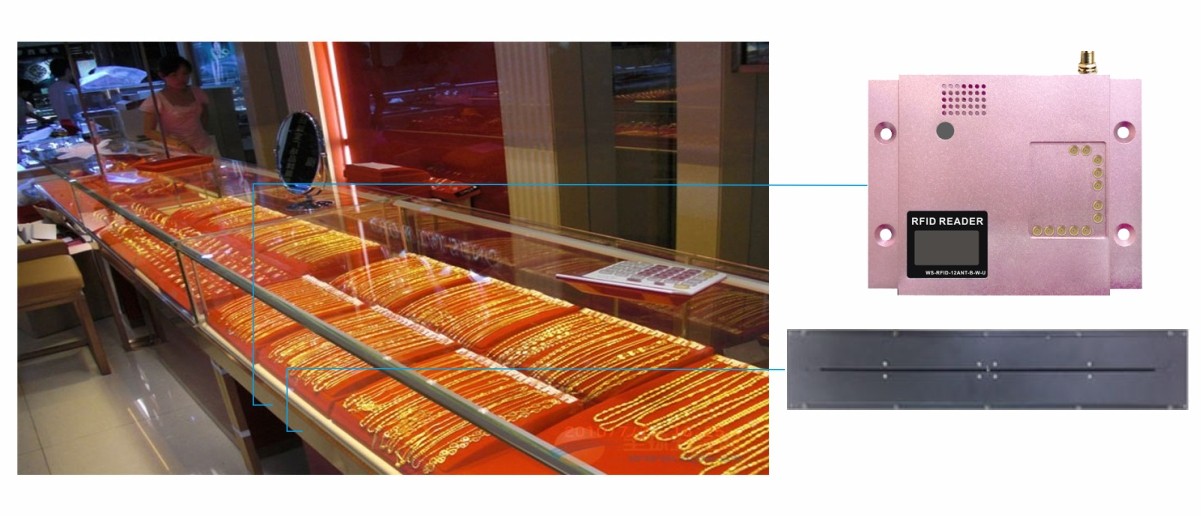

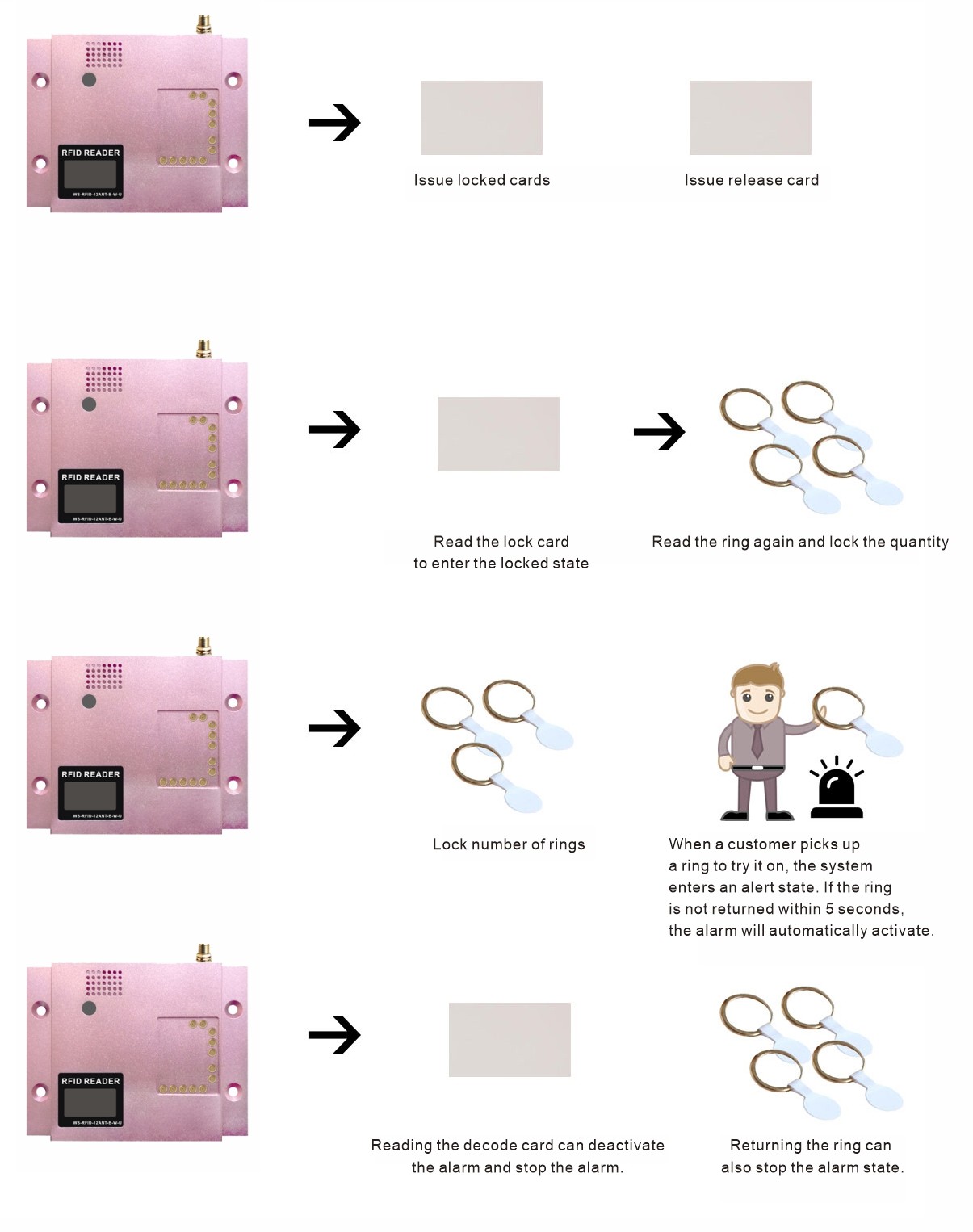

Jewelry Management: Tracking whether jewelries are left position and support voice alarm.
Exhibition Venue Management: Entry and exit personnel and item identification management.

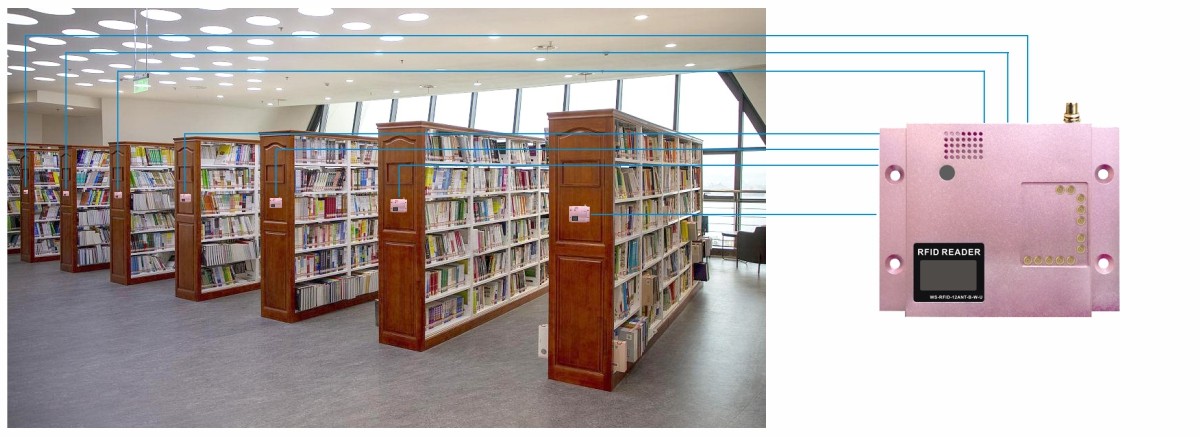

Books Management: Quick self-service borrowing books to help managers quickly categorize books.

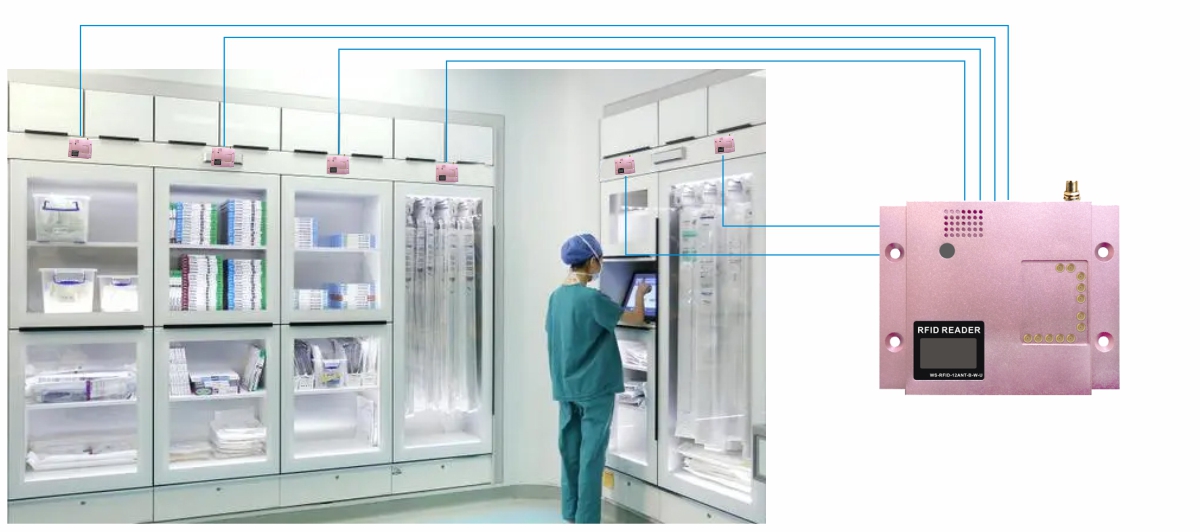

Medicine Management: Establish medicine supply management system, and quickly identify medicines.
Anti-theft and Anti-counterfeiting：Manage commodity inventory and effectively improve product inventory.
Traceability Product：Production information disclosure and consumers feel at ease.
