Suspended Microstrip Line Calculator

Suspended microstrip holds a thin substrate above the ground plane with an air gap in between. Most of the field is in air, so effective permittivity and loss are low — popular for microwave filters and low-loss feed lines.

Analyze W → ZoSynthesize Zo → Wεeff close to 1Low dielectric lossPramanick–Bhartia model

① Inputs

A. Analyze: known size → impedance

B. Synthesize: known impedance → size

② Results

ItemValue
Characteristic impedance ZoΩ
Synthesized width Wmm
Effective permittivity εeff
Velocity factor k = 1/√εeff
Quarter wavelength λ/4 (guided)mm

Cross-section

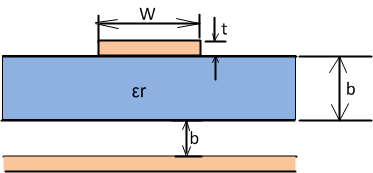

εrAir εr = 1WtabGround planeSubstrate
Signal conductorGroundDielectricAir

Symbols vs inputs: Relative permittivity εr Substrate thickness a Air gap b Copper t (reference) Strip width W

Impedance vs dimension (other inputs fixed)

Common laminates εr (click to apply)

Materialεr
FR-4
Low-cost general PCB laminate; higher loss above 1 GHz, εr varies with frequency and lot
4.3–4.6
Rogers RO4003C
Hydrocarbon ceramic laminate, FR-4-compatible processing
3.38 (design 3.55)
Rogers RO4350B
Common for power amplifiers, antennas and 5–6 GHz circuits
3.48 (design 3.66)
Rogers RO3003
PTFE ceramic, low loss and stable εr for mmWave
3.00
RT/duroid 5880
PTFE glass, very low loss, wider lines
2.20
RO3010 / RT6010
High permittivity for compact circuits
10.2
Alumina Al₂O₃
Thin/thick-film microwave substrate
≈ 9.8

How to use

  1. Enter the substrate εr and substrate thickness a.
  2. Enter the air gap b between the substrate and the ground plane (see the cross-section) and the frequency f.
  3. Known width: enter W and press Analyze for Zo. Known target: enter Zo and press Synthesize for W.
  4. The copper thickness field t is kept for reference; this model does not include thickness.

Theory and formulas

The tool uses the Pramanick–Bhartia closed-form model for suspended microstrip (a = substrate thickness, b = air gap):

u = W / (a + b)
f(u) = 6 + (2π − 6) · exp( −(30.666/u)0.7528 )
a1 = (0.8621 − 0.1251 · ln(a/b))⁴  b1 = (0.4986 − 0.1397 · ln(a/b))⁴
√εeff = [ 1 + (a/b) · (a1 − b1 · ln(W/b)) · (1/√εr − 1) ]−1
Zo = 60/√εeff · ln( f(u)/u + √(1 + 4/u²) )
k = 1/√εeff  λ/4 = k · c / (4f)

Design tips

FAQ

How does it differ from normal microstrip?
Normal microstrip has the substrate directly on the ground plane. Suspended microstrip adds an air layer, so most field is in air: lower loss and lower εeff, at the cost of a mechanical housing.
What are a and b?
a is the dielectric substrate thickness; b is the air distance from the substrate underside to the ground plane. The strip sits on the top surface.
Why does copper thickness not change the result?
The model has no thickness correction; t is only recorded. With t much smaller than a and b the effect is small.
