Maximally Flat (Butterworth) High-Pass Filter Calculator

A maximally flat (Butterworth) high-pass filter has no passband ripple. Use it to reject interference below the operating band and to block DC. Enter the order, cutoff frequency and impedance to get the series-capacitor / shunt-inductor ladder values for two topologies and see the frequency response.

No passband rippleOrder 1–10Type 1 (series C first) / Type 2 (shunt L first)C in pF · L in nH

① Input parameters

fc is the −3 dB cutoff point; frequencies above fc are passed. A higher order gives a steeper roll-off but needs more components and adds insertion loss. Orders 3, 5 and 7 are the most common.

② Results

#Type 1ValueType 2Value
1C1pFL1nH
2L1nHC1pF
3C2pFL2nH
4L2nHC2pF
5C3pFL3nH
6L3nHC3pF
7C4pFL4nH
8L4nHC4pF
9C5pFL5nH
10L5nHC5pF

Only the first n elements are shown. In Type 1, C are series capacitors and L are shunt inductors to ground; Type 2 is the reverse. Pick the nearest standard (E24) values and fine-tune by measurement.

Circuit diagram

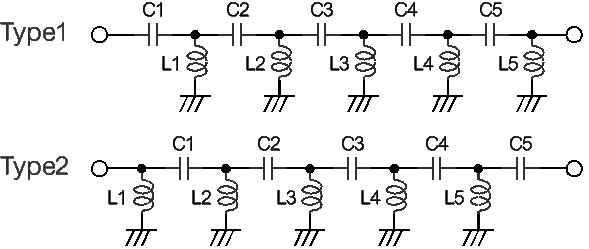

C1C2C3C4L1L2L3L4 INGND · continues up to order n

Frequency response (current inputs)

Ideal response: |H(f)|² = 1 / (1 + (fc/f)2n). The response is −3 dB at the cutoff frequency and, below fc, rolls off by an extra 20 dB/decade for every added order.

How to use

  1. Enter the order n (number of elements, 1–10). Raise the order for a steeper cutoff.
  2. Enter the cutoff frequency fc (MHz, −3 dB point) and the system impedance Zo (usually 50 Ω).
  3. Click Calculate. The table lists capacitors (pF) and inductors (nH) for both Type 1 and Type 2 circuits.
  4. Choose a topology from the circuit diagram: capacitors go in the series positions and inductors to ground. Select the nearest standard values and tune by measurement.

Theory and formulas

First compute the Butterworth low-pass prototype values (they depend only on the order):

gk = 2 · sin( (2k − 1)π / 2n ), k = 1 … n

The low-pass to high-pass transformation then turns each series inductor into a series capacitor and each shunt capacitor into a shunt inductor, with reciprocal values:

ωc = 2π · fc
C = 1 / (gk · Zo · ωc)  L = Zo / (gk · ωc)

Type 1 or Type 2?

Type 1 starts with a series capacitor, so the input is DC-blocked, which suits a preceding stage that carries bias. Type 2 starts with a shunt inductor, giving the input a DC path to ground that can drain static charge. Both have the same frequency response.

Design tips

FAQ

Are maximally flat and Butterworth the same thing?
Yes. The maximally flat response is the Butterworth response: the derivatives of the passband response are zero at the centre, so it is as flat as possible with no ripple.
How are high-pass values related to low-pass values?
Both use the same prototype values gk. Low-pass: C = g/(Zo·ωc), L = g·Zo/ωc. High-pass swaps the positions and takes reciprocals: C = 1/(g·Zo·ωc), L = Zo/(g·ωc).
The calculated values are not standard values. What should I do?
Use the nearest E24 standard value, combine two parts in series or parallel if necessary, and fine-tune while measuring S21 with a network analyzer.
