2.4GHz Wireless Transceiver Module

Model:
TRW-2.4G06UART

TRW-2.4G06UART low power consumption wireless high frequency transceiver module, GFSK, 2.4GHz. Built-in 128 channels, adopting hopping frequency technical to avoid the interference from the similar frequency. It is easy to set and deploying. The high-performance transceiver design enables it to achieve the maximum efficiency in extremely low-power-consumption. It suits for remote control cars, wireless joystick, wireless speakers, wireless headset, wireless phone, wireless 2-way radio, wireless mouse, wireless keyboard, wireless data transmitting, and so on.

APPEARANCE

External Appearance


RFID|Wireless Modules|RF Module|Wireless VIDEO


FEATURES

Application

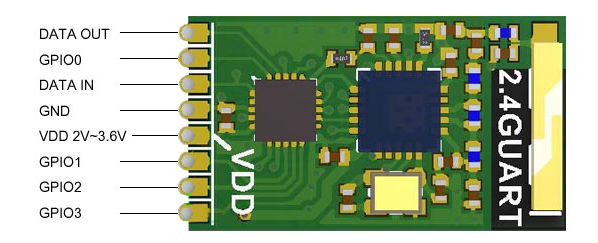

PIN ASSIGNMENT

RFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS  MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS  RFID|Wireless Modules|RF Module|Wireless VIDEO


MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS



MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications

  • Frequency Range: 2.400~2.4835GHz

  • Modulation: GFSK

  • RF Channels: 128

  • Low Working Voltage: 3.7~5.5V

  • Output Power: 6dBm

  • Antenna: Built-in SMD ceramic Antenna

  • Data Rates: From 1 to 2 Mbits/Sec

  • Input sensitivity: -88dBm(1Mbps), -85dBm(2Mbps)

  • 3 separate 32 bytes TX and RX FIFOs

  • Automatic packet handling

  • Enable deep-sleep 1uA and wake-up by serial port.

  • Voltage detecting functions. It is possible to detect outside inputting voltage for use in battery applications.

  • Multiple GIPO for specific functions.

ParameterDescriptionSpecificationUnit
MinTypMax
VDDSupply Voltage Range2.53.33.6 VV
FREQOperating frequency2400
2525MHz
RGFSKAir Data Rate250
2000Kbps
IDC_DSDeep Sleep mode power consumption
9
uA
IDC_STStandby mode power consumption
4
mA
IDC_TXTransmit power consumption (-13~6dBm)13
26mA
IDC_RXReceive power consumption
18
mA
