TIR Tempilstik

Model:
WS-PIR18

This product is an technical grade thermal infrared Tempilstik, realize long-distance non-contact precision temperature measurement. Widely applicable: water temperature, oil temperature, indoor planting temperature, laboratory equipment temperature, boiler temperature, power equipment temperature, metallurgical temperature, pipeline temperature, factory equipment temperature, transportation and maintenance, etc. Lightweight and easy to carry, the length is 12.7cm and the weight is 65g. The Sensor made in German, tolerance is only ±0.1℃, the reaction speed is 0.5 seconds, and it can be read continuously and quickly. The measuring distance is very long, and effective range is 3~18 cm, reducing the risk of personnel's close temperature measurement. Using ambient temperature compensation algorithm, automatic calibration after use. The measurement can be started quickly with a single key, and it is easy to use. It has temperature abnormality warning function, when the temperature exceeds the temperature of set, it will emit warning sound to remind.

APPEARANCE

External Appearance


TIR Tempilstik


FEATURES

Application


TIR Tempilstik


TIR Tempilstik


TIR Tempilstik



TIR Tempilstik


TIR Tempilstik


TIR Tempilstik

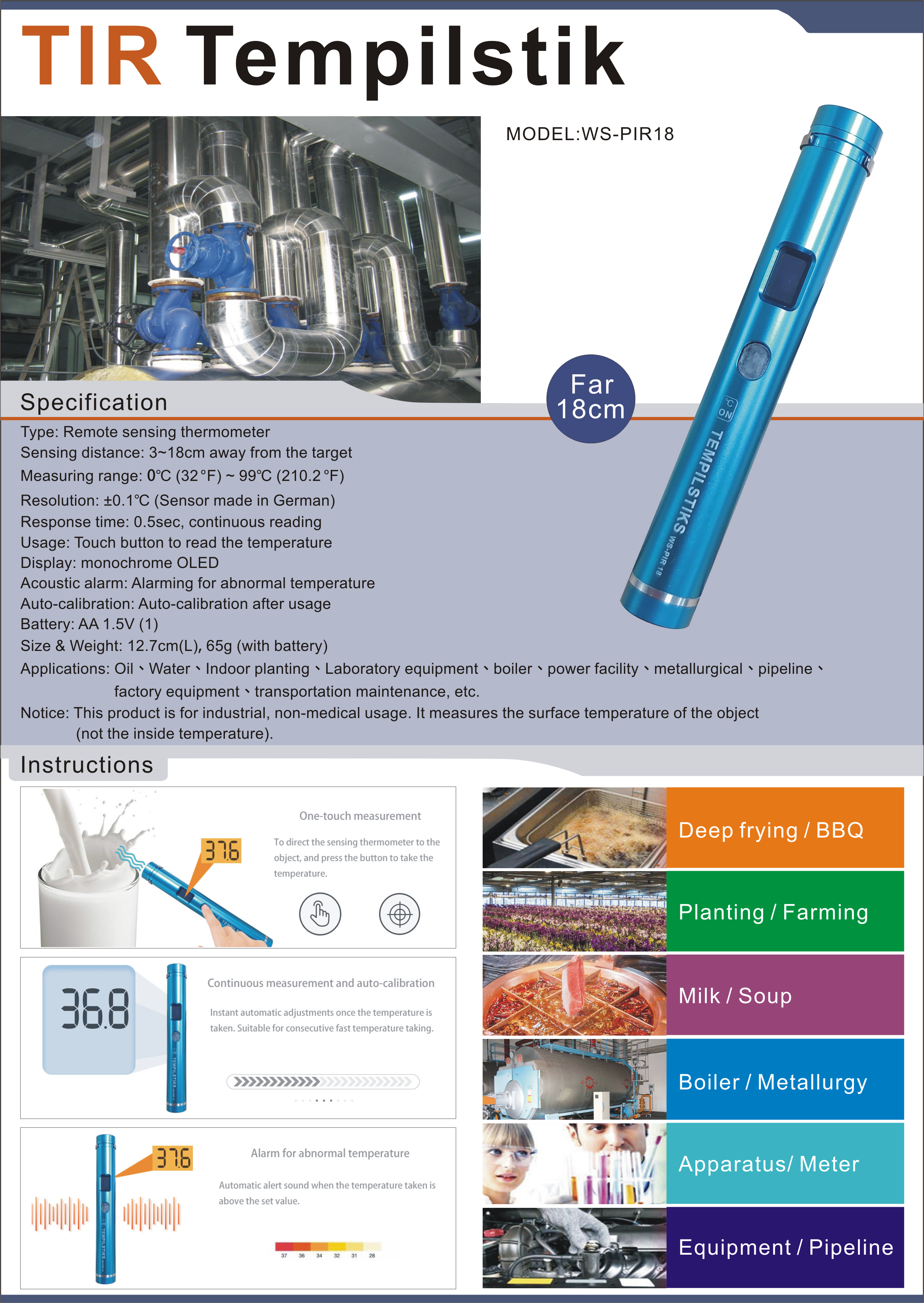

SPECIFICATION

Technical specifications


Type: Remote sensing thermometer

Sensing distance: 3~18cm away from the target

Measuring range: 0℃ (32OF) ~ 99 (210.2OF)

Resolution: ±0.1 (Sensor made in German)

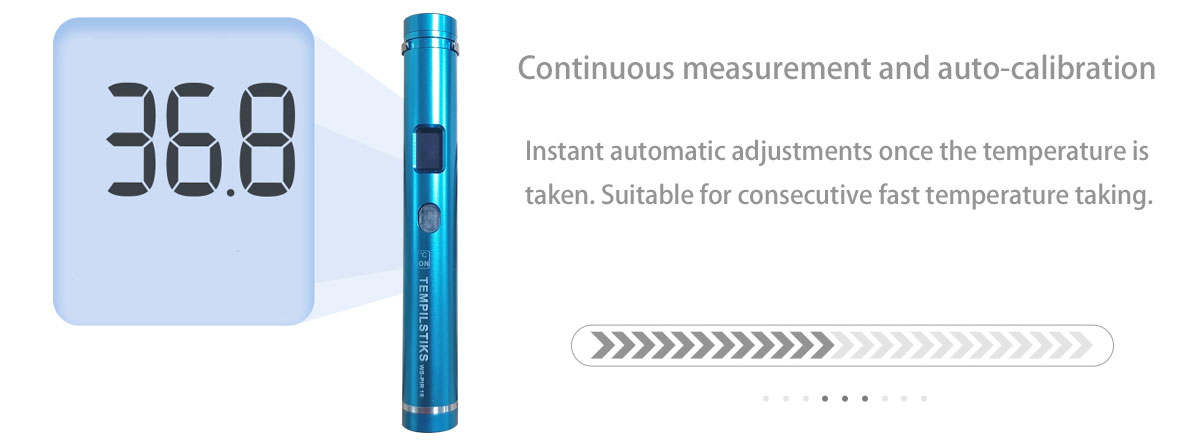

Response time: 0.5sec, continuous reading

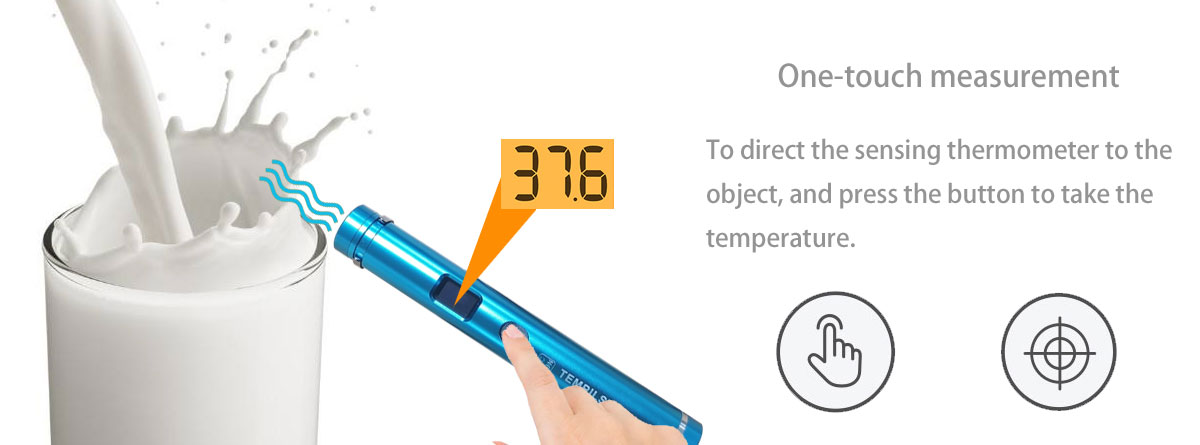

Usage: Touch button to read the temperature

Display: monochrome OLED

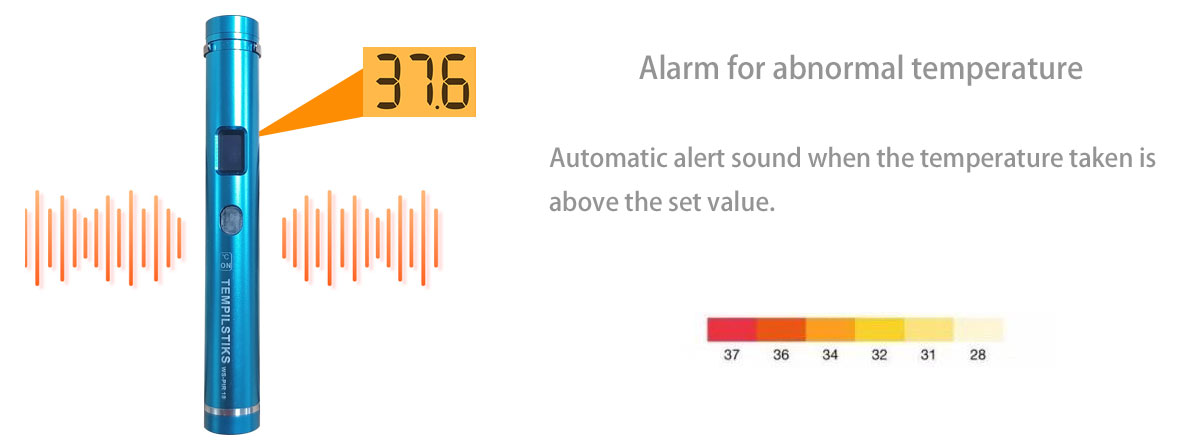

Acoustic alarm: Alarming for abnormal temperature

Auto-calibration: Auto-calibration after usage

Battery: AA 1.5V (1)

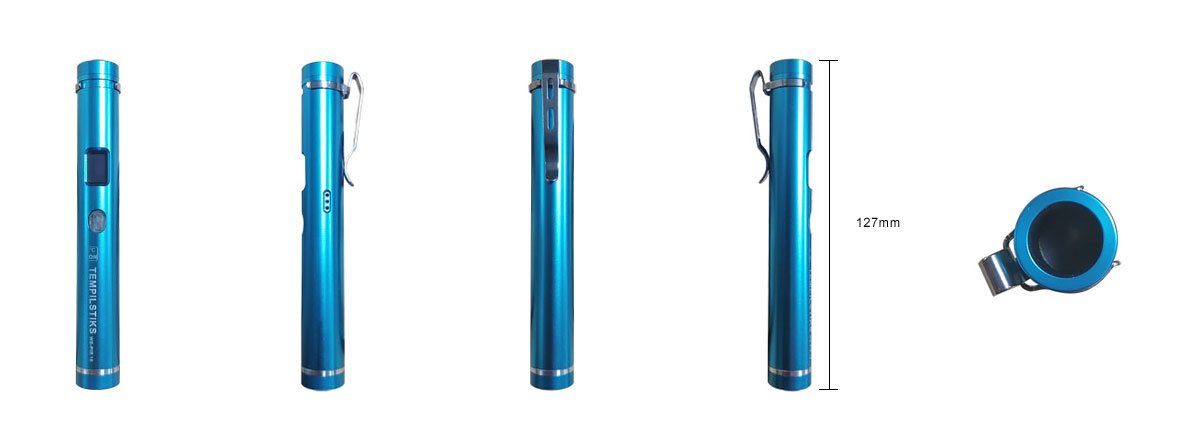

Size & Weight: 12.7cm(L), 65g (with battery)

Applications: Oil、Water、Indoor planting、Laboratory equipment、boiler、power facility、

metallurgical、pipeline、factory equipment、transportation maintenance, etc.

Notice: This product is for industrial, non-medical usage. It measures the surface temperature

of the object (not the inside temperature).

Type: Remote sensing thermometer

Sensing distance: 3~18cm away from the target

Measuring range: 0℃ (32OF) ~ 99℃ (210.2OF)

Resolution: ±0.1℃ (Sensor made in German)

Response time: 0.5sec, continuous reading

Usage: Touch button to read the temperature

Display: monochrome OLED

Acoustic alarm: Alarming for abnormal temperature

Auto-calibration: Auto-calibration after usage

Battery: AA 1.5V (1)

Size & Weight: 12.7cm(L), 65g (with battery)

Applications: Oil、Water、Indoor planting、Laboratory equipment、boiler、power facility、

metallurgical、pipeline、factory equipment、transportation maintenance, etc.

Notice: This product is for industrial, non-medical usage. It measures the surface temperature

of the object (not the inside temperature).
