RTLS UWB Pallet Management System

Key Features

· UWB Positioning
Equipped with UWB positioning modules, the system tracks forklift positions with accuracy up to 10 cm, supporting precise operations in manufacturing and warehouse management.

· RFID 125K Reader
Integrated 125K RFID readers capture item tag information, achieving fully automated registration and positioning management.

· Cloud Database
All positioning and management data are uploaded to a cloud database for analysis, improving operational efficiency and business performance.

· Multi-Point Tracking
Supports simultaneous monitoring of multiple assets or personnel, offering flexibility in complex environments.

· Versatile Applications
Suitable for warehouses, logistics, and production environments, enabling automation, data analysis, and efficient management.

Pallet Tracking Solution A

RFID Tagging and Registration

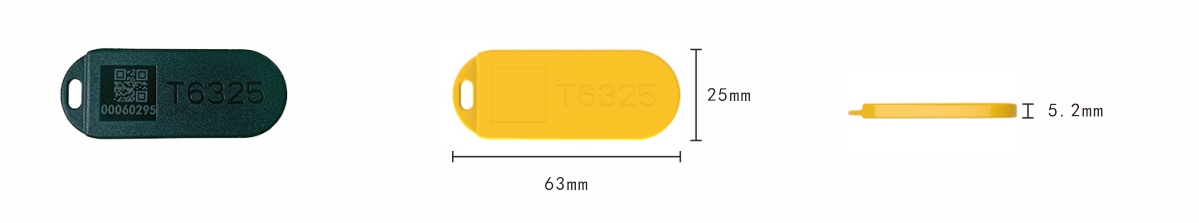

l Product Used: 3D Active RFID Tag (Model: WS-ATAG6325-X)

l Function: Tags are mounted or embedded on pallets. Each pallet is assigned a unique ID. Using the mobile app, operators scan the QR code on the RFID tag to register the pallet and sync with the backend system.

Forklift UWB Locator

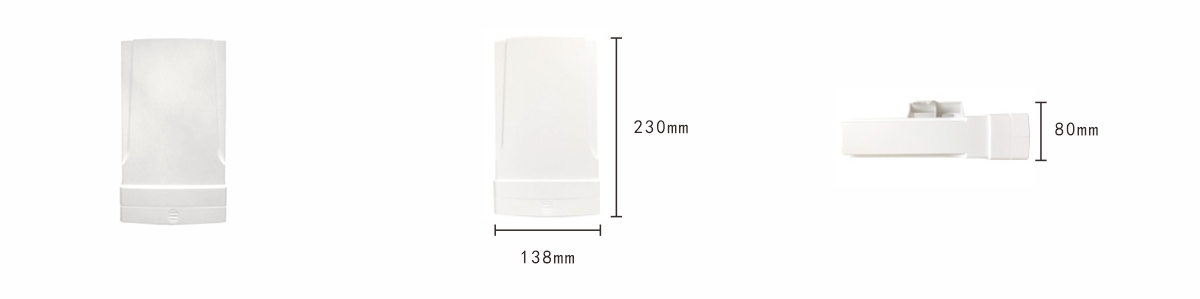

l Product Used: RTLS UWB Forklift Locator (Model: WS-RTLS-125K)

l Function: Installed on forklifts to track their positions and automatically read pallet tags, providing precise pallet coordinates during transport.

Wireless Object Detector

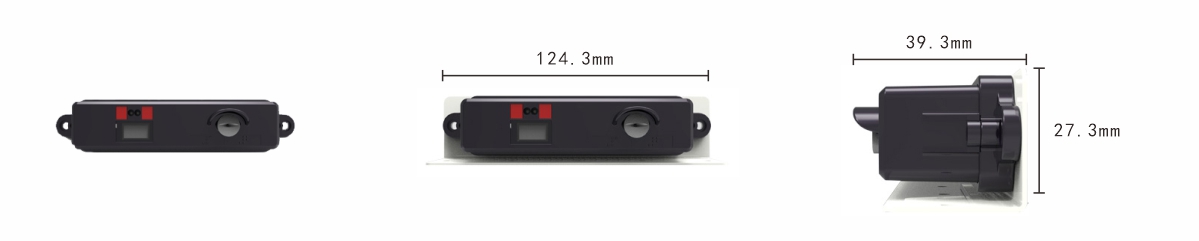

l Product Used: Wireless Object Detector (Model: WS-Hawkeye-C)

l Function: Detects whether items are loaded on the forklift and sends the information to the app, confirming pallet pick-up or drop-off actions.

RTLS Positioning Base Station

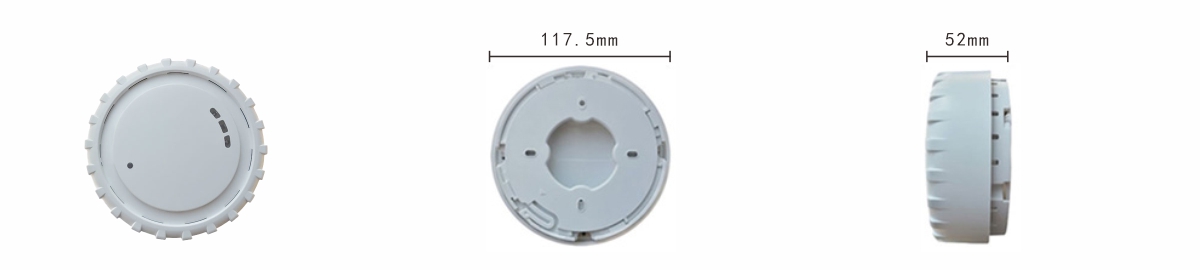

l Product Used: RTLS Positioning Base Station (Model: WS-RTLS-PR)

l Function: Ceiling-mounted to support the forklift locator by receiving tag signals.

Pallet Item Placement and Retrieval Registration

l Product Used: Mobile App

l Function: Operators take a photo of the QR code before placing or retrieving items. By ***ing “Place” or “Retrieve” and entering the item ID, the app confirms item details (name, weight, etc.) and ***s the system.

Pallet & Item Search

l Product Used: Mobile App

l Function: Customized according to client needs, allowing users to quickly locate pallets or items in real time.

Installation Diagram

Pallet Tracking Solution B

UWB Pallet Tagging and Registration

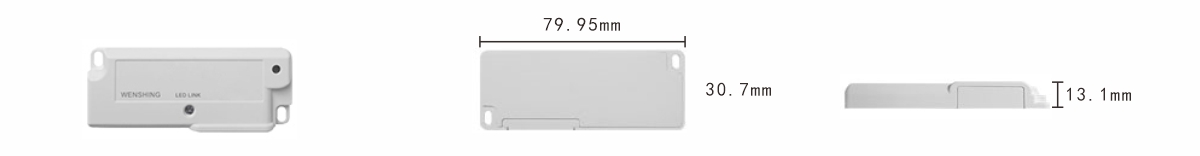

l Product Used: UWB Positioning Tag (Model: WS-UWB65L)

l Function: Each pallet is equipped with a UWB positioning tag with a unique ID. Operators scan the QR code via the mobile app to complete registration. The tag provides real-time coordinates within the warehouse.

UWB Display Tagging and Registration

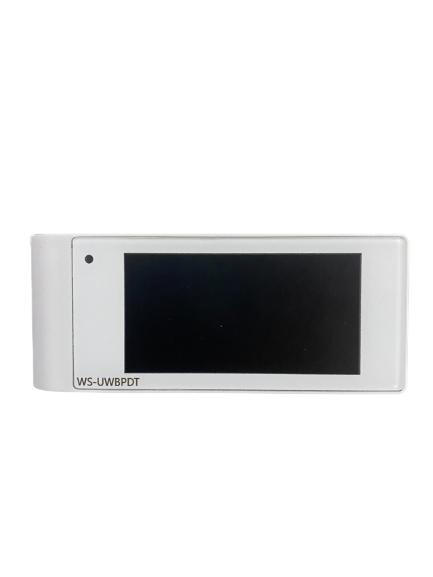

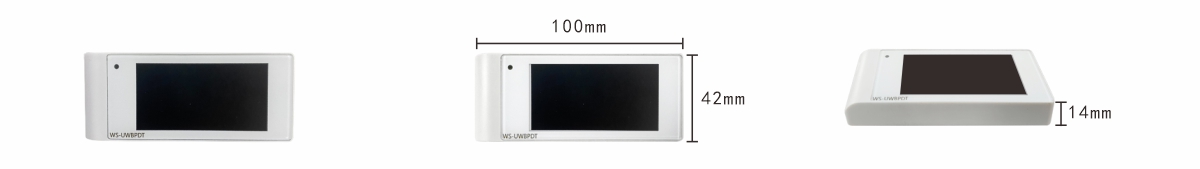

l Product Used: UWB Positioning Display Tag (Model: WS-UWBPDT)

l Function: Installed on pallets to display item information and warehouse location, enabling staff to view pallet content or direct storage/delivery operations. Registration is completed via QR code scanning through the mobile app.

RTLS Positioning Base Station

l Product Used: RTLS Positioning Base Station (Model: WS-RTLS-PR)

l Function: Ceiling-mounted to receive UWB tag signals and assist with accurate positioning.

Pallet Item Placement and Retrieval Registration

l Product Used: Mobile App

l Function: Similar to Solution A, operators scan the QR code before placing or retrieving items, and the app ***s item information in the backend system.

Pallet & Item Search

l Product Used: Mobile App

l Function: Customized features allow real-time tracking of pallet and item locations based on client requirements.

Installation Diagram
