WENSHING Wireless 20 Channel I/O Controller

Model:
RD-DI1000-4F
RD-DI1000-4D
RD-DI1000-9F

In November 2021, WENSHING developed a new set of Wireless 20-channel I/O controller products for the wireless control of automatic machines and agricultural modernization. WENSHING Wireless 20-channel I/O controller, model: RD-DI1000-X (series model), as long as simple wiring can remotely control or receive contact signals wirelessly.It is easy to use even if you don’t understand software.

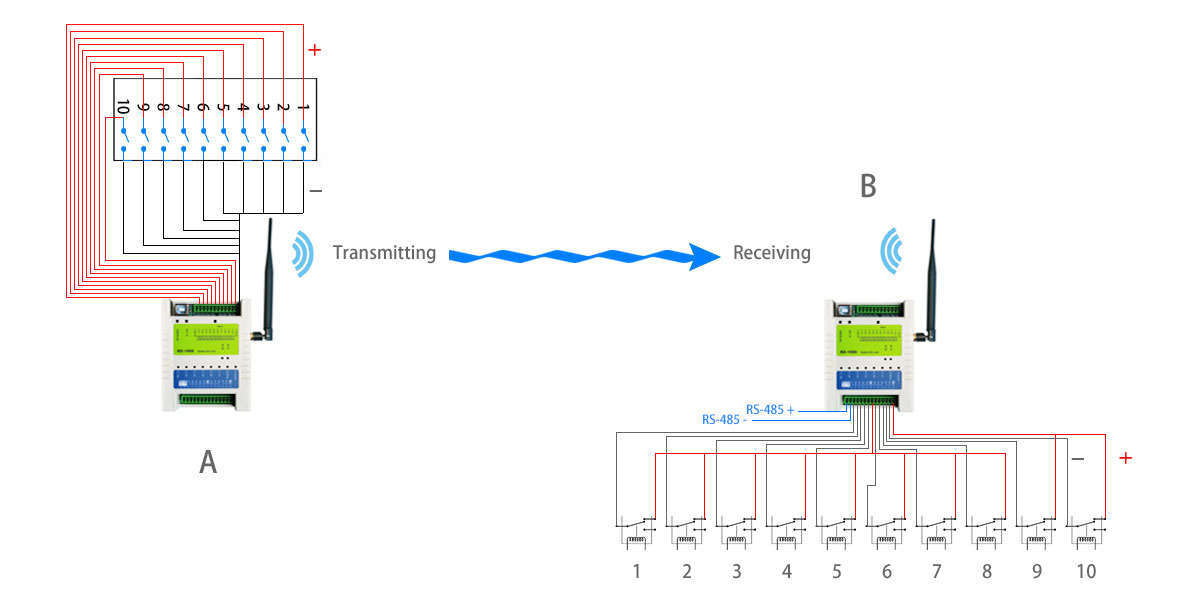

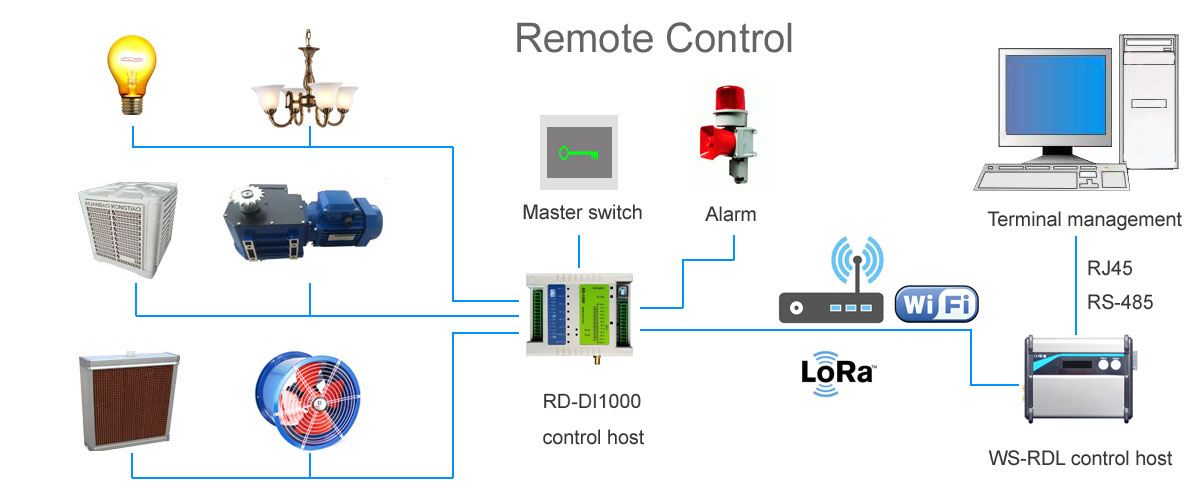

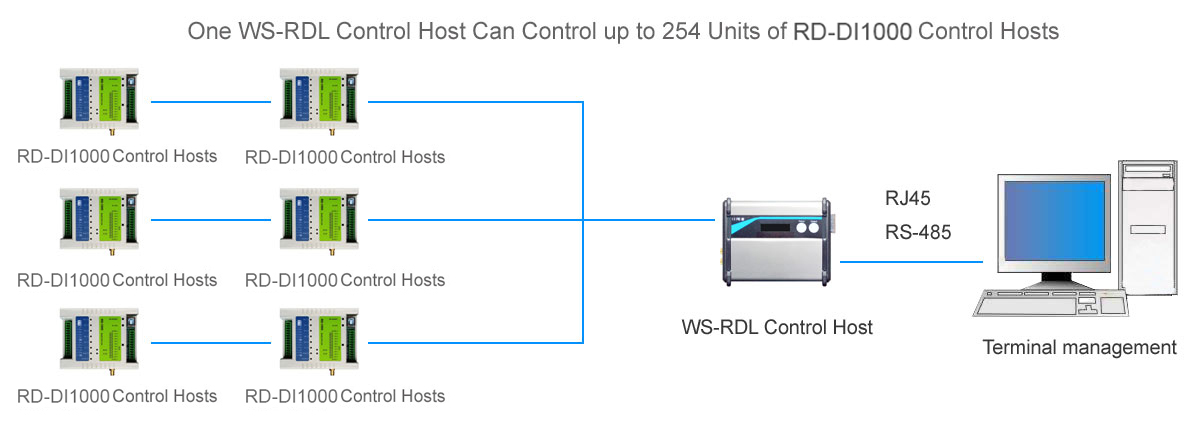

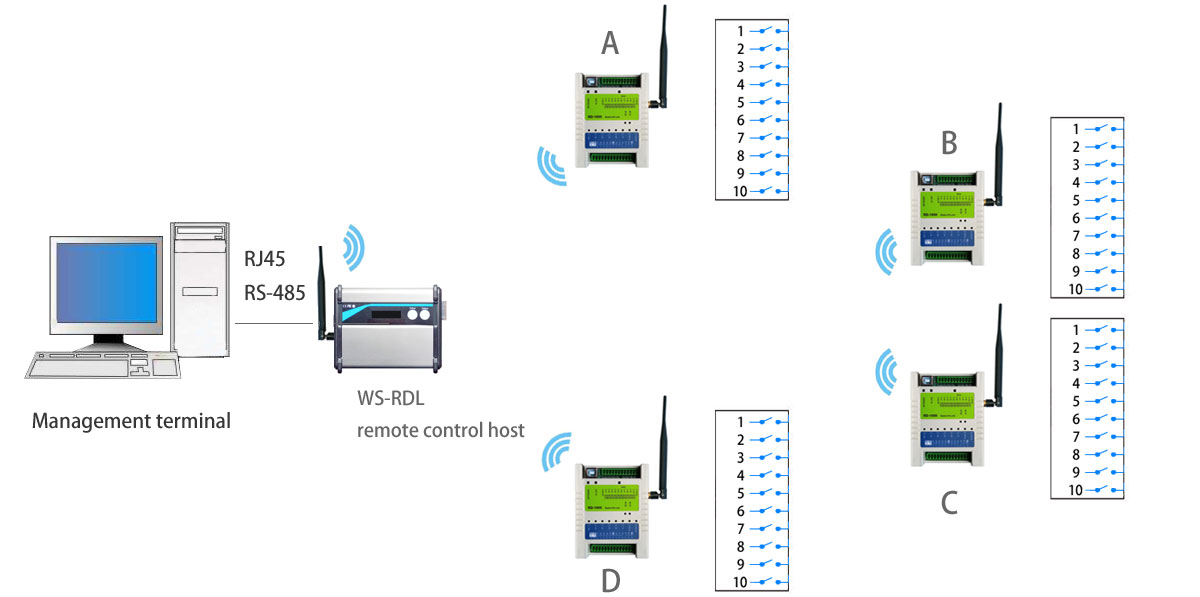

There are many other applications for Wireless 20-channel I/O controller, If the serial communication device needs to be changed to wireless communication, connect with WENSHING Wireless 20-channel I/O controller RS-485 interface to achieve wireless, which is convenient for the use of PLC automatic control equipment and greatly reduces machine management and the cost. It can be controlled through the RS-485 interface, or receive the control and input contact signal of another remote RD-DI1000-X, and it can be connected to USB of PC to control several WENSHING Wireless 20-channel I/O controller, to achieve one-to-many applications.

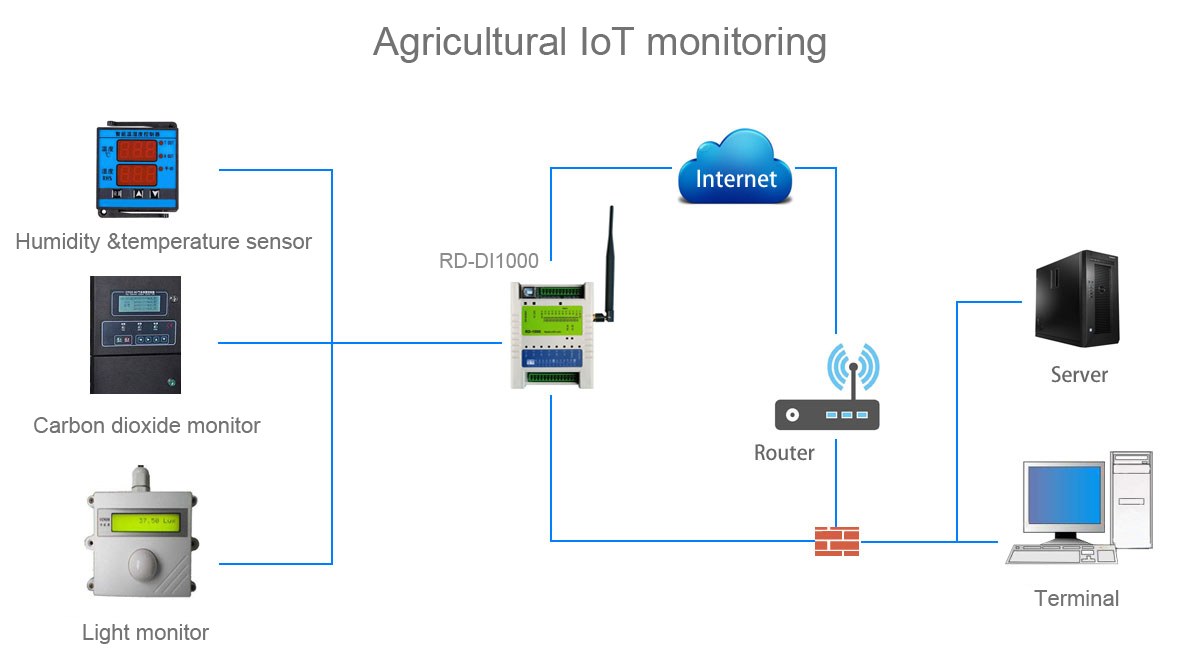

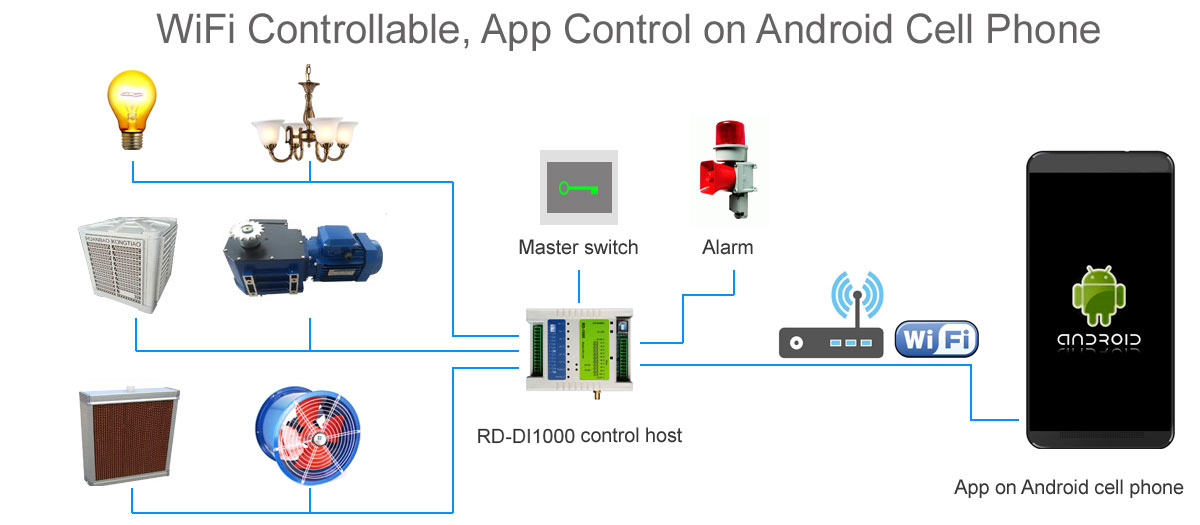

Application

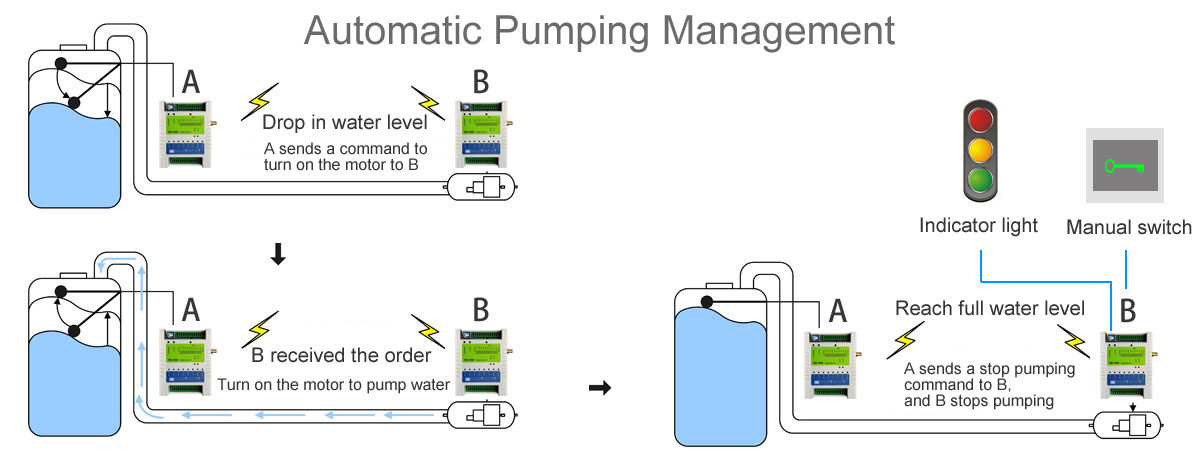

●  Modernized agricultural irrigation

●  PLC wireless data transmission

●  Long-distance anti-theft device

●  Wireless motor control

●  Street light control

●  Wireless light control

●  Building automation management

●  Wireless data transmission

●  Crane remote control

●  Unmanned vehicle control

Features

●  Wireless remote control over 10KM

●  10 relay output contacts

●  10 input detection contacts

●  Wide input voltage range

●  With RS-485 & USB communication interface

●  Signal strength indicator

● 32-bit ARM core

●  Ultra-high wireless receiving sensitivity -130dBm

●  Ultra-high wireless transmission power 32.5dBm

●  Wireless spread spectrum/GFSK

●  Excellent anti-interference

●  Multiple control modes product

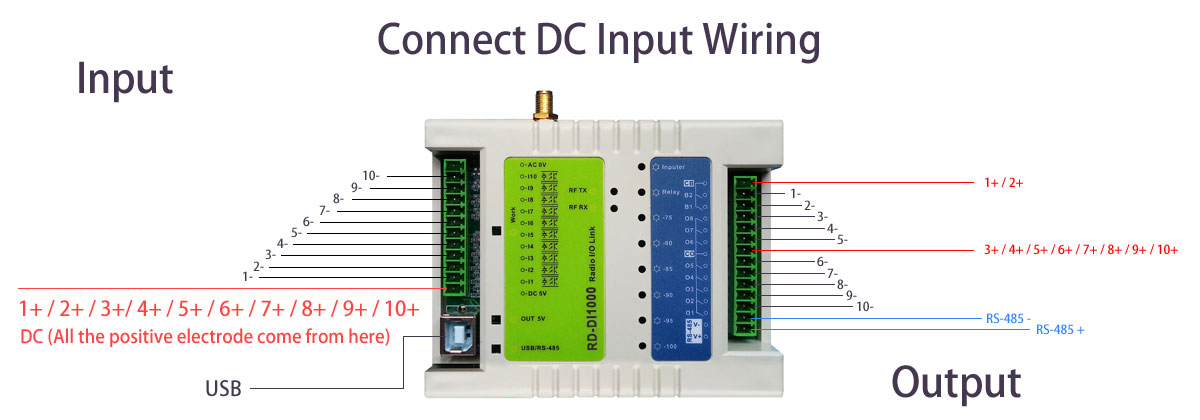

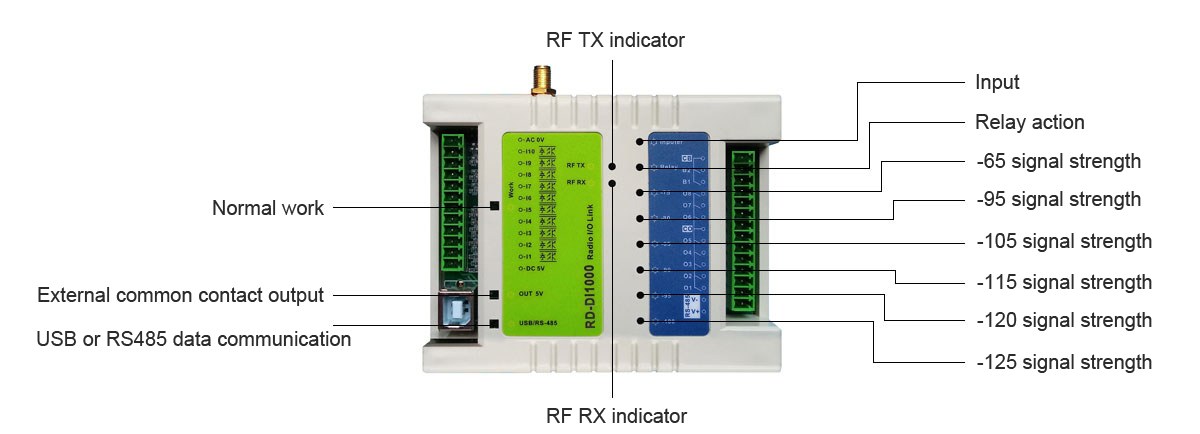

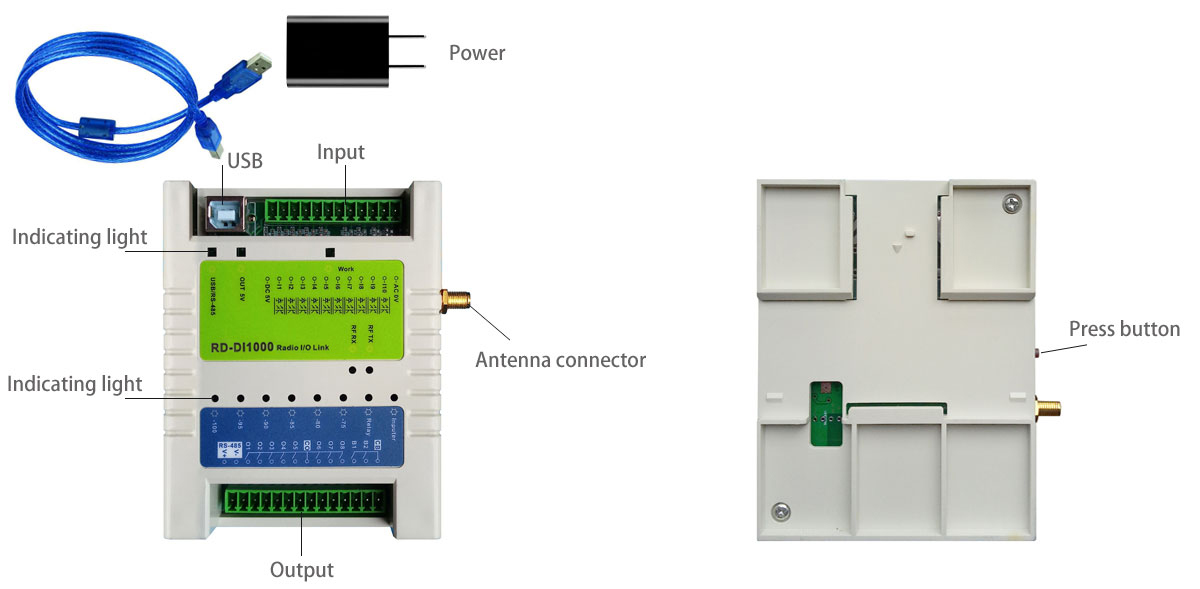

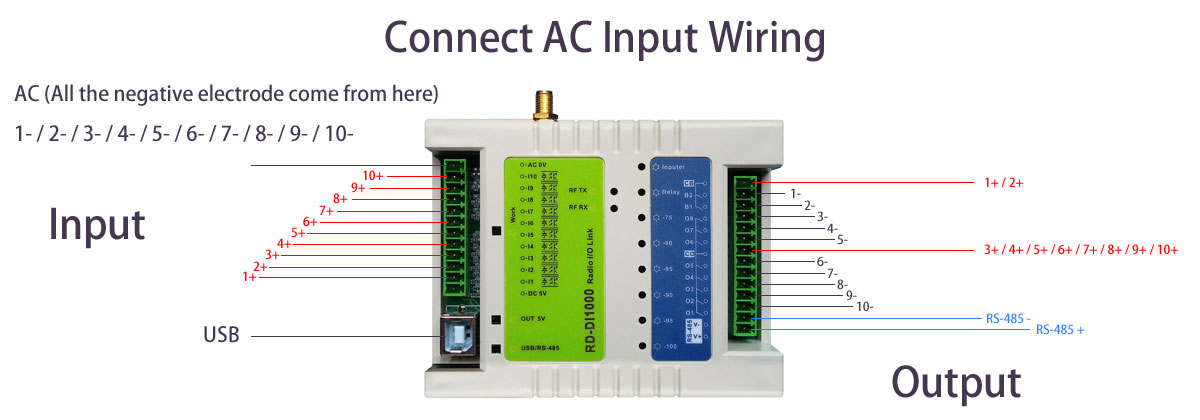

INTERFACE


  未标题-1.jpg    RFID|Wireless Modules|RF Module|Wireless VIDEO

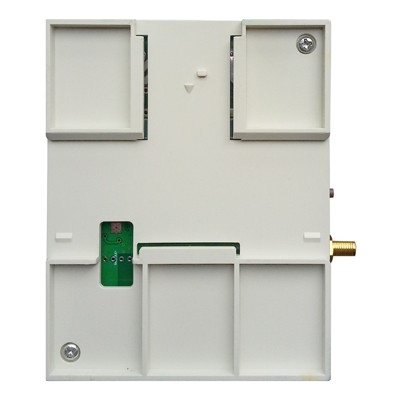

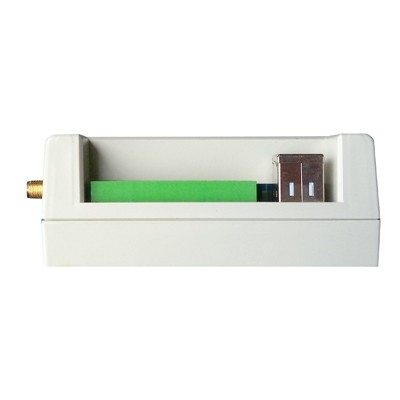

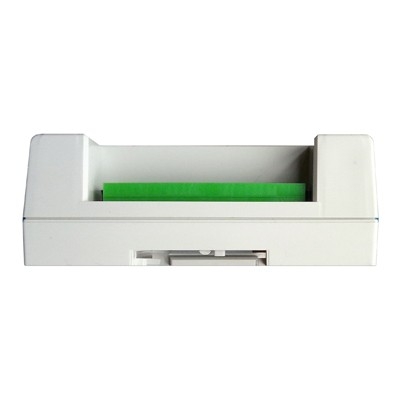

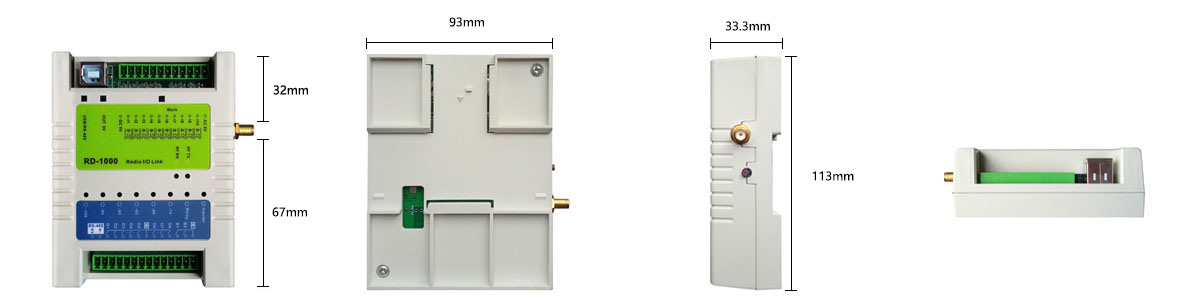

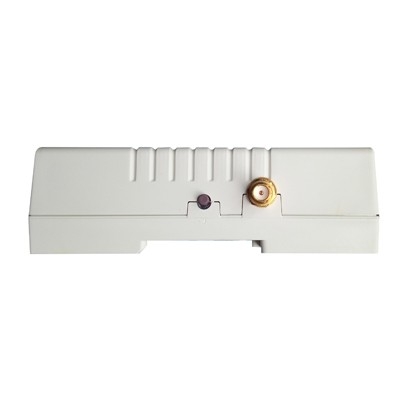

APPEARANCE





Product model comparison


No.

Product number

Specification

Introduction

1

RD-DI1000-4F

400~450MHz(790mW)    (GFSK)

Better penetration

2

RD-DI1000-4D

400~450MHz(790mW)    (DSSS)

Excellent anti-interference modulation method and better penetration

3

RD-DI1000-9F

902~928MHz    (1800mW) (GFSK)

High power output and better direct radiation capability



Functional Block Diagram


RD-DI1000 block diagram


Measured Wireless Control Distance












































      Hardware specifications

l   Communication interface:RS-485 & USB Virtual Com Port (default 9600bps)

l   Wireless communication rate:100bps~150Kbps (the lower the  rate, the longer the distance)

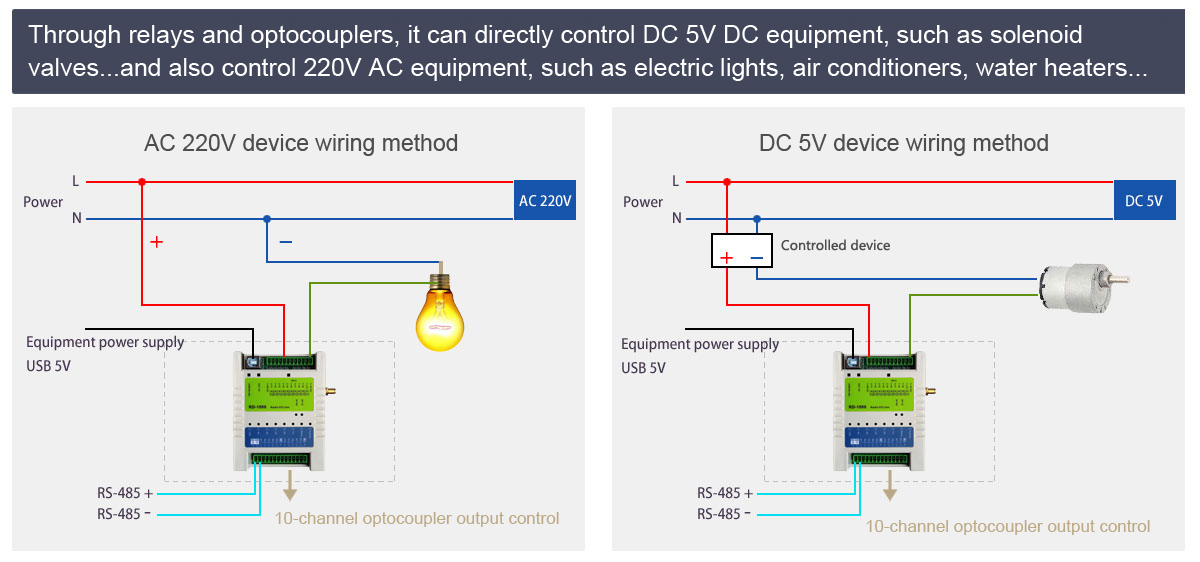

l   Relay:contact voltage 240VAC, contact current 5A

l   Input contact:detection voltage DC 5~30V

l   Operating temperature range:-10~60℃

l   Storage temperature range:-20~80℃

l   Operating voltage range:10~28V



Optional accessories

Antenna type: fixed omnidirectional antenna, used in RD-DI1000-9 up to 10KM or more

固定式全向天線


Antenna type: suction cup antenna, used in RD-DI1000-9 up to 15KM or more

吸盤式天線



Antenna type: flat directional antenna, used for RD-DI1000-9 up to 50KM or more

平板定向天線

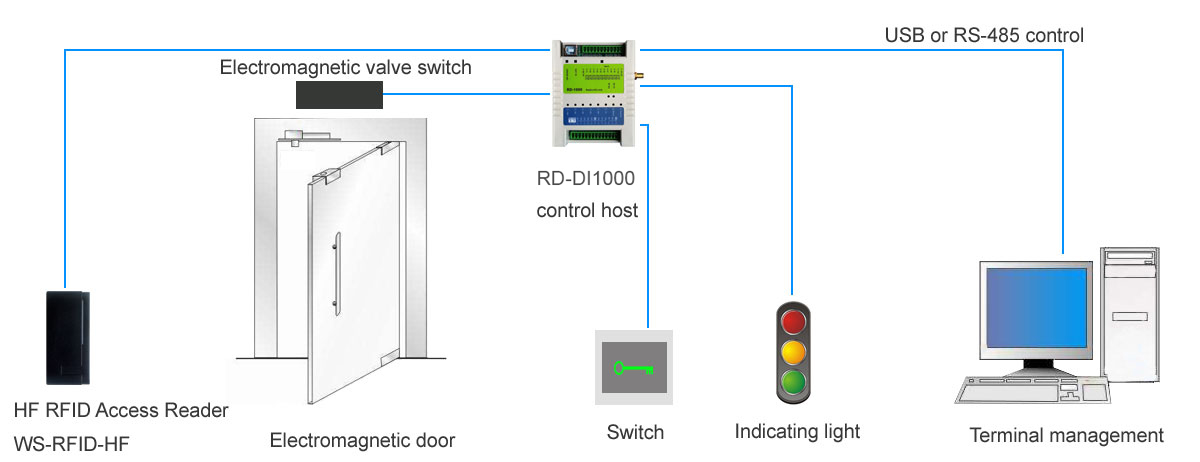

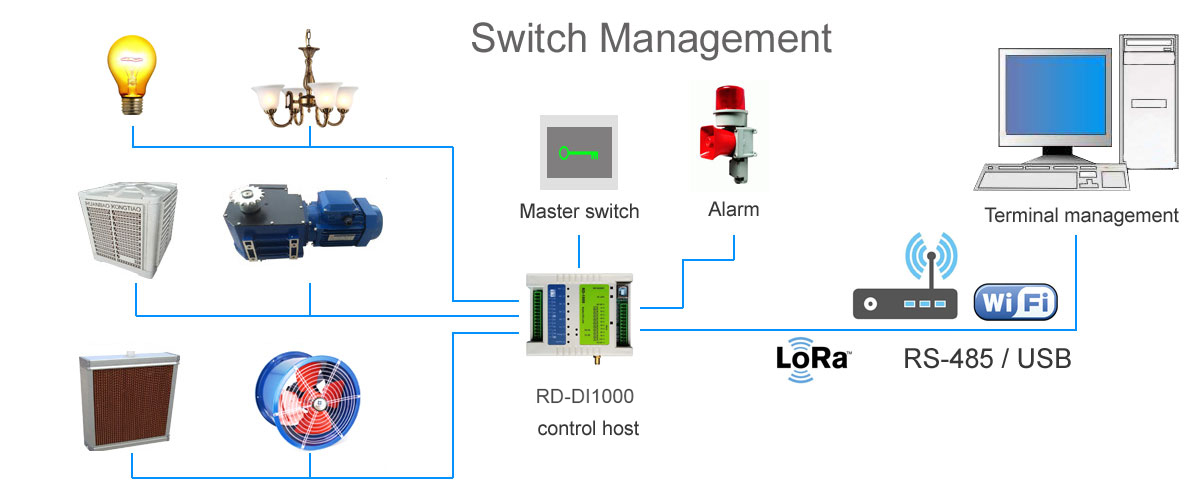

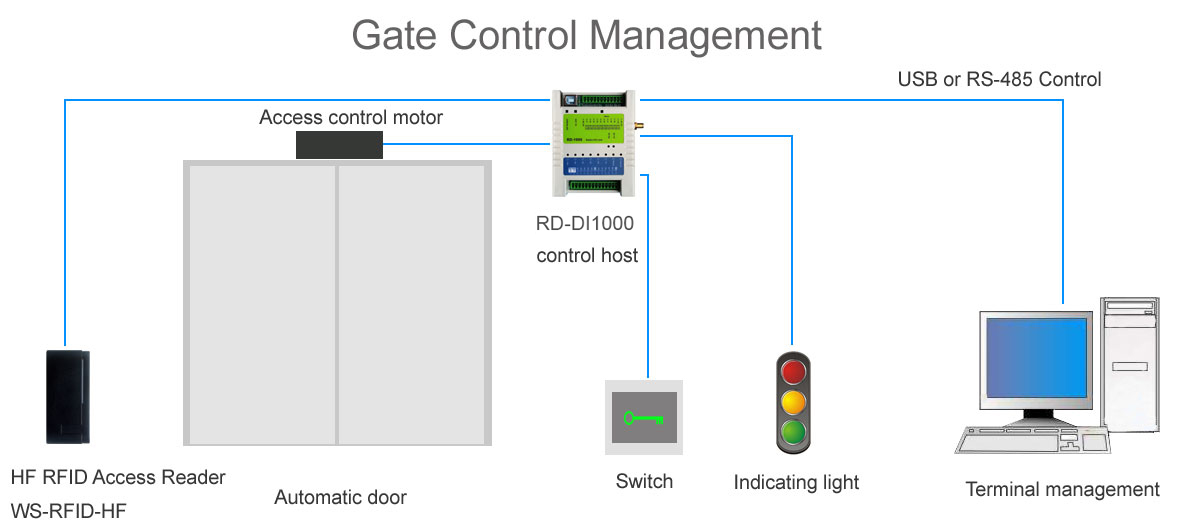

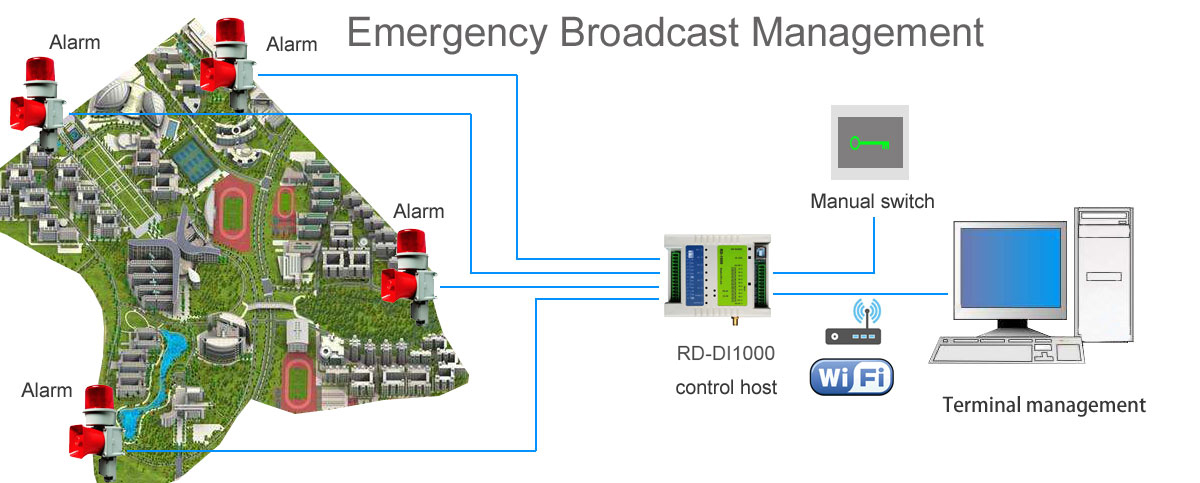

Application
