WS-ATAG6325-X Active RFID Tag

WS-ATAG6325-X · ACTIVE RFID

WS-ATAG6325-X / ACTIVE RFID

Give moving materials
a clear identity record.

WS-ATAG6325-X is an active RFID tag family with a 3D antenna, intended for identification workflows in automated warehouses, wire and paper reels, and test-board registration. Matched reading equipment provides identification data for integration with material and zone records.

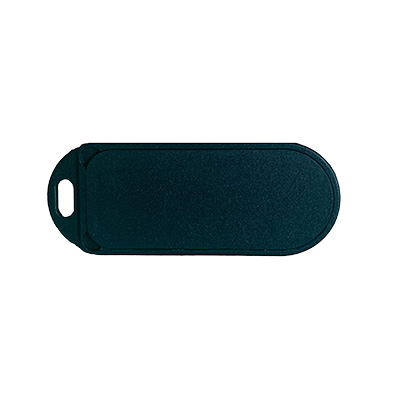

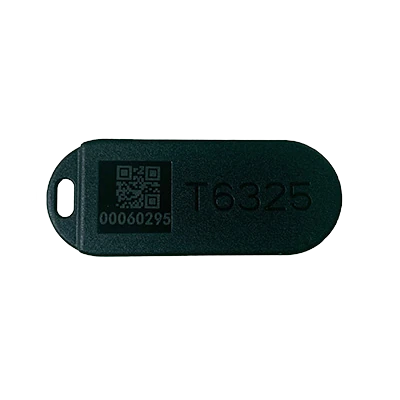

WS-ATAG6325-X RFID tag product photograph
WS-ATAG6325-X RFID tag product photograph

Plan the tag around the working environment

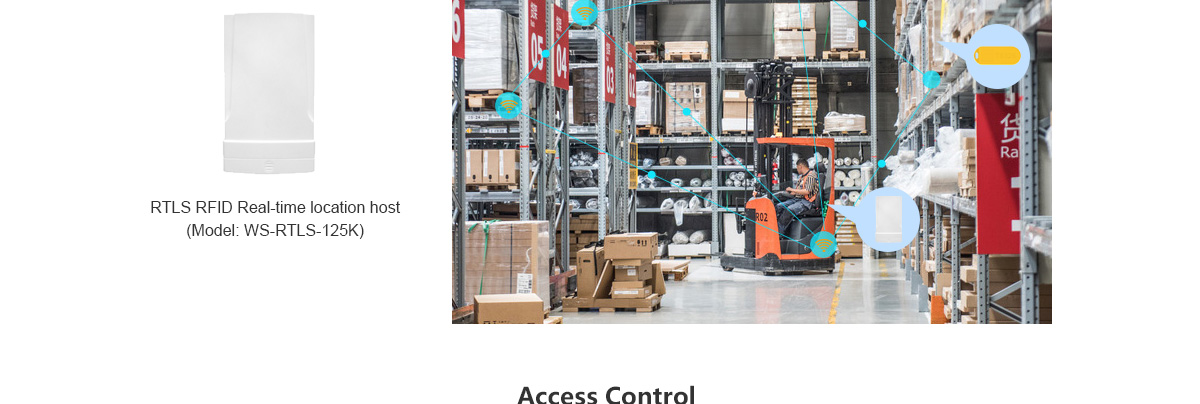

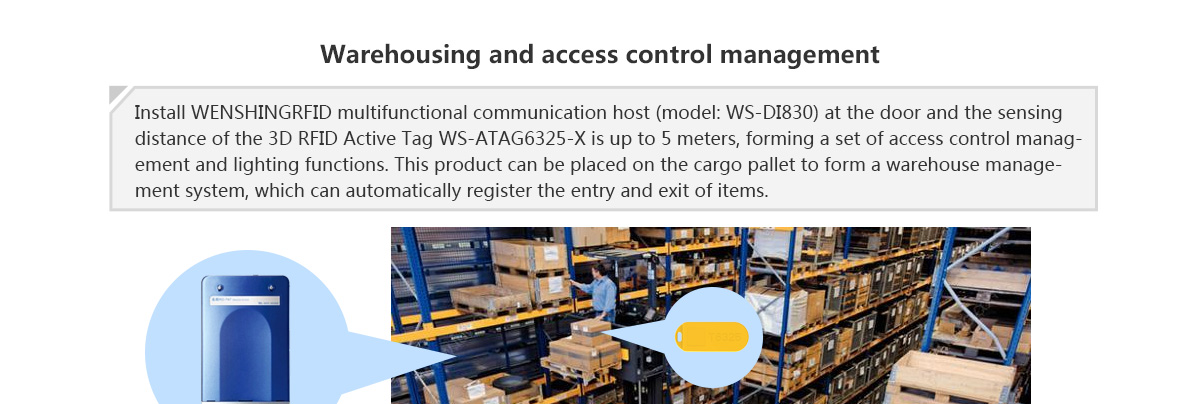

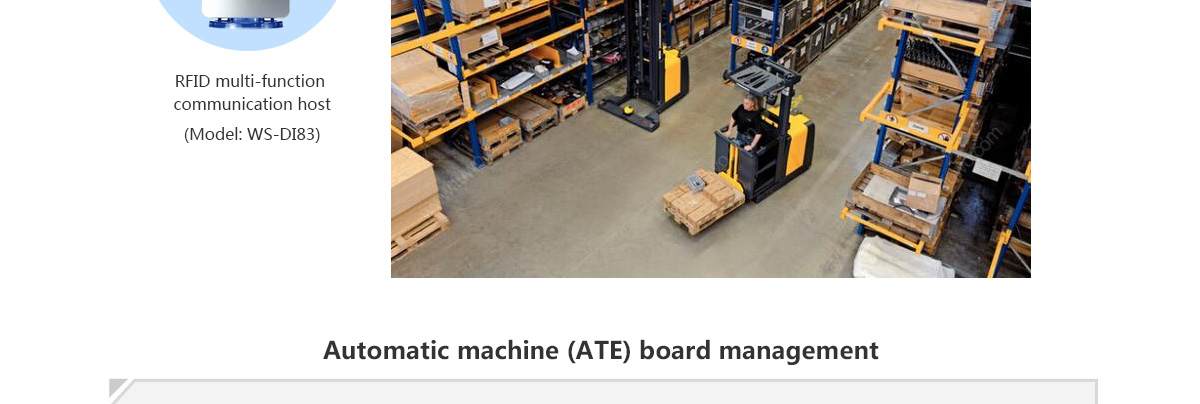

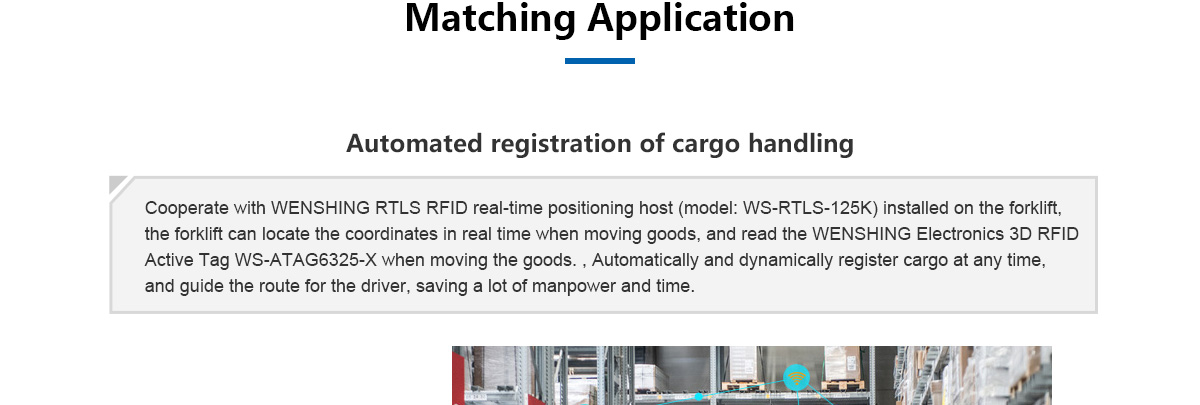

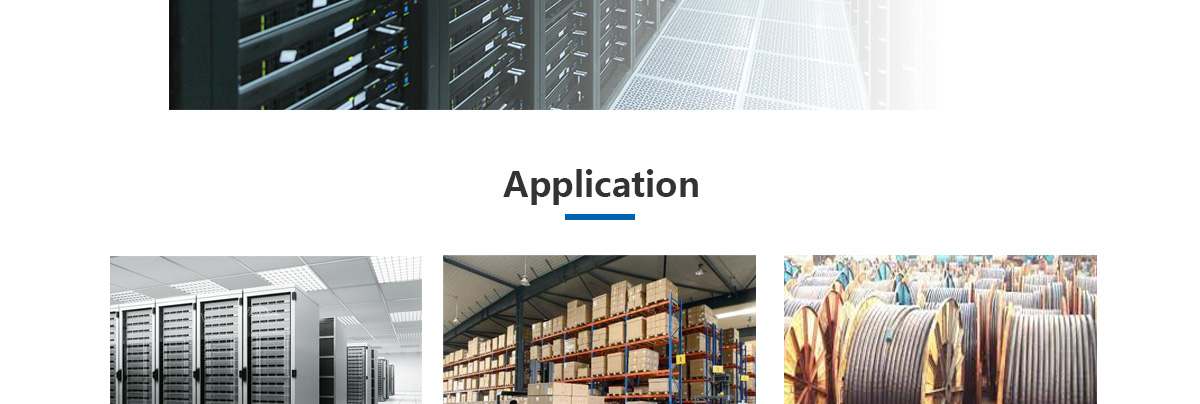

Warehouse material movement

Mount tags on materials or carriers and plan reading points around receiving, transfer and dispatch routes. Integrate material and zone records in the platform, and test adjacent-zone reads and obstruction.

Wire and paper reels

Associate each tag ID with reel data and plan identification at preparation and work areas. Test orientation, mounting and nearby metal equipment before configuring the reading zone.

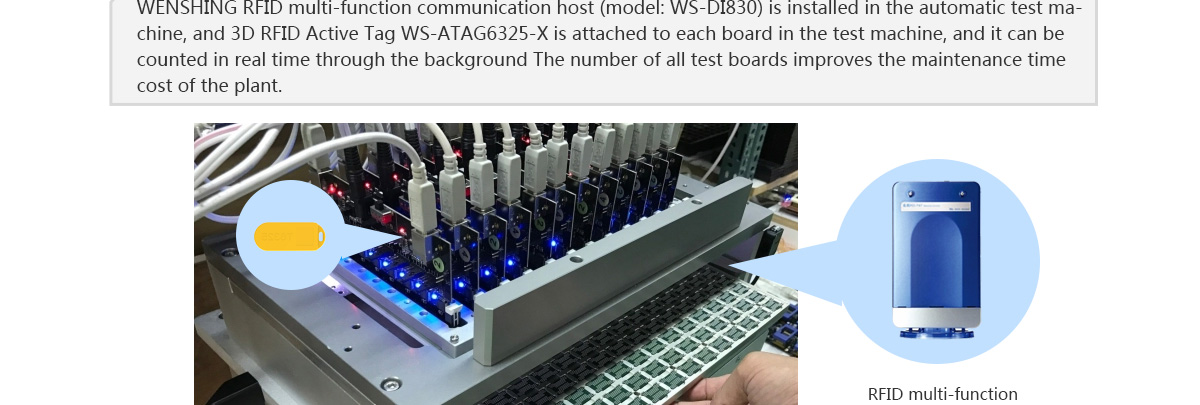

Test-board registration

Identify a board or its carrier at the intended workstation and link it to test-system records. Test results, counts and history require host or software integration; the tag provides the reliable identity key behind them.

Step through a material-identification workflow

Choose a scenario to see how passing through a reading zone can become a management record. This interactive walkthrough shows the workflow step by step; see how each read becomes a management record.

PendingReading zoneRegistered
Prepare identificationAssociate the tag ID with material data.
Demo itemPALLET-DEMO-01Workflow locationReceiving queueDemo identification records0

Each step shows how tagged items move from reading zone to registered record. Records build up as items pass each zone.

Select the radio variant before integration

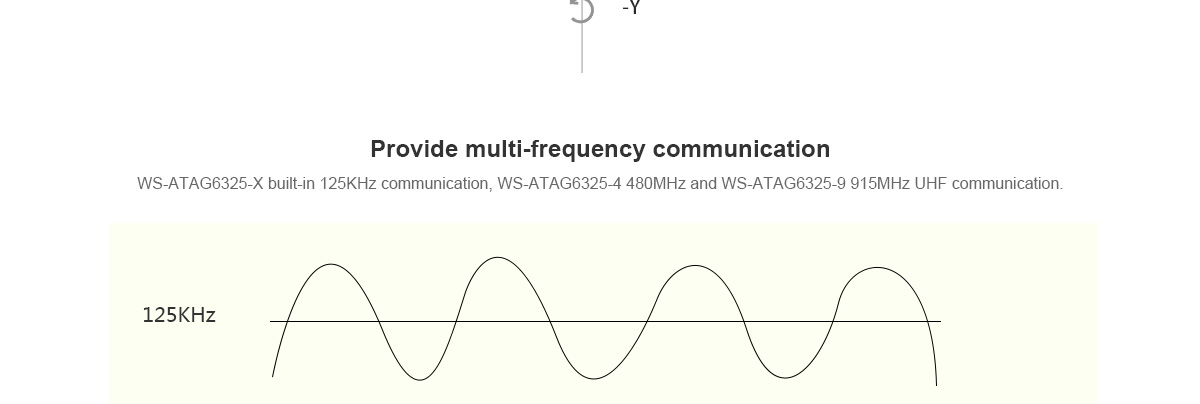

Family data lists 125kHz, model-dependent UHF communication and IR communication. Low-frequency and UHF communication are separate items. The tag model, reading equipment and firmware are matched as one system.

125kHz + 480MHz variant. Match the reader frequency, protocol and firmware.

125kHzLow-frequency communication listed for the family. Zone settings are configured on the matched equipment for precise area triggering.

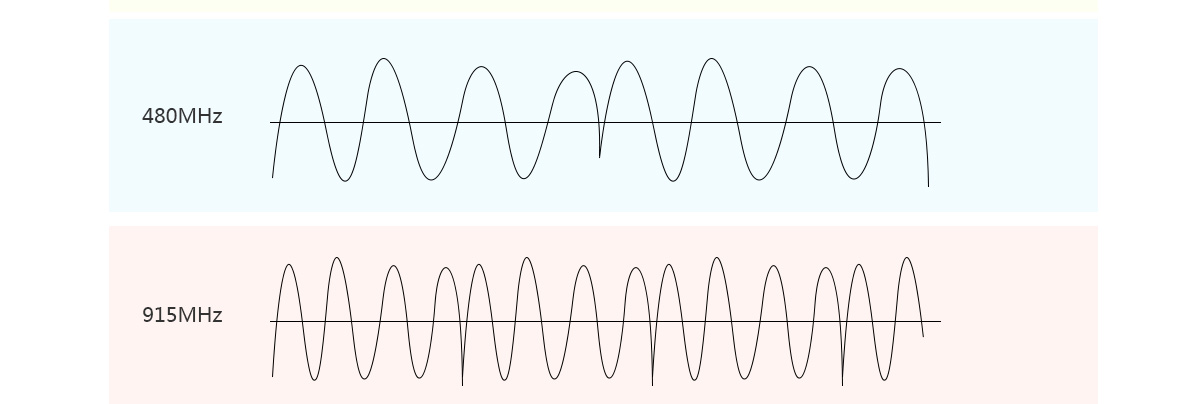

480 / 915MHzSeparate -4 and -9 variants. Choose the band that matches the reader infrastructure.
Infrared (IR)IR communication is listed. IR adds an additional communication channel for flexible workflows.
Management interfacesThe compact tag body stays sealed, with all data handled over the air. Matched reading equipment and the host solution deliver the data into management systems.

Product data and deployment requirements

ItemFamily data / details
Model familyWS-ATAG6325-X. Select the -4 or -9 frequency variant separately.
Antenna3D antenna. Test orientation, mounting material and obstruction at the intended site.

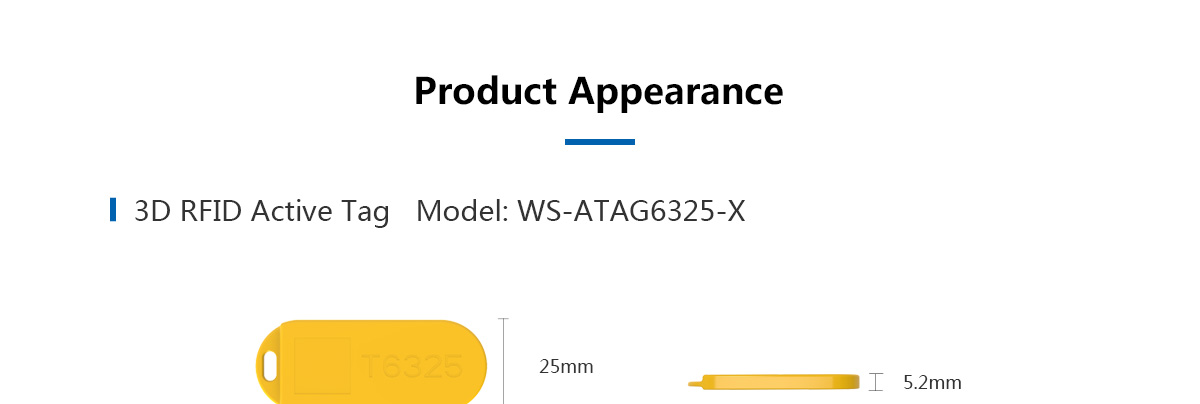

Dimensions63 × 25 × 5.2mm. Its compact size fits reels, carriers and boards easily.
Operating voltageListed as 2–3V. Low operating voltage alone does not establish explosion-proof or intrinsic-safety certification.

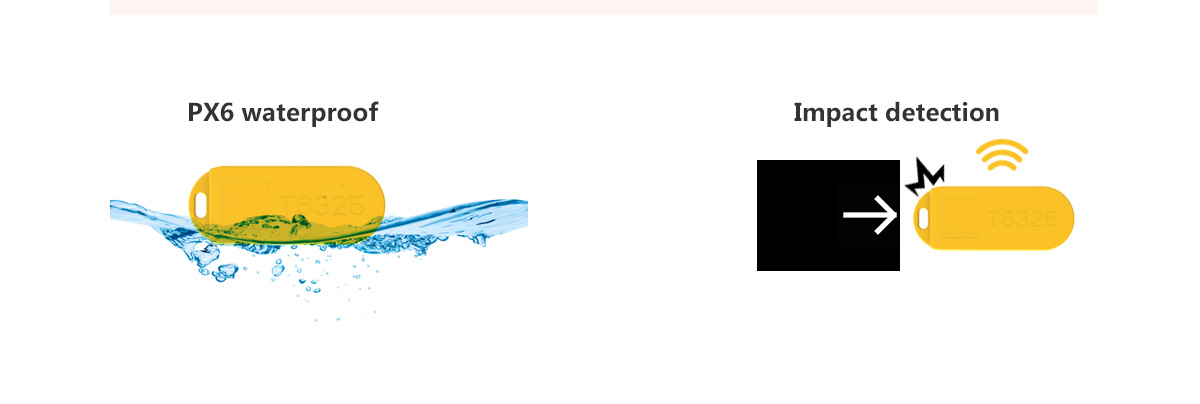

Water resistanceListed as IPX6. Rugged sealing suits humid and splash-prone working areas.
Sensing and notificationsImpact, tilt, ambient temperature and low-battery notification are listed. Event triggers and reporting formats are set to suit each workflow.

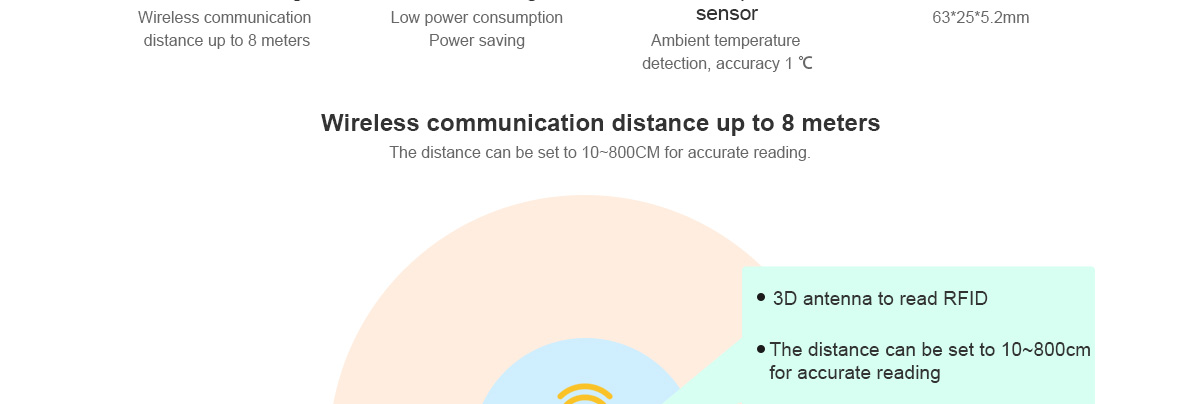

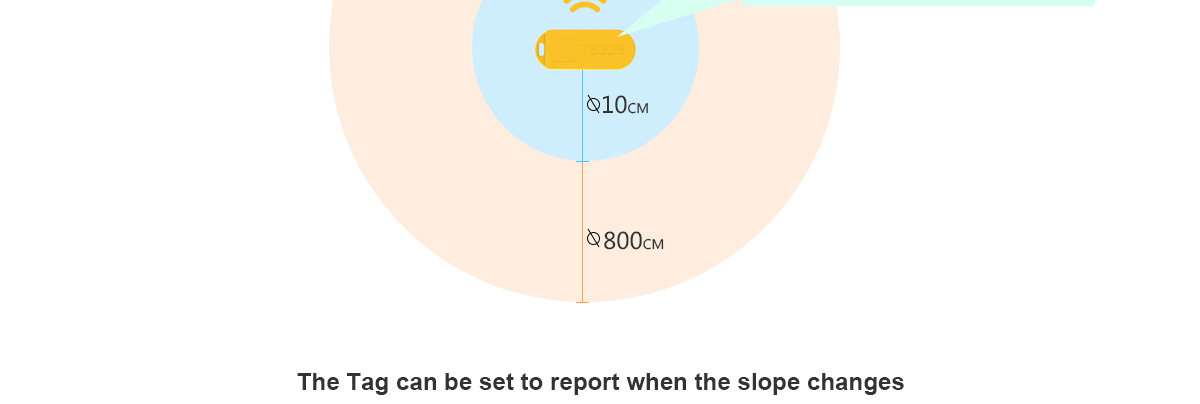

Reading distanceOriginal data separately lists up to 3m for 125kHz access sensing, configurable reading from 10–800cm and wireless communication up to 8m. Each mode serves a different task; configure each mode with the intended equipment.
Battery and consumptionBattery life is extended by tuning reporting intervals and sensing settings. Low-power operation keeps tags working through long deployments.

Questions before deployment

Does a 3D antenna provide 3D coordinates?

The 3D antenna gives stable reads in any tag orientation. Zone identification or positioning is delivered by the reader system, site layout and algorithms. Its up to 8m communication range covers wide reading zones.

How does it compare with a passive UHF EPC tag?

This is an active RFID family. Its battery-powered design adds sensing, notifications and longer communication range. Pair it with matching WENSHING readers for best results.

How sensitive is the sensing?

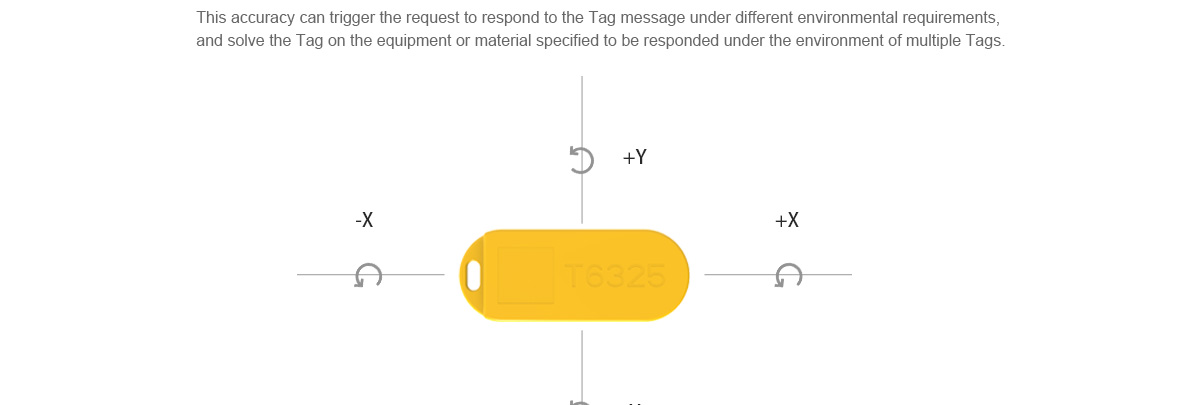

The tag senses temperature differences of 1°C and tilt changes of ±1°. These events can drive alerts and records in the host platform.

How are machine cycles counted?

Machine-cycle counting is handled through the reader and host integration. a machine-signal interface feeds the count while the tag supplies the identity; together they form a complete counting workflow.

Bring these details to a project discussion

  • Material or carrier type, mounting photographs and available space.
  • Required -4 (480MHz) or -9 (915MHz) variant and existing reader model.
  • Reading zones, adjacent-zone spacing, traffic routes and nearby metal.
  • Required temperature, tilt or impact events and host data format.

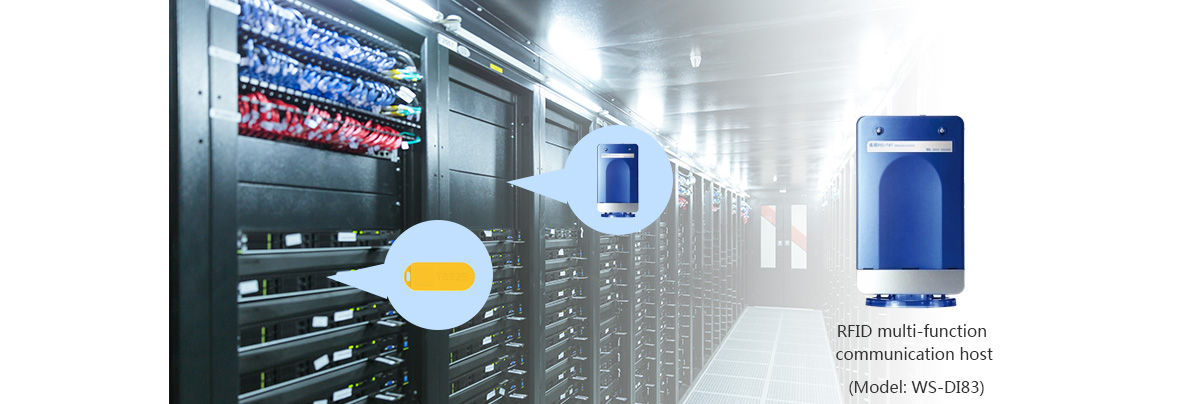

The WS-DI830 product page lists this tag family in its applications. Together they form a complete active RFID system.

Key specifications at a glance

ModelWS-ATAG6325-X
Frequency125kHz; -4: 480MHz / -9: 915MHz (by model)
ApplicationWarehouse material identification, wire and paper reel work-area management, test-board registration; requires matched reader and platform integration
Size63*25*5.2
Product categoryActive RFID Tag
