WENSHING RTLS real-time positioning RFID system is a key component of the digital infrastructure of modern factories. This system combines functions such as item search and location, automatic registration of item location, vehicle usage efficiency, etc., to achieve real-time, accurate, and reliable, Flexible high-performance management, to strengthen the competitiveness of enterprises.
This system is designed for transport vehicles (such as electric pallet trucks, electric forklifts, electric trailers, etc.) that cannot be registered in the process of moving goods. It perfectly realizes the purpose of real-time positioning of goods, which can effectively reduce the time to find goods and provide instant feedback the location of the vehicle, the improvement of the time it takes for the vehicle to find items, and the long route of the vehicle, detours, etc., save a lot of manpower and man-hours.

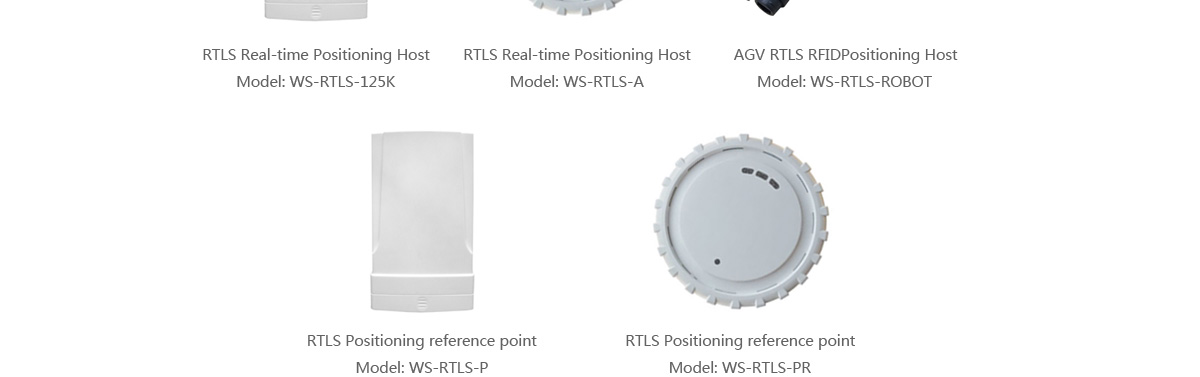

RTLS Real-time Location Host
Model: WS-RTLS-125K
l The accuracy is up to 10CM, and the positioning time is 4ms.
l The whole machine is waterproof and can be installed outdoors or in high humidity and high temperature environments with an accuracy of 10cm. Built-in temperature sensor, compass sensor, G sensor, and tilt sensor.
l Built-in compass, hygrometer, thermometer, vibration sensor, tilt angle meter.
l Interface: RJ45 (support webpage setting function network), RS-485.
l Built-in LF 125KHz safety fence, can be set to 1~8 meters distance of Tag.
l Ultra-long distance, with a straight-line distance of 620 meters.
l Built-in voice prompt, 6W LED strong light prompt, wide 12~36V working voltage.
l Waterproof and rainproof.
l Installed on vehicles (such as electric pallets, electric forklifts, electric trailers, etc.)
RTLS Real-time Location Host Model: WS-RTLS-125K
Features/Specifications

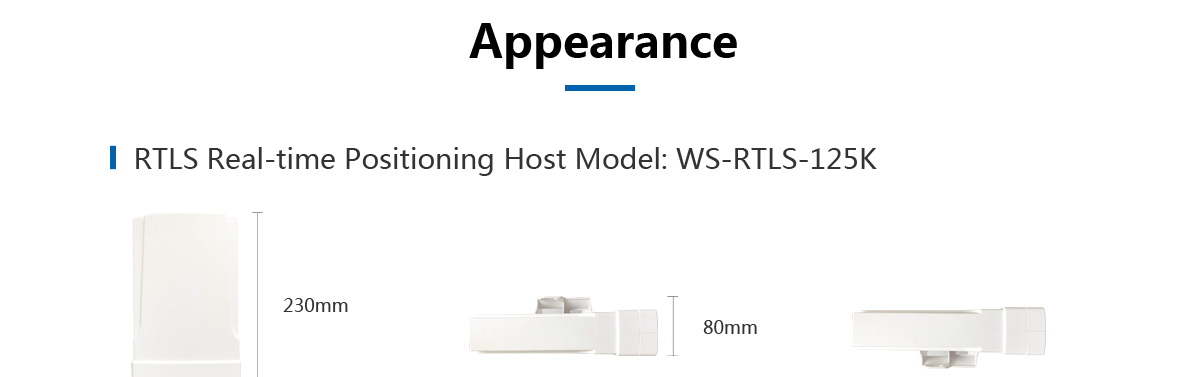

Appearance

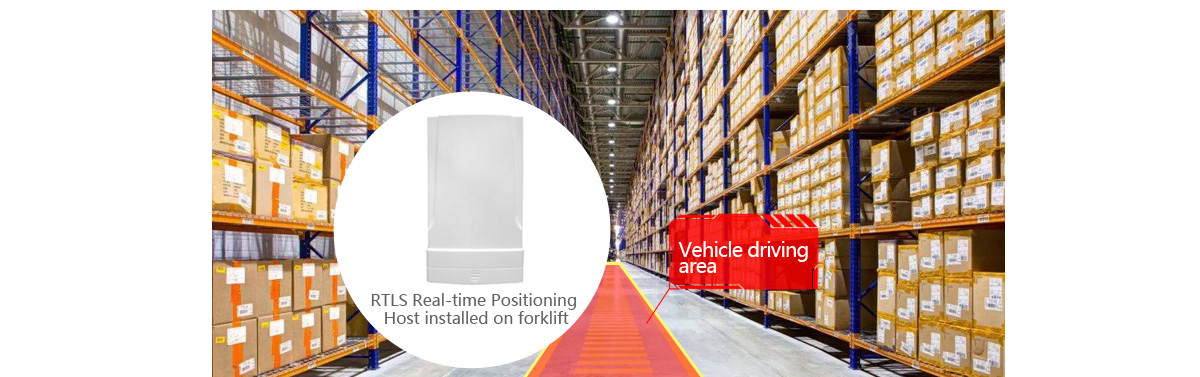

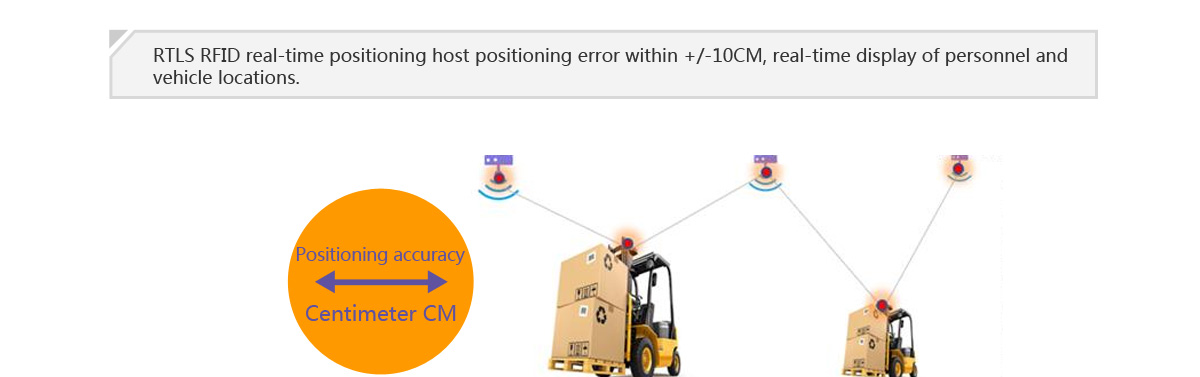

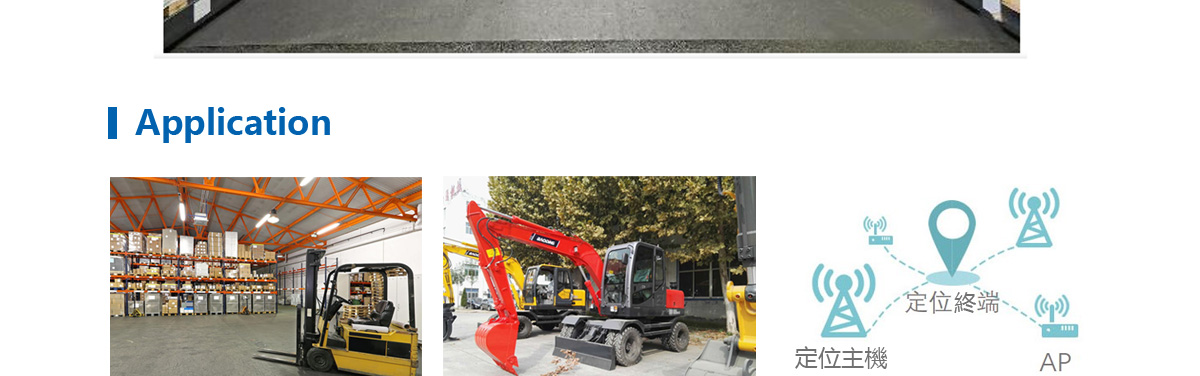

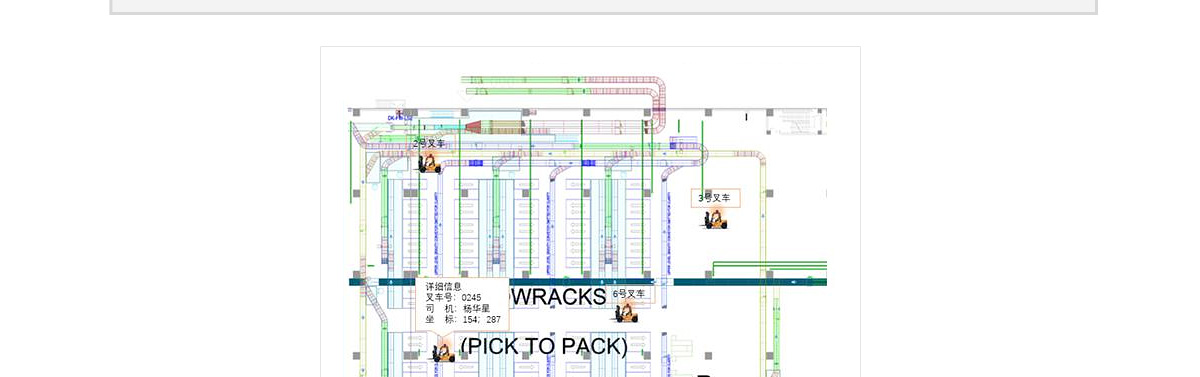

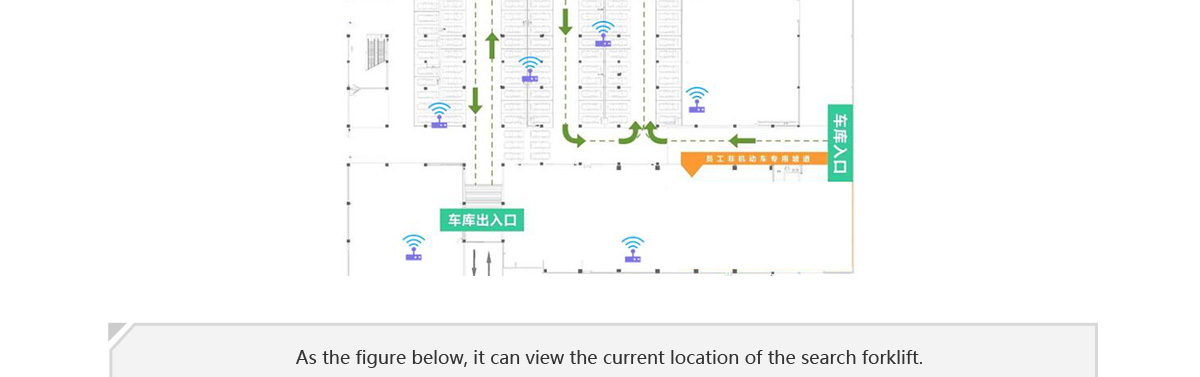

Forklift positioning

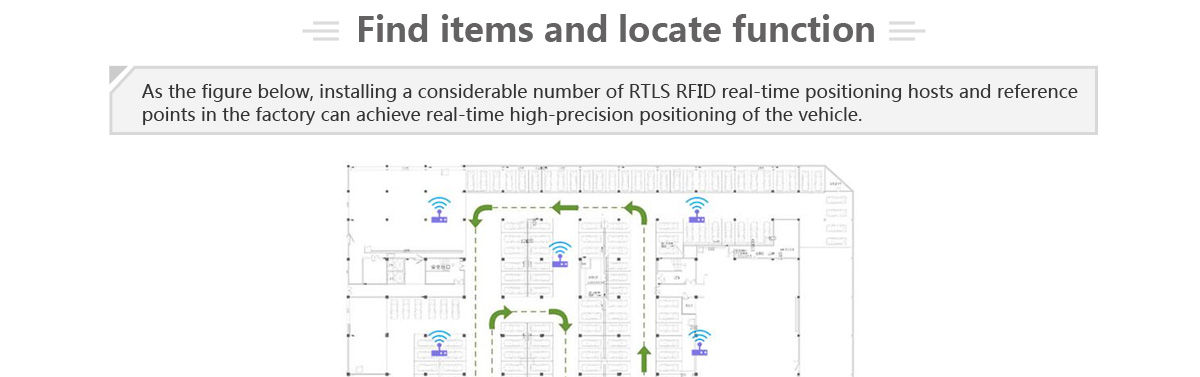

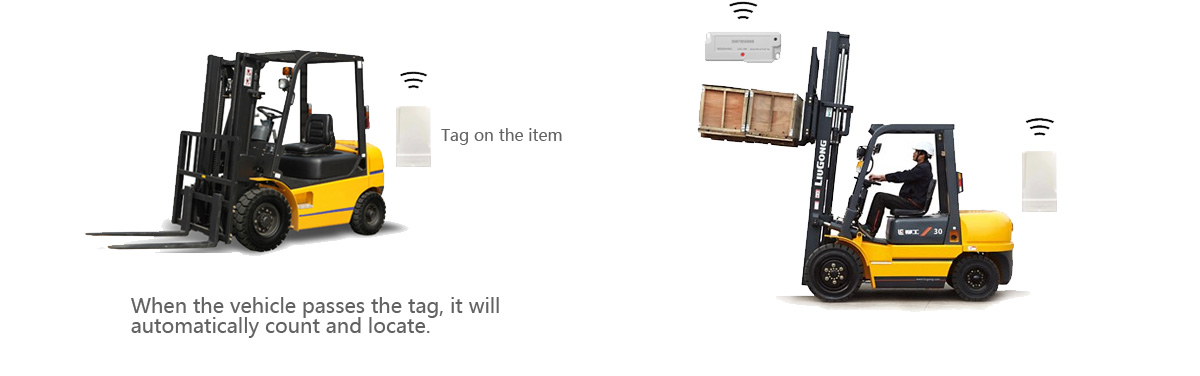

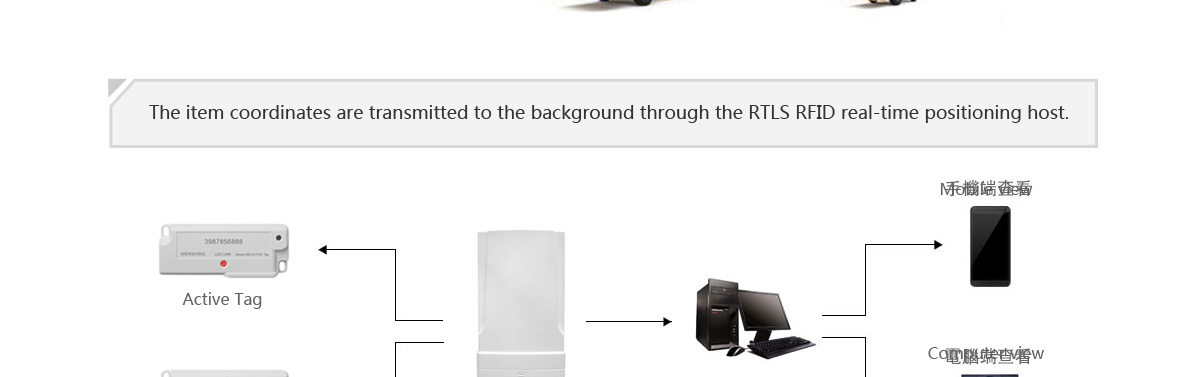

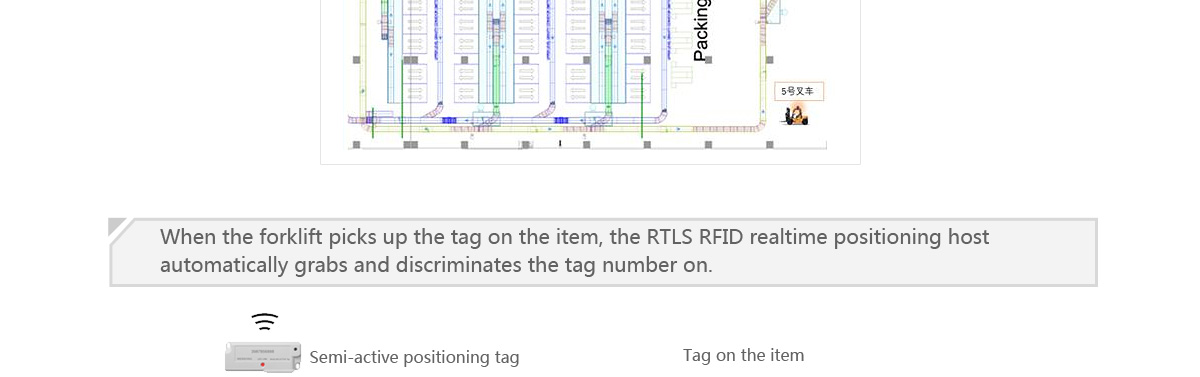

Automatic registration of item location
Positioning of the excavator
Automatically correct the direction of excavation

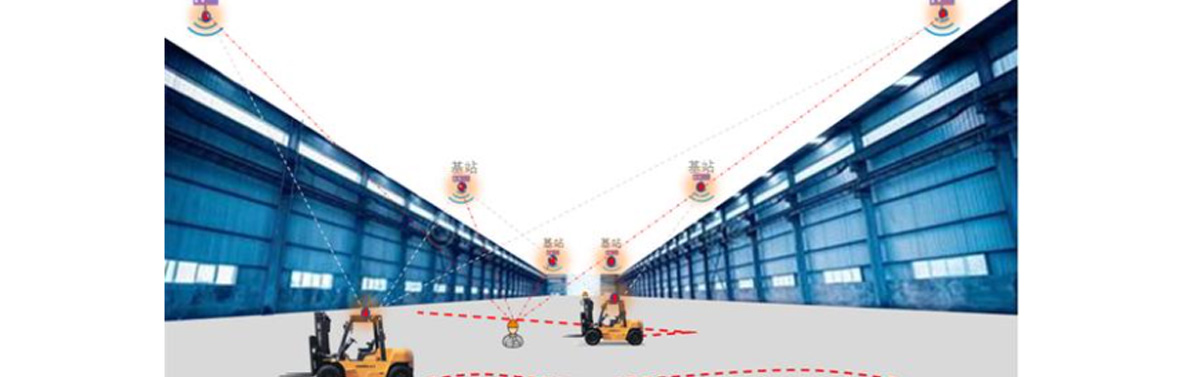

Coordinate base station

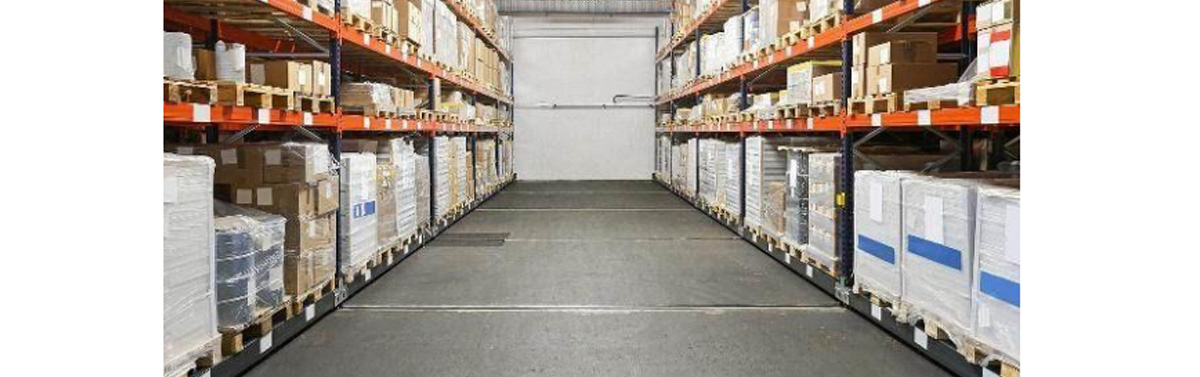

Automated warehouse management

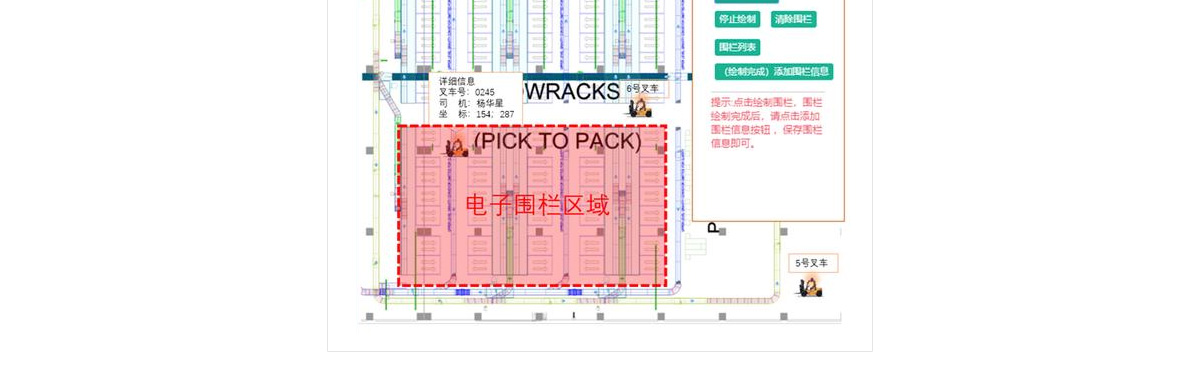

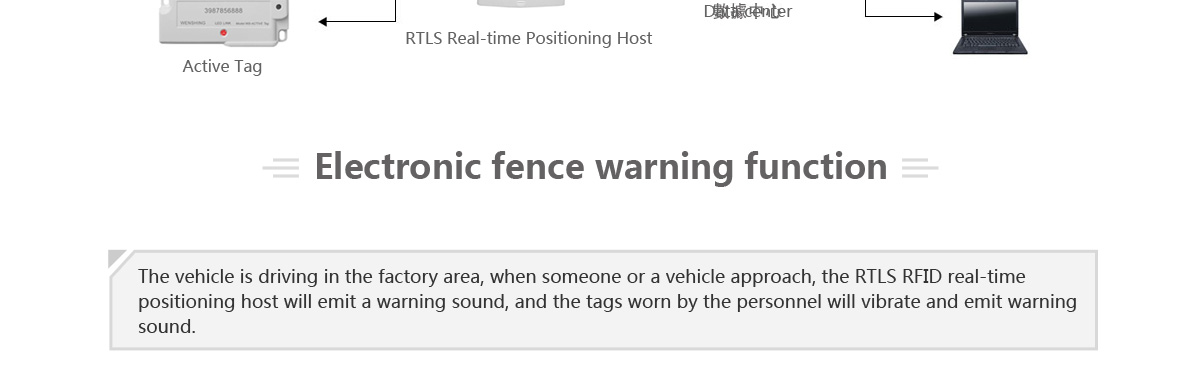

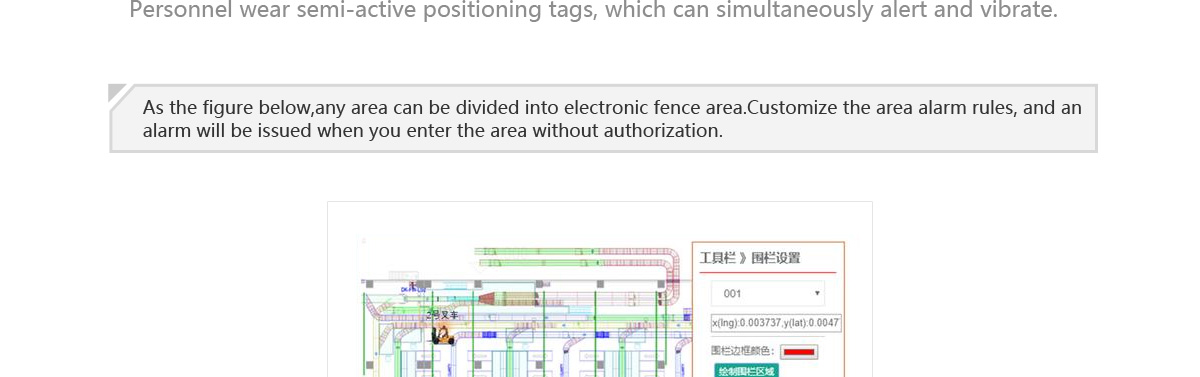

Electronic fence
Temperature and humidity detection
Unmanned vehicle positioning reference point
900MHz frequency hopping of wireless ISM RFID channel (1K hops/time per second)
Positioning accuracy 10CM
Positioning time 4ms
Built-in compass, hygrometer, thermometer, vibration sensor, tilt angle meter.
Wide working voltage 12~36V.
Interface: RJ45 (support webpage setting function network), RS-485.
Wireless IEEE 802.11
6W LED reminder lighting
Voice dialing warning
Built-in LF 125KHz safety fence, the distance label can be set to 1~8 meters.
Waterproof and rainproof
With the WENSHING’s ultrasonic ranging sensor, it can command the forklift to detect whether there are any items on board.
Equipped with WENSHING’s wireless sensor, it has the function of anti-collision detection for people behind the vehicle.
Size: 233 L * 140.7 w * 80 t / mm

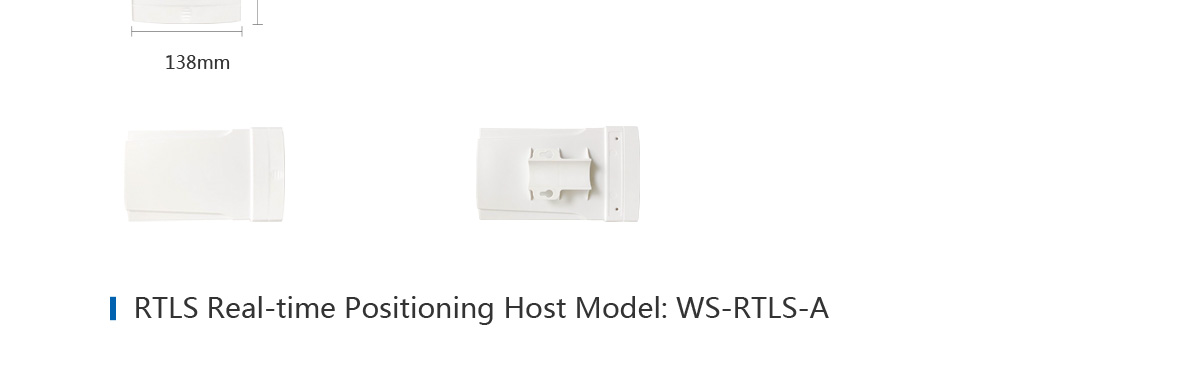

RTLS Real-time Positioning Host
Model：WS-RTLS-A
l Built-in 360-degree cup antenna, there is no antenna directivity problem, improve the reception sensitivity and extend the distance.
l Built-in temperature sensor.
l Built-in voice prompt, wired or wireless network communication function.
l Installed on vehicles (such as electric pallets, electric forklifts, electric trailers, etc.), small and beautiful.

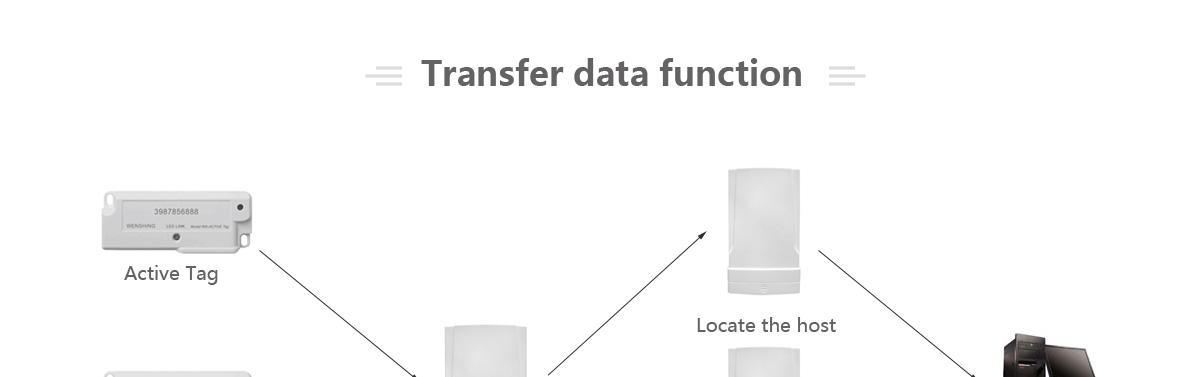

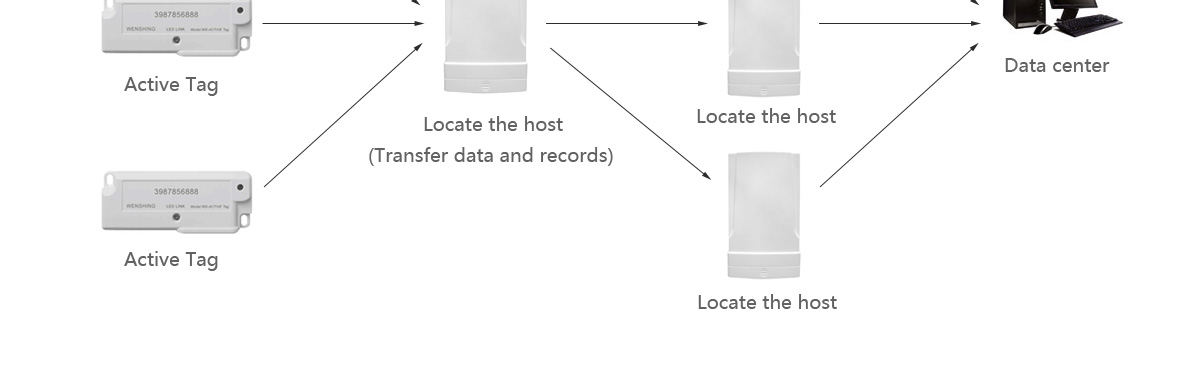

l Different data can be transmitted to the other device, regardless of whether it is a positioning reference point, as long as it is connected to the network, the data required by the other device can be collected and sent to the background.
l It can be used as the coordinate point of the master control terminal or positioning reference point when matched with WENSHING’s RTLS products, which can be used in different occasions.
RTLS Real-time Positioning Host Model：WS-RTLS-A
Indoor coordinate reference point
RFID active tag collector
Reminders and warnings for safe areas
Indoor temperature and humidity detection
Indoor broadcasting
ISM 900MHz frequency hopping (1K hops/times per second)/specific functions
Built-in hygrometer, thermometer, vibration sensor, tilt angle meter.
Voice alert
Wide working voltage 5~12V
Interface: RJ45 network

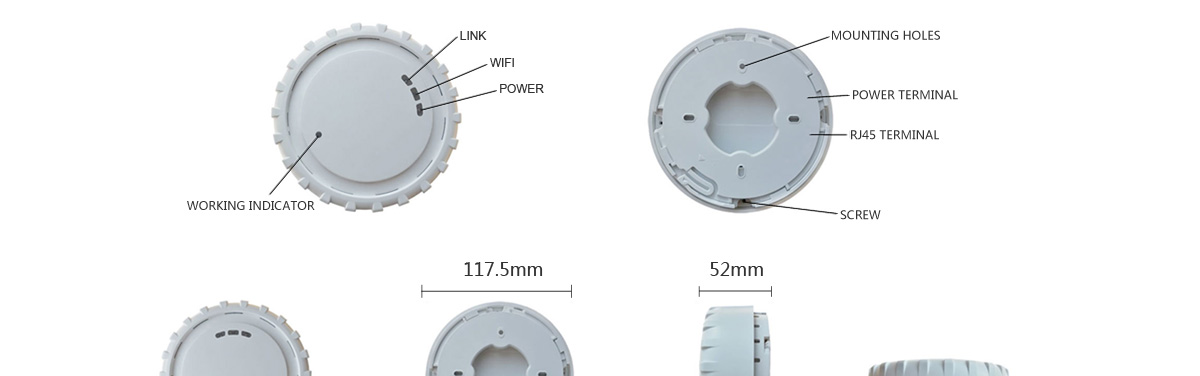

Size: 117 diameter * 55 thickness / mm

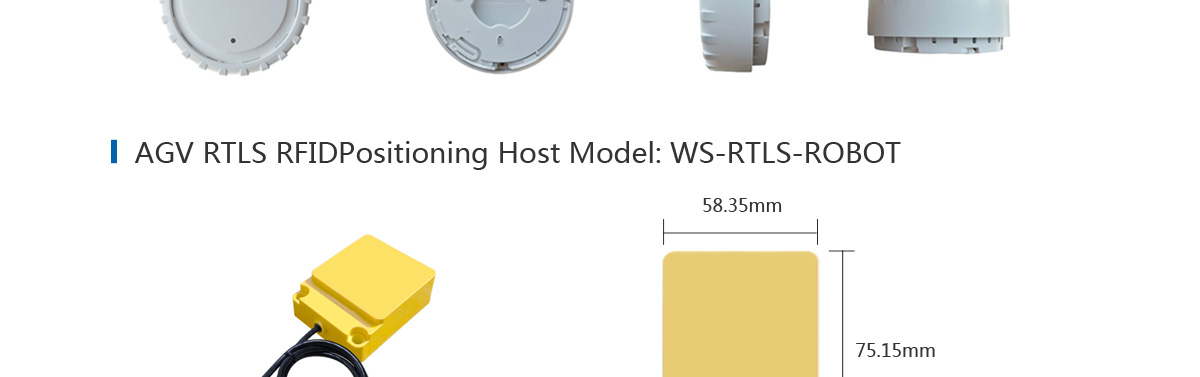

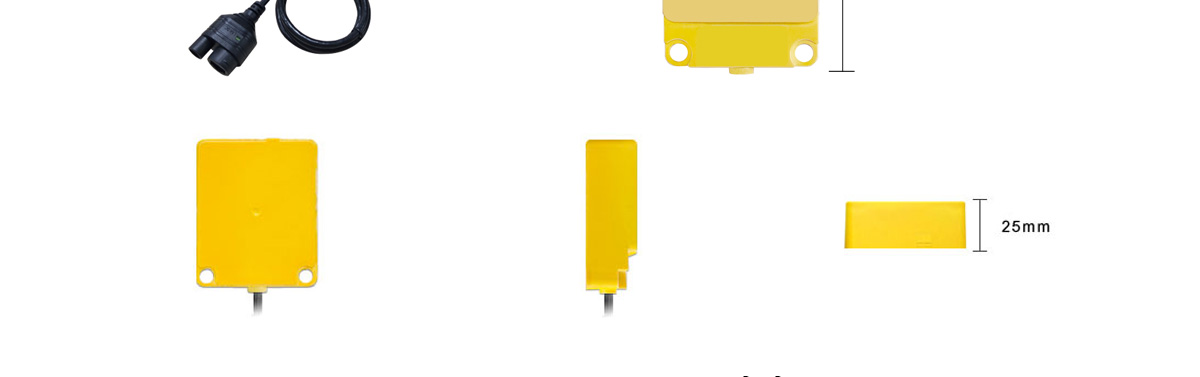

AGV RTLSLocate the Host
Model：WS-RTLS-ROBOT
l Installed on vehicles (such as electric pallets, electric forklifts, electric trailers, etc.).
AGV RTLSLocate the Host Model：WS-RTLS-ROBOT
Indoor positioning
Unmanned vehicle positioning
Mobile device positioning
Support ISM Band 433MHz/480MHz/916MHz/10.5GHz
Wide working voltage 5~36V
Interface: RS-485 (standard product)
Built-in thermometer, vibration sensor, compass
Built-in gravity acceleration detection
Scalable laser ranging
Support Ethernet 10/100Mbps automatic switching
Support WiFi 802.11b/g/n/d/e/i/l/r
Support wired/wireless network disconnection automatic switching
Support web page setting function
Support 12~18V input working voltage
Positioning accuracy<10CM (at least 3 positioning reference points are required)
Voice prompt function
Multi-color LED prompt function
Built-in tilt angle detection
Built-in vibration detection
Built-in temperature detection
Built-in humidity detection
Built-in digital compass
Size: 75.15 L * 58.35 w * 25 t / mm
