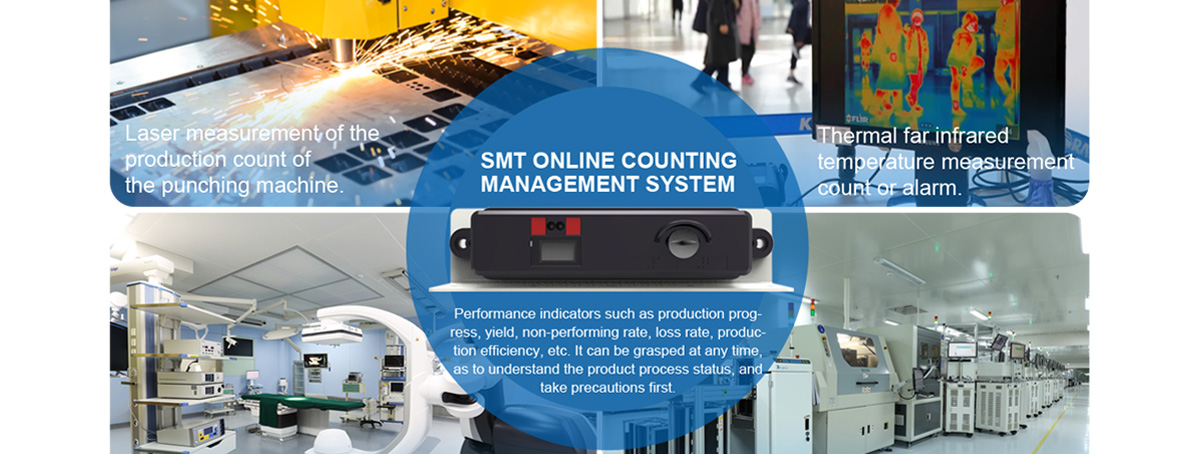

WENSHING launched the SMT Smart Statistics System (Model: WS-SMT) in March 2018 to improve the management of SMT production lines. In response to equipment wiring problems, the Hawkeye Wireless Counter (model: WS-Hawkeye-C) was launched in May 2021, which includes the management required by Industry 4.0 and improves production efficiency. Traditional methods often trouble the brain due to wiring or wiring problems, and even damage the equipment.
This product can know the production quantity in real time, automatically detect the production quantity, temperature, distance, brightness, tilt, and vibration of the equipment, and can pass through the Gateway Host WS- GATEWAY480 is routed to the background to analyze the production quantity, working hours, and equipment rationality, and set the counter threshold through the background. It is cooperate with forklift positioning and anti-theft to form a safety protection net, which is suitable for various applications in different industries.

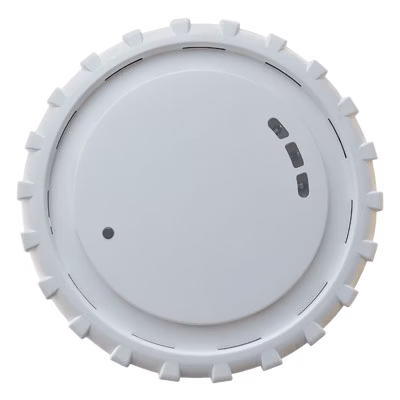

Product Overview & Core Value Breakthrough Industrial Sensing Technology

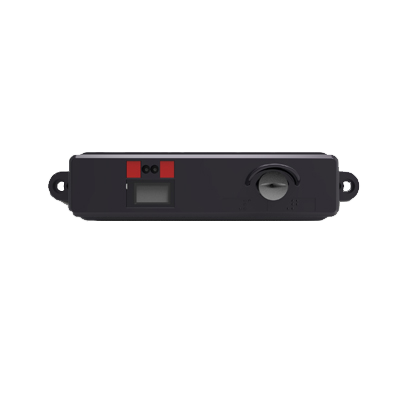

The WS-Hawkeye Wireless Sensing Counter represents an innovative breakthrough in industrial automation. Utilizing advanced 480MHz RF communication technology, it achieves seamless wireless connectivity with the WS-GATEWAY480 Gateway, bringing unprecedented flexibility in data acquisition to the manufacturing industry.
This system integrates multiple sensing capabilities such as counting, temperature, and vibration in one. Its wire-free rapid deployment significantly reduces installation costs and construction time. The high-penetration wireless transmission ensures stable operation even in complex factory environments, making it an ideal choice for realizing Smart Manufacturing and Industry 4.0.

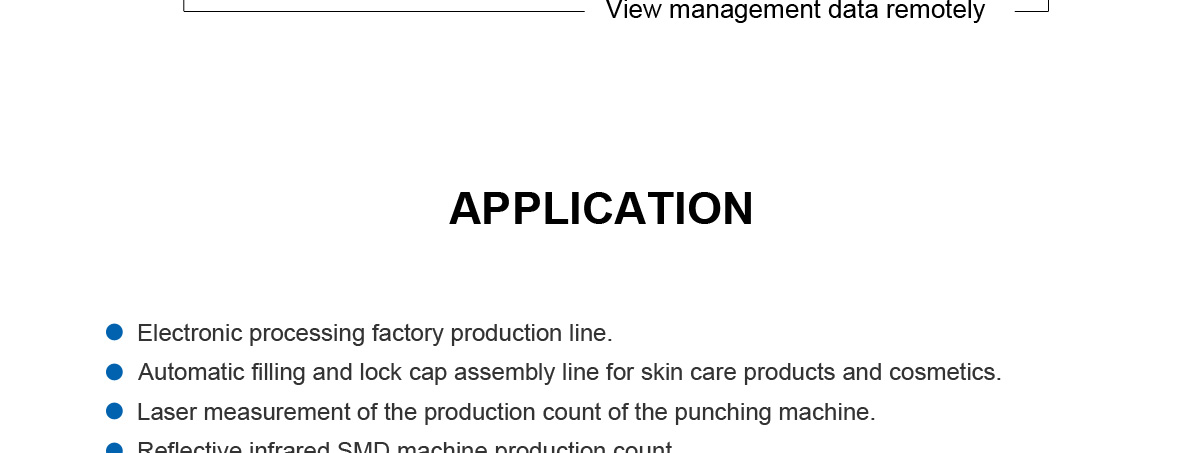

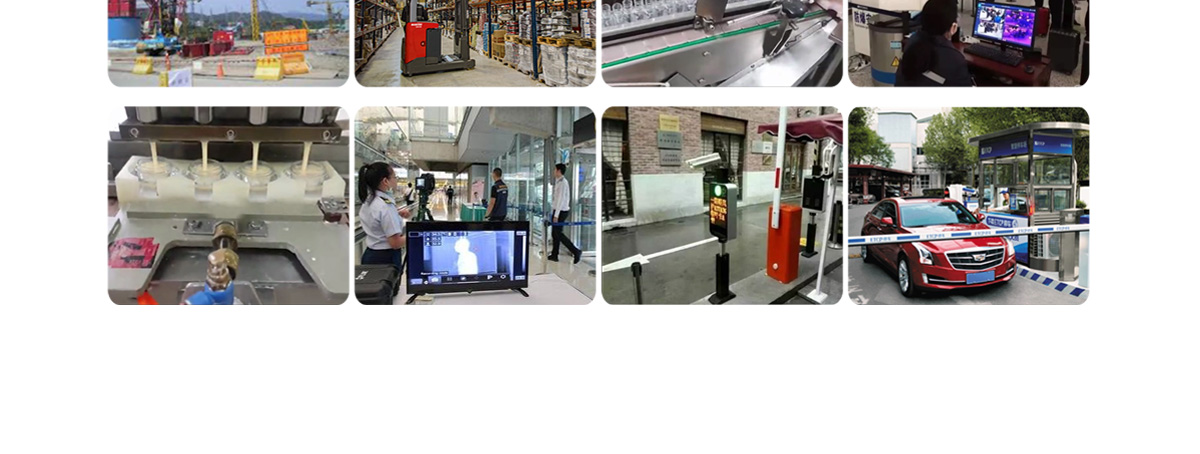

Industry Application Scenarios and Value Creation

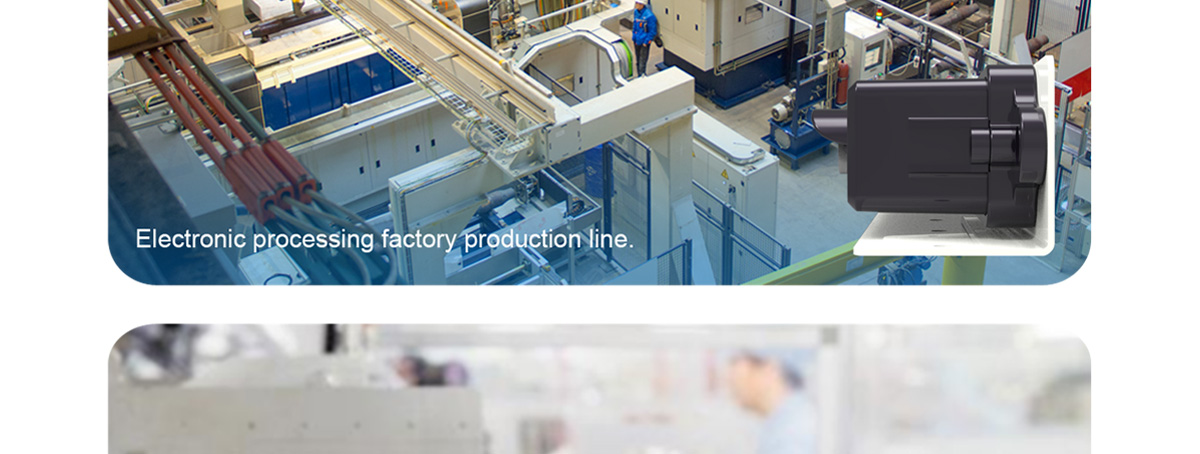

Industrial Manufacturing Monitoring
Provides real-time production counting, equipment operation monitoring, vibration anomaly analysis, and temperature tracking, comprehensively mastering production line status to improve process yield and equipment availability.
Data Visualization Integration
Seamlessly integrates with MES System and OT platforms, offering dynamic reports, trend analysis, and predictive maintenance functions, transforming sensor data in actionable business insights.

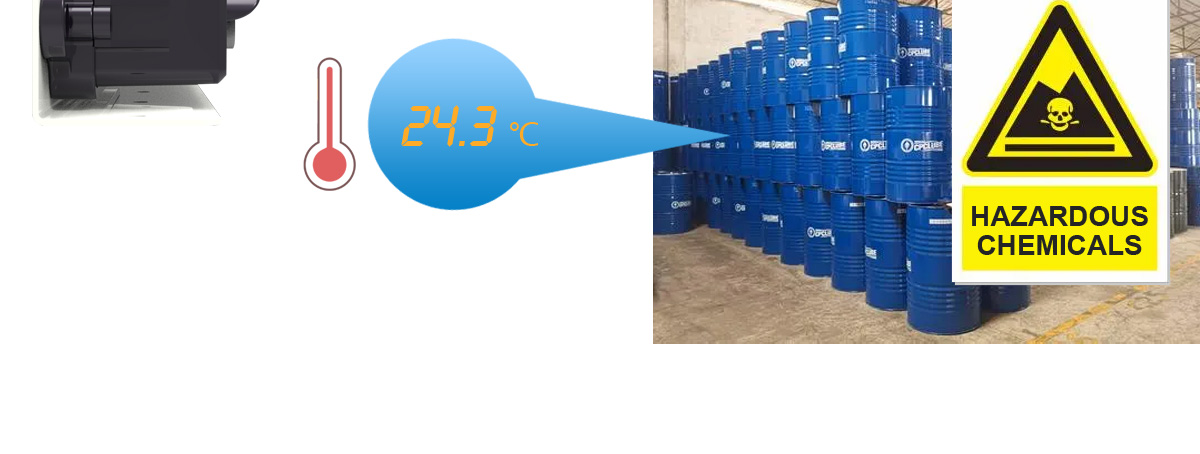

Environmental Safety Monitoring
Supports CO₂ concentration detection, equipment tilt alarms, and personnel and vehicle counting, creating a comprehensive workplace safety protection network that aligns with ESG sustainable development goals.
480MHz High-Penetration Communication
Utilizing GFSK modulation mode, RF output power is adjustable from -10 to 10dBm. Communication range reaches 100 meters in open environments, maintaining stable connection even within metal structures and multi-story buildings.

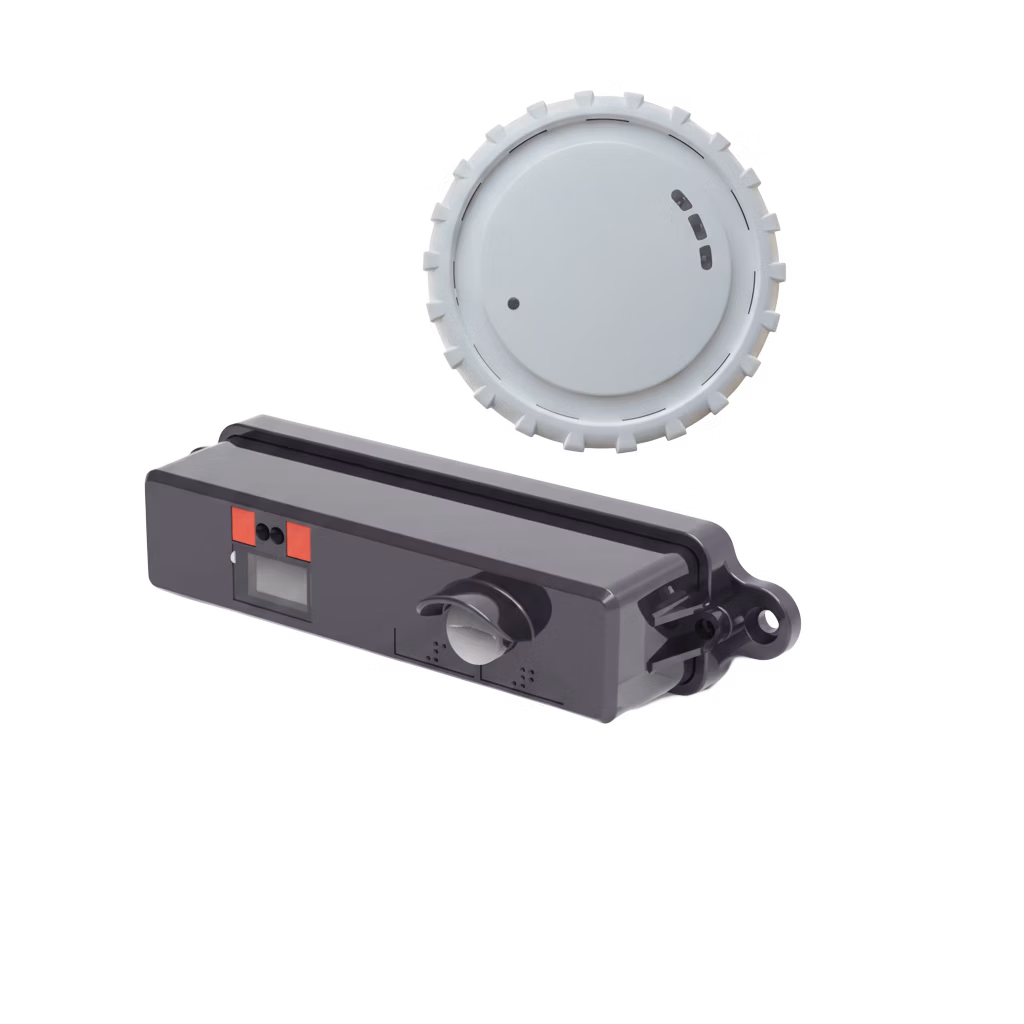

Integrates infrared counting (1-30cm), ultrasonic ranging (Max 5M), laser precision detection (Max 3M), three-axis acceleration (±2g~±32g), electronic compass, and CO₂ sensors. A single device meets various application needs.
Ultra-Low Power Consumption Design
Powered by 18650 lithium battery, standby current is only 60uA. Coupled with smart power management, it ensures long-term stable operation. Equipped with a 0.5-inch OLED display and buzzer, providing real-time status feedback.
WS-Hawkye-c Sensor Full Specifications
Wireless Communication Specifications
Sensing and Display Functions

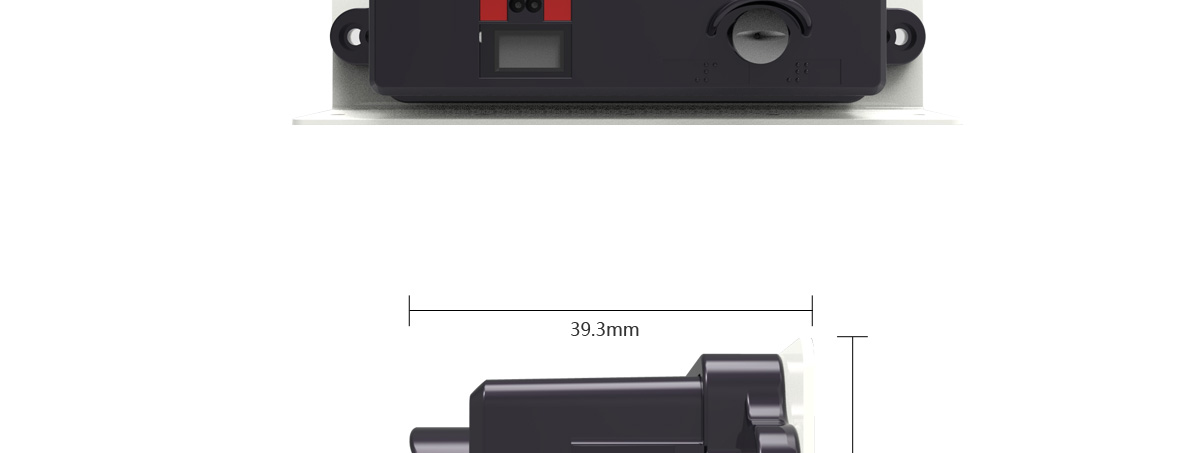

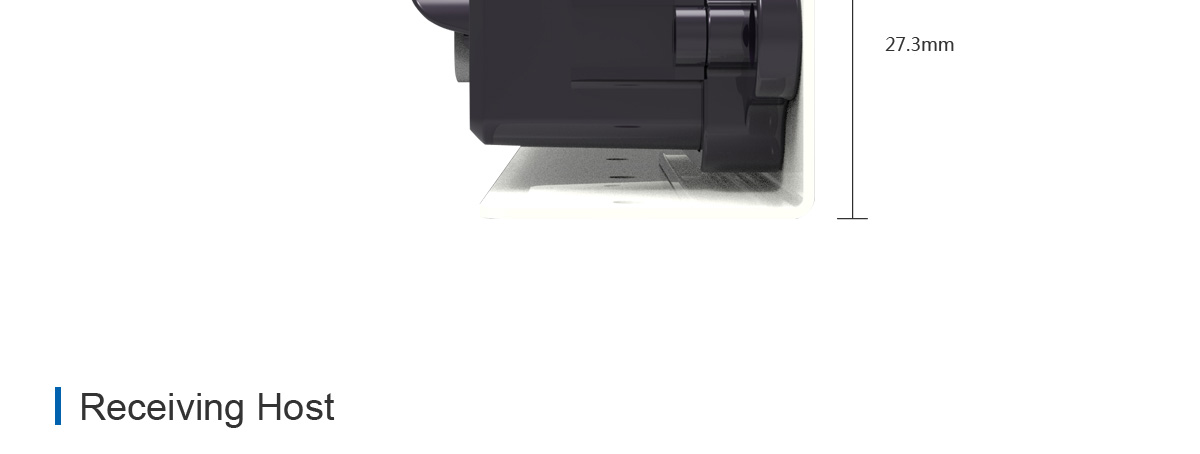

Mechanical and Environmental Specifications

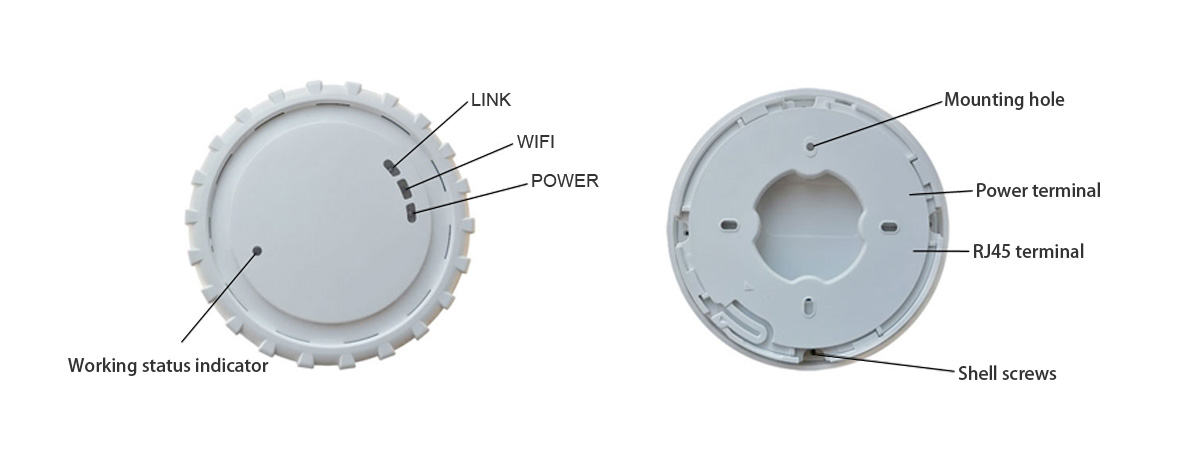

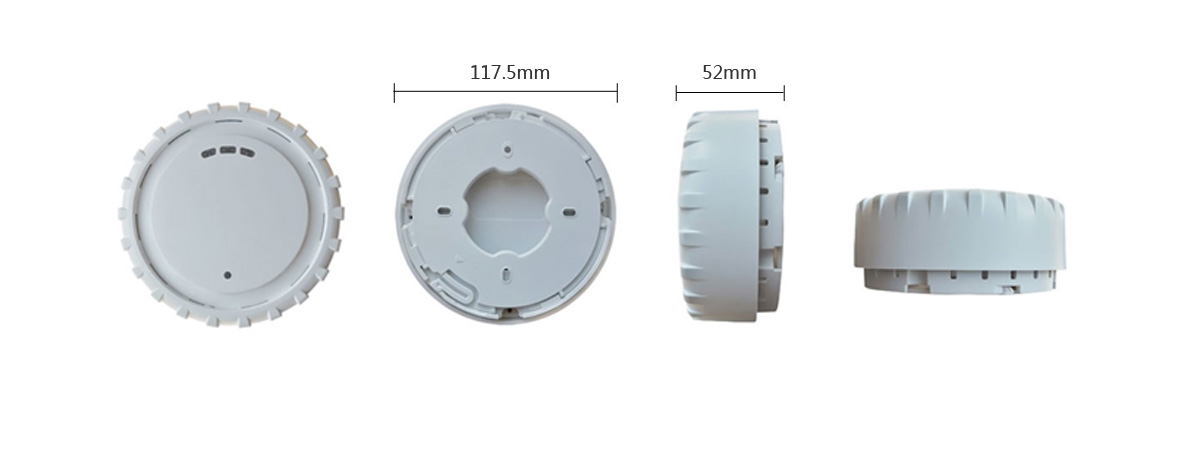

WS-GATEWAY480 Gateway Specifications
Enterprise-Grade Wireless Gateway Host
The WS-GATEWAY480 serves as the system's core, supporting simultaneous connections with up to 32 Hawkeye Wireless Sensors, providing robust data aggregation and forwarding capabilities.
1
Powerful Wireless Performance
480MHz band, RF power 0~20dBm, communication range up to 100 meters
2
Diverse Connectivity Interfaces
Ethernet 10/100Mbps, WiFi 802.11b/g/n (optional)
3
Voice prompts, buzzer, high-brightness LED multi-notifications
4
DC 12V power supply, operating temperature -10℃~+75℃, ABS casing protection
Complete Product Series and Application Scenarios

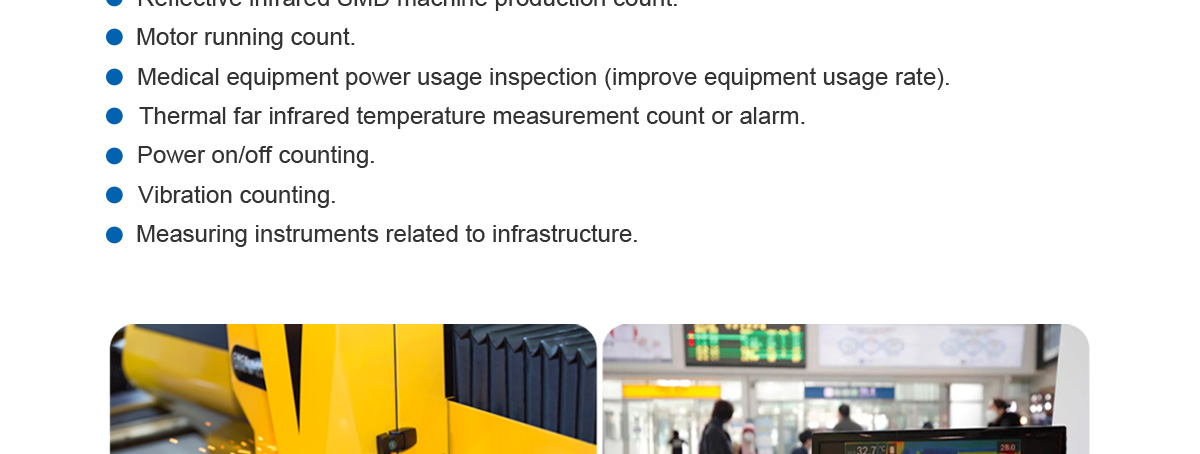

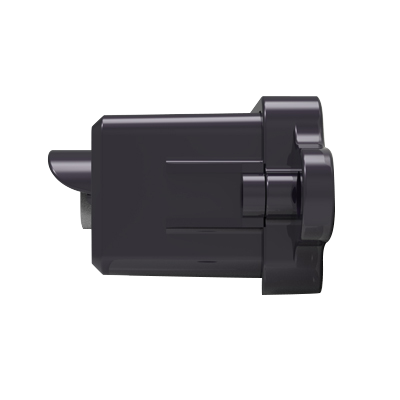

WS-Hawkeye-C Infrared Counting Type
Core Functions: Reflective infrared detection for counting and distance measurement, Max. 50cm, IP65 waterproof rating, Average current 22uA

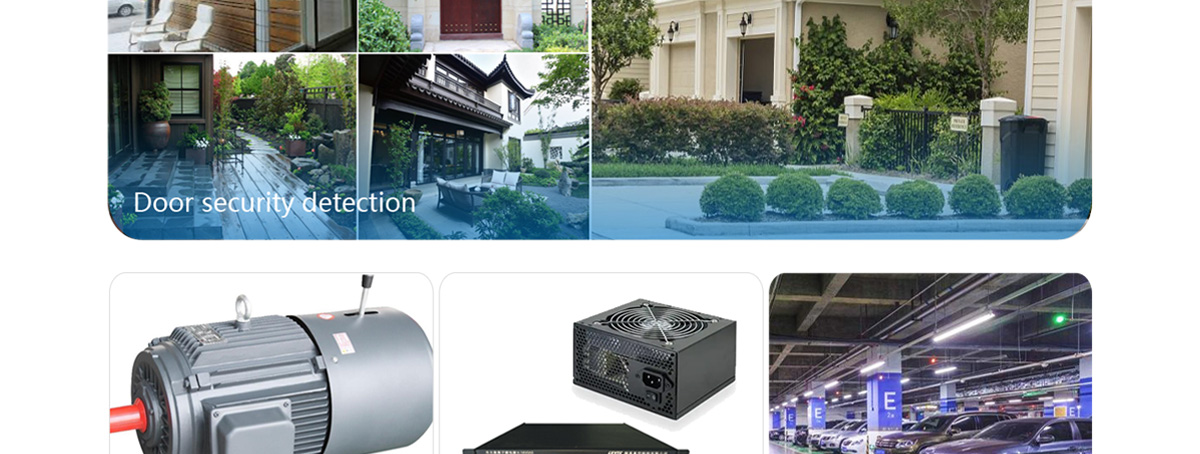

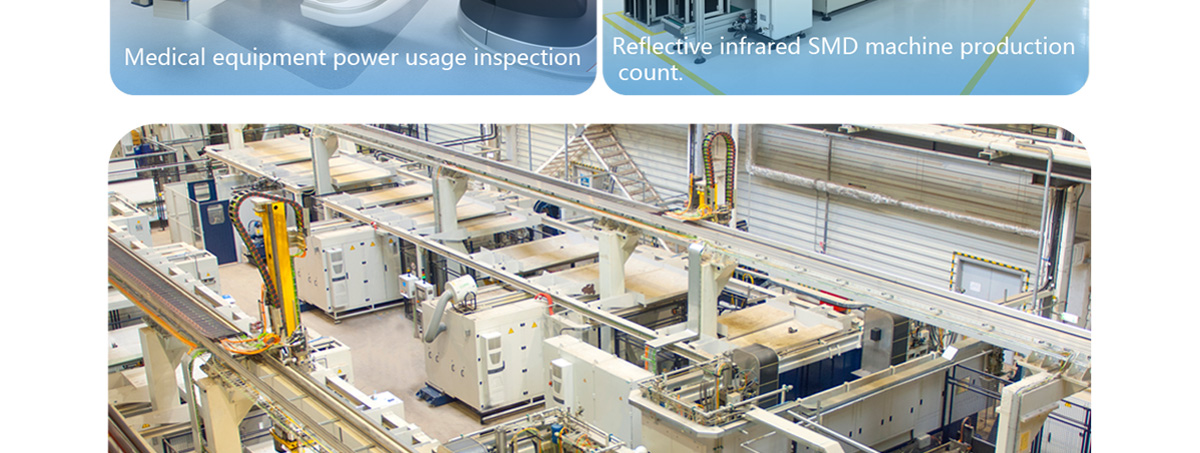

Applicable Scenarios: SMD PCB on-board counting, Punch press counting, Equipment operation detection, Door anti-theft alarm system
WS-Hawkeye-U Ultrasonic Multi-functional Type
Core Functions: Ultrasonic ranging Max. 5M, Vibration detection, Tilt angle detection, Temperature sensing, Average current 18uA

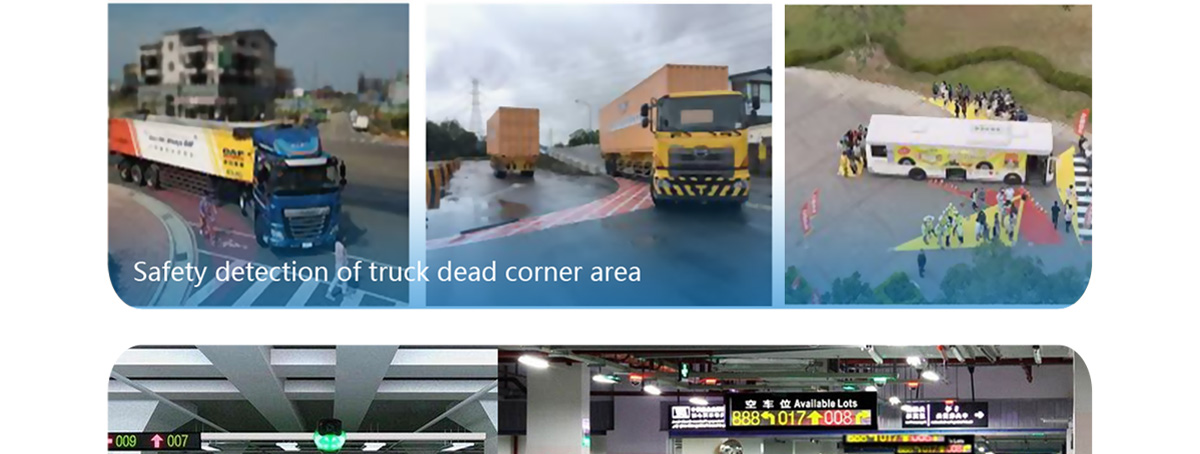

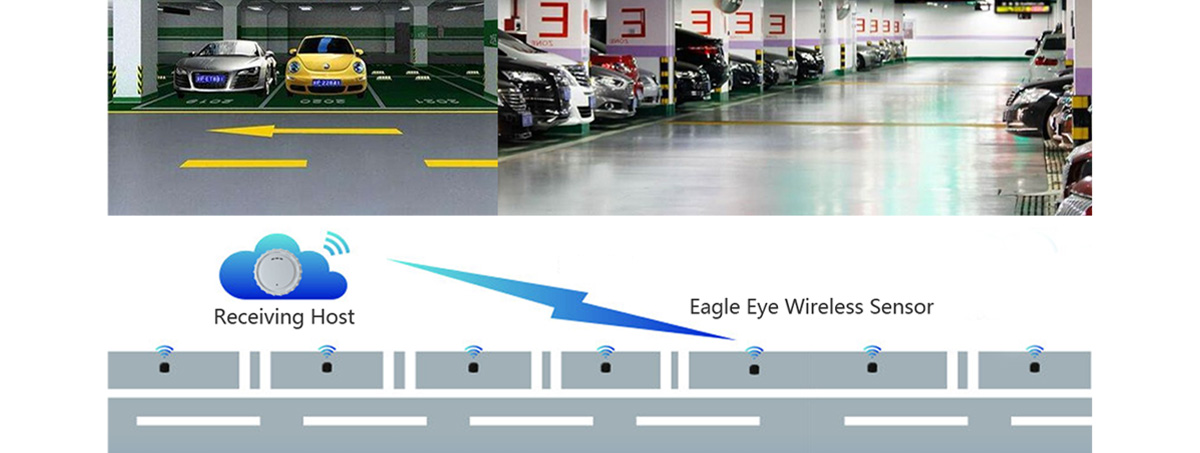

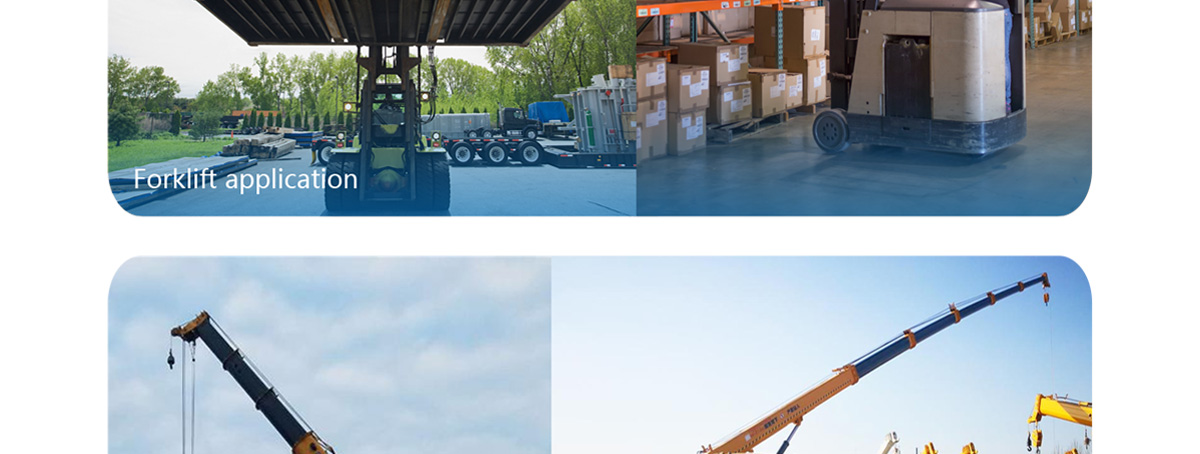

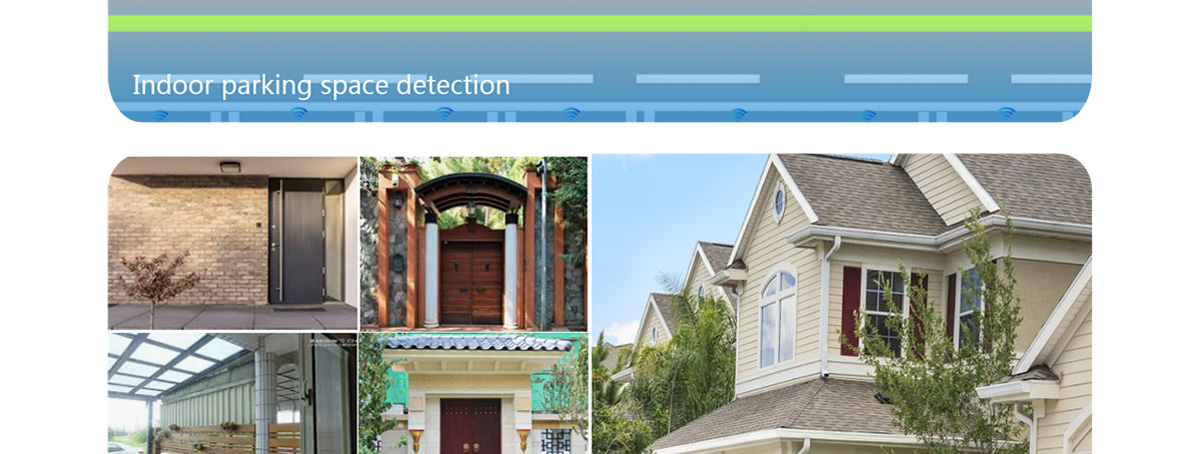

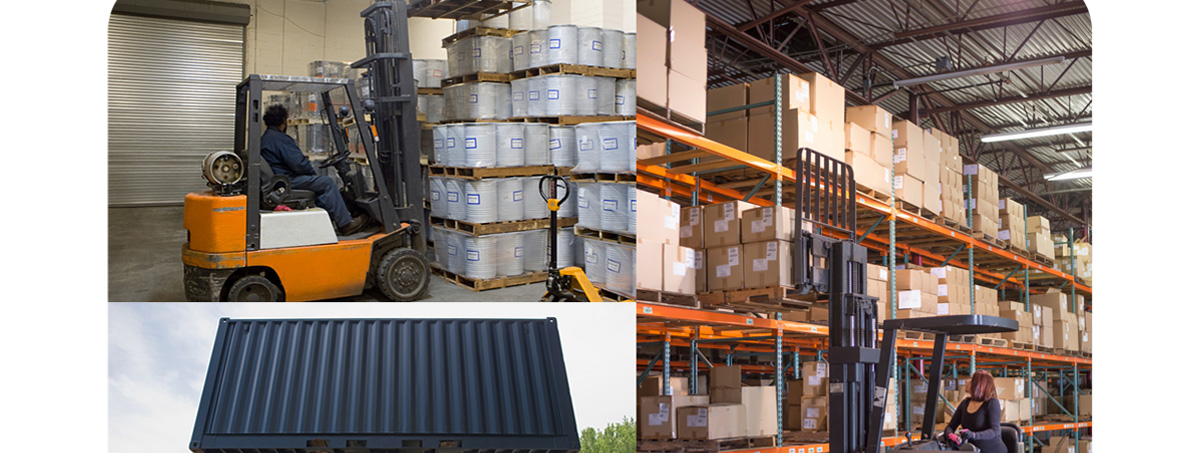

Applicable Scenarios: Large machinery counting, Forklift safety warning and object detection, Garage blind spot detection, Indoor parking space monitoring, Water level measurement, Personnel and vehicle counting
WS-Hawkeye-L Laser Precision Type
Core Functions: Laser detection Max. 3M, Resolution 1cm, Detection point 30cm, Provides high-precision distance measurement
Applicable Scenarios: Production line equipment precise counting, Personnel positioning and counting, Patient bed monitoring system
WS-Hawkeye-S Press-trigger Type
Core Functions: Press-activated alarm trigger, Temperature sensing and monitoring function

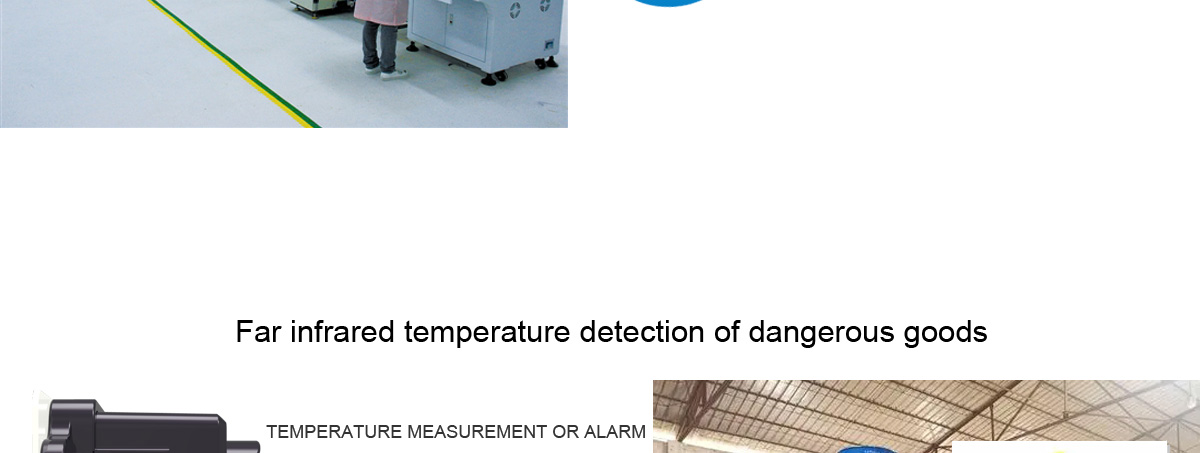

Applicable Scenarios: Industrial equipment abnormality notification, High-temperature area warning applications such as factory chimneys
Advanced Models and Professional Applications
Dedicated Height Detection Type

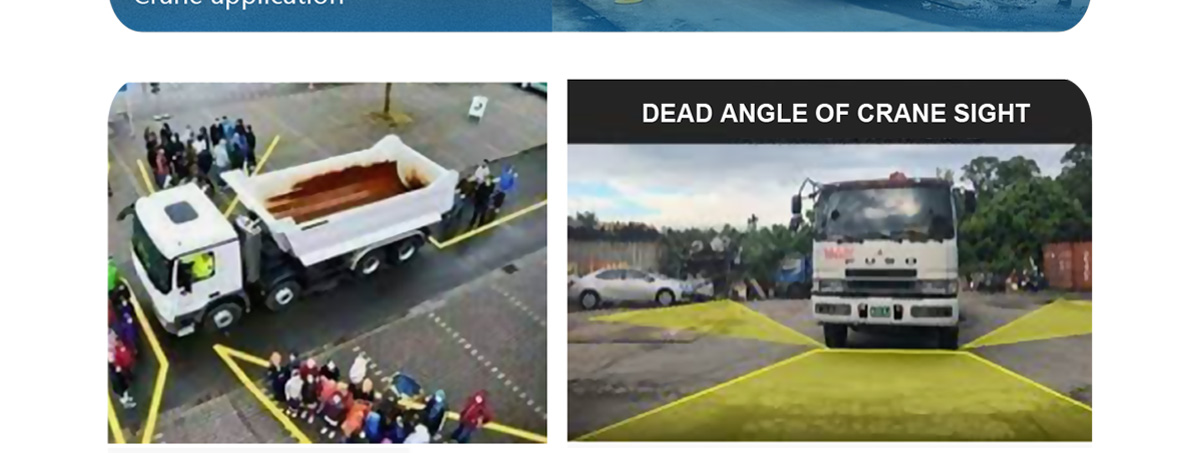

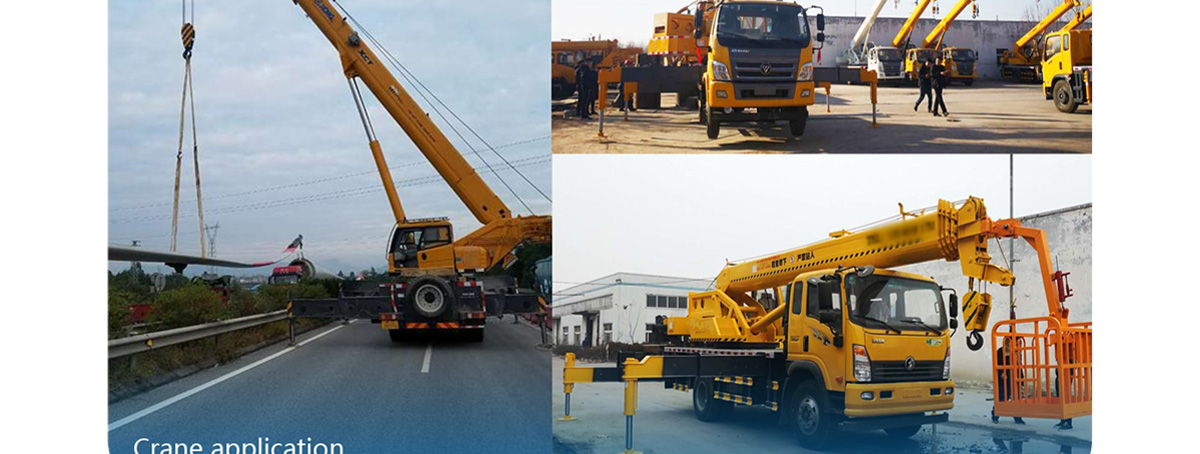

Provides high-precision height detection, with a resolution of 13cm, specifically designed for automated warehouse forklift height control, patient bed lift monitoring, and crane operation safety.
Environmental Quality Monitoring Type
Equipped with high-sensitivity CO₂ sensor, with a concentration detection range of 400ppm-5000ppm, suitable for underground parking lot air quality monitoring and enclosed space ventilation alarm systems.
Integrates the full functionality of all the above models, offering maximum flexibility and scalability, suitable for complex industrial application environments requiring diverse sensing capabilities.
All models support 430MHz RF wireless communication (compliant with NCC regulations, other frequencies can be customized), with a transmission distance of Max. 200M and Data Rate of 123Kbps, ensuring stable and reliable data transmission.

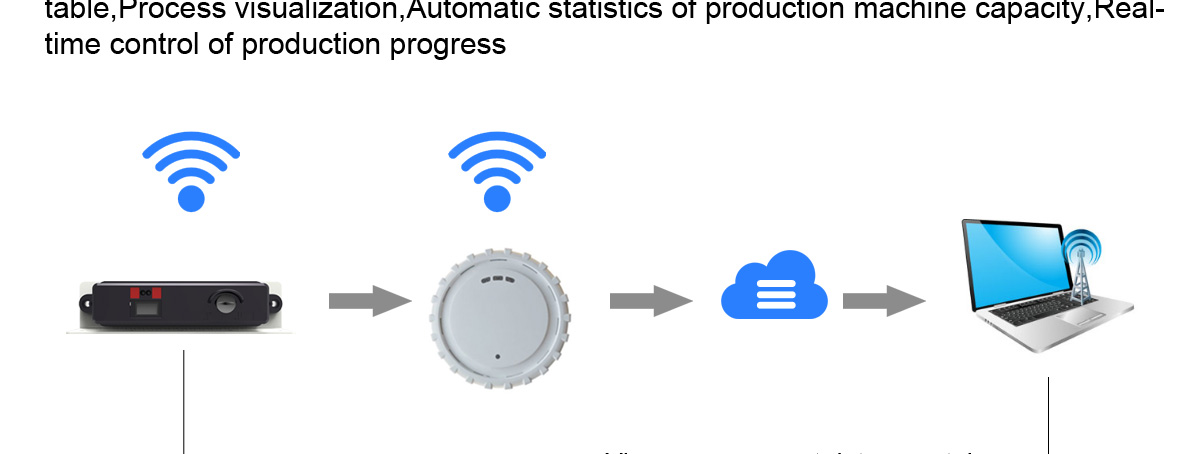

System Architecture and Integration Solutions
Three-Tier Smart Architecture
WS-Hawkeye series sensors are deployed across the production site, collecting real-time process data, environmental parameters, and equipment status.
WS-GATEWAY480 aggregates data from up to 32 sensors, performs protocol conversion and edge computing, and uploads via Ethernet or WiFi.
