Wireless Super-regenerate
Receiver Module

Model:
RWS-371F-1
RWS-371F-2
RWS-371F-3
RWS-371F-4
RWS-371F-5
RWS-371F-6

RWS-371F for the high-frequency receiver module and high sensitivity design, only with the external components using a simple range of applications: wireless security systems, automobile alarm systems, remote control doors, remote control point, data transmission, remote control water / electric switch , pager systems, PDA data transfer.

 APPEARANCE

External Appearance

MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS

FEATURES

Application


MetInfo enterprise content manager system | MetInfo CMS     MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS     MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS     MetInfo enterprise content manager system | MetInfo CMS  MetInfo enterprise content manager system | MetInfo CMS     RFID|Wireless Modules|RF Module|Wireless VIDEO


MetInfo enterprise content manager system | MetInfo CMS      MetInfo enterprise content manager system | MetInfo CMS  MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS



MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

SPECIFICATION

Technical specifications


  • RWS-371F-1 303.875MHz

  • Frequency Range : 303.875MHz

  • Modulate Mode : ASK

  • Circuit Shape : LC

  • Date Rate : 4800bps

  • Sensitivity : -108 dBm

  • Channel Spacing : ±500KHz

  • Supply Voltage : 3.8~5.5V

  • High Sensitivity Passive Design

  • Simple To Apply with Low External Count

    SymbolParameterConditionMinTypMaxUnit
    VccOperating Supply Voltage
    		3.855.5V
    I TotOperating Supply Voltage

    		4.5

    V DataData Out1 Data = +200 uA ( High )Vcc -0.5Vcc
    		V
    1 Data = -10 uA ( Low )

    		0.3V
  • ParameterSymMinTypMaxUnit
    Operating Radio FrequencyFC303.325303.875304.325MHz
    SensitivityPref.-106-108-110dBm
    Channel Width
    		-500
    		+ 500KHz
    Noise Equivalent BWNEB
    		54KHz
    Baseboard Data Rate


    		3KB/S
    Receiver Turn On Time


    		3ms

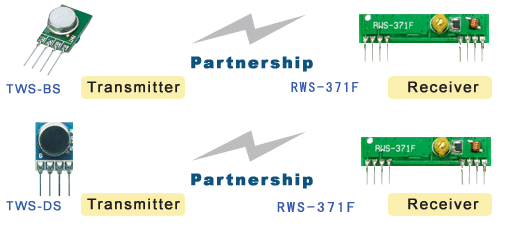

  • /upload/1531201937114072.png


  • RWS-371F-2 310MHz

  • Frequency Range : 310MHz

  • Modulate Mode : ASK

  • Circuit Shape : LC

  • Date Rate : 4800bps

  • Sensitivity : -108 dBm

  • Channel Spacing : ±500KHz

  • Supply Voltage : 3.8~5.5V

  • High Sensitivity Passive Design

  • Simple To Apply with Low External Count

  • SymbolParameterConditionMinTypMaxUnit
    VccOperating Supply Voltage
    		3.855.5V
    I TotOperating Supply Voltage

    		4.5

    V DataData Out1 Data = +200 uA ( High )Vcc -0.5Vcc
    		V
    1 Data = -10 uA ( Low )

    		0.3V
  • ParameterSymMinTypMaxUnit
    Operating Radio FrequencyFC309.5310310.5MHz
    SensitivityPref.-106-108-110dBm
    Channel Width
    		-500
    		+ 500KHz
    Noise Equivalent BWNEB
    		54KHz
    Baseboard Data Rate


    		3KB/S
    Receiver Turn On Time


    		3ms


  • RFID|Wireless Modules|RF Module|Wireless VIDEO


  • RWS-371F-3 315MHz

  • Frequency Range : 315MHz

  • Modulate Mode : ASK

  • Circuit Shape : LC

  • Date Rate : 4800bps

  • Sensitivity : -108 dBm

  • Channel Spacing : ±500KHz

  • Supply Voltage : 3.8~5.5V

  • High Sensitivity Passive Design

  • Simple To Apply with Low External Count

  • SymbolParameterConditionMinTypMaxUnit
    VccOperating Supply Voltage
    		3.855.5V
    I TotOperating Supply Voltage

    		4.5

    V DataData Out1 Data = +200 uA ( High )Vcc -0.5Vcc
    		V
    1 Data = -10 uA ( Low )

    		0.3V
  • ParameterSymMinTypMaxUnit
    Operating Radio FrequencyFC314.5315315.5MHz
    SensitivityPref.-106-108-110dBm
    Channel Width
    		-500
    		+ 500KHz
    Noise Equivalent BWNEB
    		54KHz
    Baseboard Data Rate


    		3KB/S
    Receiver Turn On Time


    		3ms


  • /upload/1531201937114072.png


  • RWS-371F-4 318MHz

  • Frequency Range : 318MHz

  • Modulate Mode : ASK

  • Circuit Shape : LC

  • Date Rate : 4800bps

  • Sensitivity : -108 dBm

  • Channel Spacing : ±500KHz

  • Supply Voltage : 3.8~5.5V

  • High Sensitivity Passive Design

  • Simple To Apply with Low External Count

  • SymbolParameterConditionMinTypMaxUnit
    VccOperating Supply Voltage
    		3.855.5V
    I TotOperating Supply Voltage

    		4.5

    V DataData Out1 Data = +200 uA ( High )Vcc -0.5Vcc
    		V
    1 Data = -10 uA ( Low )

    		0.3V
  • ParameterSymMinTypMaxUnit
    Operating Radio FrequencyFC317.5318318.2MHz
    SensitivityPref.-106-108-110dBm
    Channel Width
    		-500
    		+ 500KHz
    Noise Equivalent BWNEB
    		54KHz
    Baseboard Data Rate


    		3KB/S
    Receiver Turn On Time


    		3ms


  • /upload/1531201937114072.png


  • RWS-371F-5 418MHz

  • Frequency Range : 418MHz

  • Modulate Mode : ASK

  • Circuit Shape : LC

  • Date Rate : 4800bps

  • Sensitivity : -108 dBm

  • Channel Spacing : ±500KHz

  • Supply Voltage : 3.8~5.5V

  • High Sensitivity Passive Design

  • Simple To Apply with Low External Count

  • SymbolParameterConditionMinTypMaxUnit
    VccOperating Supply Voltage
    		3.855.5V
    I TotOperating Supply Voltage

    		4.5

    V DataData Out1 Data = +200 uA ( High )Vcc -0.5Vcc
    		V
    1 Data = -10 uA ( Low )

    		0.3V
  • ParameterSymMinTypMaxUnit
    Operating Radio FrequencyFC417.5418418.5MHz
    SensitivityPref.-106-108-110dBm
    Channel Width
    		-500
    		+ 500KHz
    Noise Equivalent BWNEB
    		54KHz
    Baseboard Data Rate


    		3KB/S
    Receiver Turn On Time


    		3ms


  • /upload/1531201937114072.png


  • RWS-371F-6 433.92MHz

  • Frequency Range : 433.92MHz

  • Modulate Mode : ASK

  • Circuit Shape : LC

  • Date Rate : 4800bps

  • Sensitivity : -108 dBm

  • Channel Spacing : ±500KHz

  • Supply Voltage : 3.8~5.5V

  • High Sensitivity Passive Design

  • Simple To Apply with Low External Count
