2.4GHz Antenna-WS-ANT24SMA-1

Model:
WS-ANT24SMA-1

This antenna is available in a wide array of types including high sensitivity, alterability, mobility...etc. The antenna has been good at designed, superior performance, and better than cord antenna. The signal and coverage are also broader.

APPEARANCE

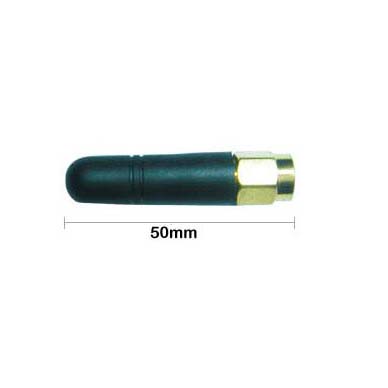

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO

SPECIFICATION

Technical specifications

Main Technical Specifications
Frequency (MHz)2400~2500
Bandwidth (MHz)±50
VSWR≤2.00
Gain (dBi)1.80
Max Input Power (W)50
Input Impedance (Ω)50
Polarization TypeVertical
Antenna Length (mm)50
Connector TypeSMA
