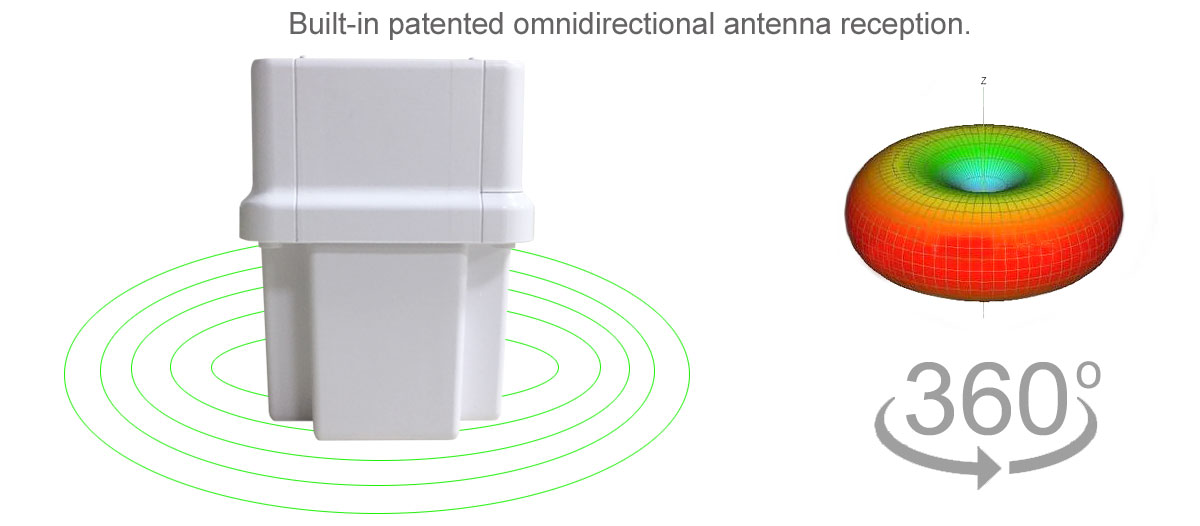

The system has built-in omnidirectional antenna, to achieve 360° reading. Its superior reading and writing capability are greatly improving the reading rate. Full-color LED reminder, Buzz sound control, and POE power supply. It adopts environmentally friendly ABS plastic material, ultrasonic sealing and laser engraving coding, which has strong sealing and good waterproofness. The system is designed for smart access control, regional personnel and vehicle positioning. It can be applied to school safety management, hospital medical equipment management, factory safety management, hospital equipment searches and management, etc., to achieve automatic safety management. The data is saved in the cloud, which can form a report classification and archive. It is convenient for reading and using at any time, greatly reducing labor costs, and being efficient and convenient. The smart management of visitors’ access can reduce the pressure on the guards, prevent the idlers in the campus at will, and the safety of the students is more secure. The scope of security protection covers all the space and network platform systems of the campus, forming an online regional resource library.

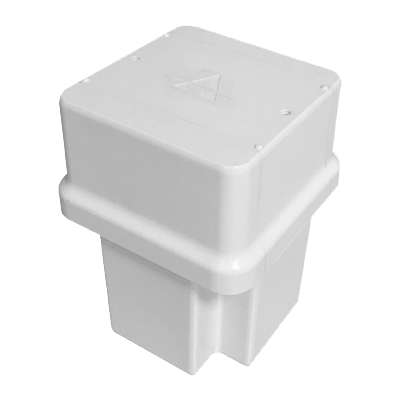

Specification of UHF RFID Active Reader
Working Frequency: 902~928MHz
Antenna: Built-in omnidirectional 360° high gain directional antenna.

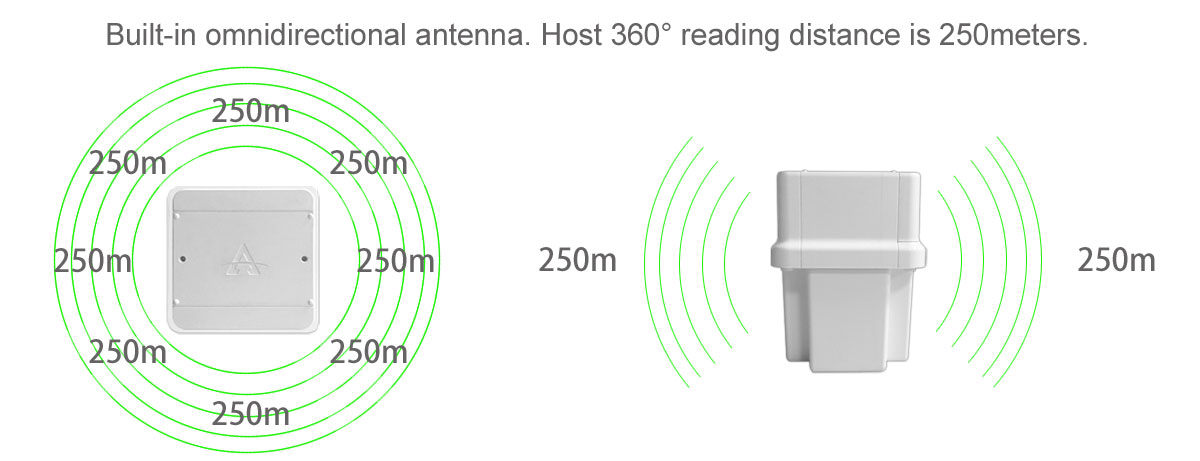

Reading Distance: The UHF RFID Active Reader reads 250 meters in each direction.
Reading Ability: The Reader is able to read 2000 Tags simultaneously
Communication Interface: RS485, WiFi, 2G/3G/4G (Choose one)
Output Power: 12dBm
Working Voltage: 9~50V (POE power supply)
Feature: Full-color LED with reminder or warning indicator in four directions
Working Temperature: -10°C ~ +60°C
Storage Temperature: -10°C~+80°C
Working Moisture: 20%~95% (no Condensation)

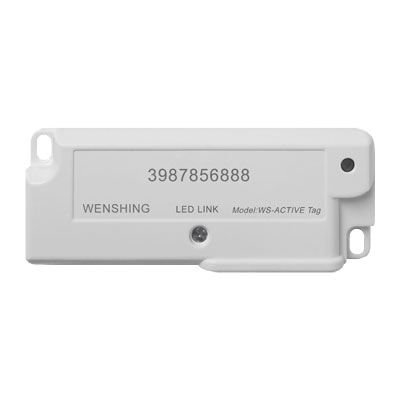

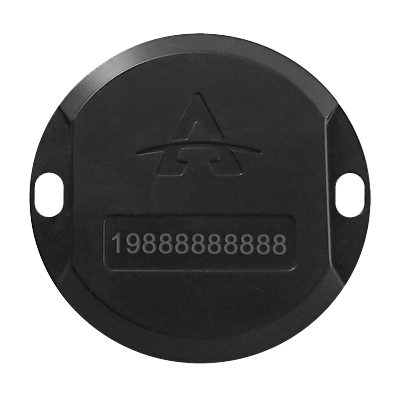

Specification of Tag
Output Power: -3~12dBm
Feature: When the transmission power is below 0dBm, the battery can be used about 7 years.
Structure: Ultrasonic sealing, good sealing, IP67 waterproof rating.
Protocol: EPC Class 1 Gen 2 ISO18000-6C IS18000-6A/B
Antenna: circular polarized antenna (RHCP)
RF Power: 1w (30dBm)
Reading Range: able to reach 7 meter (depends on environment tag size or function)
Display: OEL Display 96x39 pixels
Memory device: Micro SD
Blue tooth: Bluetooth V2.1+EDR Class2
WiFi: IEEE802.11b/g standard
WiFi Encryption and Authentication: WEP64/WEP128/ TKIP/CCMP(AES) OPEN/WPA-PSK/WPA2-PSK
Adaptor: DC 5V/1A
Battery: Build- in 3.7 v 3000 mAh Li-ion Rechargeable Batteries
Operating temperature: 0℃ to +50℃ (+32°F to +122°F)
Storage temperature: -10°C~+80°C
