Smart SMD Material Cabinet System

Model:
WS-SMT-630
WS-SMT-1260

Smart SMT material-box inventory system enables to achieve automatic calculating and operating without manual working. It really can achieve smart inventory management. System enables to plan the storage slots smartly for saving more usable spaces. System automatically calculates and distributes slots and storage slots, without manual searching storage slots. When Tags are scanned, system automatically lights up the slots of material-box for reminding. Users only need to place the materials at proper places and system will record them automatically.Patent No.: 201920625799.1. It summarizes the inventory information timely and users enables to check the information on PC or mobile devices, that it is one button can check all of materials, in any time. It greatly saves manpower and time. Achieving smart searching materials: the lights of location of material-box slots will be on while scanning manufacture order card, to make users finding materials much quicker. It summarizes the material issuing information timely and users enables to check the information on PC or mobile devices in any time. When abnormal information is showed off and it enables to remind managers in time. Issuers can clearly know the quantity of materials issue to avoid giving too much or too less, or stop the producing due to lacking of materials. Managers enable distributing manpower in reasonable to decrease human errors, collecting producing and manufacturing big data, via big data discovering the potential values to discover more usable information, and providing decisions making to managers in return.

APPEARANCE

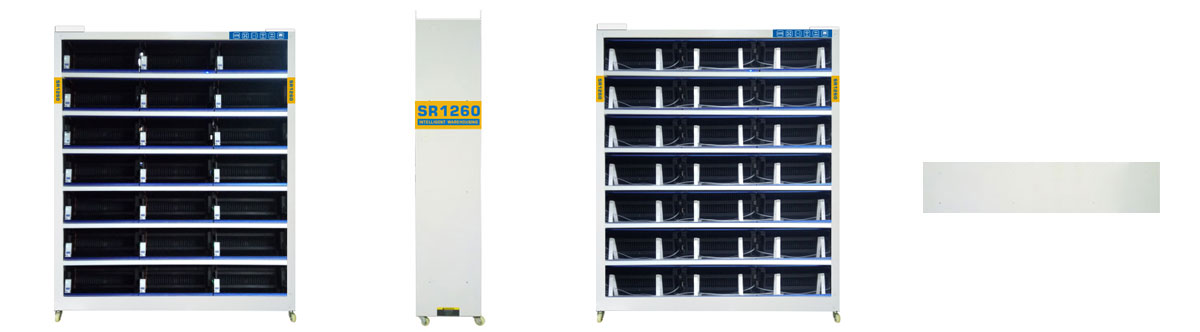

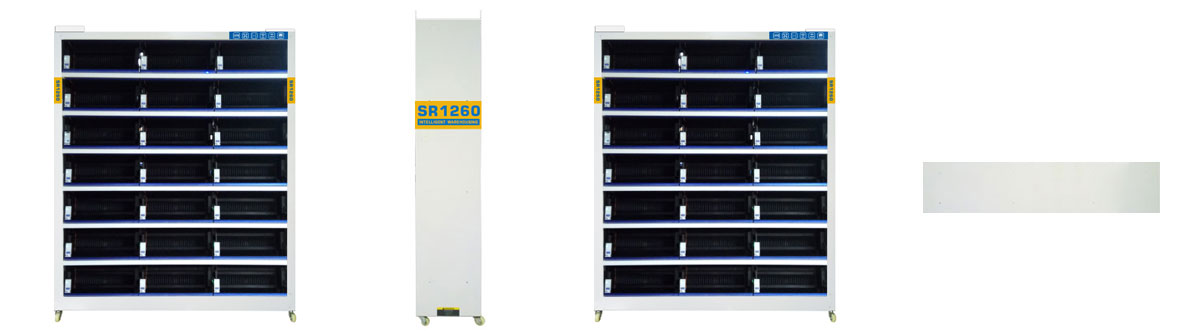

External Appearance

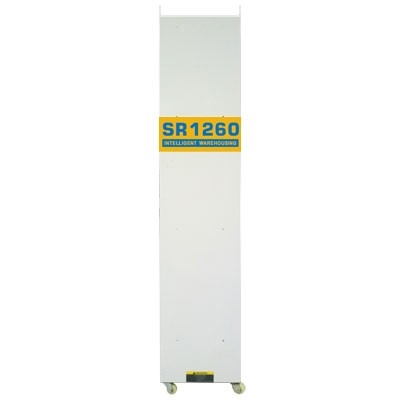

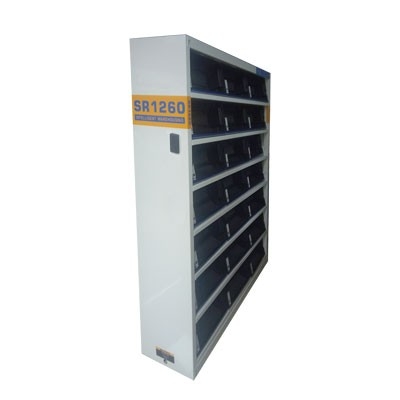

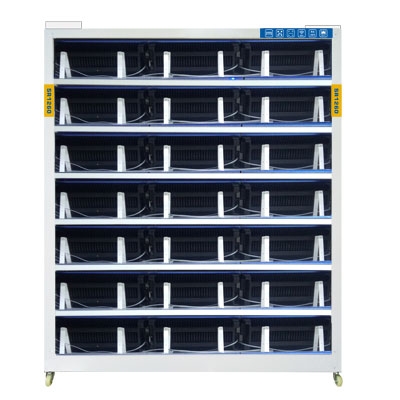

Model:WS-SMT-1260

Smart SMT Material-Box Inventory System



Model:WS-SMT-630


Smart SMT Material-Box Inventory System


Smart SMT Material-Box Inventory System


Video tutorial

RFID|Wireless Modules|RF Module|Wireless VIDEO

https://youtu.be/UVPX0TLmaIA

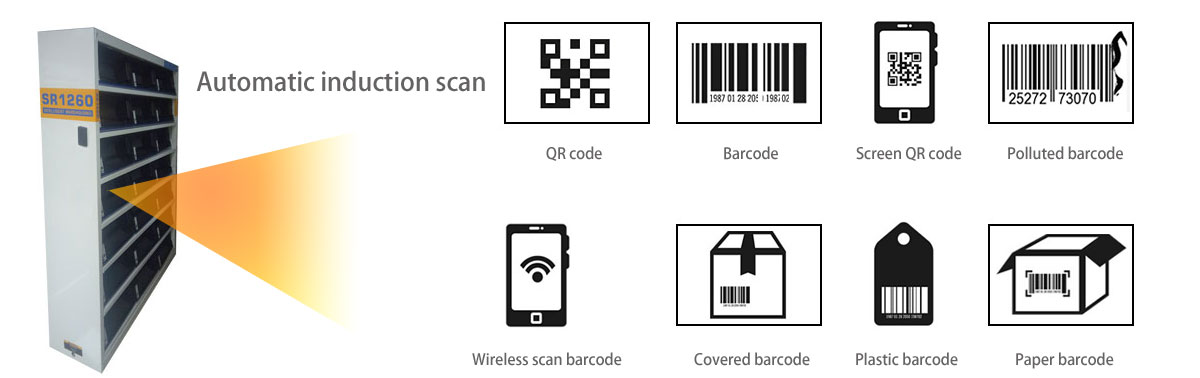

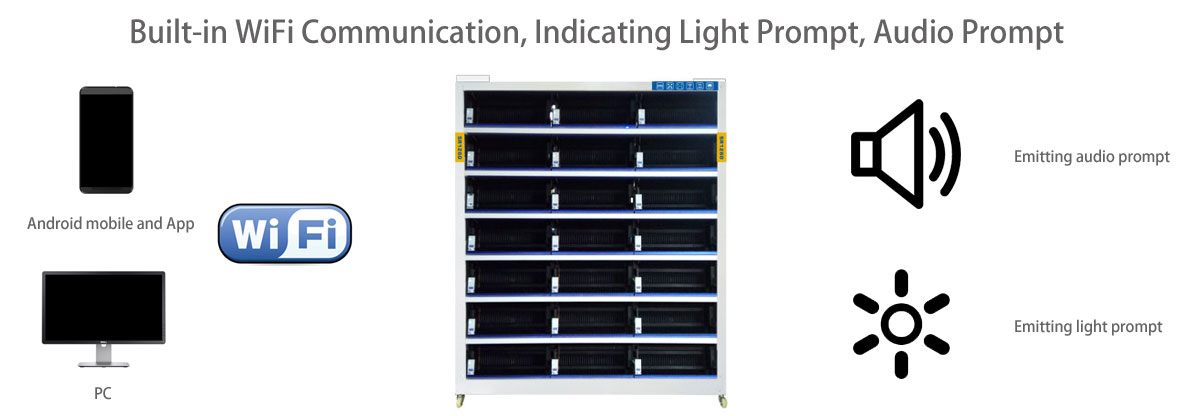

FEATURES

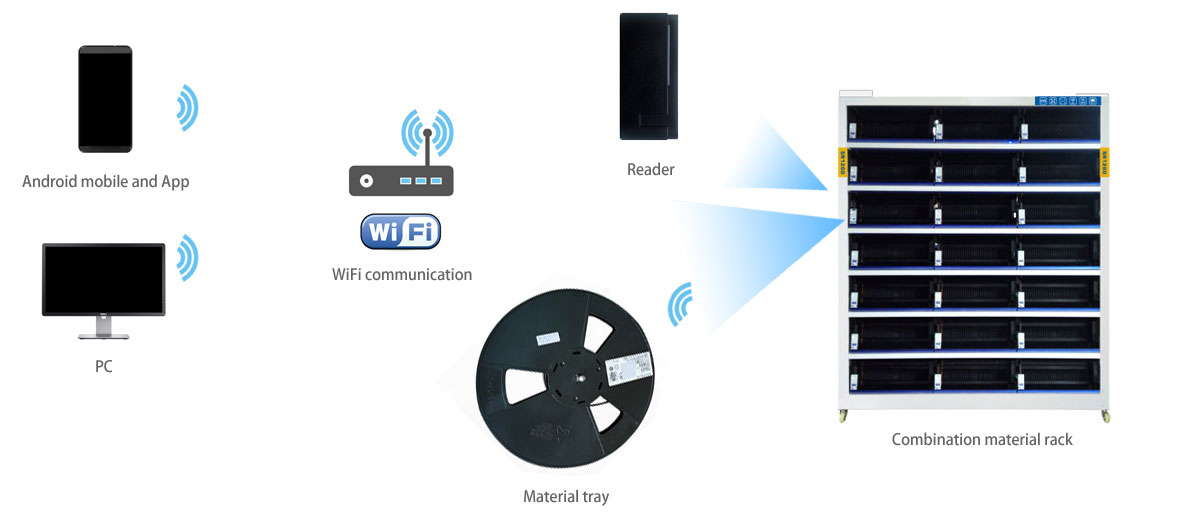

Application

Smart SMT Material-Box Inventory System



Smart SMT Material-Box Inventory System



Smart SMT Material-Box Inventory System


Smart SMT Material-Box Inventory System


SPECIFICATION

Technical specifications



  • Patent No.: 201920625799.1

  • Frequency: 2400~2483.5 MHz

  • Interface: WiFi, RS-485

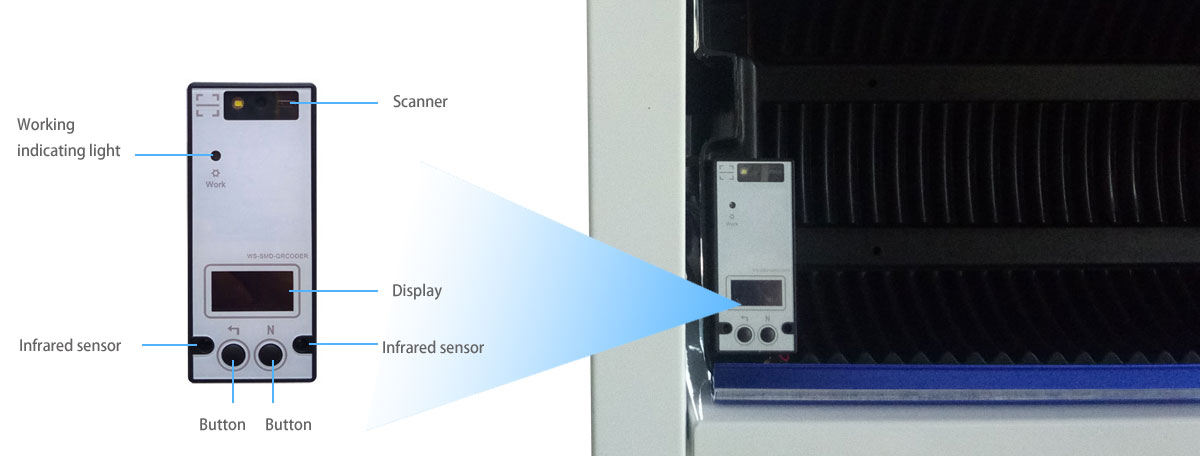

  • Built-in IR Sensor

  • RF Protocol: Support WiFi 802.11 b/g/n protocol

  • Working Voltage: 12~24V

  • Display Screen: OLED 0.96-inch

  • Indicating: Buzzer*1, full color LED*1

  • Processer: ARM Cortex-MO Core

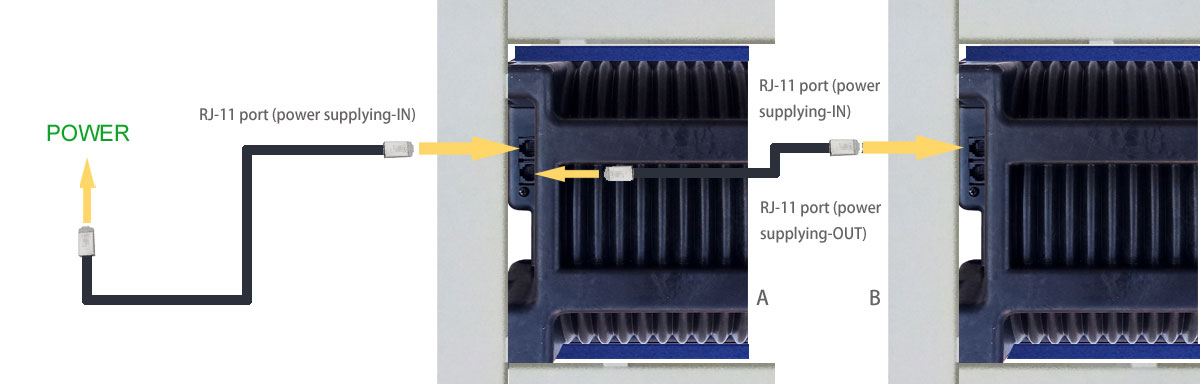

  • Terminal: RJ-11*2

  • Button: 2

  • Transmitting Power Rate: [email protected] / [email protected] / 13[email protected]

  • Receiving Sensitivity: [email protected] / [email protected] / [email protected]

  • Transmitting Speed Rate” 802.11b:11Mbps / 802.11g:54Mbps / 802.11n:54Mps

  • Security Mechanism: WEP-A / WPA-PSK / WPA2-PSK

  • Type of Encryption: WEP64 / WEP128 / TKIP / CCMP(AES)

  • Environment Temperature: -5~+40℃

  • Slots of Material Box: 30 trays

  • Combination Material Rack: 7 floors (each floor has 3 Smart material-box)

  • Dimension: 1750*1452.4*353.6mm

  • Weight:122.5kg
