RTLS / APPLICATION GUIDE

Start with the tracking task.
Choose the right system.

Find assets, track handling vehicles or locate people in a work area. The target, update rules and existing systems determine the reader, anchors, tags and communication setup.

View all listed products
WS-RTLS-RFID actual product photograph
Actual product photo | Select the delivered configuration

WS-RTLS-RFID

Associate an asset ID with its read location

UHF RFID identifies the item and UWB RTLS supplies positioning information. Associate the read time and location for warehouse inventory, tools and fixed assets.

Item tagRead + positionLocation record

Validate reader-to-item separation, timing and position reference; a reader coordinate does not give every tag an independently measured position.

Explore this product and its interfaces →Try the location-record demo
WS-RTLS warehouse handling application illustration
Application illustration | Site configuration must be confirmed

WS-RTLS-125K / A / ROBOT

Connect handling events to material locations

Select a host and positioning reference points for forklifts, trailers or AGVs, then define how material IDs, tags, loading and placement events relate.

Vehicle / materialHandling eventPlacement record

The documentation lists RJ45 / RS485 for 125K, RJ45 for A and RS485 for standard ROBOT. Confirm power and accessories by delivered version; a proximity alert is not automatic braking.

Explore this product and its interfaces →
WS-RTLS UWB-36V actual product photograph
Actual product photo | Select the delivered configuration

WS-RTLS UWB-36V

Plan anchors and tags around the tracking task

Combine UWB anchors with compatible positioning tags and software for people or asset location and trajectory displays. Select card, bar-shaped or display tags for the wearing, mounting and interaction requirements.

Person / asset tagUWB anchorsPositioning backend

Plan anchor count from the floor plan and obstructions. Confirm location, battery and trajectory functions for the delivered tags and software. Do not infer input voltage from the model suffix.

Explore this product and its interfaces →

01 Define the location outcome

Zone, shelf, coordinate and history requirements differ. Define whose location is recorded, when it updates and how it will be searched.

02 Check the site and interfaces

Provide the floor plan, obstructions, routes, power and network access. Confirm tags, interfaces and software for each product.

03 Verify on site

Communication range is not positioning accuracy. Set criteria by technology and model, including stationary, moving and outage-recovery tests.

Full positioning product list

Discuss your site requirements

The list covers different positioning technologies and device roles. Compare each model on its own product page. The application guide above also links to related RFID readers and UWB anchors.

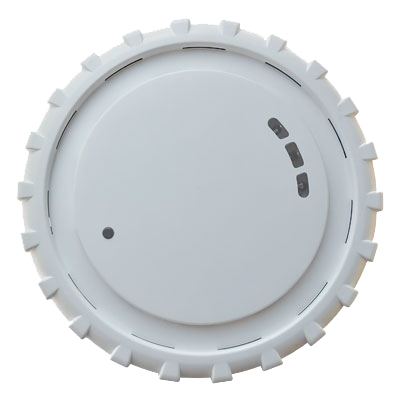

  • RSSI Personnel Zone Positioning | WS-RSSI Wristbands, Cards & Stations
    RSSI Personnel Zone Positioning | WS-RSSI Wristbands, Cards & Stations
  • WS-RSSI-R
    WS-RSSI-P
    WS-RSSI-W
    WS-RSSI-C
  • Retail service areas, hospital care zones, factory work areas and warehouse passages; personnel zone tracking and event integration
  • W/C: 902–908 MHz; R/P: 900 MHz positioning broadcast (confirm version)
  • UWB RTLS Positioning System WS-RTLS-125K / A / ROBOT
    UWB RTLS Positioning System WS-RTLS-125K / A / ROBOT
  • WS-RTLS-125K
    WS-RTLS-A
    WS-RTLS-ROBOT
  • Forklift and trailer location records, AGV / mobile equipment positioning and material-placement records. Select interfaces and reference-point roles by WS-RTLS-125K / A / ROBOT model.
  • 125KHz~4.5GHz
  • Smart Warehouse Forklift Tracking & Route Guidance | WS-PD TAG
    Smart Warehouse Forklift Tracking & Route Guidance | WS-PD TAG
  • WS-PD TAG
  • High-bay forklift tracking, tablet pickup/drop-off guidance and intralogistics
  • 915MHz
  • Body Ø82×21.77mm; 102mm including mounting ears
  • UWB RTLS Positioning Module WS-UWB-22DBAB
    UWB RTLS Positioning Module WS-UWB-22DBAB
  • WS-UWB-22DBAB
  • OEM positioning hardware and base-station development, unmanned vehicle / forklift positioning, and asset or medical-equipment tracking. Requires reference points and backend integration.
  • 3744–4243.2MHz
  • Active RFID Zone Tracking System WS-ARFID4SX2 | People & Assets
    Active RFID Zone Tracking System WS-ARFID4SX2 | People & Assets
  • WS-ARFID4SX2-L-2G
    WS-ARFID4SX2-L-4G
    WS-ARFID4SX2-2G
    WS-ARFID4SX2-L-WiFi
    WS-ARFID4SX2-4G
    WS-ARFID4SX2-WiFi
  • Person or object location tracking
  • 902~928MHz
  • Indoor Personnel Tracking & Skin Temperature Monitoring | WS-ACS
    Indoor Personnel Tracking & Skin Temperature Monitoring | WS-ACS
  • WS-ACS
  • Person or object location tracking
  • 916MHz
  • GPS Vehicle Tracker WS-GPS-GSM | Fleet Tracking & Alerts
    GPS Vehicle Tracker WS-GPS-GSM | Fleet Tracking & Alerts
  • WS-GPS-GSM
  • Vehicle positioning
  • 1575.42±1.023MHz
