900MHz Tranceiver Module

Model:
TRW-V4S-900

This module can apply to wireless data two-way transmission. takes Direct Sequence Spread Spectrum. Strong anti-interference, especially, it is less vulnerable to the wireless LAN, Bluetooth receiver, Wireless Network, Wifi, microwave ovens and so on.

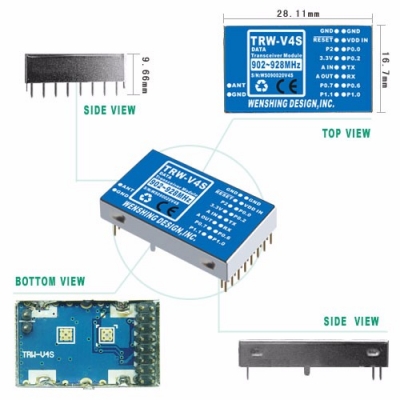

APPEARANCE

External Appearance


RFID|Wireless Modules|RF Module|Wireless VIDEO

FEATURES

Application



MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS  MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS  RFID|Wireless Modules|RF Module|Wireless VIDEO


MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS



MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS

SPECIFICATION

Technical specifications

  • Exclusive Hopping Technology

  • RF Output Power up to 50mW

  • Sensitivity up to -118dBm

  • Low Power Consumption

  • Voltage Supply 4.5V to 9V

  • UART interface operation easily

  • Transceiver Data Rate 1.6Kbps~128Kbps

ParameterMinTypMaxUnitCondition
Operating Condition
Operating Temperature Range-20
+70℃
Operating Supply Voltage4.559V
Current Consumption
Rx Mode
30
mA
Tx Mode

75mAVcc 5V
RF Characteristic
Frequency Range902
928MHz
Data Rate1.6
128KbpsGFSK
Tx Output Power0
27dBm
Rx Sensitivity

-118dBm
Modulation
GFSK


Other
ESD

500V
