FEATURES

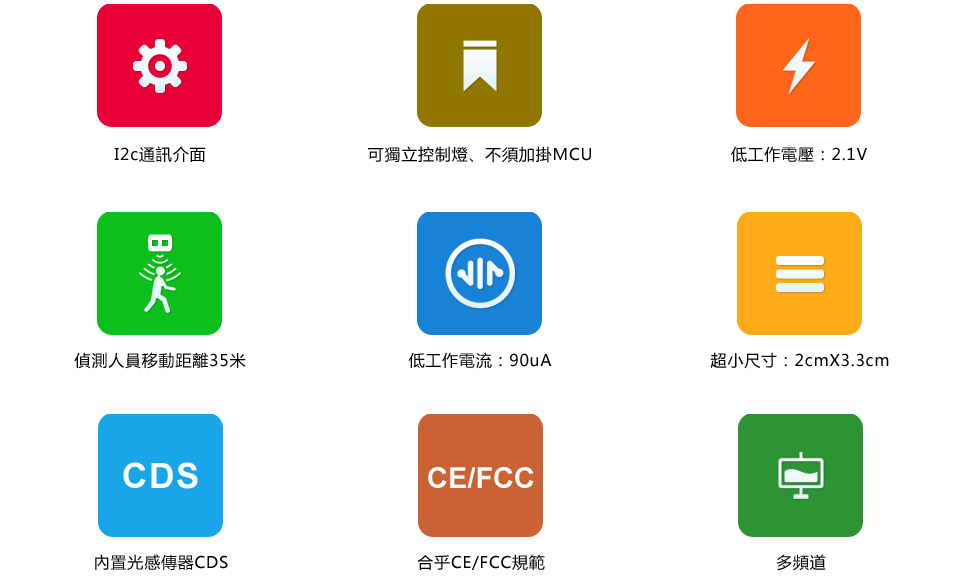

Version History
| Version | Date | Changes |
| V1.01 | 2022/11/29 | 1st. Edition |
DC Electrical Characteristics
Parameter | Specification | Unit | ||
Min. | Typ. | Max. | ||
Frequency Range | 5725 | 5800 | 5875 | MHz |
IF Frequency Range | 1 |
| 40 | Hz |
Transmit power | -20 |
| -5 | dBm |
Supply Voltage, VDD | 2.1 |
| 5.5 | V |
| Current | 110 | uA | ||
RADAR5.8GATO-X-XX LIST
型號 | LDO/LED Function |
RADAR5.8GATO-1-XX | LDO 3.3V，有LED燈(標準品) |
RADAR5.8GATO-2-XX | LDO 3.3V，無LED燈號 |
RADAR5.8GATO-3-XX | 無LDO，無燈號 |
RADAR5.8GATO-5-XX | 有光感器LDO 3.3V，有LED燈(標準品) |
RADAR5.8GATO-6-XX | 有光感器LDO 3.3V，無LED燈號 |
RADAR5.8GATO-7-XX | 有光感器LDO，無燈號 |
可選用硬體觸發延遲選項：
型號 | Tigger off-delay time |
RADAR5.8GATO-X-01 | 觸發為HI，1秒後為LOW(標準品) |
RADAR5.8GATO-X-15 | 觸發為HI，15秒後為LOW |
RADAR5.8GATO-X-30 | 觸發為HI，30秒後為LOW |
RADAR5.8GATO-X-60 | 觸發為HI，60秒後為LOW |
本模組可外部宣告其他功能，有需要請需聯絡客服

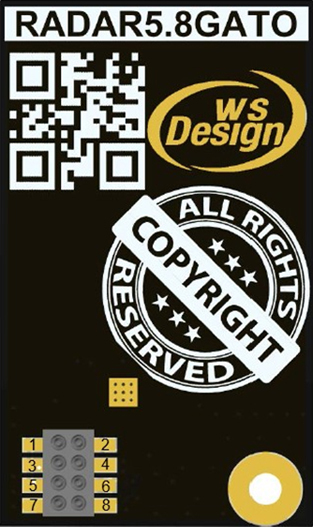

PIN ASSIGNMENT
Pin | Name | Function | Description |
1 | VDD | POWER | Power Supply 2.1~5.5V |
2 | IF | O | IF Export |
3 | ENABLE | I | Control LDO HI actions |
4 | SDA | I/O | I2c communication interface |
5 | INT | O | There is a trigger output HI when moving |
6 | SCL |
| I2c communication interface |
7 | GND | GND | Power GND |
8 | VCC | O | Internal LDO output 3.3V |

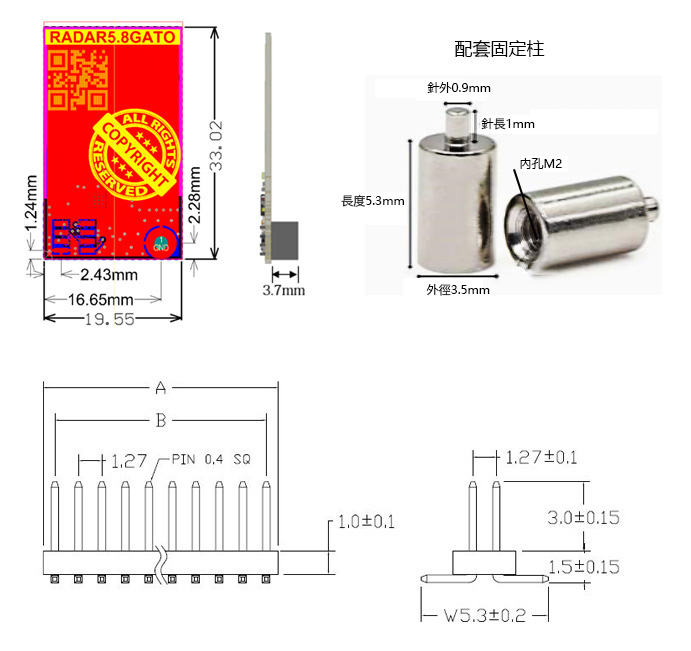

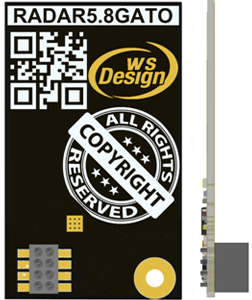

DIMENSIONS
APPLICATIONS
