RWS-371 ASK Superregenerative RF Receiver Module 315/433MHz

Model:
RWS-371-1
RWS-371-2
RWS-371-3
RWS-371-4
RWS-371-5
RWS-371-6

RWS-371 for the high-frequency receiver module and high sensitivity design, only with the external components using a simple range of applications: wireless security systems, automobile alarm systems, remote control doors, remote control point, data transmission, remote control water / electric switch , pager systems, PDA data transfer.

5V ASK / OOK SUPERREGENERATIVE RECEIVER
RWS-371 ASK Superregenerative RF Receiver Module — 5 V, 315MHz / 433MHz

RWS-371 is WENSHING’s classic 5 V superregenerative ASK receiver: −108 dBm sensitivity, an LC resonant front end and six versions from 303.875 to 433.92 MHz. Minimal external parts and a lean cost make it a proven choice for gate openers, alarms and appliance remotes.

−108 dBmSensitivity
315 / 433MHz & 4 more versions
4.8 kbpsData rate
≤ 3 msTurn-on time
Request Datasheet / QuoteView Full Specifications

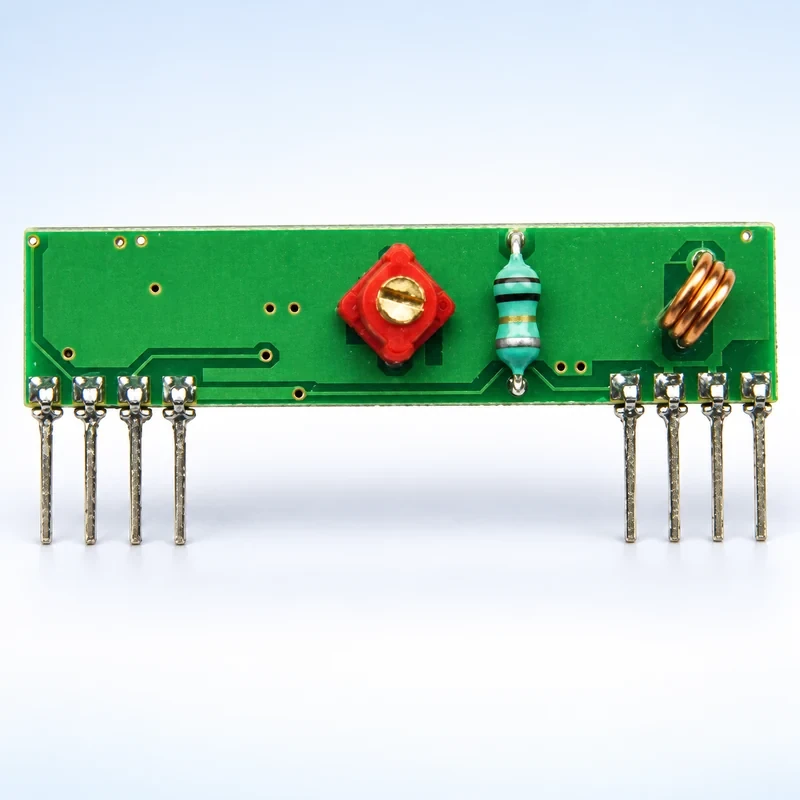

RWS-371 ASK superregenerative RF receiver module 5V 433MHz

Why RWS-371

Up to −110 dBm sensitivity

Typical −108 dBm and up to −110 dBm keep remote reception reliable in harsh environments.

6 frequency versions

303.875 / 310 / 315 / 318 / 418 / 433.92 MHz to match regional regulations and existing remotes.

Built-in data slicer

An on-board ASK data-shaping comparator delivers a clean digital waveform straight to your decoder IC or MCU.

3 ms fast turn-on

Receiver turn-on time ≤ 3 ms — instant response to a key press for gate control and alarms.

4.5 mA low current

5 V supply with 4.5 mA typical current — ideal for always-listening security receivers.

Minimal external parts

Only a few simple external parts are needed to complete the receiver — shorter development and lower BOM cost.

RWS-371 Applications

RWS-371 Security receiver panels – ASK superregenerative RF receiver module 433MHz

Security receiver panels

The receiving end of wireless burglar alarms, handling door/window sensors and panic buttons.

RWS-371 Roller shutter remotes – ASK superregenerative RF receiver module 433MHz

Roller shutter remotes

Integrated in shutter controllers to receive up, stop and down commands from the remote.

RWS-371 Garage door receivers – ASK superregenerative RF receiver module 433MHz

Garage door receivers

Remote receiver for garage and community gate openers; 3 ms turn-on gives an instant response.

RWS-371 Industrial remote control – ASK superregenerative RF receiver module 433MHz

Industrial remote control

Simple wireless control for production and lifting equipment, cutting wiring and adding flexibility.

RWS-371 Smart home switches – ASK superregenerative RF receiver module 433MHz

Smart home switches

Adds remote control to lighting, water heaters and air-conditioner switches.

System Integration

RWS-371 Receiver system architectureA remote transmitter sends a 315／433MHz ASK/OOK signal; RWS-371 demodulates it and outputs digital data to a decoder IC or MCU, which drives a relay or load.ASK/OOKDATA OUTTXRemote transmitterTWS-BSTHIS RECEIVERRWS-371315／433MHz · ASK/OOKMCUDecoder IC / MCUaddress match · decodeOUTPUTRelay · Loaddoor · motor · alarmRECEIVER SYSTEM ARCHITECTURELEGENDTHIS PRODUCTRF LINKDATA OUT

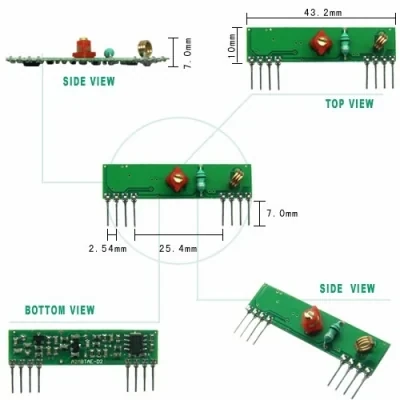

RWS-371 RF receiver module dimension drawing 43.2 mm, 2.54 mm pitch
  1. Choose the frequency version and pair it with a WENSHING TWS-BS / TWS-DS transmitter or remote on the same frequency.
  2. Feed VCC from a stable supply with a 100 nF decoupling capacitor; tie GND to system ground.
  3. Connect a quarter-wave wire or PCB antenna to ANT, away from digital traces and metal housings.
  4. Route Digital Output to a decoder IC or an MCU GPIO/interrupt pin and decode address and keys.
  5. Use the decoded result to drive relays, motor controllers or alarm outputs.
RWS-371 pin assignment (8 pins, 2.54 mm pitch)
PinNameFunction
1GNDGround
2Digital OutputDemodulated data output (DATA)
3Linear OutputLinear (analog) output
4VCCSupply input
5VCCSupply input
6GNDGround
7GNDGround
8ANTAntenna input

RWS-371 Specifications

RWS-371 ASK superregenerative RF receiver module (303.875–433.92 MHz) specifications
RF
Receiver architectureSuperregenerative, LC resonator
ModulationASK (OOK)
Operating frequency303.875 / 310 / 315 / 318 / 418 / 433.92 MHz (6 versions)
Sensitivity−108 dBm typ. (−106 to −110 dBm)
Channel width±500 kHz
Data rate4.8 kbps (4800 bps)
Receiver turn-on time≤ 3 ms
Interface
Data outputDigital output, demodulated data
Output high levelVcc − 0.5 V to Vcc (I = +200 µA)
Output low level≤ 0.3 V (I = −10 µA)
Power
Supply voltage4.9–5.1 V (5 V typ.)
Supply current4.5 mA (typ.)
Mechanical
Dimensions43.2 × 10 × 7.5 mm (L × W × H)
Pins8 through-hole pins, 2.54 mm pitch
RWS-371 frequency versions and transmitter pairing
VersionCentre frequencyMatching transmitterOperating range
RWS-371-1303.875 MHzTWS-BS / TWS-DS303.325–304.325 MHz
RWS-371-2310 MHzTWS-BS / TWS-DS309.5–310.5 MHz
RWS-371-3315 MHzTWS-HS / TWS-BS / TWS-DS / TWS-FS314.5–315.5 MHz
RWS-371-4318 MHzTWS-BS / TWS-DS317.5–318.2 MHz
RWS-371-5418 MHzTWS-BS / TWS-DS417.5–418.5 MHz
RWS-371-6433.92 MHzTWS-HS / TWS-BS / TWS-DS / TWS-FS433.4–434.4 MHz

Specifications are subject to the WENSHING datasheet. Please state the version suffix (-1 to -6) when ordering.

RWS Superregenerative Receiver Family

WENSHING ASK superregenerative RF receiver module family (RWS series)
ModelHow to identifyFrequencySensitivitySupplyCurrentData rateSize (mm)Matching transmitter
RWS-371FGreen PCB, yellow tuning coil303.875–433.92 MHz (6 versions)−108 dBm3.8–5.5 V4.5 mA4.8 kbps43.2×10×7.5TWS-BS / DS / HS / FS
RWS-371Green PCB, red tuning coil303.875–433.92 MHz (6 versions)−108 dBm4.9–5.1 V4.5 mA4.8 kbps43.2×10×7.5TWS-BS / DS / HS / FS
RWS-374Green PCB, red coil + choke303.875–433.92 MHz (6 versions)−108 dBm4.9–5.1 V4.5 mA4.8 kbps43.2×10×7.5TWS-BS / DS / HS
RWS-375Blue PCB, yellow tuning coil303.875–433.92 MHz (6 versions)−108 dBm4.9–5.1 V4.5 mA4.8 kbps43.2×10×7.5TWS-BS / DS
RWS-123BBlue PCB, low profile123 MHz−106 dBm4.9–5.1 V4.5 mA4.8 kbps43.2×9.8×4.6TWS-123

The identification column is based on the actual product photos; electrical data is taken from each model page.

RWS-371 FAQ

RWS-371 or RWS-371F?
Choose RWS-371 (4.9–5.1 V) for a regulated 5 V system; choose the wide-voltage RWS-371F for lithium-cell or 3.8–5.5 V supplies. Sensitivity, frequency versions and pin-out are the same.
How do I choose the frequency version?
The receiver must match the transmitter frequency exactly. Choose 303.875 / 310 / 315 / 318 / 418 / 433.92 MHz according to the radio regulations of your target market and your existing remotes, and pair it with a WENSHING TWS transmitter on the same frequency.
What does the module output? Do I still need a decoder?
The module demodulates the ASK/OOK RF signal into digital data on the Digital Output pin. Address and key information are decoded by a decoder IC or your MCU — connect DATA to a GPIO or interrupt pin and decode in firmware.
Any PCB layout tips?
Place a 100 nF decoupling capacitor close to VCC/GND and use a clean supply. Keep the antenna feed short and away from digital lines, and keep a solid ground — this minimises noise and preserves range.
Superregenerative or superheterodyne — which should I use?
A superregenerative receiver has few parts, low cost and low current — ideal for high-volume remotes, door/gate controls and alarms. For noisy RF environments that need higher selectivity and frequency stability, choose the WENSHING superheterodyne receiver RWS-438.
Are samples or custom frequencies available?
Samples for evaluation and volume supply are available. Special frequencies or adaptations to your enclosure can be engineered on request — please contact our sales engineers.

Build reliable remote reception with RWS-371

WENSHING has designed and manufactured RF modules in Taiwan since 1999 — transmitter/receiver pairing advice, samples and volume supply.

Contact Our RF Engineers

Key specifications at a glance

ModelRWS-371-1 / RWS-371-2 / RWS-371-3 / RWS-371-4 / RWS-371-5 / RWS-371-6
Frequency303.875MHz / 310MHz / 315MHz / 318MHz / 418MHz / 433.92MHz
ApplicationWireless communication, Home appliances, Industrial control
Size43.2*10*7.5
Product categoryASK RF Receiver

Compare ASK RF Receiver models

RWS-371 ASK Superregenerative RF Receiver Module 315MHz/433MHz 5V and other models in the same WENSHING category — select a model to see its full details.

ProductModelFrequencyApplication
RWS-371 ASK Superregenerative RF Receiver Module 315MHz/433MHz 5VRWS-371-1 / RWS-371-2 / RWS-371-3 / RWS-371-4 / RWS-371-5 / RWS-371-6303.875MHz / 310MHz / 315MHz / 318MHz / 418MHz / 433.92MHzWireless communication, Home appliances, Industrial control
RWS-434LL 433.92MHz OOK High-Sensitivity Superheterodyne Receiver Module (RSSI)RWS-434LL433.92MHz
RWS-434N-LV 433.92MHz 3.0V Low-Voltage ASK/OOK High-Sensitivity Receiver ModuleRWS-434N-LV-2 / RWS-434N-LV-3 / RWS-434N-LV-6Wireless communication, Home appliances, Industrial control
RWS-434N 315/433.92MHz ASK/OOK High-Sensitivity Superheterodyne Receiver ModuleRWS-434N-2 / RWS-434N-3 / RWS-434N-6310MHz / 315MHz / 433.92MHzWireless communication, Home appliances, Industrial control
RWS-438 303.875–433.92MHz ASK Superheterodyne RF Receiver ModuleRWS-438-6433.92MHzWireless communication, Home appliances, Industrial control
RWS-371F ASK Superregenerative RF Receiver Module 315MHz/433MHz (3.8–5.5 V)RWS-371F-1 / RWS-371F-2 / RWS-371F-3 / RWS-371F-4 / RWS-371F-5 / RWS-371F-6303.875MHz / 310MHz / 315MHz / 318MHz / 418MHz / 433.92MHzWireless communication, Home appliances, Industrial control
RWS-374 ASK Superregenerative RF Receiver Module 315MHz/433MHzRWS-374-1 / RWS-374-2 / RWS-374-3 / RWS-374-4 / RWS-374-5 / RWS-374-6303.875MHz / 310MHz / 315MHz / 318MHz / 418MHz / 433.92MHzWireless communication, Home appliances, Industrial control
RWS-375 ASK Superregenerative RF Receiver Module 315MHz/433MHzRWS-375-1 / RWS-375-2 / RWS-375-3 / RWS-375-4 / RWS-375-5 / RWS-375-6303.875MHz / 310MHz / 315MHz / 318MHz / 418MHz / 433.92MHzWireless communication, Home appliances, Industrial control
RWS-123B 123MHz ASK Superregenerative RF Receiver ModuleRWS-123B123MHzWireless communication, Home appliances, Industrial control

Need help choosing? browse all ASK RF Receiver products or contact our engineers for specifications, samples or a quotation.
