2.4G SMD Ceramics Chip Antenna WS-ANTSMD2G4-248

Model:
WS-ANTSMD2G4-248

8.1*1.34*1mm. Ultra-small Ceramic Chip Antenna. 2400~2500MHz.Save PCB space. It can be used in Remote controller, Communication terminal, Remote controller, Scanner gun, Card reader, Cash register, Scanning equipment, Handling equipment, Mobile payment equipment, Communication terminal etc.

APPEARANCE

External Appearance

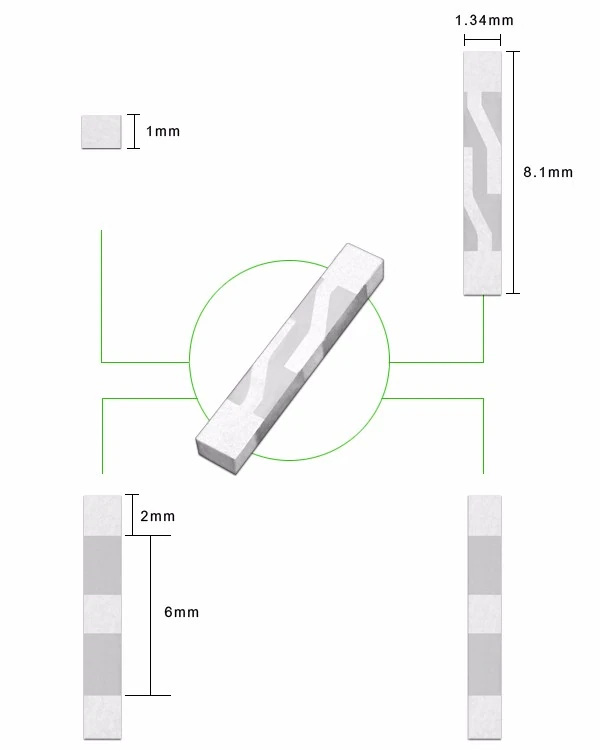

Product appearance - 2.4GHz ceramic chip antenna WS-ANTSMD2G4-248

SPECIFICATION

Technical specifications


Main Technical Specifications
Frequency2400~2500MHz
Impedance50
Size8.1*1.34*1mm

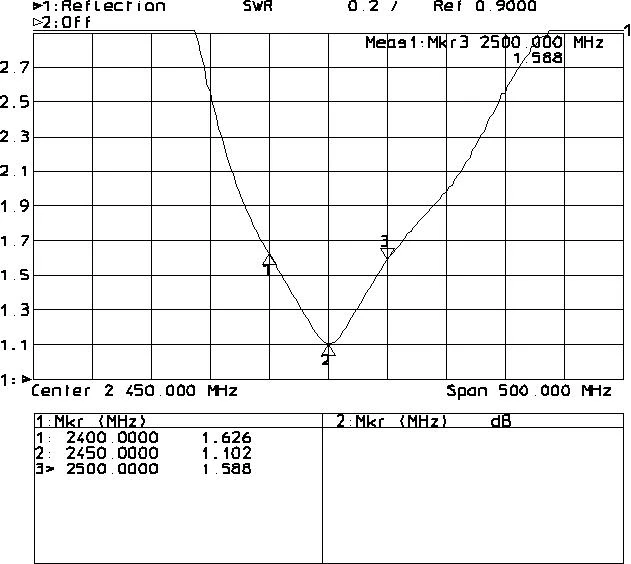

VSWR test chart - 2.4GHz ceramic chip antenna WS-ANTSMD2G4-248

Key specifications at a glance

ModelWS-ANTSMD2G4-248
Frequency2.4GHz
ApplicationNear Field Communication
Size8.1*1.34*1
Product categorySMD Chip Antenna

Compare SMD Chip Antenna models

2.4G SMD Ceramics Chip Antenna WS-ANTSMD2G4-248 and other models in the same WENSHING category — select a model to see its full details.

ProductModelFrequencyApplication
2.4G SMD Ceramics Chip Antenna WS-ANTSMD2G4-248WS-ANTSMD2G4-2482.4GHzNear Field Communication
2.4G SMD Ceramics Chip Antenna WS-ANTSMD2G4WS-ANTSMD2G42.4GHzNear Field Communication
915MHz SMD Ceramics Chip AntennaWS-ANTSMD915915MHzNear Field Communication
433MHz SMD Ceramics Chip AntennaWS-ANTSMD433433MHzNear Field Communication
915MHz 2dBi Ceramic AntennaWS-ANT915-2C915MHzNear Field Communication
