430–435MHz vertically polarized directional antenna with gain ≥5dBi, 260×260×45mm panel and 1kg weight. Connector type, gender and cable are configured to each order.

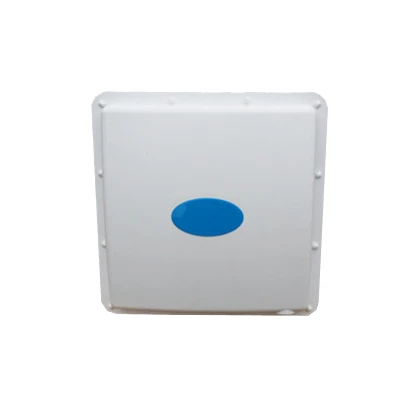

WS-ANT433SMA-V5 · 430–435 MHz
A vertically polarized directional panel antenna with gain ≥5dBi, horizontal beamwidth 110±10° and vertical beamwidth 90±10°. It is ideal for fixed data links and industrial remote-control equipment. SMA and N-type configurations are available to order.
Application scene: fixed 433MHz data links and industrial remote control
Aim the antenna for stationary radio endpoints using compatible 430–435MHz modules and feed cables. Directional aiming focuses the signal toward the endpoint across rack, wall and equipment areas.
Mount it at a fixed receiver to strengthen reception from industrial remotes. Check actual operating channels, connectors and mounting position. As a passive antenna it upgrades reception for the existing receiver while keeping its control logic unchanged.
Supply the existing radio model, connector photos and cable length. Match the band, connector gender and mounting space for a drop-in upgrade. Our team helps match the right connector and cable for replacement projects.
Choose connector type, gender and mating cable. Specify the required configuration at both antenna and equipment ends.
Allow space for the 260×260×45mm panel and its 1kg weight. It mounts on a 40–50mm pole with tidy cable routing and protected connectors.
The model on this page is WS-ANT433SMA-V5. N-type versions are configured to each order. Match vertical polarization to the other endpoint and adjust direction while measuring link quality.
It fits devices operating within 430–435MHz with a 50Ω interface, matching connector gender and an external antenna port.
Link distance grows with transmit power, low-loss cabling, a matching antenna at the other end and clear line of sight. Directional gain strengthens fixed links, and on-site alignment maximizes the result.
Each band uses its own optimized antenna. These are different bands; choose an antenna matched to the operating channels.
Provide equipment model, operating channels, connector type and gender, cable length, mounting height, endpoint locations and site photos.
Compare WS-ANT433-V5 · Browse directional antennas
Send connector photos and the radio model, and we will match the SMA / N-type version, cable and mounting configuration.
Request technical documentation for the specified connector version with your inquiry. Each unit is configured to your order.
