11dBi Dual-band Directional Antenna WS-ANTFRP-L11

Model:
WS-ANTFRP-L11

Excellent design, good standing wave performance, high gain, high sensitivity, and a wide range of coverage and signals.

 APPEARANCE

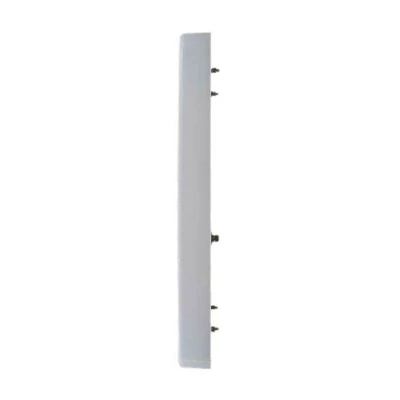

Side view - dual-band directional panel antenna WS-ANTFRP-L11

SPECIFICATION


Electrical Specifications

Frequency   (MHz)

860~868、902~928 Dual frequency

Gain   (dBi)

11

Beam angle (°)

Hor:90   Ver:30

SWR   (°)

≤1.4

Impedance   (Ω)

50

Polarization   mode

Linear   polarization

Max   Input Power (W)

50

Lightning   protection

DC   Ground

Mechanical   Specifications

Connector

N-male

Connector   location

Bottom   straight out

Size (mm)

601*170*66

Net   weight (kg)

2.2

Effective   wind area (㎡)

≤0.2

Maximum   wind resistance (m/s)

36.9

Material

Aluminum

Radome material

FRP

Radome Color

White

Operating   temperature (℃)

-40～55℃

Pole   diameter (mm)

IP67

Key specifications at a glance

ModelWS-ANTFRP-L11
Frequency860~868MHz / 902~928MHz
ApplicationWireless communication
Size601*170*66
Product categoryDirectional Antenna
DocumentationEnglish datasheet / manual (PDF)
