LoRa Module

  • Title
  • Model
  • Frequency (MHz)
    Min/Max
  • Transmitting power
    (dBm)
  • Dimension (mm)
    Long/Wide/Thick
    • Compact LoRa Module, 470MHz 30dBm | -148dBm, SPI, Auto Power-Off, SMD or DIP
    • TRW-LLCC683X
    • 470MHz
    • 30dBm
    • 18*28.95*3.85

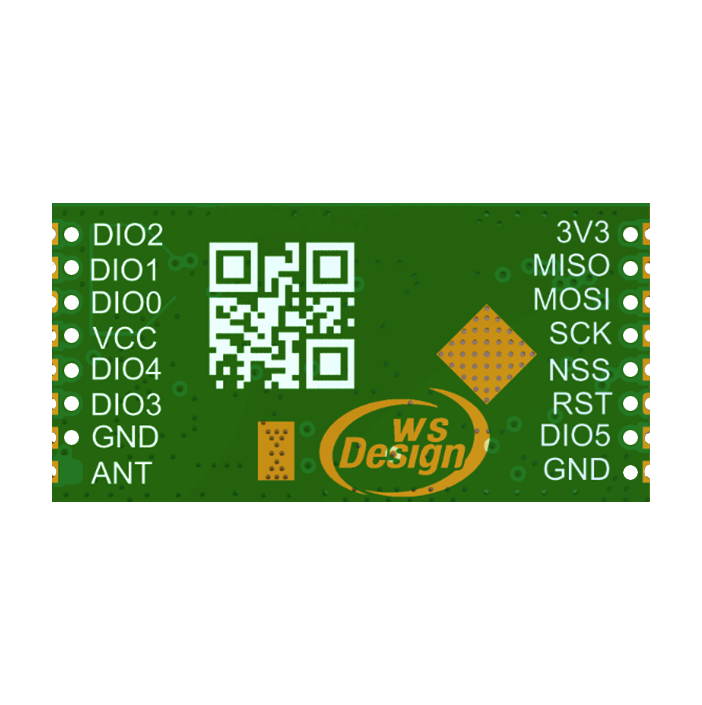

    • 1W LoRa Module, 470MHz 30dBm | -148dBm Long Range, SPI, SMD or DIP
    • TRW-SX1278 1W
    • 470MHz
    • 30dBm
    • 18*35.4*3.2

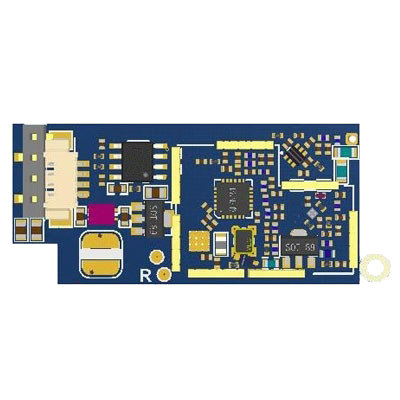

    • Long Range LoRa UART Module, 28dBm 2km Line of Sight | Built-in MCU, 410-525MHz, Wireless Wake-Up
    • TRW-LORA30UART
    • 410~525MHz
    • 28dBm
    • 40.52*20.38
    • LoRa Module 915MHz or 410-525MHz, 20dBm | Built-in MCU, UART, 1.75km Line of Sight
    • TRW-LORA20UARTC
    • 410~525MHz
      902~928MHz
    • 20dBm
    • 35*16.38

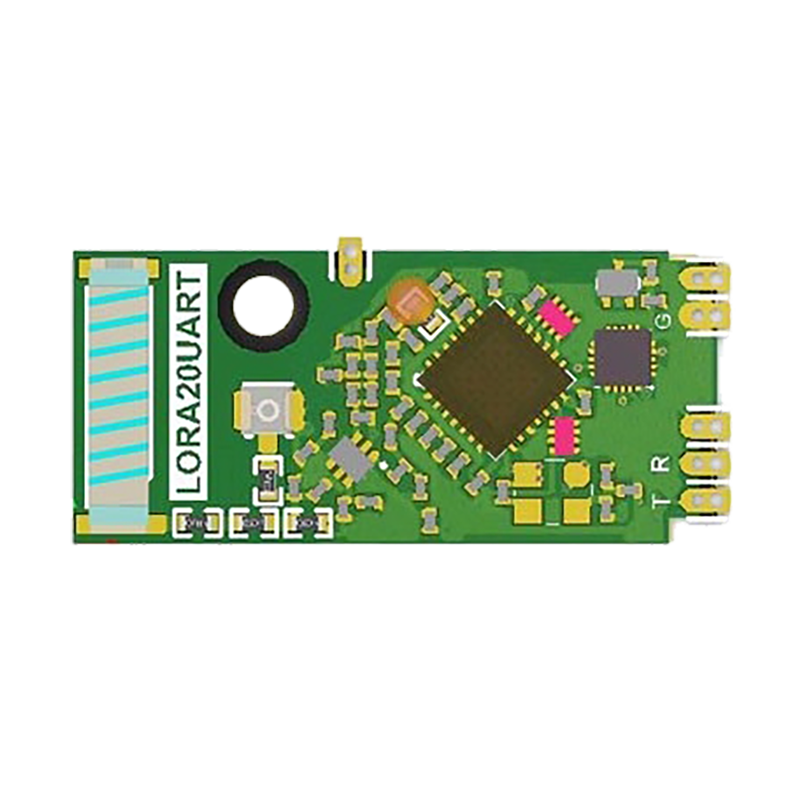

    • LoRa UART Module, 410-525MHz 20dBm | Built-in MCU, 1.5km Line of Sight for Metering and Street Lights
    • TRW-LORA20UART
    • 410~525MHz
    • 20dBm
    • 35*16.38

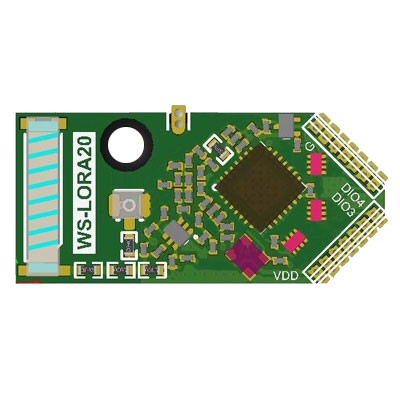

    • LoRa Module, 410-525MHz 20dBm Low Power | SPI, Wireless Wake-Up, 1.5km Line of Sight
    • TRW-LORA20
    • 410~525MHz
    • 20dBm
    • 34.75*16

    LoRa Module from WENSHING

    WENSHING offers 6 LoRa Module models, including TRW-LLCC683X Wireless Data Transmission Module 470MHz, TRW-SX1278 1W LoRa Wireless Data Module | 470MHz, LoRa 28dBm Transceiver Module TRW-LORA30UART. Available frequencies include 470MHz, 410~525MHz, 410~525MHz, 902~928MHz. Typical applications: wireless communication, iot (internet of things), smart cities, transportation, industrial control, automated agriculture. Compare the models below by specification and open any product for full details, datasheets and application examples.

    Need help choosing? Contact our engineers for samples, customization or a quotation.
