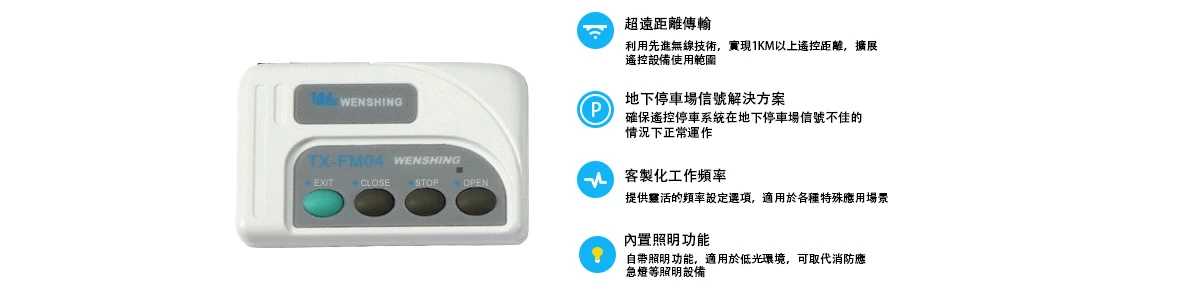

產品特色
安裝與設定:
選擇合適的位置安裝本產品,並連接至電源。
指撥開關1-2為中轉信號,時間為0.5秒,1秒。
指撥開關3,當撥至ON時,每次中轉後需延遲3秒才可再次中轉。
根據需求設定是否需照明,指撥開關撥至4 ON便開啟照明功能。
使用方法:
使用文星電子TX-F04遙控器,按任一按鍵看到設備閃燈,即代表轉發信號已處理完成。
定期檢查產品狀況,確保設備正常運作。

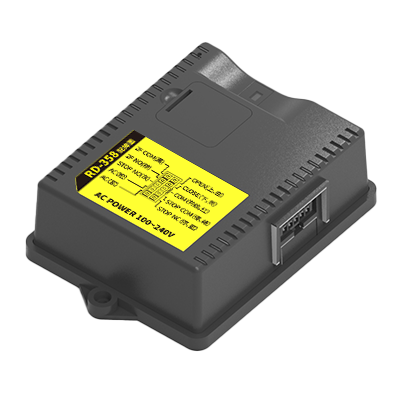

產品外觀
產品規格
頻率:371MHz、433.92MHz
工作電壓:4~12V
輸出功率:8dBm

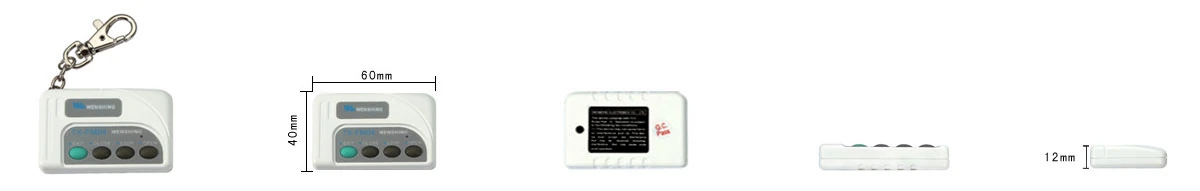

尺寸:60*40*12mm
電池:23A/DC12V
按鍵:4按鍵
採用SAW RESONATOR,精準不頻偏。

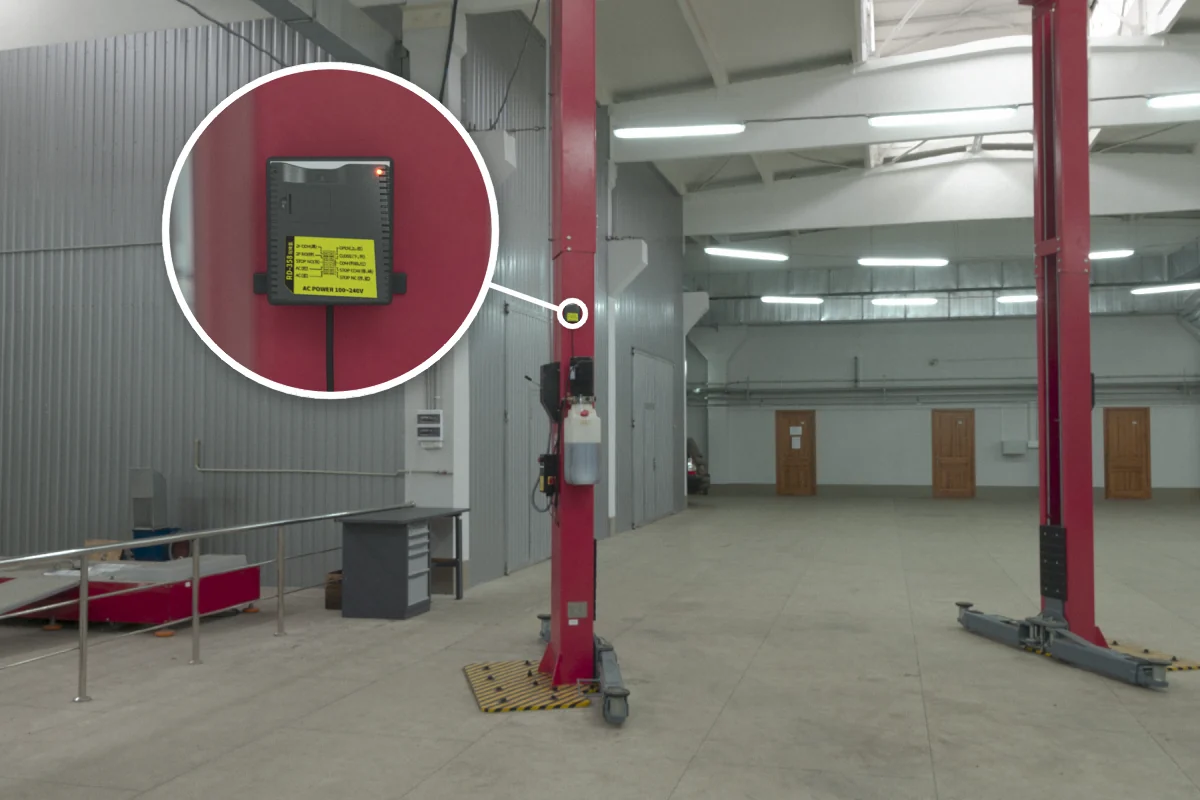

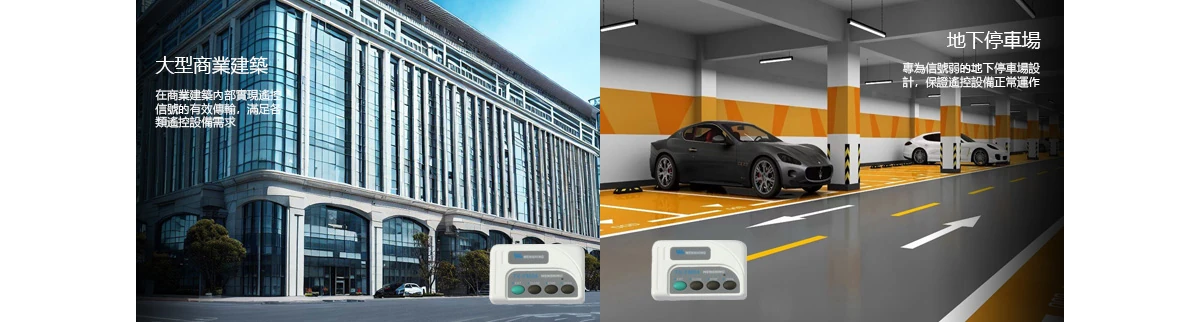

搭配控制主機、遙控升降機,可控制至地下四層樓。

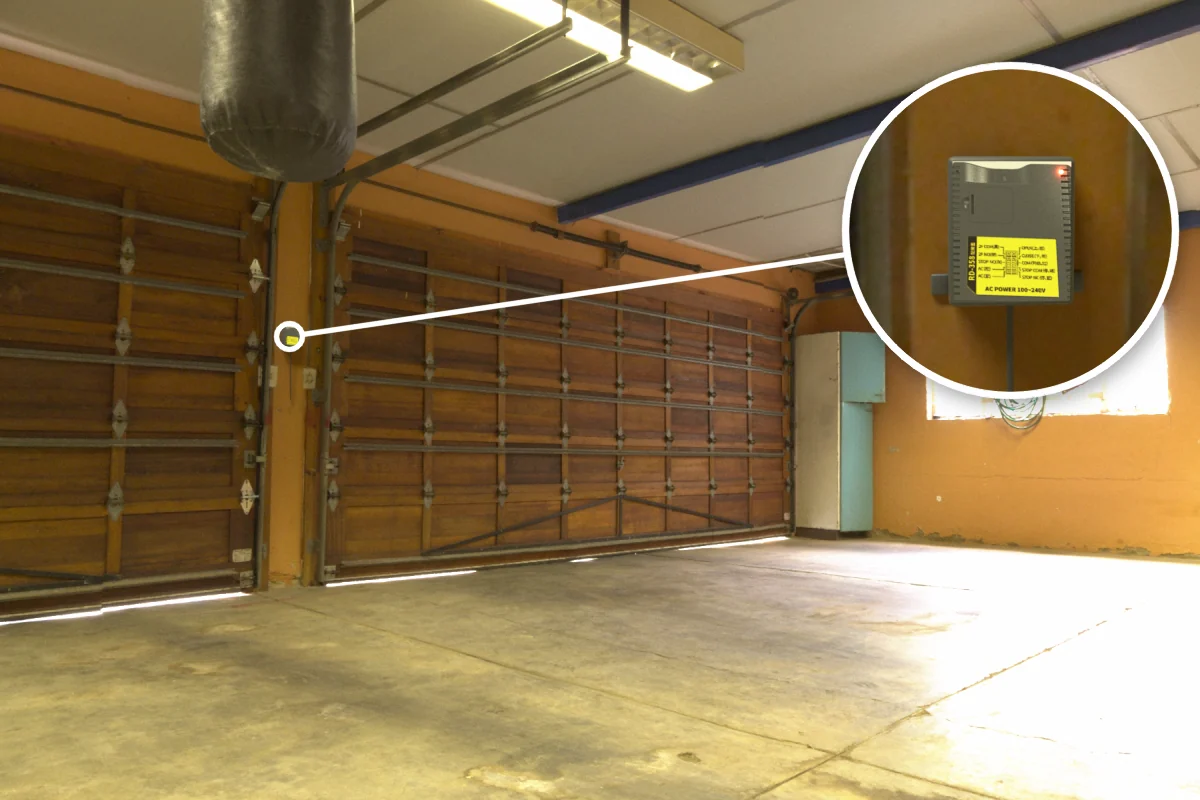

用途:車庫遙控、汽車防盜、中央門控、自動門控制、電鎖…等。
Material | Specification | Color |
Casing | ABS | Black |
Button | 4 | Orange |
Battery | DC 12V, 23A | ----- |
Size | 60*40*12mm | ----- |
Push the button "ON", it will be opened. |
Push the button "CLOSE", it will be closed. |
Push the button"STOP", it will be stopped. |
Push the button "EXIT", the other three buttons will be locked. But push the button again, the other three buttons will be unlocked. |
