INTERFACE
輸出界面

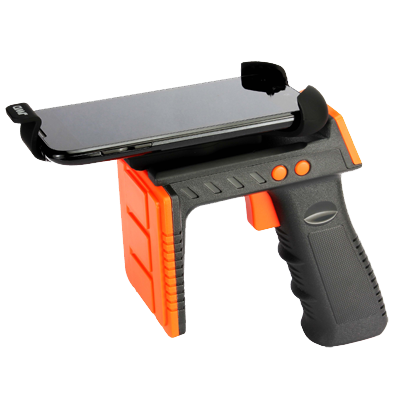

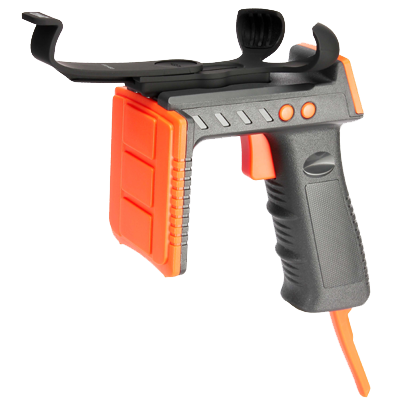

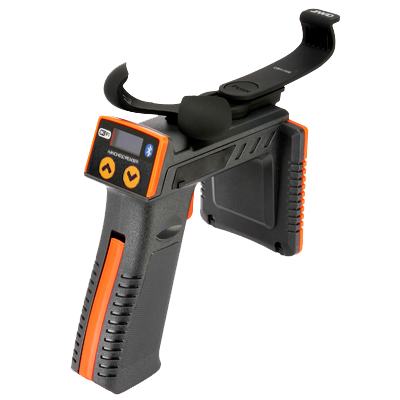

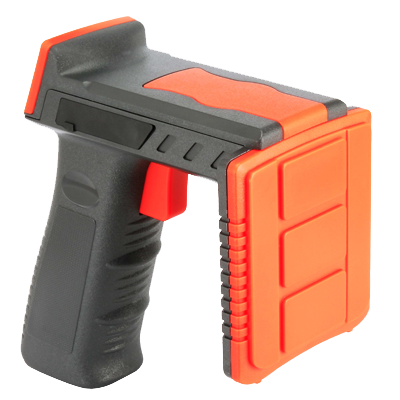

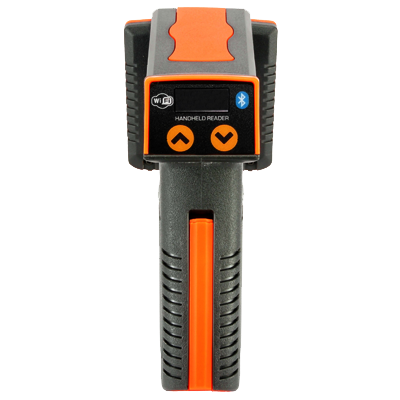

APPEARANCE
產品外觀
FEATURES
產品特色
SPECIFICATION
產品規格
Specification
Working Frequency：13.56MHz
Supper：Mifare Standard
Passive tags identification distance：3〜8cm
Protocol：ISO14443A、ISO14443B
Wireless Interface：Serial Wi-Fi、Bluetooth SPP 2.1
Storage device：Micro-SD card (Maximum 32G)
Power：Li-ion battery 3000mAh
Charging power：DC 5V 1A
Display：OEL Display 96*39 pixels
Working Temperature: 0～+50°C (+32～+122°F)
Storage Temperature：-10～+80°C
Working Humidity：20~95% (no condensation)
Dimensions：138*138*72mm
