AI Enabled 3-in-1 Geomagnetic Parking Sensor
Combining AI 3-in-1 Geomagnetic Sensor parking space detectors with Wireless PLC Gateway to create comprehensive smart parking management and industrial automation communication solutions.
AI 3-in-1 Geomagnetic Parking Sensor
model: WS-CAR3DET / WS-CAR900 / WS-CAR900-L

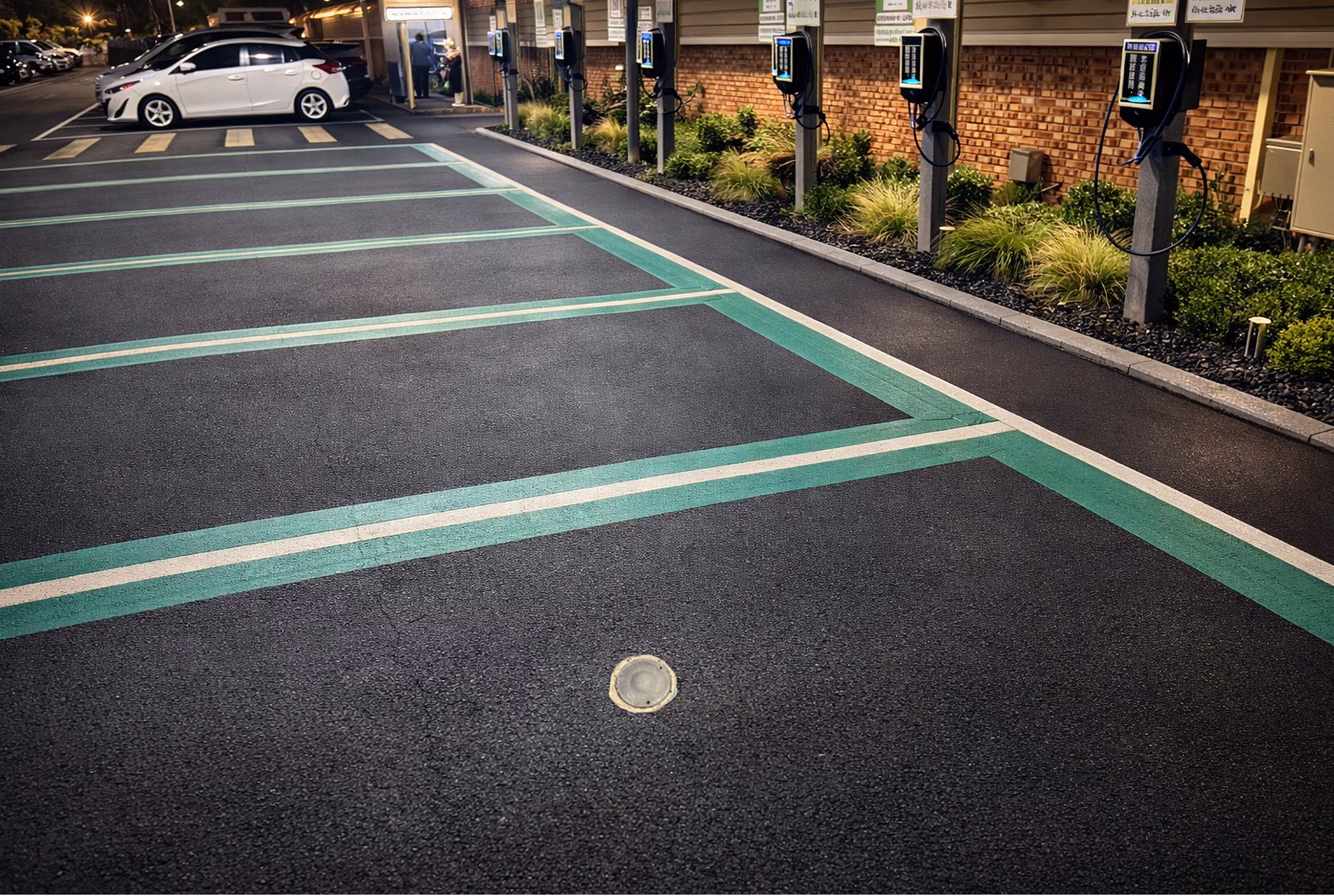

In-ground Geomagnetic Sensor
(Model: WS-CAR3DET)
Bolt-Fixed Geomagnetic Sensor
(Model: WS-CAR900)

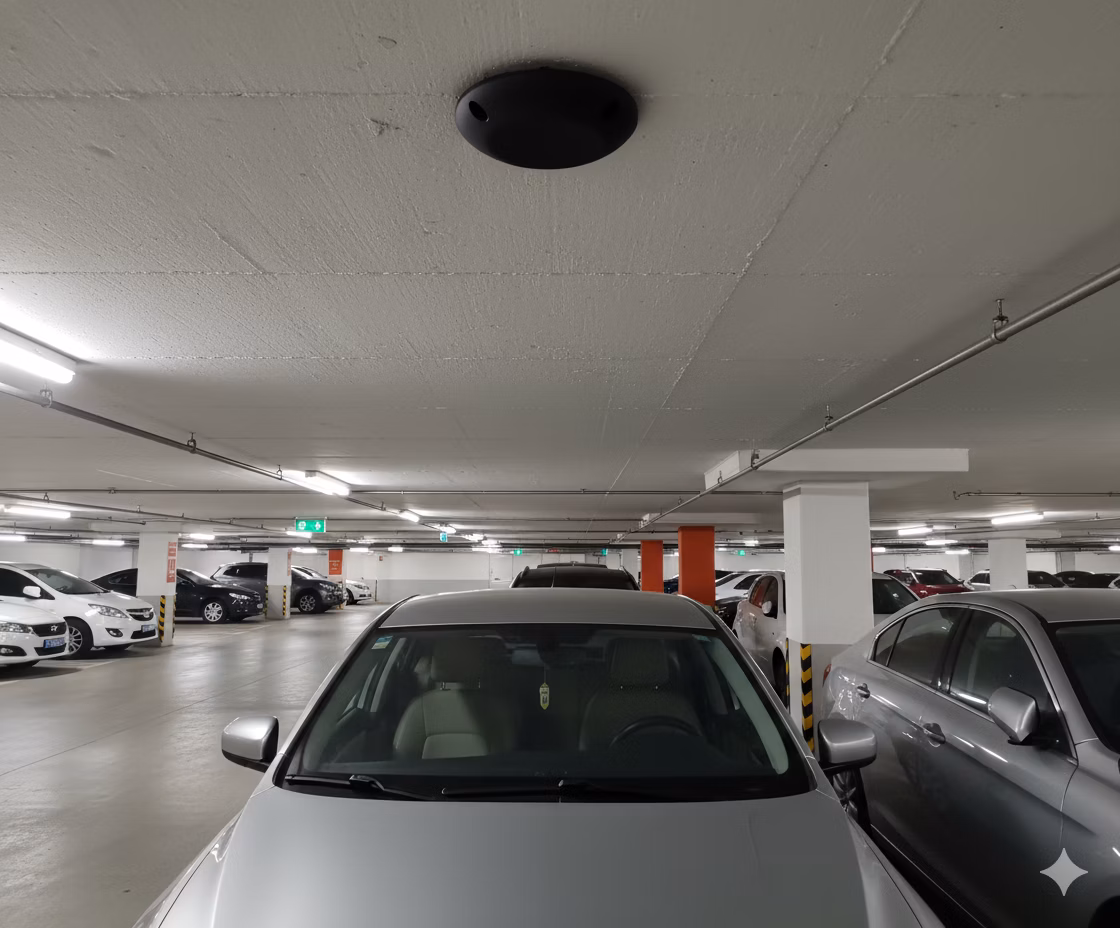

Ceiling-Mounted Geomagnetic Sensor
(Model: WS-CAR900-L)
Key Technological Features
Utilizing a 3-in-1 fusion technology of geomagnetic sensing, microwave radar, and G-Sensor, it analyzes parking space occupancy in real-time through AI algorithms. The product features ultra-low power consumption, making it particularly suitable for large-scale, long-term deployment.
  • Utilizes triple sensing technology for cross-validation, effectively reducing false alarm risks.
  • Waterproof and dustproof design.
  • Supports NB-IoT / 900MHz wireless communication.
  • Flexible installation methods: surface-mounted, ceiling-mounted, or embedded.
  • Operating temperature range: -40°C ~ +85°C.
Technological Advantages of Bolt-Fixed and
Ceiling-Mounted Geomagnetic Sensors
  • High Precision: Utilizes AI algorithms and geomagnetic technology to accurately detect vehicle presence, movement status, and parking location, reducing false positives or omissions.
  • Real-time Detection: Provides real-time updates on parking space occupancy, allowing drivers or parking management systems to quickly obtain information on available spaces.
  • Wireless Communication: Supports wireless data transmission, facilitating connection with parking management platforms or applications to provide smart parking solutions.
  • Low Power Consumption Design: This product features a low power consumption design, enabling long-term continuous operation and reducing the hassle of frequent battery replacement.
  • Easy Installation: No road excavation required; sensors can be directly installed on the ground, resulting in low installation costs and no disruption to traffic.
  • Strong Environmental Adaptability: Suitable for various weather and environmental conditions, unaffected by weather, light, and other environmental factors, ensuring stable operation in both indoor and outdoor parking lots.
  • Microwave Radar Sensing: Accurately detects vehicle presence and movement status, providing real-time occupancy judgment.
  • Barometric Pressure Sensor: Monitors changes in ambient air pressure, assisting in judging vehicle weight and presence.
  • Temperature and Humidity Monitoring: Real-time recording of ambient temperature and humidity data to ensure stable operation of the equipment in various climatic conditions.
  • G-Sensor Gravity Sensing: Detects ground vibration and pressure changes, providing auxiliary judgment for vehicle entry and exit.
Transmission Architecture
NB-IoT Communication
900MHz ISM Band Communication
Technological Advantages of In-ground Geomagnetic Sensor
  • NB-IoT Communication: Can save host costs but requires monthly telecom fees.
  • 900MHz ISM Band Communication: Can save monthly telecom fees but requires host setup.
  • 900MHz In-ground Geomagnetic Sensor with WENSHING Host: Wireless PLC Gateway (Model: WS-PLCMU900)
Transmission Architecture
NB-IoT Communication
900MHz ISM Band Communication
Installation Method
No wiring required, quick and easy installation
Installation Diagram
↓↓↓
Parking Space Detector Installation and Sensing Principle
1. Geomagnetic Sensing Layer
Detects changes in the Earth's magnetic field, generating a magnetic disturbance signal when a metal vehicle enters.
2. Microwave Radar Layer
Emits microwave signals and receives reflected waves to accurately determine vehicle presence and movement status.
3. AI Fusion Algorithm
Triple signals are fused and analyzed by an AI algorithm to output the final parking space status.
Judgment Result
Surface installation is suitable for rapid deployment in existing parking lots, with single-point installation taking only 5 minutes; embedded installation is suitable for new parking lots, with a concealed appearance and stronger pressure resistance, capable of withstanding vehicle碾壓 weighing over 40 tons.
Smart Parking Lot Application Scenarios
Real-time Monitoring and Guidance
The system instantly transmits the occupancy status of each parking space to the management platform, helping drivers quickly find available parking spaces through parking guidance signs and mobile applications, reducing cruising time by 40%, and effectively improving parking lot efficiency and user satisfaction.
The system can integrate existing parking payment systems and surveillance cameras, providing a complete parking lot management solution. Historical data analysis helps managers understand key indicators such as peak/off-peak hours and average parking duration, serving as a basis for adjusting operational strategies.
Real-time Monitoring
The management platform instantly displays the status of all parking spaces
Parking Guidance
LED signs and applications guide to available parking spaces
Data Analysis
Analysis of parking behavior and suggestions for operational optimization
Wireless PLC Gateway
model: WS-PLCMU900
Industrial Multi-protocol Wireless Communication
Diverse Communication Interfaces
Supports RS-485, RJ45 Ethernet, WiFi, and LoRa, allowing simultaneous connection to multiple PLCs and industrial control devices.
Self-organizing Network Function
Each device can form a communication group, enabling inter-device communication and establishing a stable and reliable wireless network topology.
Long-distance Transmission
In LoRa mode, communication range can reach up to 5 kilometers (line of sight in open areas), effectively solving wiring challenges in factories and large venues.
Industrial-grade Design
EMC anti-interference design, suitable for long-term stable operation in harsh industrial environments.
Wireless PLC Gateway Architecture and Connection Method
The WS-PLCMU900 offers flexible connection methods, allowing connection to traditional PLC devices via RS-485 serial port, or integration into existing Ethernet architectures using the RJ45 network port. It has built-in 2.4GHz WiFi and LoRa modules, providing long-distance wireless transmission capabilities.
PLC Equipment
Connected via RS-485 or Ethernet
Wireless PLC Gateway
WS-PLCMU900 used for protocol conversion
Data Aggregation
Collects data from multiple devices
Cloud Platform
Uploads to cloud system
The device supports multiple communication protocols, including Modbus RTU/TCP, MQTT, HTTP, etc., and can be seamlessly integrated with mainstream industrial control platforms. The self-organizing network topology supports star, mesh, and other architectures, with a single network connecting up to 256 nodes.
System Integration Architecture and Benefit Analysis
1
Sensor Layer
Parking sensors and industrial sensors collect on-site data
2
Communication Layer
Wireless communication bridging for data aggregation and transmission
3
Platform Layer
Cloud management platform for data processing and analysis
4
Application Layer
Provides monitoring interface, reports, and decision support
Statistical Analysis of Implementation Benefits
60%
Cost Reduction
Construction cost savings compared to traditional wired solutions
75%
Time Saving
Significant reduction in installation and deployment time
99%
Accuracy Rate
Accuracy of parking detection and data transmission
