Product Overview
Smart Integration Dual Positioning
The WS-RTLS-RFID is a revolutionary positioning tag reader that ingeniously combines UHF RFID with RTLS real-time locating system technology. This innovative integration allows you to automatically return the real-time location coordinates of an RFID tag while reading it, achieving true intelligent asset tracking and management.
This product is meticulously designed for professional environments such as smart manufacturing, warehouse logistics, asset management, and personnel positioning. Through advanced dual-positioning technology, it can not only accurately identify item identities but also instantly grasp their precise locations, building a complete digital management system for enterprises, significantly improving operational efficiency and asset visibility.
Technical Specifications
UWB RFID Positioning Tag Reader
Model: WS-RTLS-RFID
Radio Frequency Specifications
  • RFID Frequency: 902~928 MHz UHF band
  • RTLS Frequency: 6.5 GHz Ultra-Wideband (UWB)
  • Output Power: 15~30 dBm adjustable
  • Communication Protocol: ISO18000-6C (EPC Gen2)
  • Interface Standard: Bluetooth 2.1 SPP
Performance Parameters
  • Reading Distance: 1~8 meters range
  • Positioning Distance: up to 400 meters
  • Antenna Specification: Built-in 2 dBi high-gain antenna
Hardware Configuration
  • Sensor: G-Sensor three-axis accelerometer
  • Temperature Sensing: Real-time ambient temperature monitoring
  • Battery Capacity: 4.2V / 3Ah high-efficiency lithium battery
  • Product Dimensions: 105 × 65 × 10 mm

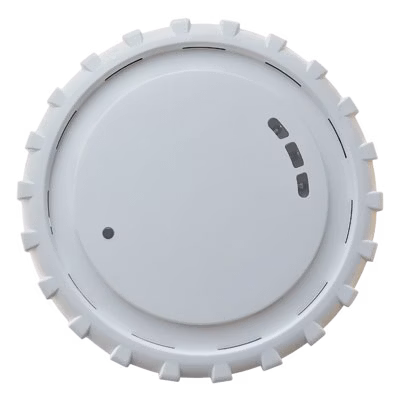

RTLS UWB Dual-Frequency Positioning Base Station
Model: WS-RTLS UWB-36V
Performance Parameters
  • Operating Voltage: 12V 500mA
  • Frequency: 3.5GHz, 6.5GHz
  • UWB Communication Rate: 820KHz
  • WIFI: 802.11
  • Interface: RJ45 Network Interface
  • Equipped with WIFI MESH function
  • Communication Distance: Approximately 50~200 meters (depending on base station and paired tags)
  • Product Dimensions: 117.5× 52 mm
The product features a compact and sleek design with simple interfaces, making it portable and easy to operate, perfectly blending practicality with aesthetics.
Location Technology Advantages
UHF RFID Identification
Fast and accurate tag reading capability, supporting simultaneous identification of multiple tags.
UWB Precise Positioning
Utilizes 6.5 GHz ultra-wideband technology to provide centimeter-level positioning accuracy.
Real-time Data Integration
Location and identity information are synchronously transmitted to the backend management system.
Combining the long-range reading capability of UHF RFID with the precise positioning characteristics of UWB ultra-wideband, WS-RTLS-RFID can provide a reliable and accurate asset tracking solution in complex industrial environments. The system automatically integrates tag identification and location information, establishing a complete digital asset map for enterprises to achieve intelligent real-time management.
Base Station Product Application

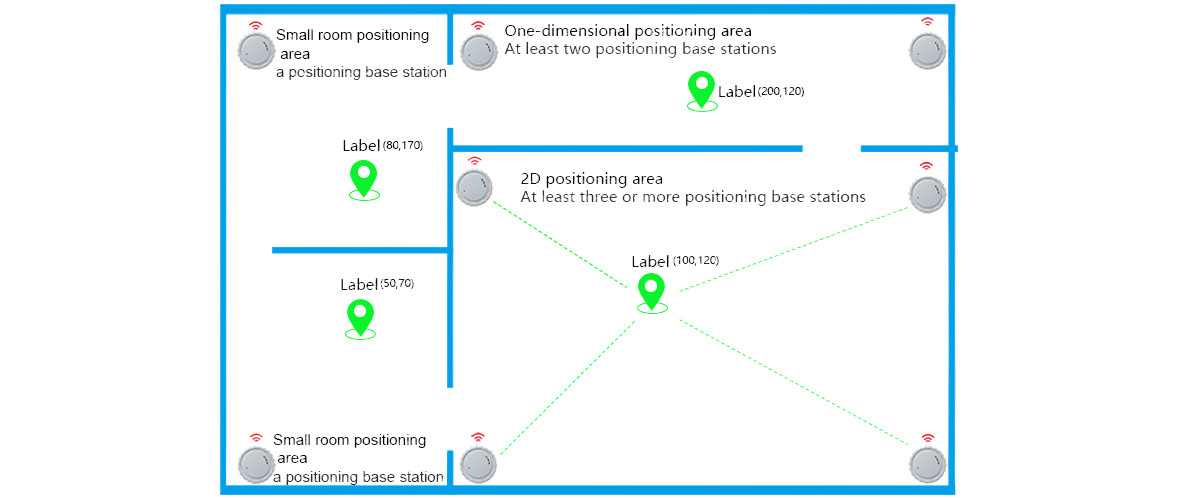

Positioning Status—When a positioning tag is active within the base station's area, the following information can be obtained from the positioning software:
  • Real-time tag position monitoring and real-time trajectory tracking
  • Tag activity status indication, tag battery level monitoring, low battery alert
  • Real-time tag mileage, real-time activity zone analysis
  • Quick target search on the map

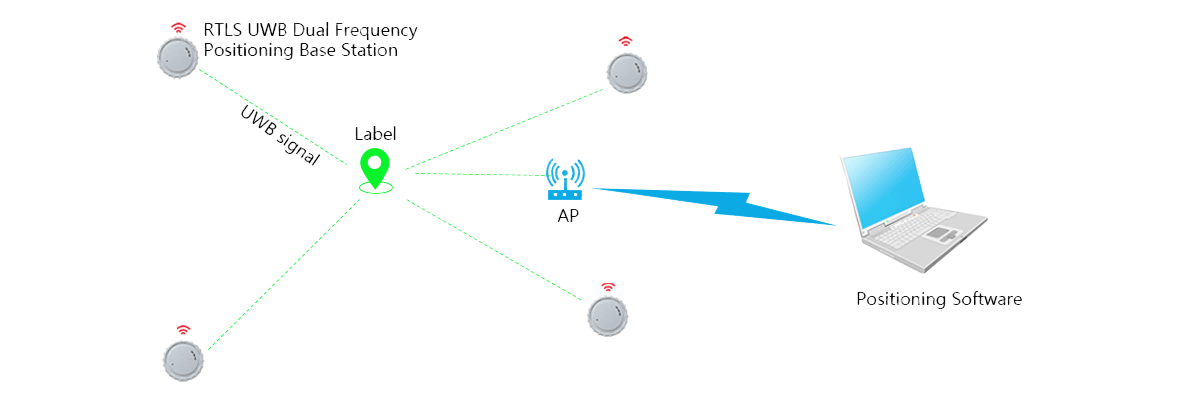

System Architecture Diagram
UWB base stations connect via WIFI and AP to achieve real-time transmission of tag positioning information and remote monitoring management.
Application Scenarios Analysis
Warehouse Management
Achieve real-time inventory and precise location of goods, significantly shortening inventory time, improving inventory accuracy, and reducing labor costs.
Manufacturing Process Tracking
Track the location of work-in-progress and tools, optimize production processes, prevent tool loss, and improve manufacturing efficiency.
Logistics and Transportation
Real-time cargo positioning and complete record-keeping, enhancing transportation transparency, strengthening cargo safety management, and improving customer satisfaction.
Fixed Asset Management
Prevent asset loss and duplicate purchases, establish a complete asset history, and optimize asset allocation and utilization efficiency.
System Benefits Analysis
85%
Inventory Efficiency Improvement
Compared to traditional manual inventory methods, automated reading can save over 85% of operation time.
95%
Asset Visibility
Real-time positioning function increases asset location transparency to over 95%, significantly reducing loss risk.
60%
Labor Cost Savings
Fully automated operation processes can reduce approximately 60% of human input and related management costs.
After implementing the WS-RTLS-RFID positioning tag reader, enterprises can see significant efficiency improvements in the short term. The system not only enhances operational efficiency but also, through its precise asset tracking capabilities, helps companies establish a more comprehensive digital management system, laying a solid foundation for long-term operational optimization.
Product Features and Advantages
Industrial-grade Durable Design
Adopts a sturdy casing design, capable of withstanding harsh industrial environments, ensuring long-term stable operation. The dustproof and waterproof design allows the equipment to work reliably in various environments.
Long-lasting Battery Life
Equipped with a 4.2V / 3Ah high-capacity lithium battery, it can operate continuously for several weeks in standard working mode, significantly reducing maintenance frequency and costs.
Flexible System Integration
Supports multiple communication protocols and data formats, allowing seamless integration with existing Enterprise Resource Planning (ERP) or Warehouse Management Systems (WMS), lowering the barrier to adoption.
Smart Data Analysis
Built-in G-Sensor and temperature sensors allow for environmental data collection in addition to location tracking, providing businesses with more comprehensive operational insights.
Implementation Process and Support
01
Requirements Assessment and Planning
Our professional team deeply understands your application scenarios and needs, planning the most suitable system configuration solution.
02
System Design and Integration
System design is carried out based on the on-site environment, ensuring perfect integration with existing equipment and software.
03
Installation, Deployment, and Testing
Experienced engineers perform on-site installation and conduct comprehensive system functional testing.
04
Training and Go-Live
Complete operational training and technical documentation are provided to ensure users can fully leverage the system's benefits.
05
Continuous Maintenance and Optimization
Long-term technical support and system optimization services are provided to ensure the system consistently operates in its best state.
Start Your Smart Transformation Now
Professional Procurement and Technical Support
We offer comprehensive professional services, including bulk purchasing discounts, customized system integration services, and complete after-sales technical support. Whether you are a small to medium-sized enterprise or a large group, we can provide the most suitable solutions and flexible cooperation models based on your scale of needs.
Our professional technical team is always ready to provide one-stop, complete services from initial assessment, system planning, installation and deployment to subsequent maintenance. This ensures you can seamlessly integrate advanced RFID positioning and tracking systems, accelerating your enterprise's digital transformation process.
