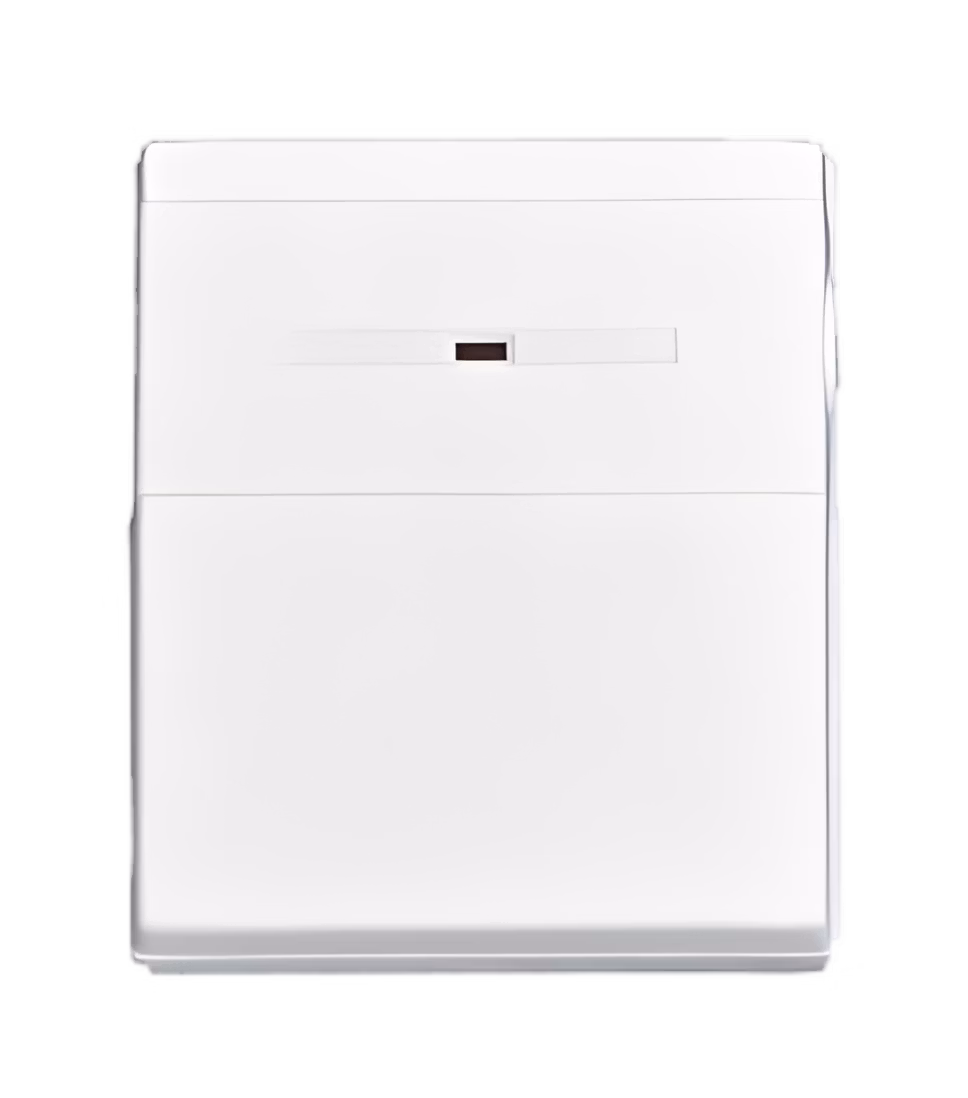

CS-732 Wireless Remote Control Host Product Introduction
The CS-732 is a 371.5MHz ASK wireless remote control host specifically designed for industrial environments and building automation. This product utilizes mature ASK modulation technology, ensuring stable signal transmission quality even in complex electromagnetic environments.
The host features multi-channel relay outputs, allowing simultaneous control of multiple devices, suitable for industrial control, smart lighting, access control systems, garage door control, and various automation equipment. With DIP switch settings, engineers can quickly complete system configuration, significantly reducing installation time.
The CS-732 is compatible with multiple remote control models (TX-F01, TX-F02, TX-N04), offering flexible system integration options. Whether for new construction projects or existing equipment modifications, you can find the most suitable control solution.
Main Application Areas
  • Industrial equipment remote start/stop control
  • Centralized building lighting management
  • Access control and garage door automation
  • Security system integration applications
Technical Specifications
Wireless Specifications
Frequency: 371.5MHz ASK Modulation
Reception Distance: 50～120 meters (open environment)
Utilizing ASK (Amplitude Shift Keying) modulation technology, it provides stable signal transmission quality and exhibits excellent anti-interference capabilities in industrial environments. Actual reception distance may vary due to building structures, obstacles, and electromagnetic conditions.
Power Specifications
Power Voltage: DC 9～28V
Operating Current: 10.6mA @12V
Wide voltage input design adapts to various power supply environments. Low power consumption ensures long-term stable operation, reducing system maintenance needs. It is recommended to use a regulated power supply for optimal performance.
Control Modes
Output Method: Multi-channel relay output
Control Types: On/Off, Momentary, Latching
Supports three control logics to meet different application requirements. On/Off mode is suitable for lighting control, momentary mode is ideal for access control buttons, and latching mode can be used for equipment status locking. Easy switching is achieved via DIP switches.
Product Features & Advantages
The CS-732 integrates multiple professional designs to provide a complete wireless control solution for engineering applications.
Multi-channel Relay Output
Equipped with multiple independent relays, it can control several devices or circuits simultaneously, suitable for complex industrial control needs. Each relay has high voltage resistance and large current carrying capacity, ensuring long-term stable operation.
DIP Switch Configuration
Uses DIP switches for system settings, eliminating the need for complex programming or specialized tools. Engineers can quickly configure parameters such as address coding and control mode selection, significantly reducing installation difficulty.
Reduced Wiring Costs
Wireless transmission technology completely eliminates the need for long-distance control wiring, especially suitable for renovation projects or sites where wiring is difficult. It reduces material, conduit, and labor costs, while enhancing system flexibility and aesthetics.
Compatible with Multiple Remote Controls
Supports TX-F01, TX-F02, TX-N04, and other remote control models, offering various button counts and form factors. The system has high integration flexibility, allowing users to select the most suitable control end device according to actual application needs.
Application Areas

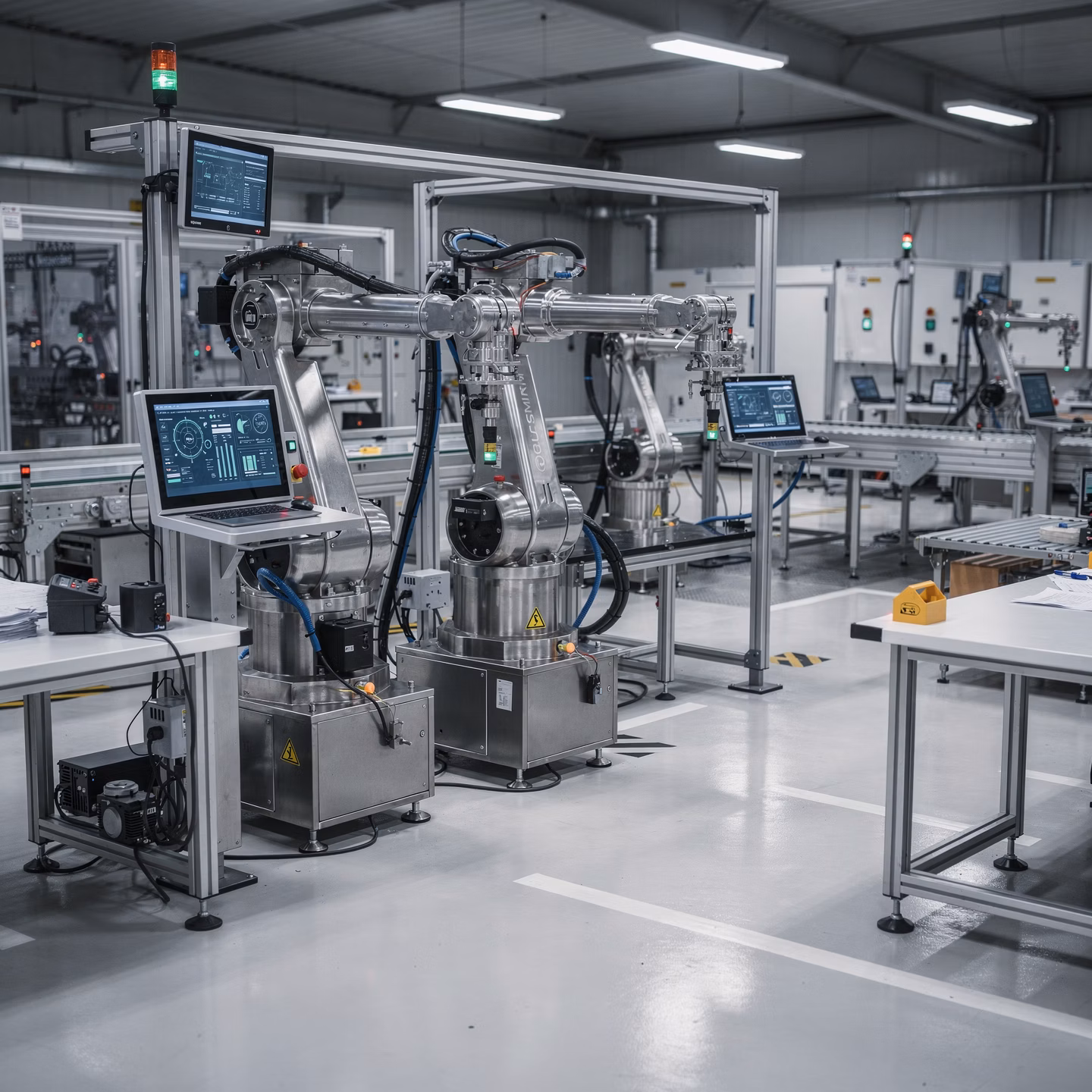

Industrial Equipment Control
Suitable for remote start/stop of production line equipment, remote operation of process equipment, and wireless triggering of emergency stop systems. In large factories, operators can control equipment without having to walk to the equipment side, improving operational efficiency and safety.
  • Production Line Start/Stop Control
  • Conveyor Belt Remote Operation
  • Process Equipment Switching
  • Emergency Stop System

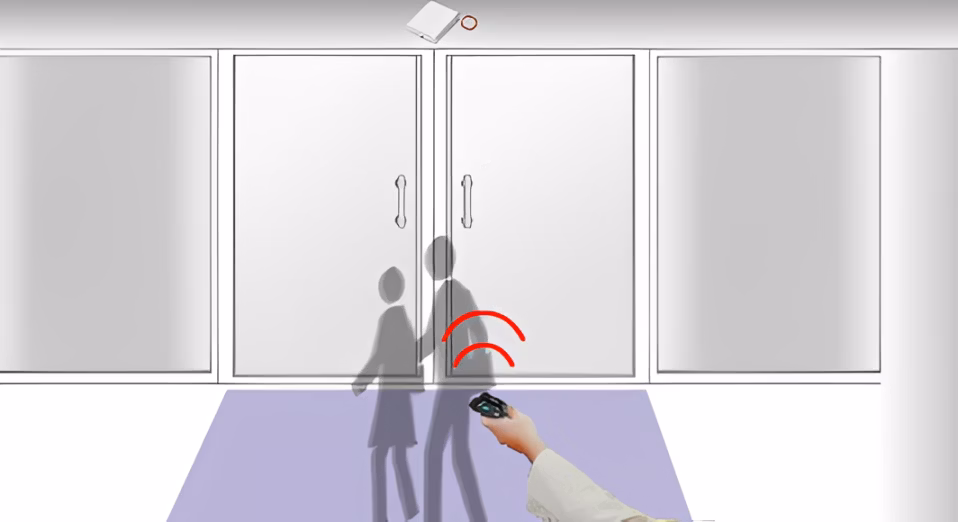

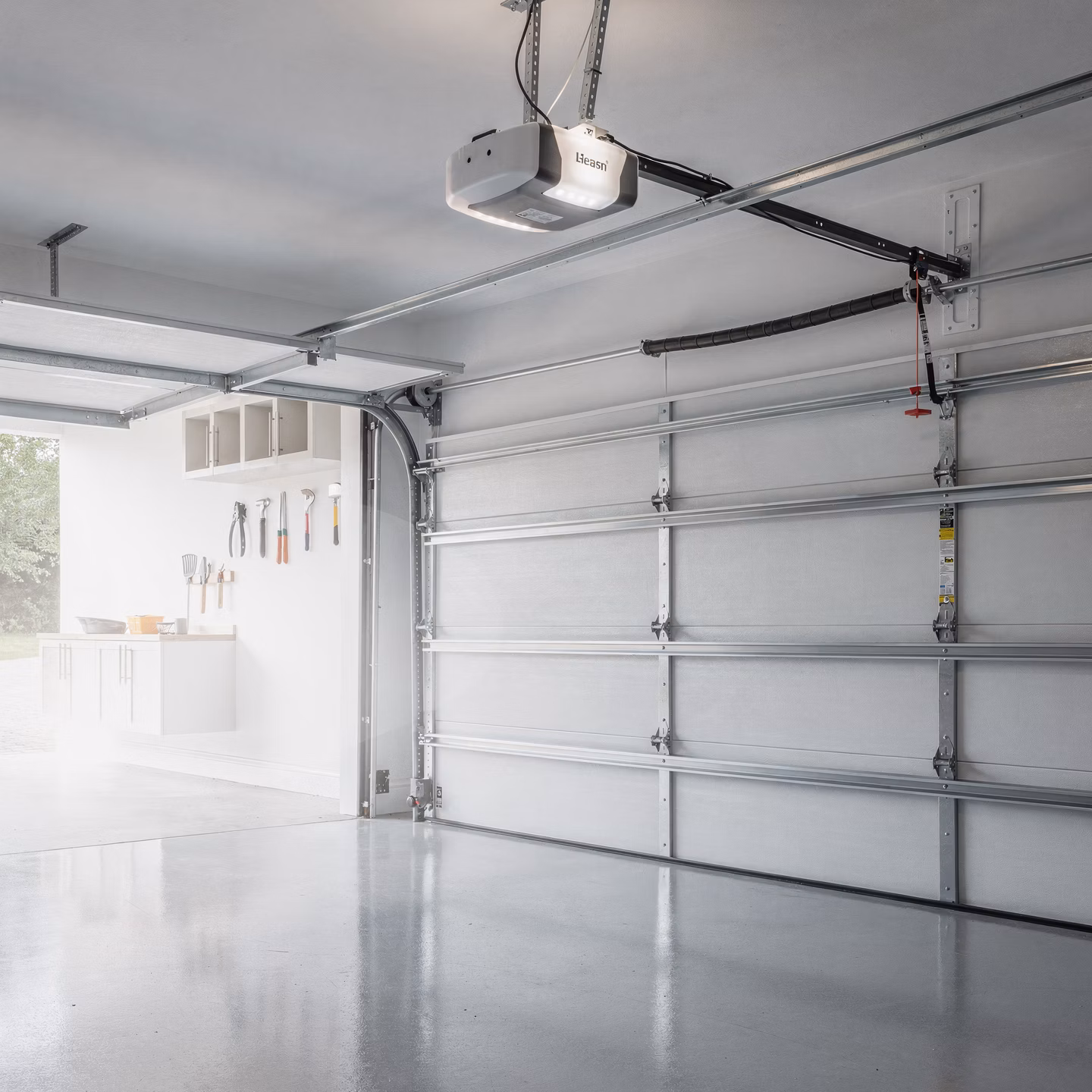

Door Control and Garage Applications
Provides convenient automatic door and garage door control solutions for residential, commercial, and industrial facilities. Supports various door types such as rolling doors, sliding doors, and swing doors, and can be integrated with access control systems for more comprehensive security management.
  • Garage Rolling Door Control
  • Automatic Sliding Doors
  • Warehouse Gate Remote Control
  • Access Control Integration Applications

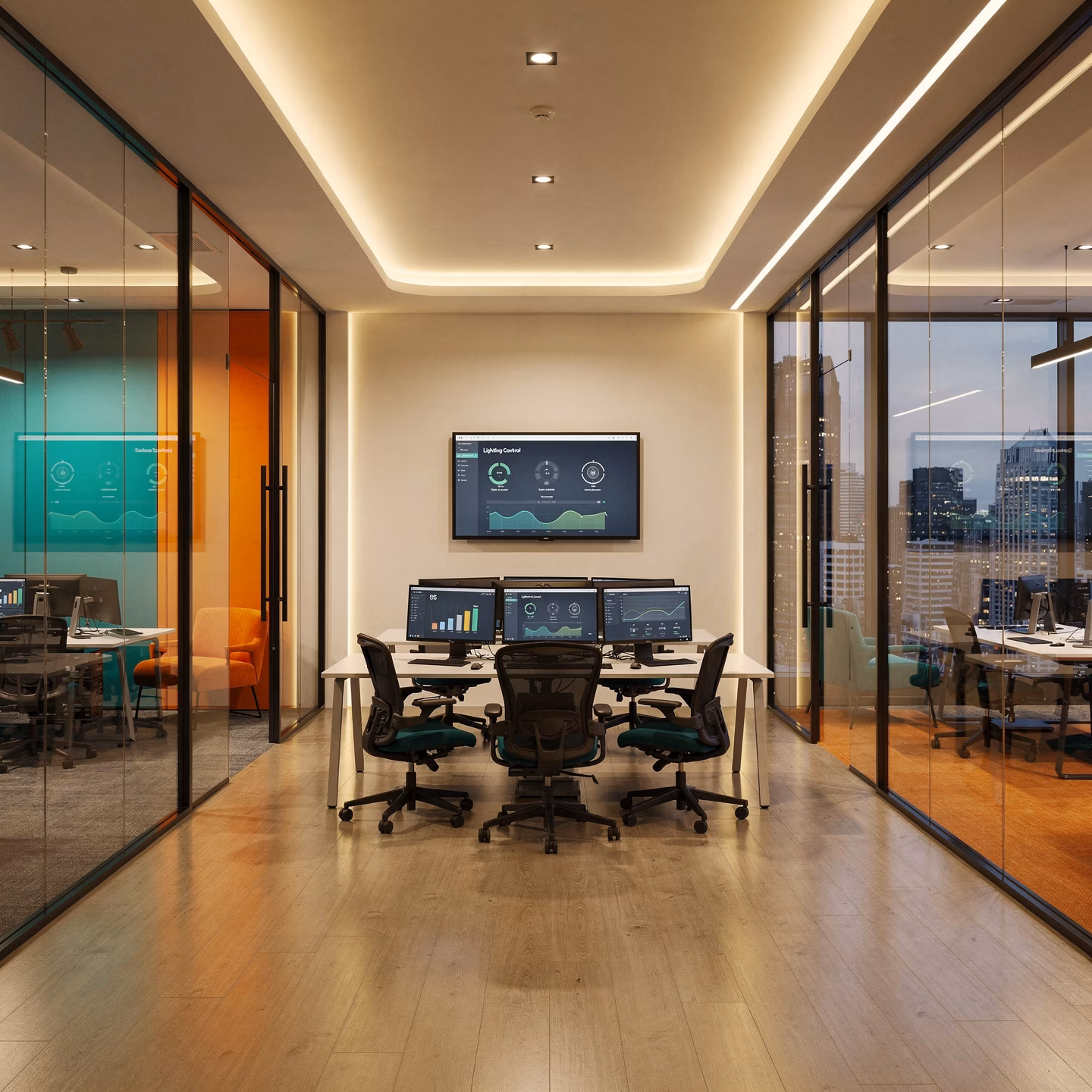

Lighting and Security Systems
Builds smart lighting control networks, enabling zonal lighting management, scene mode switching, and energy-saving schedule control. When integrated with security systems, it can serve as a control core for alarm triggering, surveillance activation, or emergency lighting.
  • Zonal Lighting Control
  • Scene Mode Switching
  • Security System Integration
  • Emergency Lighting Activation
System Architecture and Installation
Remote Control Unit
Select the appropriate remote control model (TX-F01/F02/F04) and set the DIP switches for pairing with the main unit. The remote control features low power consumption, with a battery life of several years.
Wireless Transmission
The 371.5MHz ASK signal can reach 50-120 meters in open environments. It is recommended to install the antenna vertically at a high point, avoiding metal obstructions for optimal reception.
Main Unit Reception
After receiving the signal, the CS-732 main unit drives the corresponding relay output according to the preset control logic. It supports various control modes including ON/OFF, momentary, and latched.
Load Equipment
The relay output can directly drive load equipment such as lighting, motors, and solenoid valves. For controlling high-power equipment, AC contactors or solid-state relays can be cascaded.
Installation Notes
  1. Power Configuration: Ensure the power supply voltage is within the DC 9-28V range, a regulated power supply is recommended.
  1. Antenna Placement: Fully extend and vertically install the antenna, keeping it away from metal objects and high-power electrical equipment.
  1. Grounding: It is recommended to properly ground the main unit's casing to enhance system anti-interference capability and safety.
  1. Environmental Considerations: Avoid installation in environments with high temperature, high humidity, or corrosive gases.
  1. Testing and Verification: After installation, a complete functional test and distance verification should be performed.
Compatible Remote Control Options
The CS-732 main unit supports multiple remote control models, offering different button configurations and designs to meet various application needs.
TX-F01
TX-F01 Single Button Remote Control
Simple single-button design, suitable for on/off control of a single device. Compact in size, it can be carried as a keychain accessory. Applicable for garage doors, electric gates, or single lighting circuit control.
TX-F02
TX-F02 Two Button Remote Control
Equipped with two independent buttons, it can control two sets of equipment or achieve separate on/off operations. Suitable for applications requiring two-way control or multi-device management, such as a two-car garage or zoned lighting systems.
TX-F04
TX-F04 Four Button Remote Control
Provides four independent control buttons, capable of managing up to four sets of equipment or implementing complex scenario controls. Suitable for multi-zone lighting, multiple devices, or advanced applications requiring rich control options.

Purchase Recommendation: It is recommended to choose the appropriate remote control model based on the actual number of control points. If future expansion of control devices is possible, it is advisable to select a model with more buttons to maintain system flexibility. All remote controls use the same 371.5MHz frequency and can be perfectly paired with the CS-732 main unit.
Technical Advantages Analysis
120m
Maximum Control Distance
Effective control range of up to 120 meters in open environments, meeting the needs of large spaces.
9-28V
Wide Voltage Input
DC 9-28V wide voltage design, adapting to various power supply environments and system integration requirements.
10.6mA
Low Power Consumption Design
Standby current of only 10.6mA (@12V), ensuring long-term stable operation and energy-saving performance.
Why Choose CS-732?
Mature and Stable Technology
371.5MHz ASK modulation technology has been long-proven in the market, demonstrating excellent stability and reliability in industrial environments. Compared to other wireless technologies, ASK offers better penetration and anti-interference capabilities.
Simplified Installation Process
DIP switch settings make system configuration simple and intuitive, allowing engineers to quickly get started without specialized training. Compared to traditional wired control, it can save up to 60% of installation time and wiring costs.
Flexible System Expansion
Modular design allows for system expansion or adjustment at any time. When adding new control points, simply add a remote control, without re-wiring or modifying existing equipment. Supports flexible multi-to-one or one-to-many configurations.
Comprehensive Application Support
From industrial automation to building intelligence, CS-732 can meet various professional application needs. We provide complete technical documentation, application guides, and professional technical support services to ensure smooth project execution.
Actual Application Cases

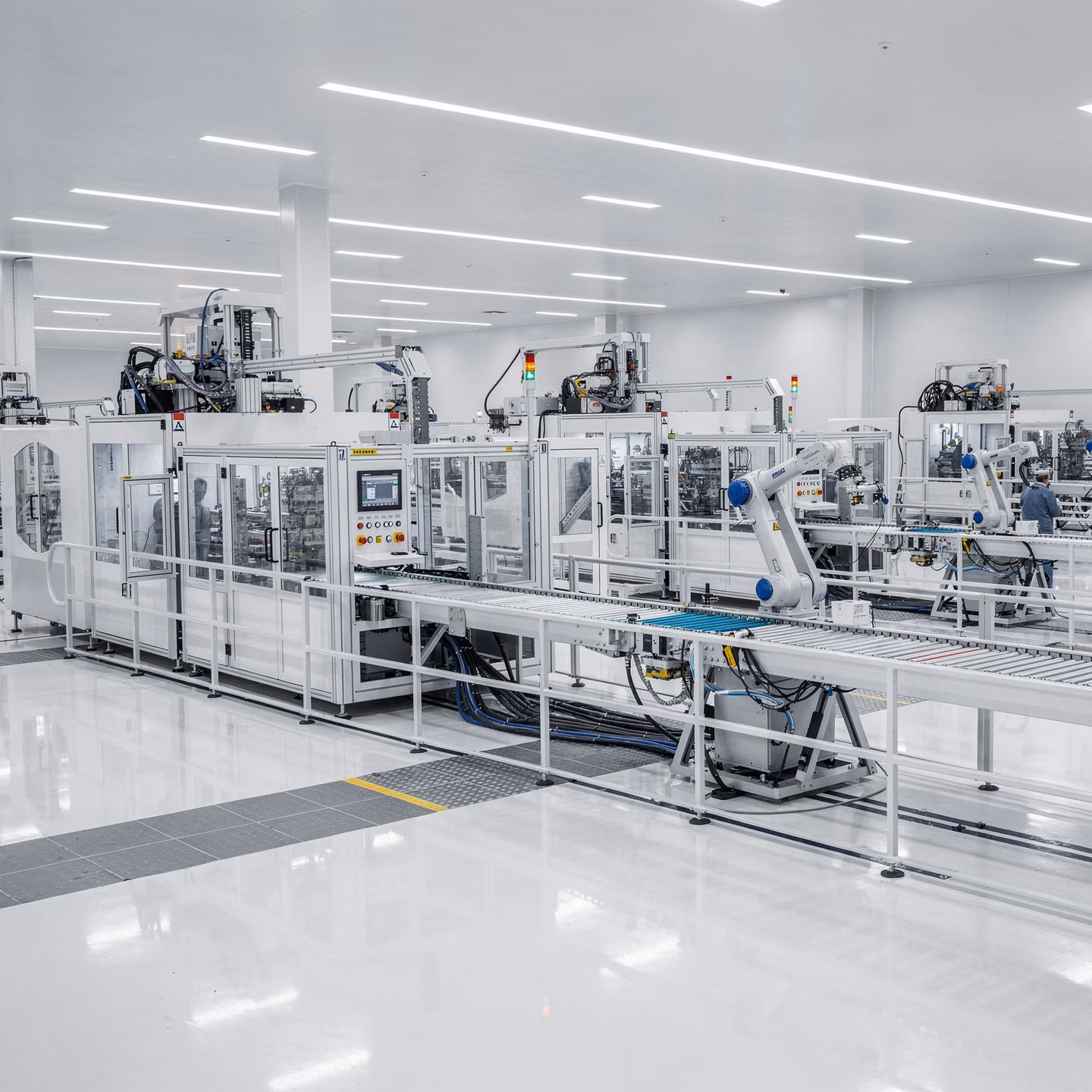

Case Study 1: Manufacturing Plant Equipment Control
An electronics manufacturer deployed the CS-732 system on its production line to control the start/stop of multiple conveyor belts and process equipment. With wireless remote control, production line supervisors can instantly adjust equipment operating status during their rounds without returning to the control room.
Results: Reduced equipment adjustment response time by 40%, decreased walking distance, and improved overall production efficiency. The system has operated stably with zero failure records for three years.
Case Study 2: Logistics Warehouse Door Control System
A large logistics center implemented the CS-732 to control the electric rolling doors of 12 loading docks. Drivers can operate the remote control from their vehicles to open the corresponding loading dock doors, eliminating the need to get out and wait, significantly improving loading and unloading efficiency.
Results: Reduced loading/unloading time by 5 minutes per vehicle, increasing daily processing capacity by 30%. Drivers no longer need to operate in the rain during wet weather, significantly improving the working environment.

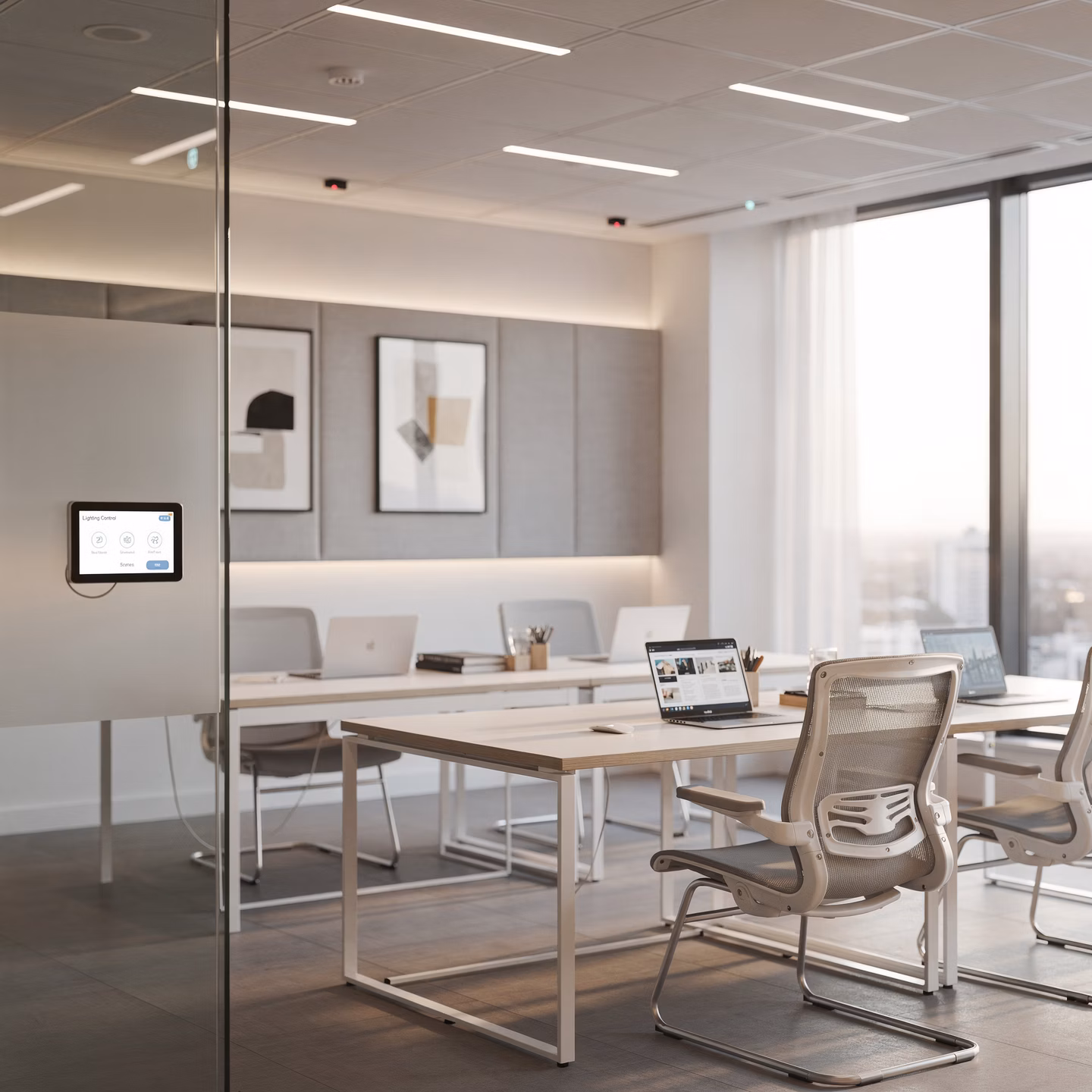

Case Study 3: Commercial Building Lighting Management
A Class A commercial building adopted the CS-732 to build a zonal lighting control system. Management personnel can quickly switch the lighting status of different floors or areas via remote control, achieving flexible lighting management and energy-saving control.
Results: Reduced lighting energy consumption by 25% and maintenance labor demand by 30%. The system integrates with existing time-scheduling controls, achieving comprehensive smart lighting management.
Case Study 4: Parking Lot Access Control Integration
A multi-story parking lot integrated the CS-732 into its access control system. Monthly pass holders can use their dedicated remote controls to enter the parking lot, and the system automatically records entry and exit times. Compared to traditional swipe card systems, remote control is more convenient and cost-effective.
Results: Reduced equipment installation costs by 50% and simplified system maintenance. Driver satisfaction improved, and entry waiting times during peak hours were reduced.
Technical Resources & Support
Product Specification
Complete technical specification document, including electrical characteristics, mechanical dimensions, and environmental regulations. Available in Traditional Chinese and English for engineering design reference.
User Manual
Illustrated installation and operation guide, covering wiring instructions, DIP switch settings, remote control pairing, troubleshooting, and other complete content. Helps engineers quickly complete system setup.
Technical Support Services
Our professional technical team provides comprehensive pre-sales consultation and after-sales support services. Including product selection advice, system design assistance, installation guidance, and all-round problem diagnosis.
OEM / ODM Customization Services
We provide professional OEM/ODM services and can develop customized products according to customer requirements. Whether it's frequency adjustment, function expansion, appearance design, or brand labeling, we can provide complete solutions.
Customization options include:
  • Frequency and power customization
  • Relay quantity and specification adjustment
  • Enclosure design and brand printing
  • Firmware function development
  • Special environmental specifications (waterproof, high temperature resistance, etc.)
Please contact our sales team to discuss your project needs.
