CS-733 Product Overview
The CS-733 is a professional 371.5MHz wireless remote control host with 4 independent relay output channels, specifically designed for industrial control and automation systems. This device is widely used in various scenarios such as smart lighting control, automatic access control systems, garage door control, remote switching of industrial equipment, and security alarm systems.
The product adopts an industrial-grade design concept, supporting DC 9-28V wide voltage input, ensuring stable operation in various industrial environments. Its powerful wireless control capability allows for an effective control distance of 50-120 meters in open spaces, meeting the needs of most industrial and commercial applications. The CS-733 is particularly suitable for system integrators, equipment manufacturers, and engineering procurement personnel to build reliable wireless control solutions.
The device can be flexibly configured via built-in DIP switches, eliminating the need for complex software settings, and enabling multiple control mode switching, significantly reducing system deployment time and technical barriers.
Core Advantages
  • Industrial-grade wide voltage design
  • 4 independent relay outputs
  • Long-distance wireless control
  • Flexible multi-mode configuration
  • Quick deployment, no programming required
CS-733 Product Introduction
The CS-733 adopts mature and reliable 371.5MHz ASK (Amplitude Shift Keying) wireless communication technology, a frequency band that offers excellent penetration and anti-interference capabilities in industrial control applications. The device supports various remote controls, including the TX-F01, TX-F02, TX-F04 series, and learning-type remote controls, providing users with flexible control options.
Wireless Technology
371.5MHz ASK modulation, stable and reliable industrial-grade wireless communication solution
Control Logic
Toggle switch settings for various control modes including ON/OFF, momentary, and delayed
Power Adaptation
DC 9-28V wide voltage input, easily integrates with various industrial control systems
The system design emphasizes practicality and reliability, with all configurations completed via hardware DIP switches, avoiding the complexity of software configuration. Relay terminals are clearly labeled for quick wiring and deployment by engineers. The device casing is made of industrial-grade materials, capable of adapting to various installation environments, ensuring long-term stable operation whether installed inside a control box or deployed independently.
Technical Specifications
Wireless Parameters
  • Frequency: 371.5MHz
  • Modulation Method: ASK
  • Control Distance: 50-120 meters (open space)
  • Antenna: Built-in/External optional
Electrical Parameters
  • Operating Voltage: DC 9-28V
  • Standby Current: approx. 10.6mA @12V
  • Relay Output: 4 independent control groups
  • Contact Capacity: According to relay specifications
Control Characteristics
  • Control Modes: On/Off/Momentary/Latching
  • Encoding Method: DIP switch settings
  • Learning Function: Supports remote control learning
  • Memory Capacity: Multiple remote control storage
The technical specifications of CS-733 have been rigorously tested and verified to ensure reliability in various industrial environments. The wide voltage design allows it to directly connect to 12V or 24V industrial power systems without the need for an additional power adapter. The low standby power consumption design helps reduce overall system energy consumption, meeting modern industrial energy saving requirements.
Features and Highlights
Four-Way Independent Control
4 sets of relays can independently control different devices, each with independent contact output, supporting complex control logic and device combinations.
Flexible Mode Setting
Quickly set control modes via dip switches, supporting momentary, self-locking, interlocking, delay, and other working modes to meet various application requirements.
Industrial-Grade Power Supply
Supports DC 9-28V wide voltage input, adapting to various industrial power supply environments, without the need for precise voltage regulation, enhancing system integration flexibility.
Long-Distance Transmission
Control distance up to 50-120 meters in open spaces, with strong wall penetration, suitable for large spaces such as factories, warehouses, and parking lots.
High Stability Communication
Adopts mature ASK modulation technology with strong anti-interference capability, ensuring communication reliability in complex electromagnetic environments and low false trigger rates.
Rapid Deployment
No complex programming configuration required; system settings can be completed with hardware DIP switches, greatly shortening installation and commissioning time, and lowering technical barriers.
Typical Application Scenarios
The CS-733 wireless remote control receiver, with its reliability and flexibility, has been successfully applied in various industry sectors. Below are several typical application scenarios, demonstrating the product's value in actual engineering projects.
Smart Lighting Control
Applied to centralized lighting control in commercial spaces, office buildings, exhibition halls, and other venues. Scene lighting switching is achieved through group control, and a single remote control can manage multiple lighting circuits, enhancing space management efficiency. It supports functions such as switching and dimming (in conjunction with a dimmer) to meet different lighting needs.
Access Control and Garage Doors
Widely used in access control systems for automatic doors, garage doors, electric roller shutters, and other entrances/exits. Remote wireless control provides convenience and security, supporting multi-user permission management. Suitable for residences, commercial parking lots, warehouses, and other scenarios, it can be integrated with access control systems to achieve more complex access control logic.
Industrial Equipment Control
In the field of industrial automation, CS-733 can be used for remote start/stop of equipment, production line control, material conveying systems, etc. It reduces the time operators spend in hazardous areas, improving production safety. It supports integration with PLC and SCADA systems to build complete industrial control solutions.
Operation & Interface Description

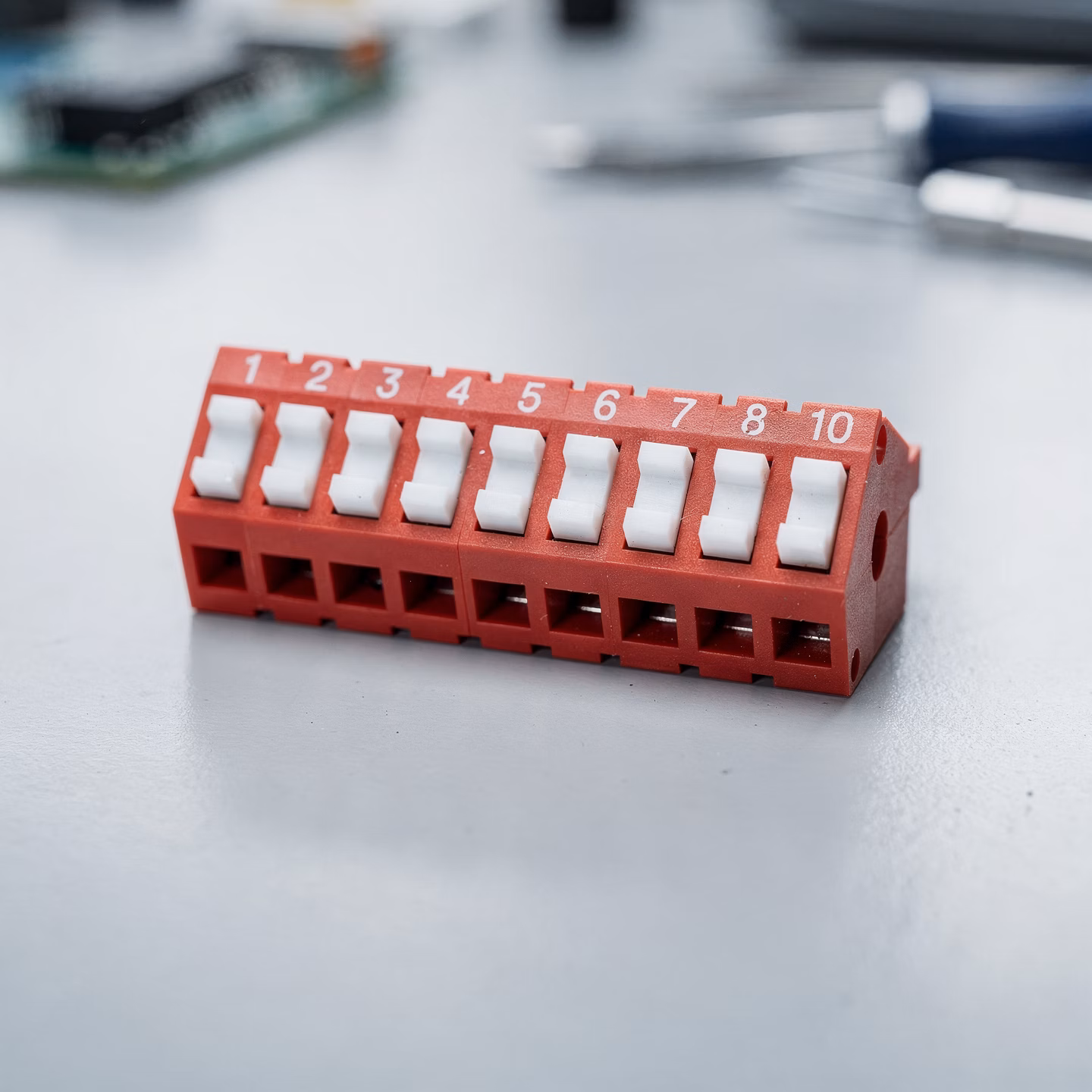

DIP Switch Configuration
The CS-733 uses intuitive DIP switches for system configuration, eliminating the need for any software tools. Each switch position corresponds to different function settings, including control mode selection, encoding settings, and learning function activation.
Engineers can quickly adjust the device's operating mode according to application requirements. The device supports momentary mode (press to trigger, release to reset), self-locking mode (press to toggle state), interlock mode (multiple channels mutually exclusive control), and delay mode (timed automatic shutdown).
Terminal Wiring
The relay output terminals feature a standard screw terminal design for secure and reliable wiring. Each relay group provides normally open (NO), normally closed (NC), and common (COM) contacts, facilitating connection to different types of loads. The terminals are clearly labeled and come with wiring instructions, allowing even first-time installers to complete correct wiring quickly.
The power input terminal features reverse polarity protection, safeguarding the device from damage due to incorrect wiring. The antenna interface is a standard SMA or other common interface, supporting the replacement of high-gain external antennas to extend the control distance.
Performance Testing and Verification
The CS-733 has undergone rigorous performance testing to ensure reliability in various real-world application environments. The following data is derived from laboratory tests and field application feedback.
Open SpaceOffice EnvironmentIndustrial PlantUnderground Parking Lot04080120
Distance Test Results
In an ideal open space environment, the CS-733 can achieve a maximum control distance of 120 meters. In practical applications, the distance can be affected by factors such as walls, metal obstacles, and interference from other wireless devices.
In an office environment, due to partitions and furniture obstruction, the effective distance is approximately 65 meters. In industrial plants, due to open spaces but metal equipment interference, the distance is about 85 meters. In underground parking lots, due to the significant impact of reinforced concrete structures, the effective distance is approximately 45 meters.
10.6
Standby Power Consumption
mA @12V voltage, energy-saving design
99.8
Communication Success Rate
percentage, within standard test distance
28
Maximum Operating Voltage
Volts DC, wide voltage adaptability
Related Products and Accessories
To meet diverse application needs, the CS-733 offers a complete accessory ecosystem, helping users build comprehensive wireless control solutions.
TX-F Series Remote Controls
Available in various button configurations, such as 1-button, 2-button, and 4-button, to meet different control requirements. The casing is sturdy and durable, and the buttons have a good feel, suitable for long-term frequent use.
Learning Remote Control
Supports learning and replicating existing remote control signals, facilitating system upgrades or remote control replacements. One remote control can learn multiple device groups, simplifying management.
DIN Rail Mounting Bracket
Standard 35mm DIN rail mounting accessory, convenient for quick installation and fixing in distribution boxes or control cabinets, saving space and maintaining tidiness.
High-Gain External Antenna
Optional 3dBi, 5dBi, or higher gain antennas significantly enhance control distance and penetration capability, suitable for large venues or complex environments.

Compatibility Note: All accessories undergo rigorous compatibility testing to ensure perfect integration with the CS-733 main unit. It is recommended to use original manufacturer accessories to guarantee system stability and after-sales service support.
Technical Support and Resource Downloads
Documentation Resources
We provide comprehensive technical documentation to help users quickly select products, deploy installations, and troubleshoot issues.
Product User Manual
Detailed installation, wiring, configuration, and usage instructions, including illustrated steps and FAQs.
Technical Specifications
Complete technical data sheets including electrical parameters, mechanical dimensions, environmental requirements, and other specifications.
CAD Structure Drawings
Product outlines and installation dimension drawings in DWG/DXF format, convenient for engineering design integration.
Certification Certificates
CE, FCC, RoHS, and other relevant certification documents to meet international market compliance requirements.
Technical Support Services
Our technical team is always ready to provide you with professional support. Whether it's product selection consultation, system design recommendations, or on-site application troubleshooting, we will provide timely responses.
  • Phone technical support (weekdays 9:00-18:00)
  • Email technical consultation (response within 24 hours)
  • On-site technical support (specific regions)
  • Customized solution design services
