(識別卡)無塵室人員識別

Intelligent Cleanroom Personnel Identification
－RFID All-in-One Reader System
Model: WS-RFIDALL-8
Precise Identification System Designed for Cleanroom Environments
The WS-RFIDALL-8 UHF RFID integrated reader is custom-built for high-cleanliness environments, precisely applicable for cleanroom personnel identification and access management. The system utilizes advanced UHF RFID technology, allowing personnel to be automatically detected and recorded by the integrated reader upon entering and exiting the cleanroom by simply wearing a dedicated identification card.
There's no need to swipe cards or stop, effectively improving passage efficiency and significantly reducing human contact risks. This design not only meets the stringent cleanliness requirements of cleanrooms but also ensures the accuracy and real-time nature of personnel access management, providing the optimal solution for industries such as semiconductors, flat panels, and precision electronics.
Cleanroom Application Benefit Analysis
Contactless Identification
Fully complies with cleanroom management regulations, avoiding contamination risks and cross-infection caused by contact-based card swiping.
Real-time Record Management
Automatically records personnel entry and exit times and frequencies, establishing a comprehensive dynamic personnel tracking database.
System Integration Capability
Can be integrated with cleanroom garment management, equipment usage records, and other systems to build a complete cleanroom management platform.
Reduced Management Costs
Minimizes human operational errors, improves management efficiency, and is suitable for high-cleanliness environments such as semiconductor, panel, and electronics manufacturing.
Core Advantages of Wenxing Electronics' Cleanroom Garment RFID Identification Solution
This solution is a standard cleanroom garment RFID personnel identification solution planned by Wenxing Electronics, specifically designed for actual cleanroom operating environments.
Reduce Missed Read Risks
By utilizing multi-device overlapping coverage and circular polarization antenna configuration, it effectively reduces missed read risks caused by human body obstruction and changes in orientation.
Stable and Efficient Identification
Provides stable, predictable, and highly successful personnel entry/exit identification, ensuring management compliance and complete records.
Stable and Scalable System
Balances system stability, expansion flexibility, and long-term operation requirements, helping clients improve management efficiency and reliability.
Professional Technical Support
Wenxing Electronics provides comprehensive technical consultation, system integration, and after-sales service to ensure smooth implementation and long-term operation of the solution.
Applicable Field Types
Semiconductor Wafer Fabs
Strictly controls personnel access and cleanroom garment usage records in cleanroom environments.
Panel and Optoelectronic Manufacturing
TFT-LCD, OLED production lines, integrating personnel tracking and process control systems.
Electronic Assembly Lines
Precision electronic assembly and testing areas, ensuring personnel qualifications and product traceability.
R&D Laboratories
High-cleanliness R&D and testing environments, recording research personnel's laboratory usage hours.
WS-RFIDALL-8 UHF RFID Integrated Reader
Advantages of Multiple Reading Technologies
In a cleanroom environment, personnel wear thick cleanroom suits, and the angle at which identification cards are worn varies. If only a single reader is used, missed reads can easily occur due to human shielding, signal reflection, or poor card angle.
By using three WS-RFIDALL-8 integrated readers for multi-faceted reading, the identification success rate can be significantly increased to over 97%. The system configuration includes one device on the top, one on the left, and one on the right, forming a complete three-dimensional reading network to ensure that personnel are accurately identified regardless of their posture when passing through.
Smart Directional Judgment
The system can automatically determine whether personnel are entering or leaving the cleanroom by analyzing the reading sequence and signal strength changes. When personnel pass through, the system records the trigger timing and signal strength of the three WS-RFIDALL-8 integrated readers.
By analyzing the sequence and changes in the signal strength curve of this data, the system can accurately determine the direction of passage, effectively avoiding misjudgment or duplicate records, and ensuring the completeness and accuracy of entry and exit records, providing reliable data for management.
Three Integrated RFID Readers Collaborative Reading Architecture
The entrance/exit is configured with three integrated RFID readers, positioned at the top, left, and right. This triangular configuration creates a complete reading coverage area, overcoming the human body shielding effect and ensuring that regardless of a person's posture or walking speed, they can be accurately read by at least one device.
Top Reader
Installed above the entrance, covering head and shoulders
Left Reader
Placed at waist height, sensing the left chest area
Right Reader
Placed at waist height, sensing the right body area
Top Reader
Covers the head and shoulder area, capturing signals from a top-down tag angle
Left Reader
Senses the left chest and arm position, supplementing side reading blind spots
Right Reader
Corresponds to the right body area, forming a complete three-dimensional reading network
Real-world Application Scenarios
The above images demonstrate the installation configuration and application scenarios of the WS-RFIDALL-8 system in a real cleanroom environment.
The system does not interfere with the normal operation processes of the cleanroom, while providing efficient and accurate personnel tracking capabilities.
TECHNICAL COMPARISON
Key Advantages of Multi-Angle Reading Design
Limitations of Single Device
Tags easily obscured when personnel wear thick cleanroom suits
Single reading angle easily creates blind spots
Signal reflection and clothing interference affect accuracy
Actual reading success rate is only about 60%
Unable to cope with differences in wearing habits among personnel
Advantages of Three-Device Collaborative Reading
Simultaneous sensing from multiple directions: top, left, and right
Automatically compensates for blind spots caused by obstruction and angles
Cross-validation enhances data reliability
Reading success rate can be increased to over 97%
Adapts to various body types and wearing style variations
Intelligent Entry/Exit Direction Determination Mechanism
01
Trigger Sequence Analysis
Records the reading order of the three devices
02
Signal Strength Tracking
Monitors the dynamic change curve of RSSI values
03
Automatic Direction Determination
System intelligently determines entry or exit action
04
Complete Record Storage
Avoids duplicate records and misjudgments, ensuring data integrity
Management Benefits
Through precise algorithm analysis of data from three readers, the system can accurately determine personnel movement direction. When personnel enter the cleanroom from the outside, the reading sequence is typically triggered by the outer device first, followed by the top device, and finally the inner device; the reverse sequence applies for exiting.
Combined with the trend of signal strength changes, the system can exclude abnormal behaviors such as loitering or turning back, ensuring that each entry/exit record corresponds to an actual passage event. This intelligent determination mechanism significantly improves management efficiency, avoids human error, and allows managers to instantly grasp personnel dynamics within the cleanroom, meeting strict audit and traceability requirements.
Cleanroom Identification System Backend
Option 1: Sewn-on eTag Dedicated Label
Technical Specifications
Standard Protocol
UHF RFID passive tag, compliant with EPC Gen2 international standard
Operating Frequency Band
860~960MHz UHF band, suitable for long-distance reading
Dimensions
70×15×1.5mm, slim design does not affect wearing comfort
Durability
Operating temperature -25℃~+110℃, washable 50~200 times (depending on tag washing method), chip can withstand ≥100,000 read/write cycles
Recommended Label Sewing Positions
Optimal Position:
Upper chest, shoulder edge, outer arm, and other open areas, ensuring no metal obstruction between the label and the reader.
Positions to Avoid:
Armpits, clothing folds, near metal accessories or zippers. These positions will severely affect signal transmission.
Common Incorrect Practices
· Stitching over the antenna area
· Stitch density too high, leading to antenna breakage
· Using metal or conductive threads
Correct Sewing Methods
· Secure to the "non-antenna area" of the label
· Use edge fastening or pocket-style enclosure
· Use low-lint, non-conductive thread
Option Two: ID Card eTag Labels
Depending on different usage environments and requirements, the WS-RFIDALL-8 system can be paired with various eTag ID card labels to ensure optimal reading performance and management flexibility.

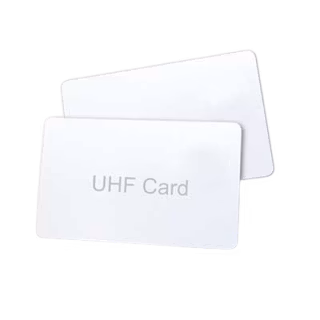

Single-Frequency UHF ID Card Type
Features: Appearance is the same as general employee ID cards or access control cards, customizable with printed LOGO, name, barcode, and other information.
Suitable for: Access control for personnel in non-harsh environments such as offices, general factories, and warehouses.
Note: UHF is sensitive to direction and human body shielding. Single card reading may not be stable enough for high success rate requirements (e.g., cleanrooms).
Dual-Frequency UHF+HF ID Card Type
Features: Appearance is the same as general employee ID cards or access control cards, customizable with printed LOGO, name, barcode, and other information.
Suitable for: Access control for personnel in non-harsh environments such as offices, general factories, and warehouses.
Note: UHF is sensitive to direction and human body shielding. Single card reading may not be stable enough for high success rate requirements (e.g., cleanrooms).
Thickened / Directionally Optimized Card
Features: Adopts a larger antenna design, offering more stable reading distances and lower sensitivity to direction; some feature directional design.
Suitable for: Industrial sites, fixed-direction passage at entrances, and other scenarios requiring a high read success rate.
Application: Often used at card reader entrances in environments with fixed pedestrian flow direction to enhance identification stability.
Cleanroom Specific ID Card
Features: Specifically designed for cleanroom environments, can be sewn onto cleanroom suits or inserted into a fixed position. Material is resistant to washing, alcohol, and high temperatures.
Suitable for: Semiconductor, display panel, biomedical cleanrooms, and other areas requiring high read success rates and compliance management.
Note: Requires optimized antenna structure, correct wearing position, and a complete system design to achieve optimal performance.
Professionally Answering Your Questions
1
Why is the same tag sometimes readable and sometimes not?
Because UHF eTags are sensitive to direction and environment, the human body (water), metal, and personnel movements (walking, turning, bending) can affect radio wave propagation. This is a normal physical characteristic.
2
Can only one reader be installed?
A single device has insufficient reading success rate in cleanroom applications; multiple devices are required for cross-coverage to ensure stability.
3
Why are 2-3 integrated reader devices installed at the entrance?
Multiple integrated reader devices can form cross-reading, reducing missed reads caused by human body obstruction and directional changes, significantly improving overall success rate.
4
Is the cleanroom class related to the eTag label?
UHF RFID is a wireless technology, and in practice, 100% cannot be guaranteed. However, through the number of devices, configuration, and system design, stable performance above 97% can be achieved.
5
Will eTag sewn in different positions on cleanroom garments affect reading?
Yes, the tag position will affect the relative angle to the antenna and the degree of human body obstruction. Recommendations and tests are required based on actual wearing methods.
6
Will eTag tags fail after repeated washing and disinfection of cleanroom garments?
Cleanroom-specific eTags are designed to be washable and can withstand multiple washes and disinfections. The actual lifespan still needs to be evaluated based on washing cycles and temperature conditions.
7
If multiple people pass through the entrance simultaneously, will they interfere with each other?
The system has anti-collision reading mechanisms, and with appropriate equipment configuration, it can effectively handle situations where multiple people pass through simultaneously.
8
Will the equipment mistakenly read people in the adjacent aisle or those not passing through?
There is a possibility, but by adjusting antenna angles, power settings, and reading zone planning, the reading range can be limited to the specified channel.
9
How does the system handle missed reads?
The system can avoid misjudgments caused by a single missed read through re-reading mechanisms, passage logic, and event record design.
10
Can a 100% reading rate be guaranteed?
UHF RFID is a wireless technology, and in practice, 100% cannot be guaranteed. However, through the number of devices, configuration, and system design, stable performance above 97% can be achieved.
