GPS High Accuracy Reference Source Generators

Model:
WS-GPSD

WS-GPS is a type of 10MHz high performance synchronization signal reference source. High accuracy GPS receiver is adopted. By the use of navigation system with timing and ranging GPS, we can amend the error of frequency in ±0.1ppm. It is therefore suitable for every type of precision instruments with 10MHz reference source, e.g. Spectrum analyzer?Signal generator, etc. By using the built-in 320mAh Li-ion Lithium-ion battery, you can calibrate directly to the outdoor without external power supply when amending under poor indoor reception. It is convenient and easy to use.

APPEARANCE

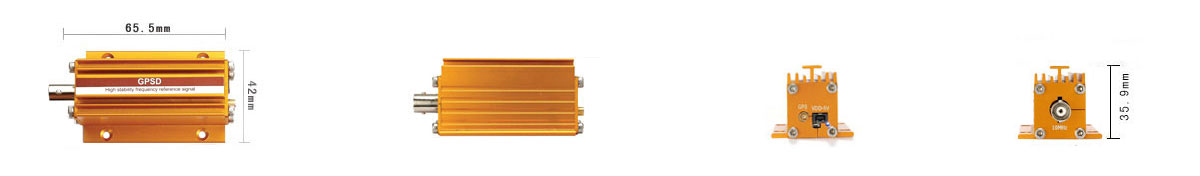

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


FEATURES

Application

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications


Output signal:10MHz

    Output power:-6dBm

    Drift free run:Frequency tolerance:within ±0.1ppm

    Output connector:BNC

    Supply voltage:5V

    GPS Antenna connector:MCX

    Li-battery capacity:300mA
