Rolling Door Remote Controller RD-710F-433

Model:
RD-710F-433 (Standard)

These products are automatically controllers. You can choose two frequencies. Also, you can use them on 110~220 voltage Alternating current. Our products are based on normal operation to design and manufacture. Please DO NOT use them on highly-required safety equipment fields, such as Hospitalize, Aviation, Transportation and other systems which are related with life security etc.

Roll-Up Door Modes and Remote Control Pairing

Multiple modes are provided, including roll-up door, automatic descent, lift and single-point control, selectable with DIP switches. Open, stop and close control is supported, and wiring can be planned according to the on-site workflow. This product is intended for general equipment use and is not suitable for high-safety systems involving life safety.

Applications

Compatible remote control integration for roll-up doors, garage doors and general automatic opening/closing equipment.

FAQ

How do I enable automatic descent mode?

The installer sets the DIP switches according to the manual and combines them with the door operator's stop control and protection mechanisms for safe use.

How do I connect a motor?

The relay output can be connected to a motor controller. Contact rating is 5A 24V DC or 120V AC, and wiring can be planned according to the door operator's requirements.

How do I specify the power supply version?

Provide your site power supply information, and WENSHING will supply the corresponding power version and wiring diagram.

Related Products and Selection

CS-732F low-voltage wireless receiver; Compatible wireless repeater solution

APPEARANCE

Product Appearance

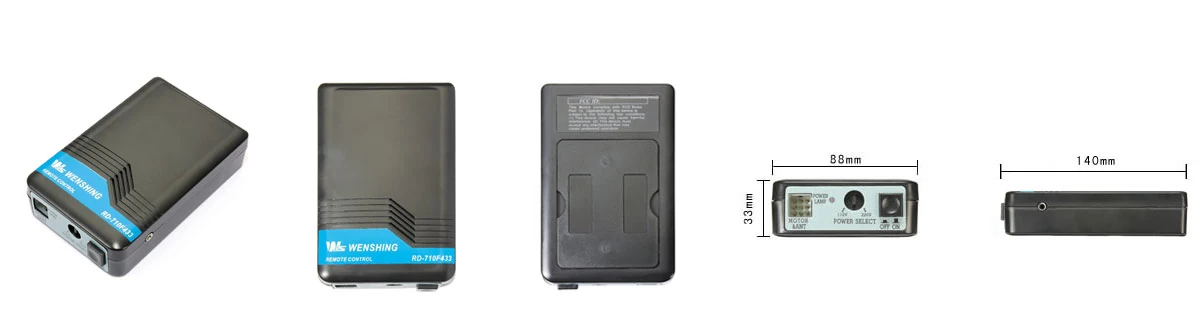

RD-710F-433 roll-up door controller appearance and dimensions from each side

FEATURES

Product Features

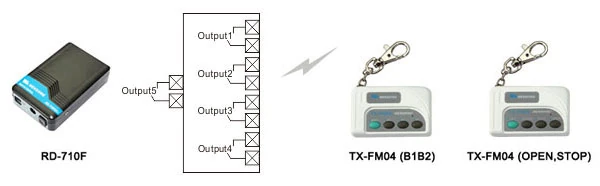

RD-710F-433 roll-up door controller outputs and remote control diagram

Control Mode Table

Remote Control ModelDIP Switch Setting RD-710F-433 controller DIP switchRelay Mode
TX-FM04(B1B2)

4 ON

Roll-up door mode

2, 4 ON

Lift mode

1, 4 ON

Automatic descent mode

1, 2, 3 ON

Single-point control

TX-FM04(OPEN,STOP)

4 ON

Roll-up door mode

2, 4 ON

Lift mode

1, 4 ON

Automatic descent mode

1, 2, 3 ON

Single-point control

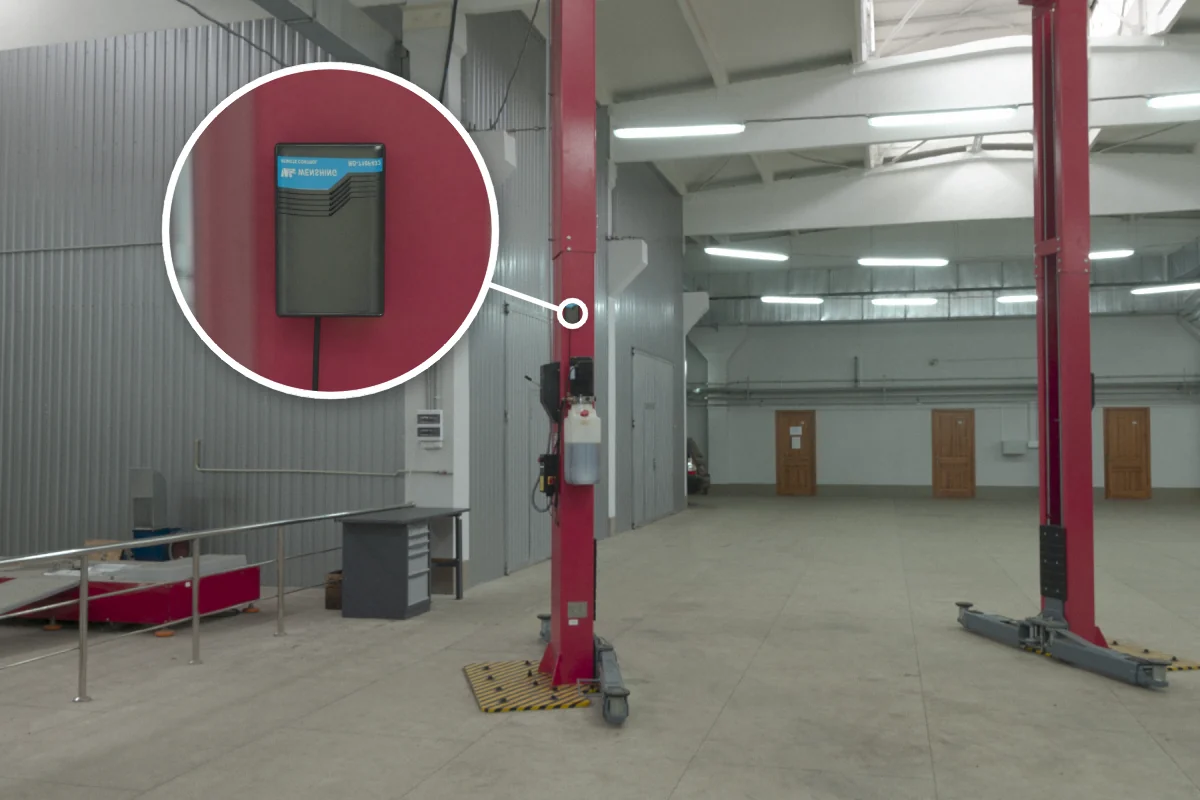

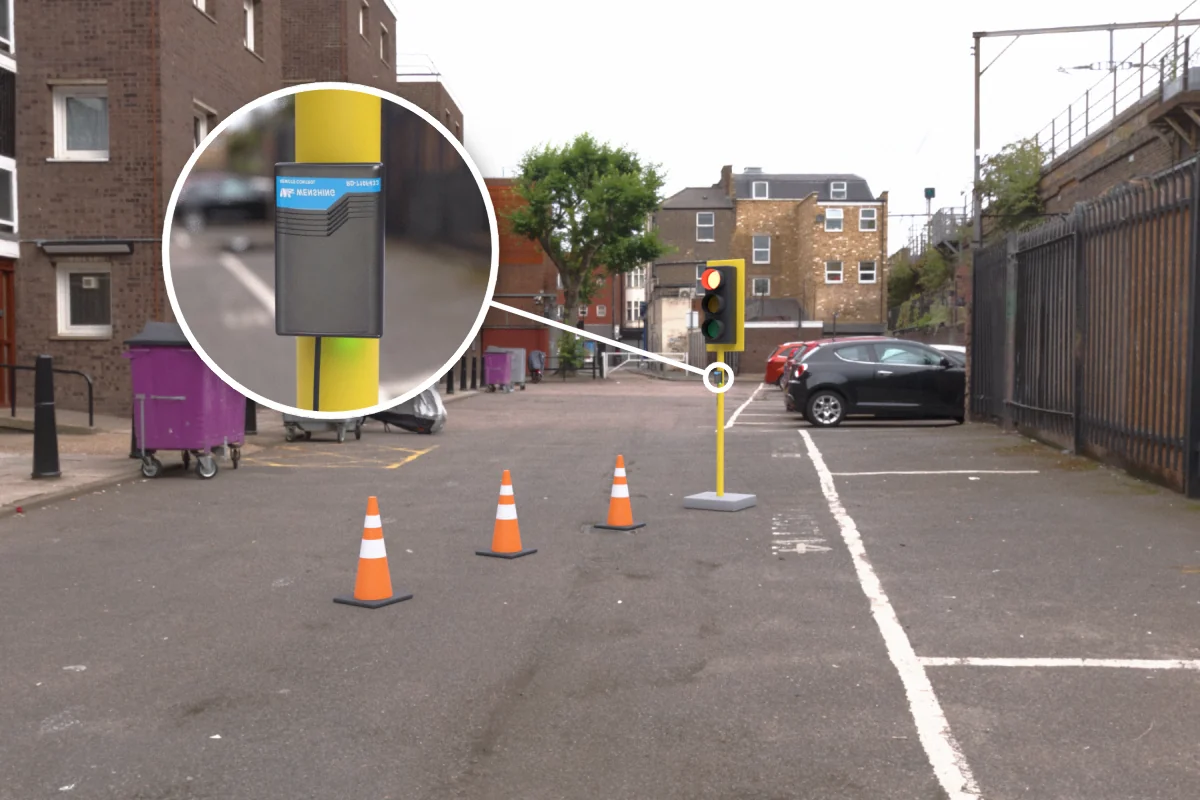

Road works temporary traffic light with RD-710F-433 rolling door remote controller mounted on the pole, signals switched by remote control Two-post vehicle lift in a car service shop with RD-710F-433 rolling door remote controller on the column for remote up/down control Glass automatic door with RD-710F-433 rolling door remote controller on the wall beside it for remote door opening Factory entrance sectional door with RD-710F-433 rolling door remote controller on the column, opened by remote from the forklift

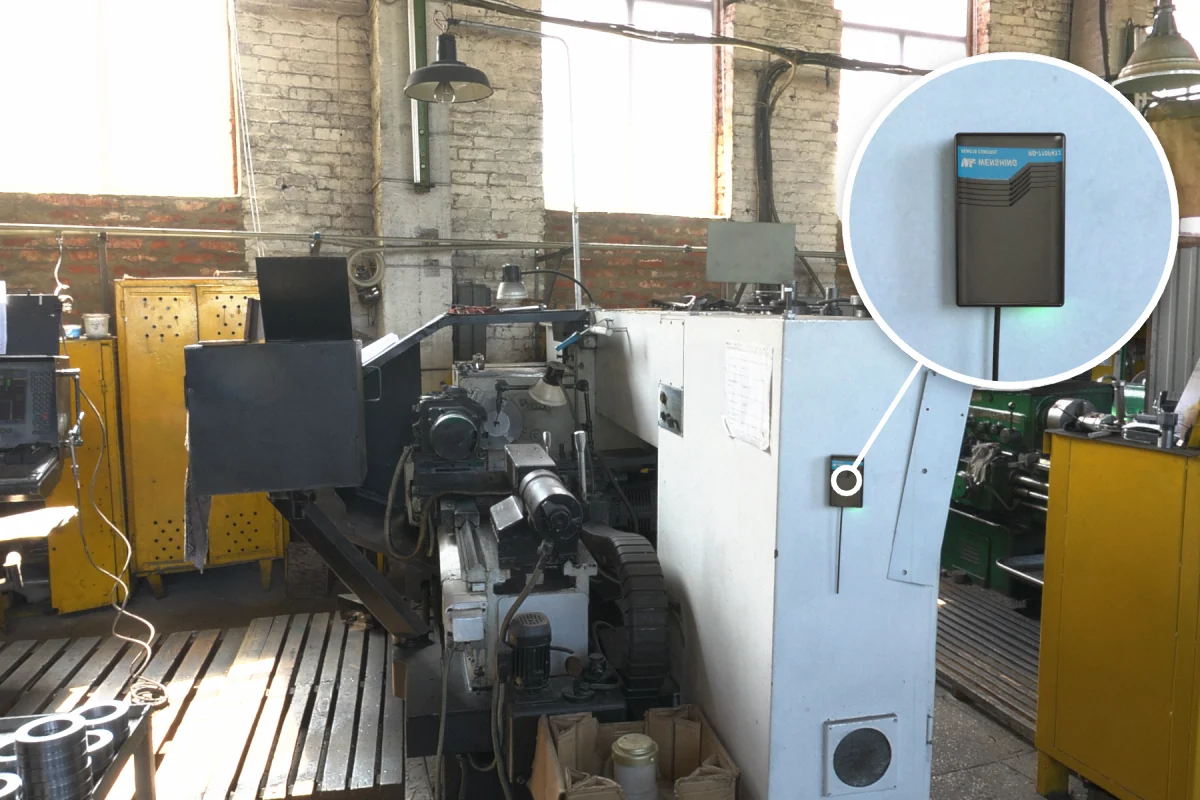

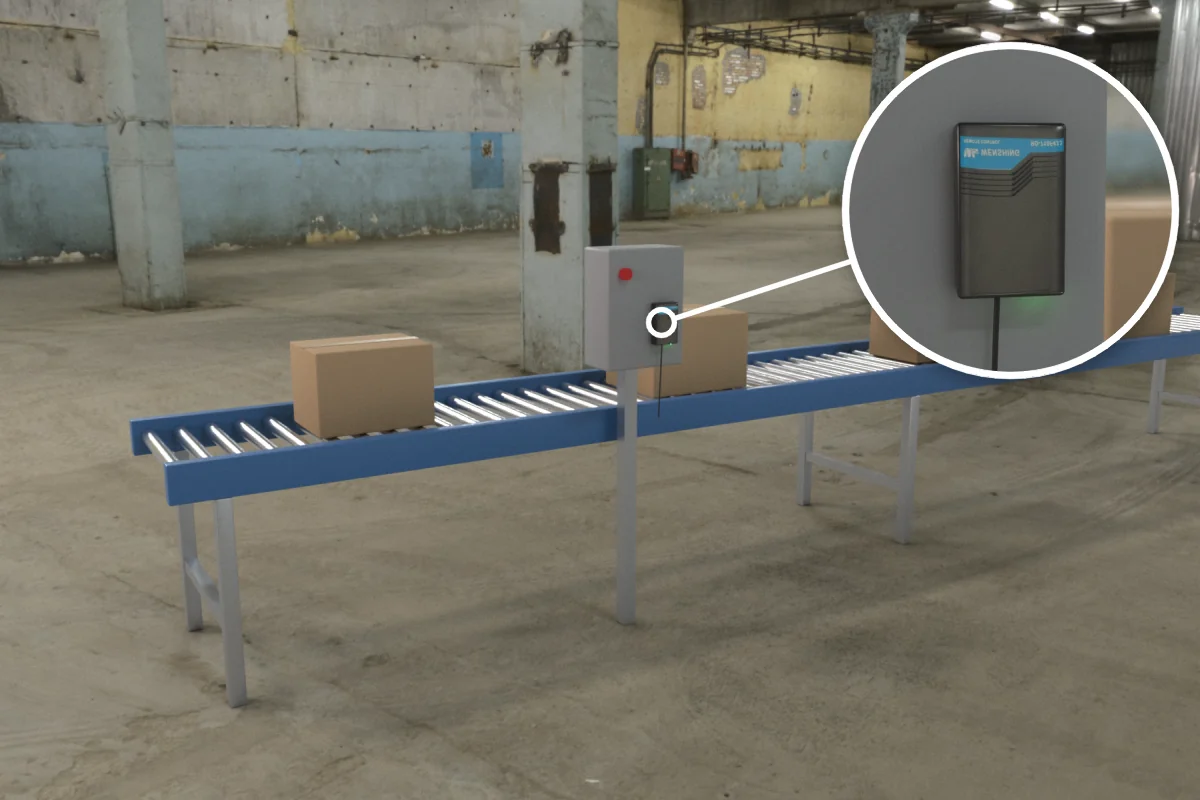

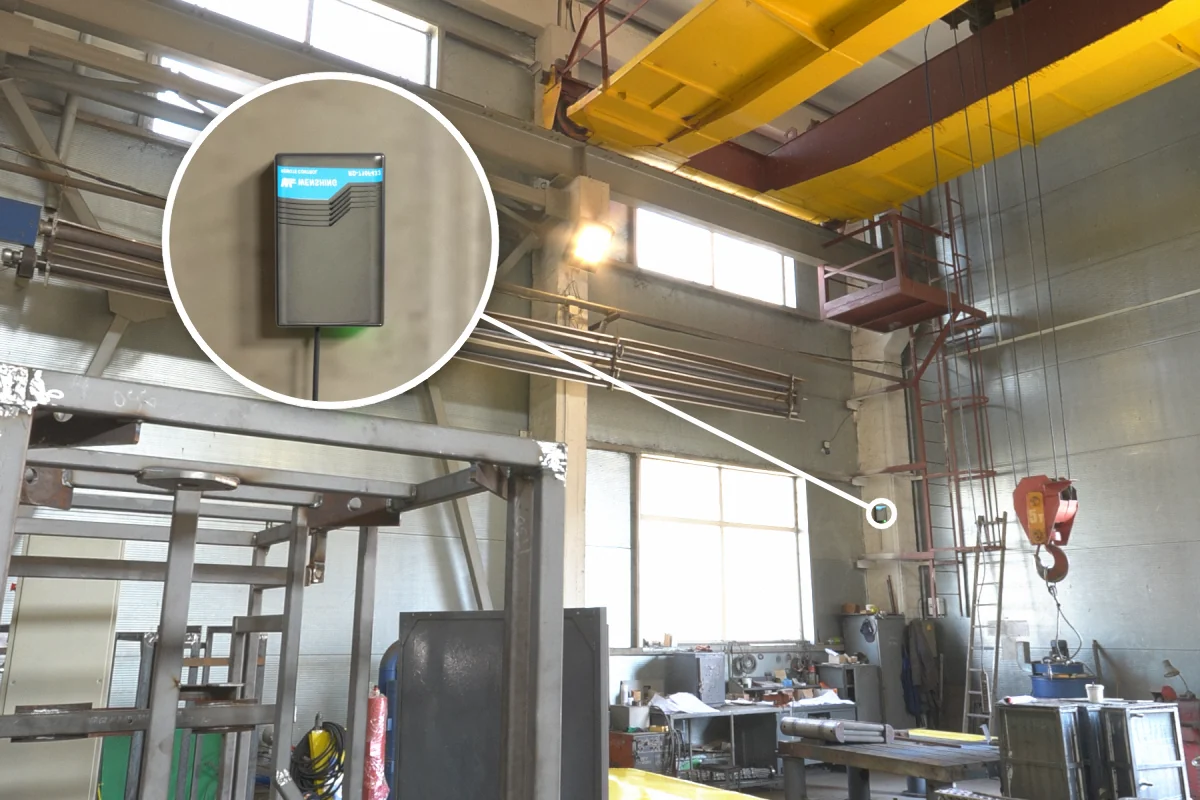

Factory 5-ton overhead crane bay with RD-710F-433 rolling door remote controller on the column for wireless crane control signals Warehouse roller conveyor with RD-710F-433 rolling door remote controller on the control box for wireless start/stop Machine tool electrical cabinet with RD-710F-433 rolling door remote controller sending machine signals wirelessly to the PC Warehouse roller shutter with RD-710F-433 rolling door remote controller on the wall beside it for remote up/stop/down

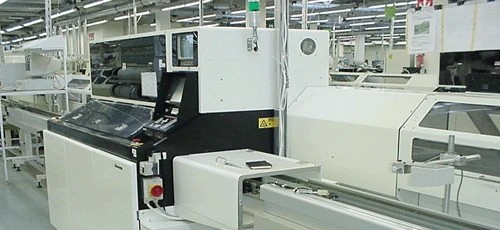

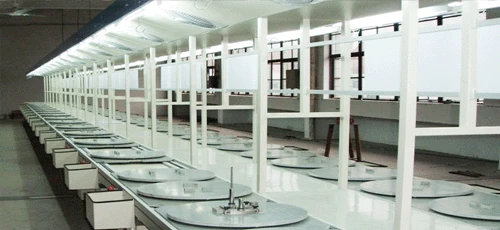

RD-710F-433 industrial site equipment control example RD-710F-433 processing equipment control application example

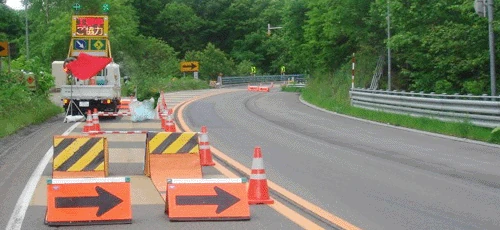

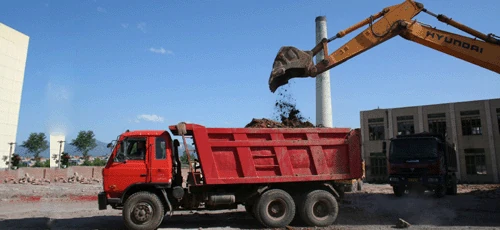

RD-710F-433 road construction equipment application example RD-710F-433 construction machinery application example

SPECIFICATION

Product Specifications

Sensitivity: 4uV

  • Code: 28,212, or 38,312

  • Power supply: 110/220V AC/DC

  • Frequency range: 433.9MHz

  • Relay contact voltage: 5A 24V/DC or 120V/AC

  • Power consumption: 10.5mA/12V

  • Control type: on/off, momentary, latching

  • Applications: roll-up door control, electronic locks, garage doors, home alarm systems, automatic control systems

Key specifications at a glance

ModelRD-710F-433 (General type) / RD-710F-433 (3A1B) / RD-710F-433 (4A)
Frequency433.9MHz
ApplicationRolling iron doors, Garage doors, Wireless control
Supply voltage110~220V AC
Size140*88*33
Product categoryParking System
DocumentationEnglish datasheet / manual (PDF)
