CS-732F Remote Control Receiver Host (433.9MHz)

Model:
CS-732F-12V(433MHz)
CS-732F-24V(433MHz)

These products are automatically controllers. You can choose two frequencies and the power suppliers are separately to DC 12V and DC24V each. It is build-in 2~3 relays and you can choose individually control or conjunctly control. Host has two relay models to be choose and it is easily for users to make settings by finger’ switch. It is very convenience and simple to make models or password’ setting. We have One-button controllers TX-FM01 and Two-button controllers TX-FM02.

APPEARANCE

External Appearance

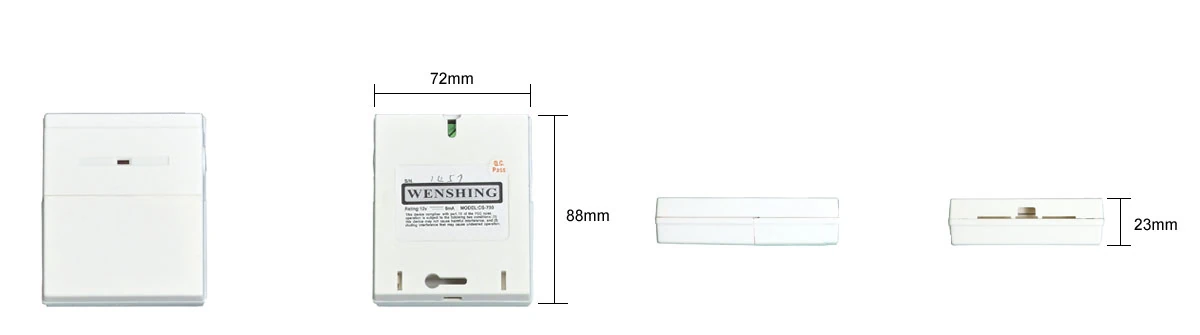

Dimensions - 433MHz remote control receiver CS-732F

FEATURES

Application

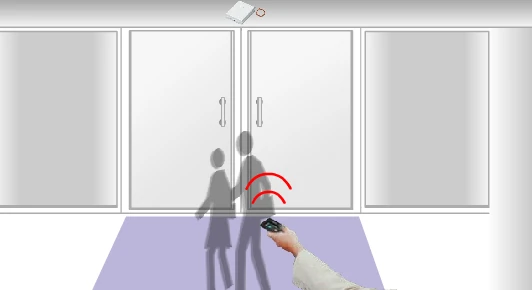

Wireless door opening - 433MHz remote control receiver CS-732F

Receiver remote pairing - 433MHz remote control receiver CS-732F

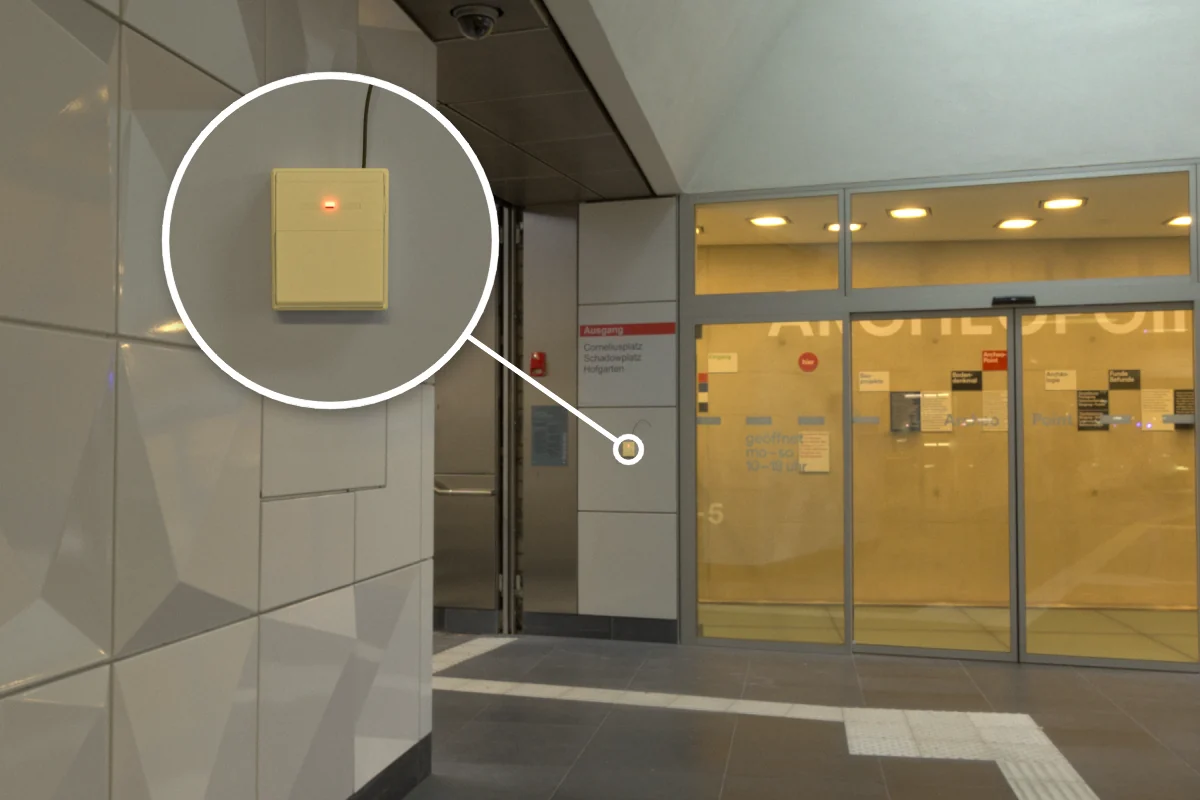

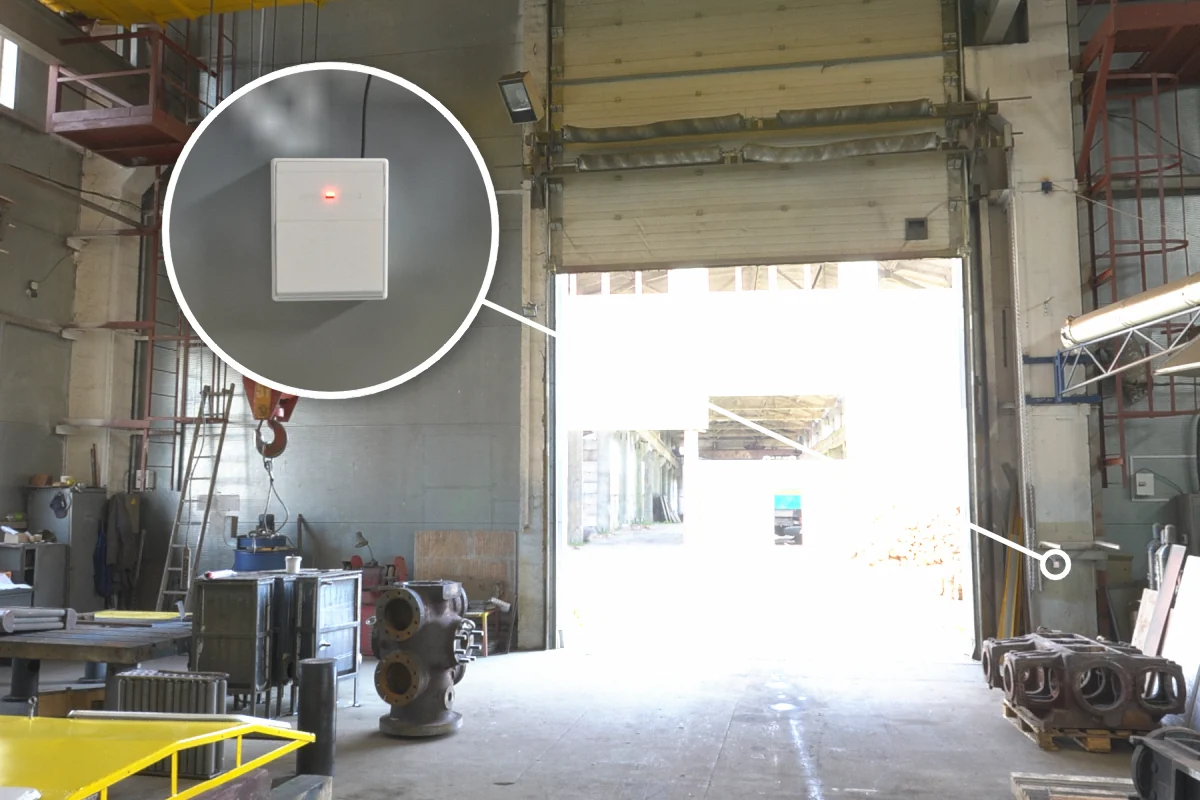

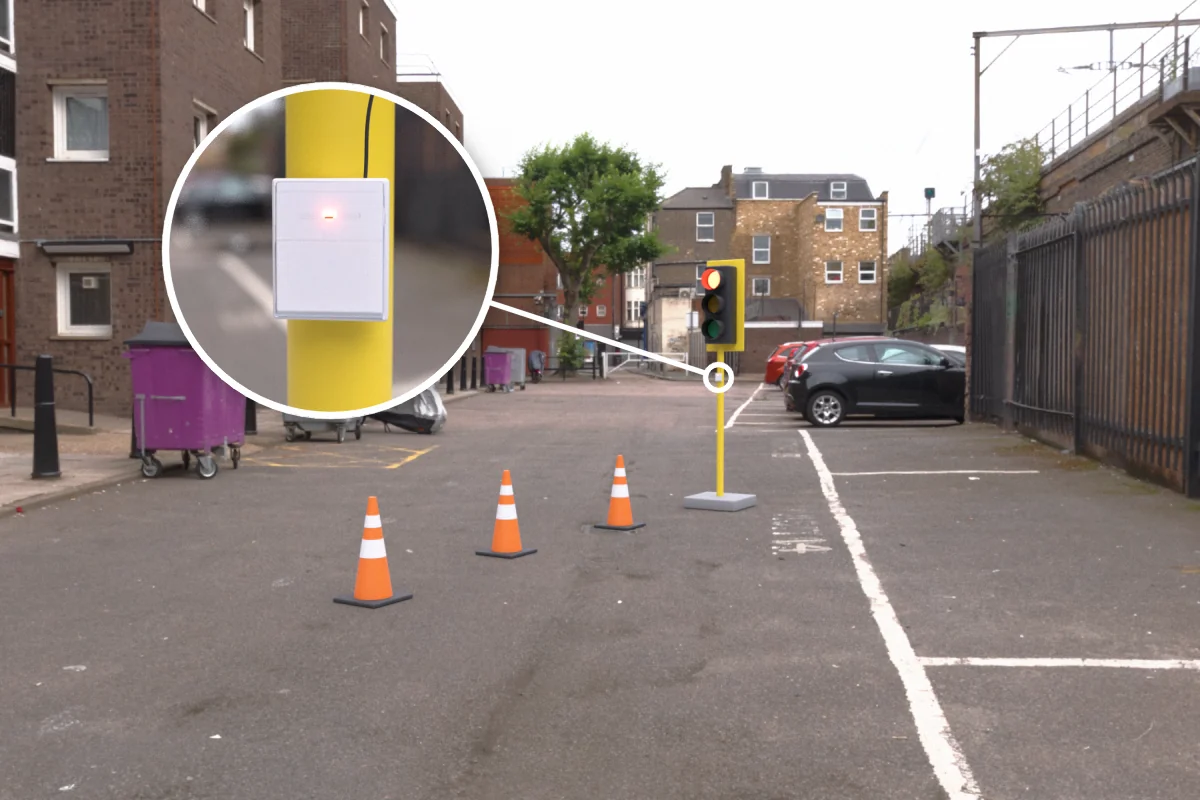

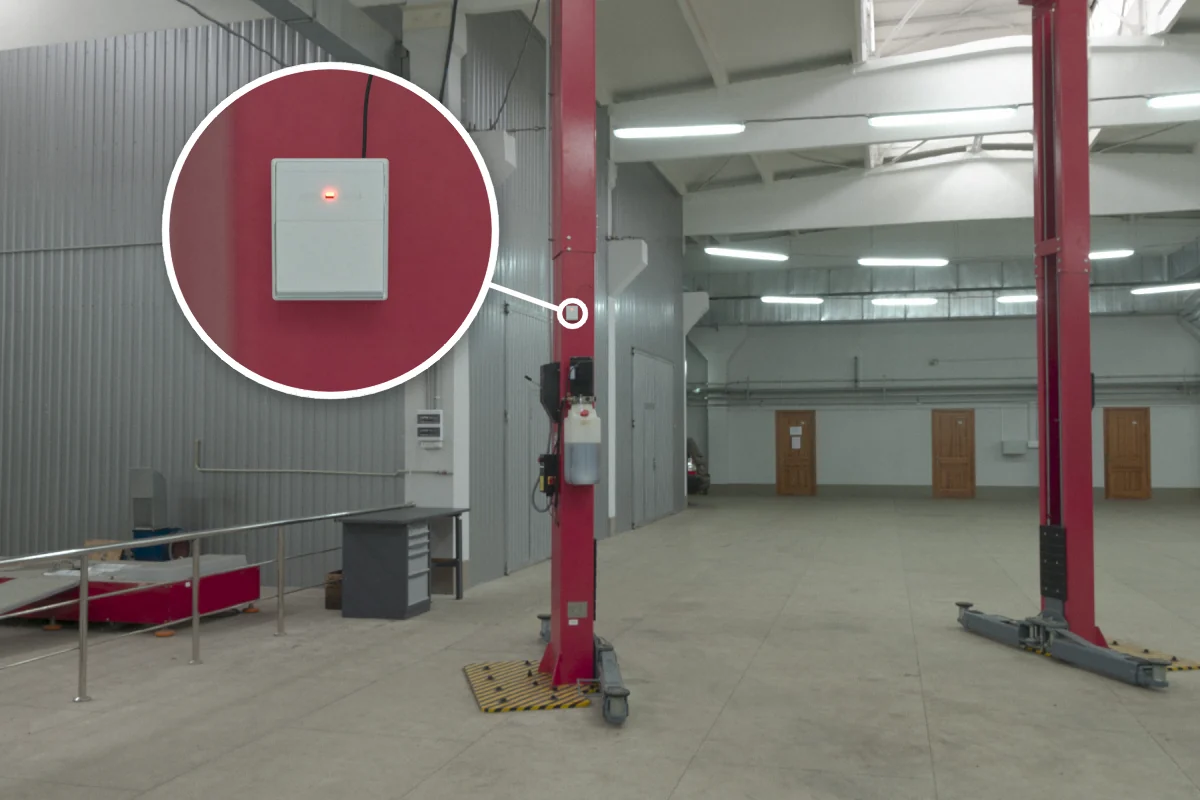

Road works temporary traffic light with CS-732F wireless remote receiver mounted on the pole, signals switched by remote control    Two-post vehicle lift in a car service shop with CS-732F wireless remote receiver on the column for remote up/down control Glass automatic door with CS-732F wireless remote receiver on the wall beside it for remote door opening    Factory entrance sectional door with CS-732F wireless remote receiver on the column, opened by remote from the forklift

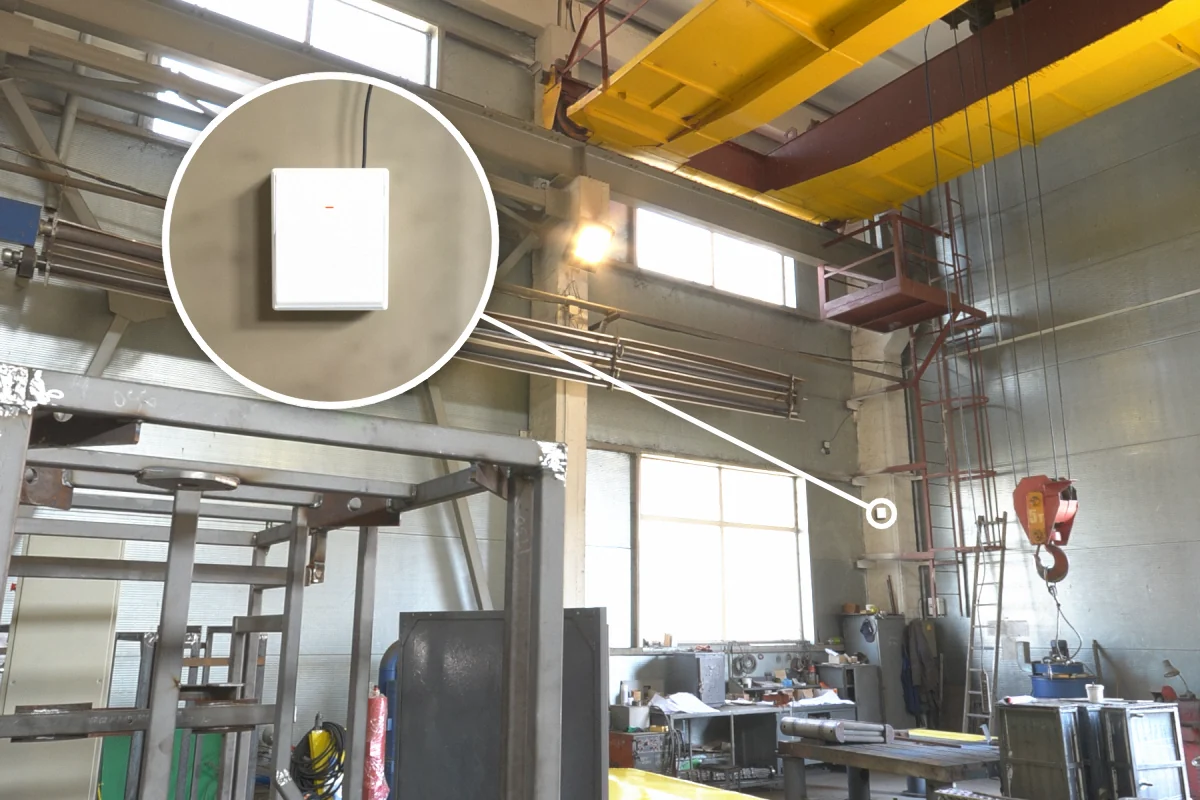

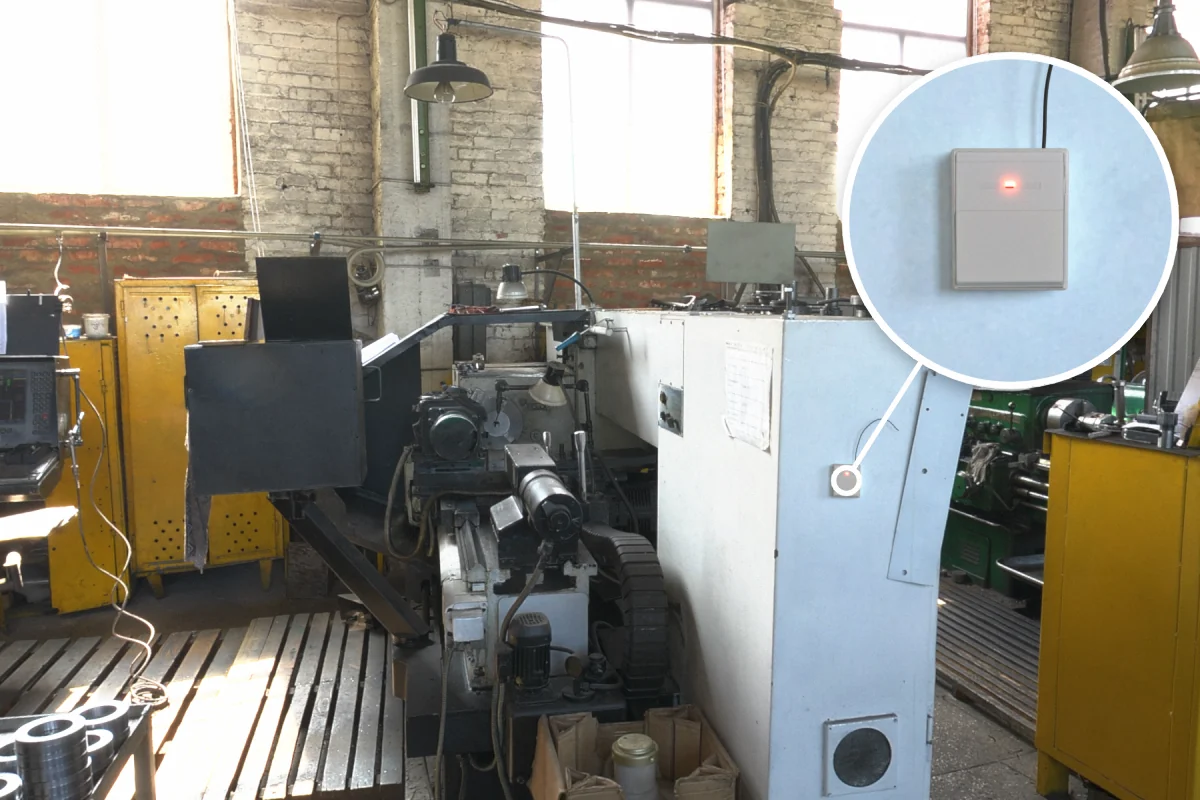

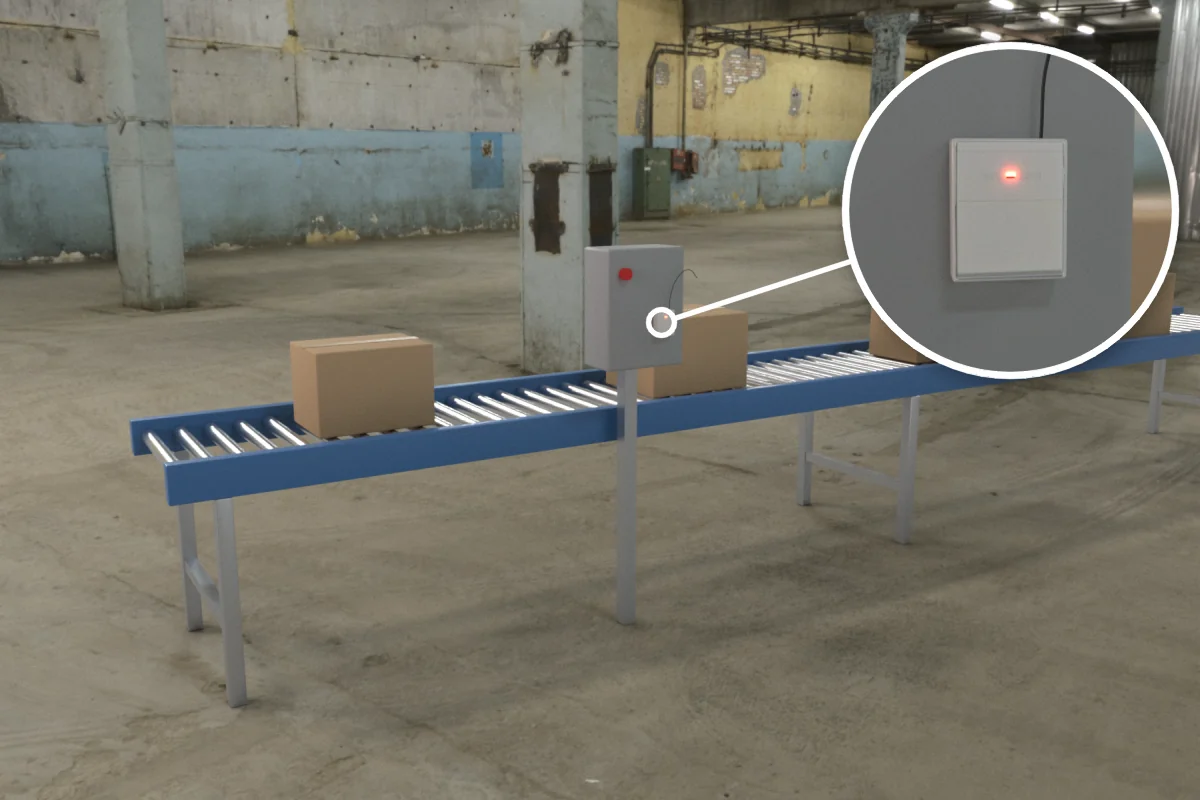

Factory 5-ton overhead crane bay with CS-732F wireless remote receiver on the column for wireless crane control signals        Warehouse roller conveyor with CS-732F wireless remote receiver on the control box for wireless start/stop Machine tool electrical cabinet with CS-732F wireless remote receiver sending machine signals wirelessly to the PC        Warehouse roller shutter with CS-732F wireless remote receiver on the wall beside it for remote up/stop/down

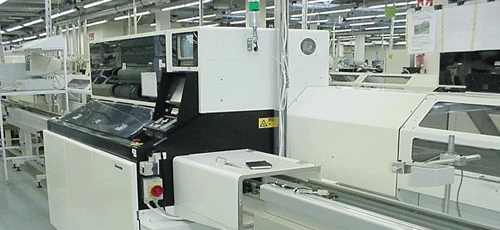

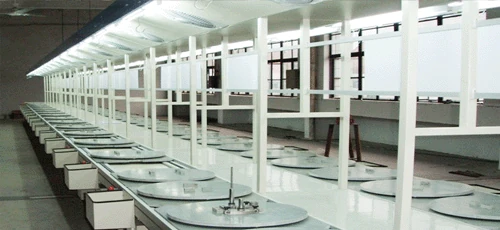

Industrial site equipment example - 433MHz remote control receiver CS-732F   Processing equipment application example - 433MHz remote control receiver CS-732F

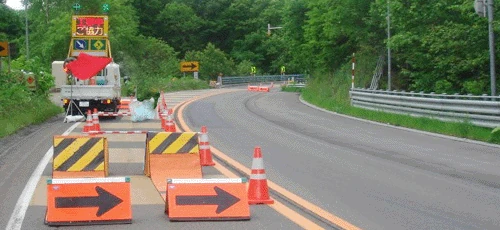

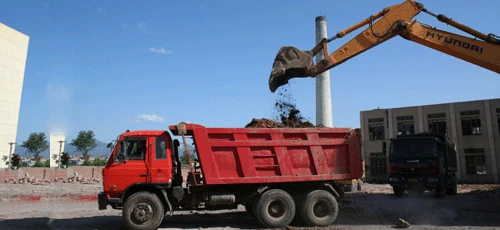

Road construction equipment application example - 433MHz remote control receiver CS-732F   Construction machinery application example - 433MHz remote control receiver CS-732F

SPECIFICATION

Technical specifications

CS-732F-12V(433.9MHz)

  • Sensitivity : 3uV

  • Code : 28,212,or 38,312

  • Power supply : 12V DC

  • Frequency Range : 433.9MHz

  • Power consumption : 10.6 mA/12V

  • Power consumption : 10.6 mA/12V

  • Relay contact voltage : 5A 12V DC

  • Control type : on/off, momentary,continue

  • Usage range : Elctronic lock, Garage door, Home alarm security system,Auto control system.

CS-732F-24V Wireless Remote Controller Electric Lock

ItemSpecificationRemark
Frequency433.9MHz
ModulationFSK
Supply VoltageDC 12V
Current10.6mA/12V
Control TypeON/OFF, Momentary, Continue
Distance50~120M (Open space)

TX-FM04(B1B2)/TX-FM04(OPEN,STOP) Remote Controller

ItemSpecificationRemark
Frequency433.9MHz
Circuit ShapeSAW Resonator
ModulationFSK
Battery23A 12V
Distance50~120M (Open space)



CS-732F-24V(433.9MHz)

  • Sensitivity : 3uV

  • Code : 28,212,or 38,312

  • Power supply : 24V DC

  • Frequency Range : 433.9MHz

  • Power consumption : 10.6 mA/12V

  • Power consumption : 10.6 mA/12V

  • Relay contact voltage : 5A 24V DC

  • Control type : on/off, momentary,continue

  • Usage range : Elctronic lock, Garage door, Home alarm security system,Auto control system.

CS-732F-24V Wireless Remote Controller Electric Lock

ItemSpecificationRemark
Frequency433.9MHz
ModulationFSK
Supply VoltageDC 24V
Current10.6mA/12V
Control TypeON/OFF, Momentary, Continue
Distance50~120M (Open space)

TX-FM04(B1B2)/TX-FM04(OPEN,STOP) Remote Controller

ItemSpecificationRemark
Frequency433.9MHz
Circuit ShapeSAW Resonator
ModulationFSK
Battery23A 12V
Distance50~120M (Open space)

Key specifications at a glance

ModelCS-732F-12V(433MHz) / CS-732F-24V(433MHz)
Frequency433MHz
ApplicationRolling iron doors, Garage doors, Wireless control
Supply voltage12/24Vdc
Size88*72*23
Product categoryRemote Control Host
DocumentationEnglish datasheet / manual (PDF)
