CS-732 Wireless Remote Control Host 433.9MHz

Model:
CS-732-12V(433MHz)
CS-732-24V(433MHz)

These products are automatically controllers. You can choose two frequencies and the power suppliers are separately to DC 12V and DC24V each. It is build-in 2~3 relays and you can choose individually control or conjunctly control. Host has two relay models to be choose and it is easily for users to make settings by finger’ switch. It is very convenience and simple to make models or password’ setting. We have One-button controllers TX-F01, Two-button controllers TX-F02, and Copy-type controllers TX-N04.

APPEARANCE

External Appearance

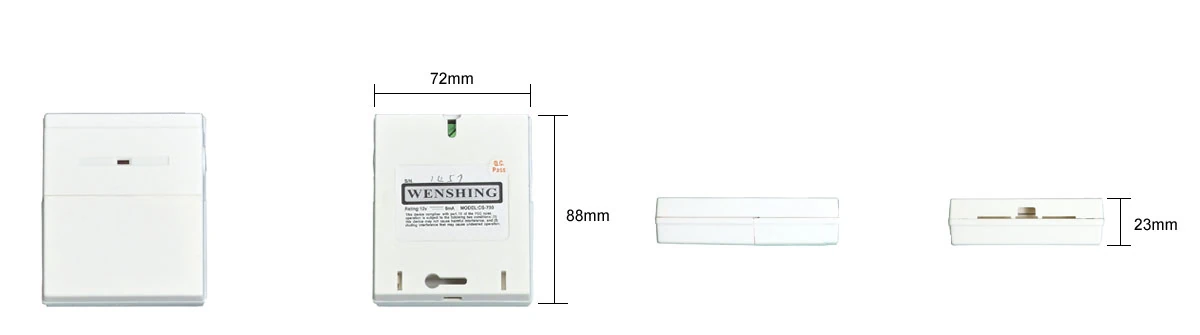

Dimensions - 433MHz wireless remote control receiver CS-732

FEATURES

Application

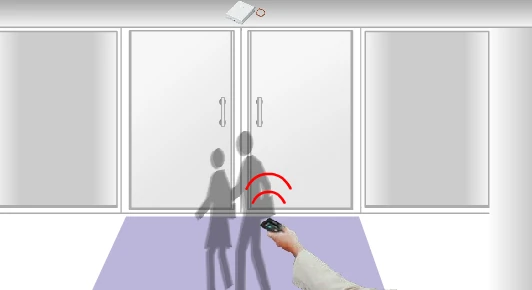

Wireless door opening - 433MHz wireless remote control receiver CS-732

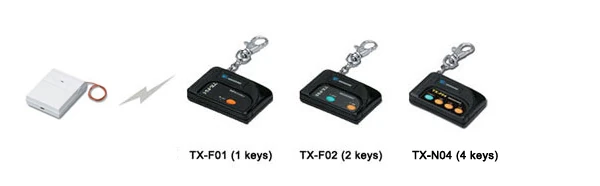

Paired remote controls - 433MHz wireless remote control receiver CS-732

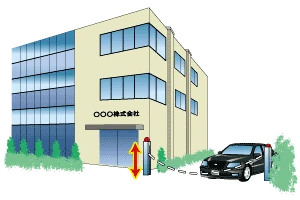

Temporary lane signal communication diagram - 433MHz wireless remote control receiver CS-732    Vehicle lift equipment diagram - 433MHz wireless remote control receiver CS-732 Automatic door opening diagram - 433MHz wireless remote control receiver CS-732    Factory entrance equipment diagram - 433MHz wireless remote control receiver CS-732

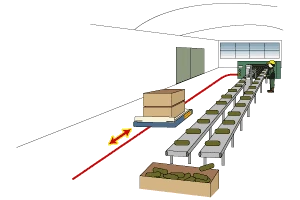

Overhead crane signal transmission diagram - 433MHz wireless remote control receiver CS-732        Conveyor signal transmission diagram - 433MHz wireless remote control receiver CS-732 Machine computer communication diagram - 433MHz wireless remote control receiver CS-732        Warehouse roll up door diagram - 433MHz wireless remote control receiver CS-732

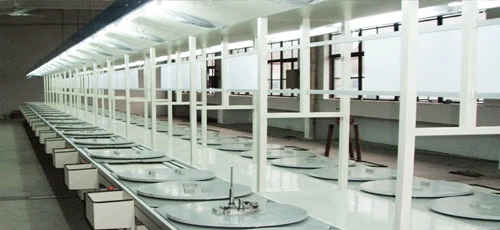

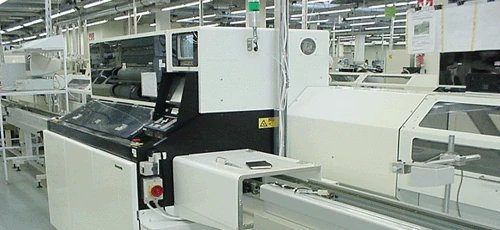

Industrial site equipment example - 433MHz wireless remote control receiver CS-732   Processing equipment application example - 433MHz wireless remote control receiver CS-732

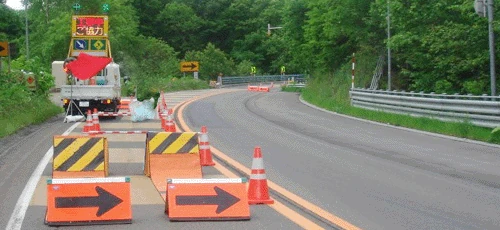

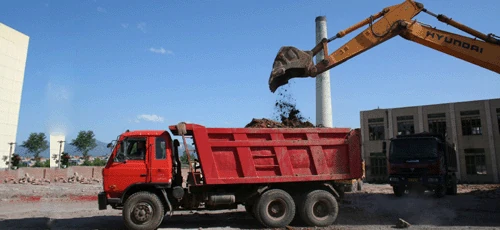

Road construction equipment application example - 433MHz wireless remote control receiver CS-732   Construction machinery application example - 433MHz wireless remote control receiver CS-732

SPECIFICATION

Technical specifications

CS-732-12V(433.9MHz)

  • Sensitivity : 3uV

  • Code : 28,212,or 38,312

  • Power supply : 12V DC

  • Frequency Range : 433MHz

  • Power consumption : 10.6 mA/12V

  • Power consumption : 10.6 mA/12V

  • Relay contact voltage : 5A 12V DC

  • Control type : on/off, momentary,continue

  • Usage range : Elctronic lock, Garage door, Home alarm security system,Auto control system.


  • Wireless Remote Controller Electric Lock

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    ModulationASK
    Supply VoltageDC 12V
    Current10.6mA/12V
    Control TypeON/OFF, Momentary, Continue
    Distance50~120M (Open space)

    TX-F01/TX-F02 Remote Controller

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    Circuit ShapeSAW Resonator
    ModulationASK
    Battery23A 12V
    Distance50~120M (Open space)


CS-732-24V(433.9MHz)

  • Sensitivity : 3uV

  • Code : 28,212,or 38,312

  • Power supply : 24V DC

  • Frequency Range : 433MHz

  • Power consumption : 10.6 mA/12V

  • Power consumption : 10.6 mA/12V

  • Relay contact voltage : 5A 24V DC

  • Control type : on/off, momentary,continue

  • Usage range : Elctronic lock, Garage door, Home alarm security system,Auto control system.

  • Wireless Remote Controller Electric Lock

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    ModulationASK
    Supply VoltageDC 24V
    Current10.6mA/12V
    Control TypeON/OFF, Momentary, Continue
    Distance50~120M (Open space)

    TX-F01/TX-F02 Remote Controller

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    Circuit ShapeSAW Resonator
    ModulationASK
    Battery23A 12V
    Distance50~120M (Open space)


Key specifications at a glance

ModelCS-732-12V(433MHz) / CS-732-24V(433MHz)
Frequency433.9MHz
ApplicationRolling iron doors, Garage doors, Wireless control
Supply voltage12/24Vdc
Size88*72*23
Product categoryRemote Control Host
DocumentationEnglish datasheet / manual (PDF)
