Home > Products > RFID Series> Active RFID Tag > UHF RFID semi-active Tag (Temperature sensing)

UHF RFID semi-active Tag (Temperature sensing)

Model:
WS-SAC

WS-Semi-Active-C operating frequency is 902~928MHz. It includes Temperature Sensor, LED Indicator and Buzzer sound alarm. Maximum battery life can be used for 7 years. Maximum reading distance can be reached to 30 meters. Tag can be scanned by UHF RFID Reader, and Tag lights up and responds with audible prompts to find the object. When object be found, Tag will make prompts. Built-in Temperature Sensor for fire detection. The Temperature Sensor will issue alarm when it is 20~50 degrees Celsius. It can be applied on long distance vehicle positioning, with a range of up to 30 meters.

APPEARANCE

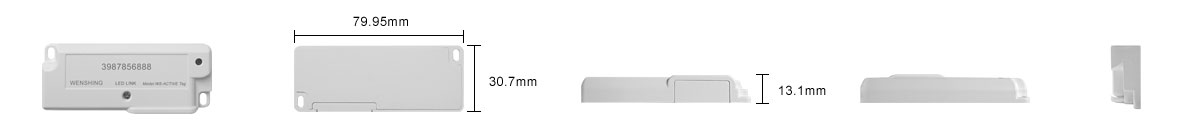

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO


SPECIFICATION

Technical specifications


Specification

Frequency: 902~928MHz

Compliant with ISO 18000-6C Communication Protocol

Built-in LED Indicator Light

Built-in Temperature Sensor

Buzzer Sound Prompt


Function

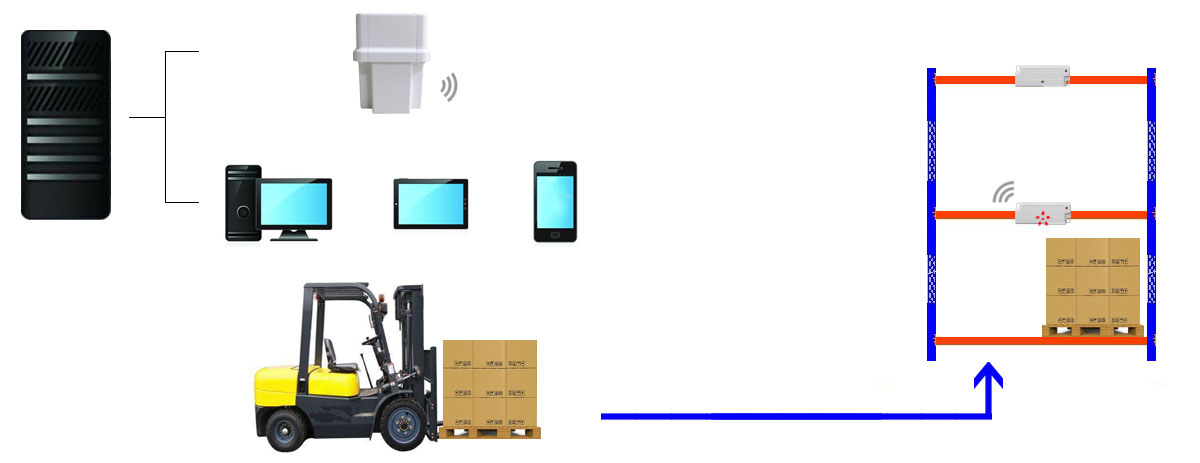

1.Warehouse Management: Tag can be scanned by UHF RFID Reader, and Tag lights up and responds with audible prompts to find the object. When object be found, Tag will make prompts.

2.Thermometer report.

3.Maximum vehicles positioning, distance can be reached to 30 meters.

4.Maximum battery life is able to reach 7 years.
